Dewalt DPD3100-TYPE-1 Replacement Parts

Model: DPD3100-TYPE-1

Brand: DeWalt

Download Schematics

Buy Dewalt DPD3100-TYPE-1 Pressure Washer Parts

Other tools in DeWalt Pressure Washer Parts category

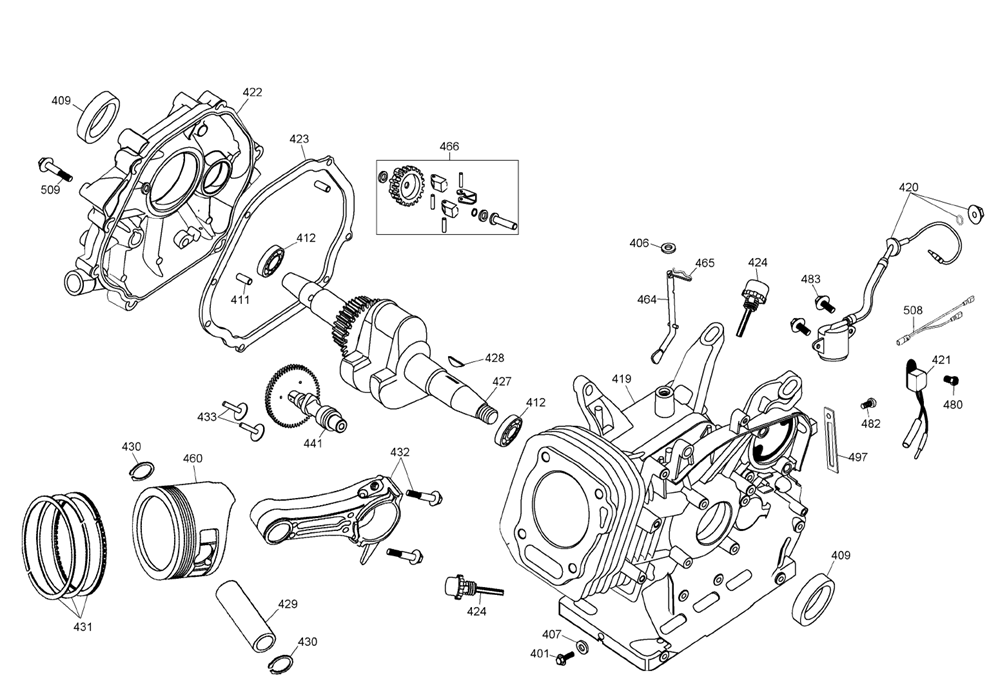

Fig-0

Fig-0

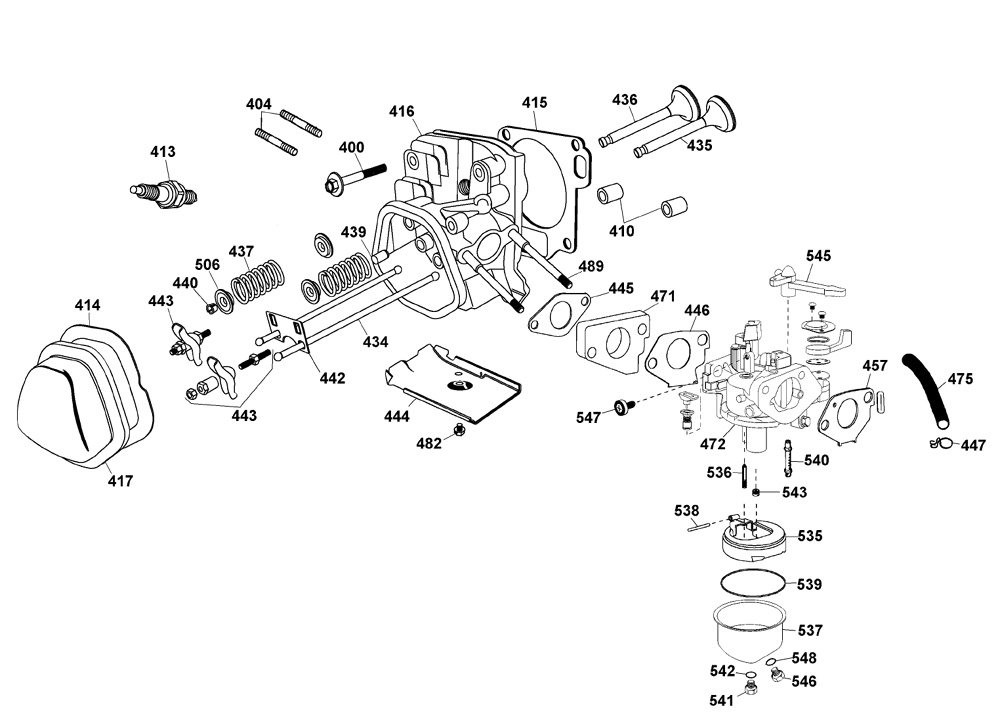

Fig-1

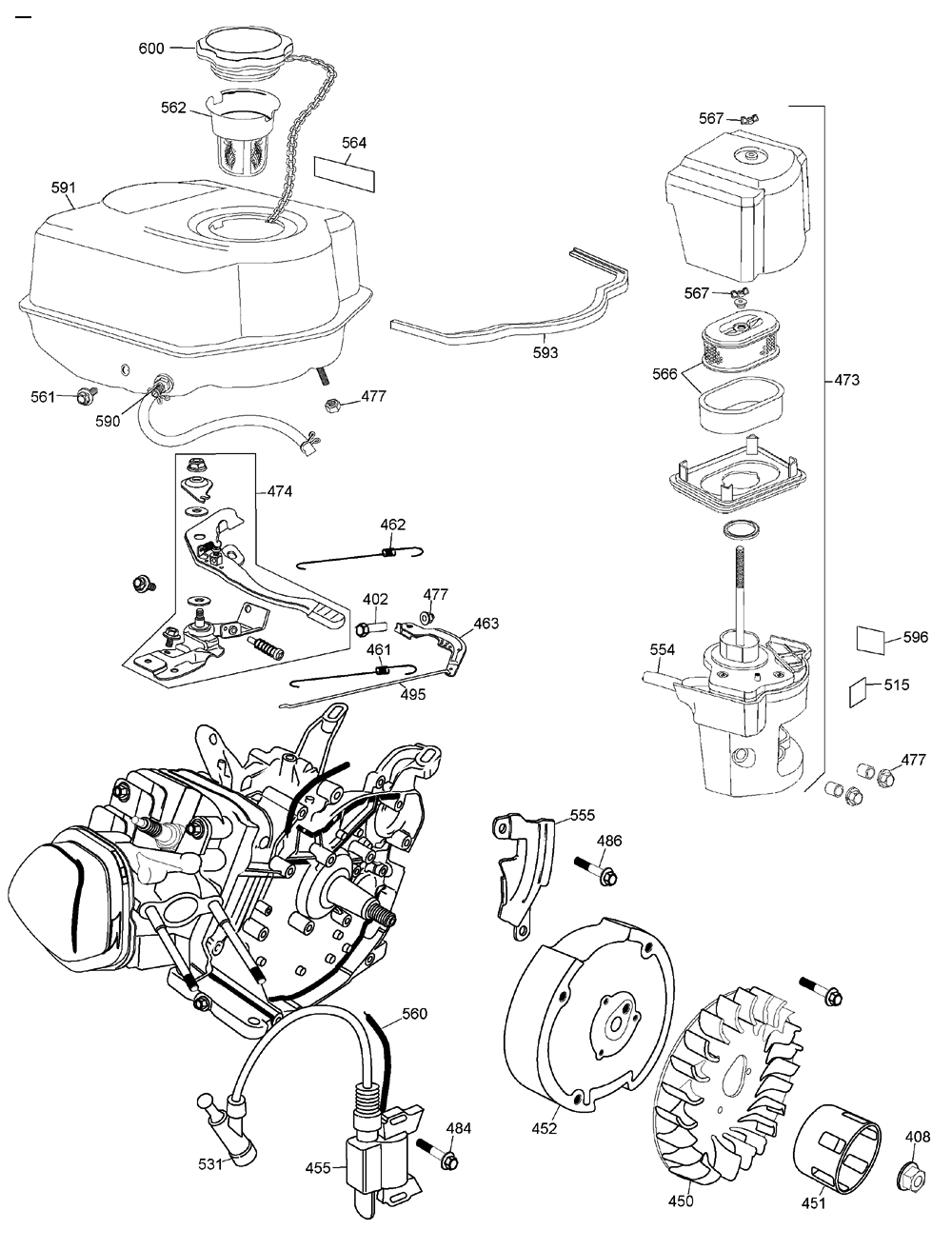

Fig-2

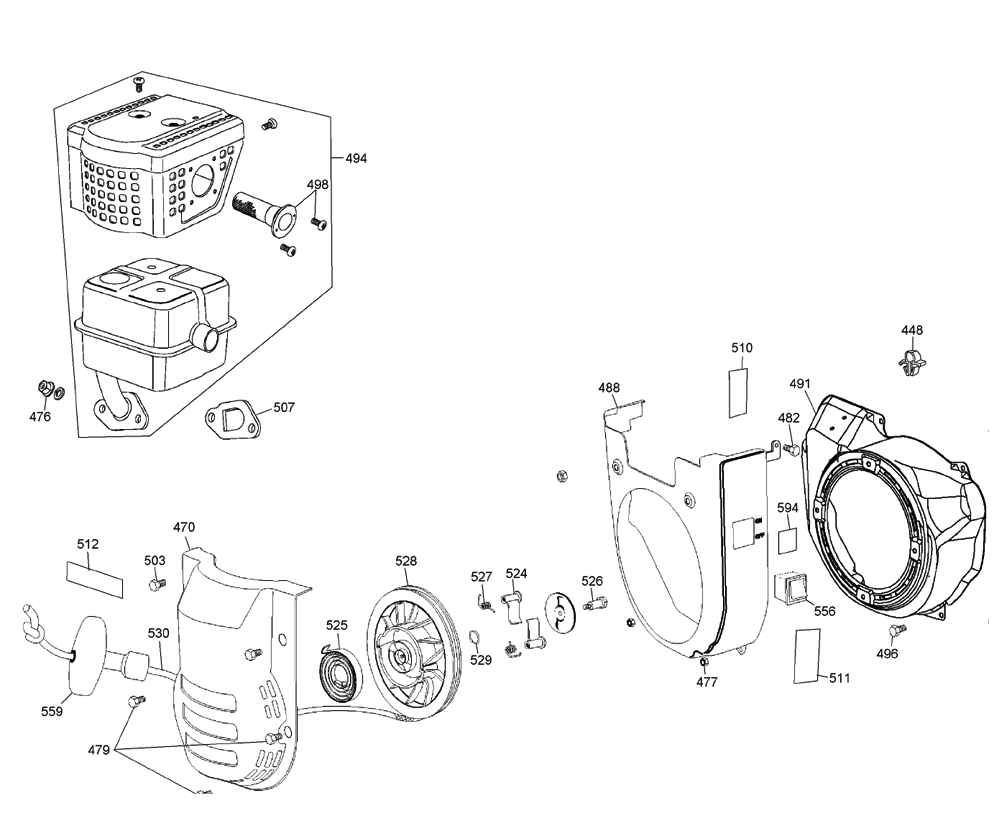

Fig-3

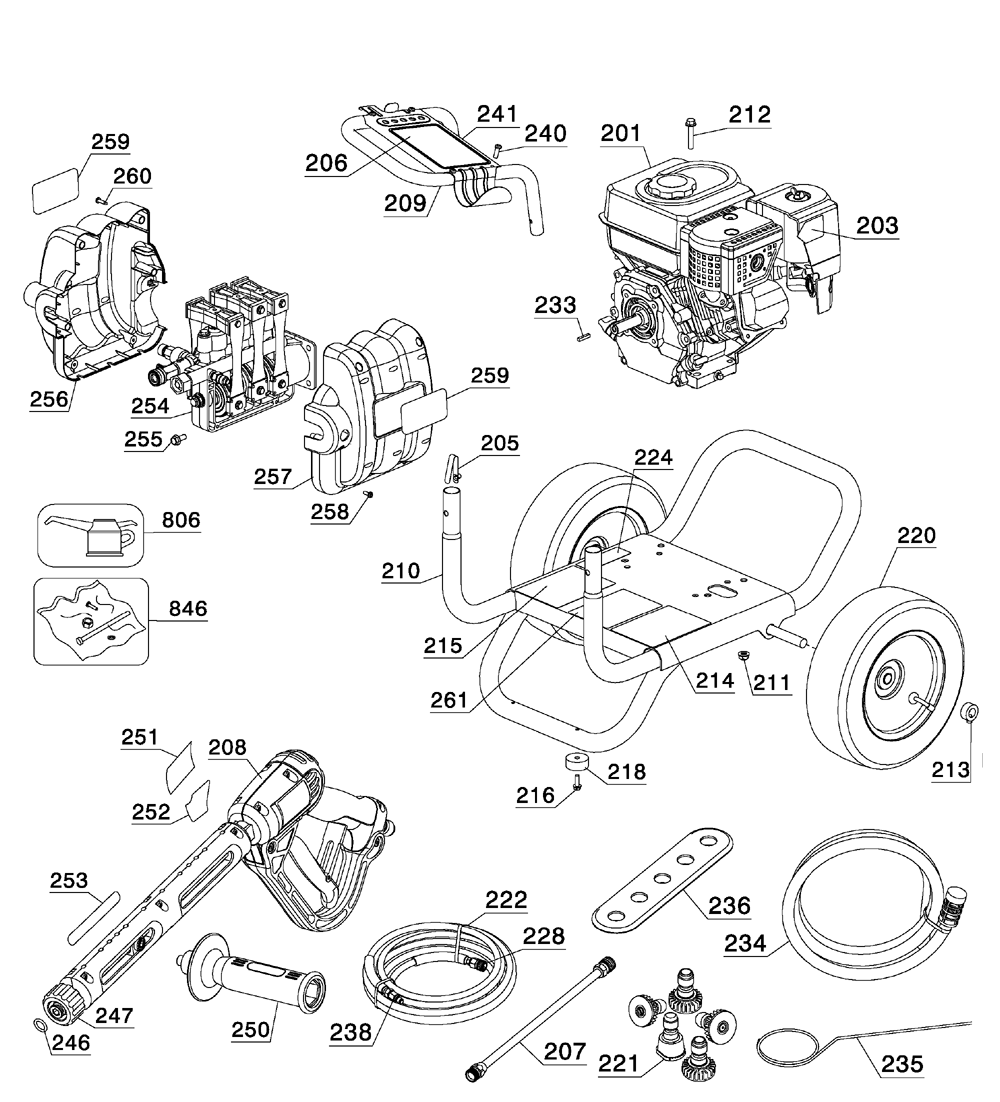

Fig-4

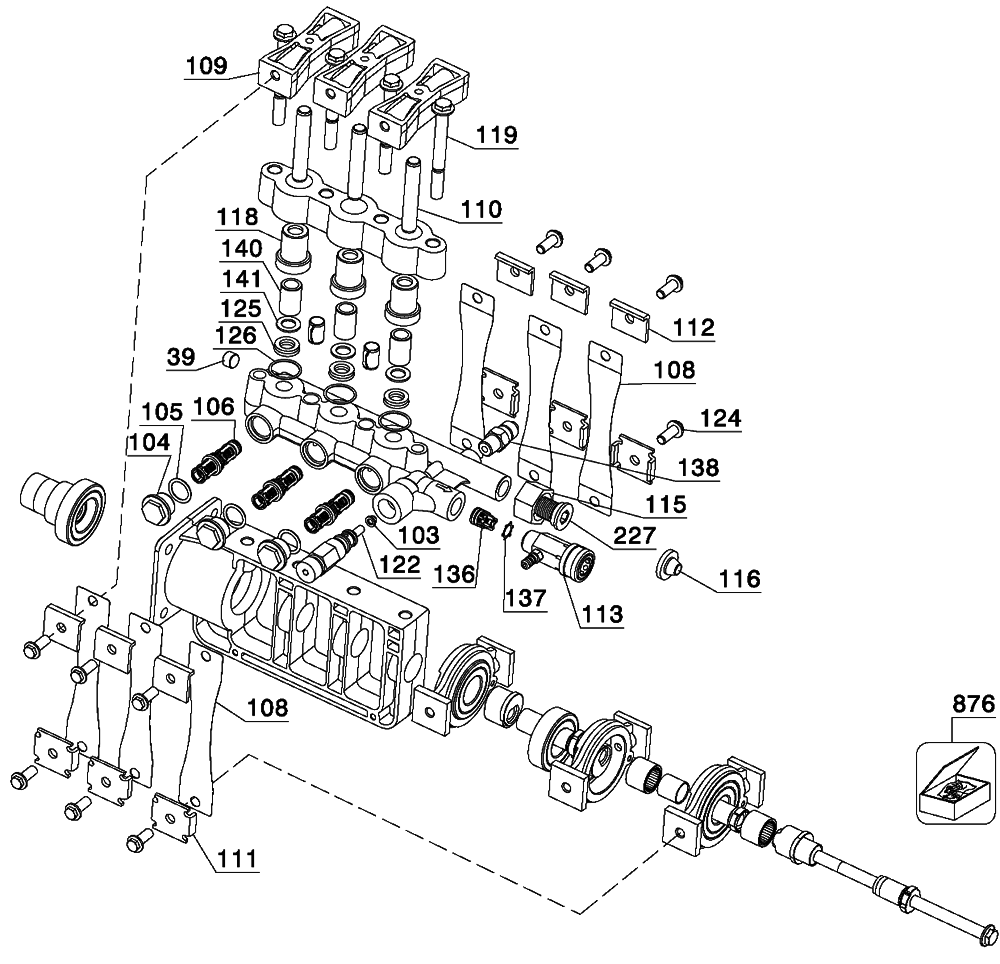

Fig-5

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Dewalt DPD3100-TYPE-1 Replacement Parts List

103

Seat Part # A17490 Currently not available

N/A
104

Plug Part # N079546 Currently not available

N/A
105

Valve Seat Part # A06655 Currently not available

N/A
106

Valve Kit Part # 1000003186 Currently not available

N/A
108

Strap Part # A20582 Currently not available

N/A
109

Cap Part # A03250 Currently not available

N/A
111

Clamp Block Part # A09435 Currently not available

N/A
112

Clamp Block Part # A02738 Currently not available

N/A
113

Injector Qc Chemical Part # D29372 Currently not available

N/A
115

Nut Swivel Gardenhos Part # H061 Currently not available

N/A
116

Screen Garden Hose 3 Part # F187

$2.52
Add to Cart
118

Journal Assy. Kit Part # N008693 Currently not available

N/A
119

Screw Part # A09417 Currently not available

N/A
122

Unloader Assy. Part # A17489 Currently not available

N/A
124

Screw Part # A09391 Currently not available

N/A
126

O-ring Part # 1000002364 Currently not available

N/A
136

Valve Assembly Part # D28705 Currently not available

N/A
137

Retaining Ring Part # A18469 Currently not available

N/A
138

Valve Thermal Relief Part # 17658 Currently not available

N/A
140

Bushing Part # A17491 Currently not available

N/A
201

Engine Part # 1000003649 Currently not available

N/A
203

Label Hot Surface Part # A14552 Currently not available

N/A
205

Button Snap .302 Dia Part # D30492 Currently not available

N/A
206

Warning Label Part # N000528 Currently not available

N/A
