Dolmar PS-35-C-TLC Replacement Parts

Model: PS-35-C-TLC

Brand: Dolmar

Download Schematics

Buy Dolmar PS-35-C-TLC Electric Saw Parts

Other tools in Dolmar Electric Saw Parts category

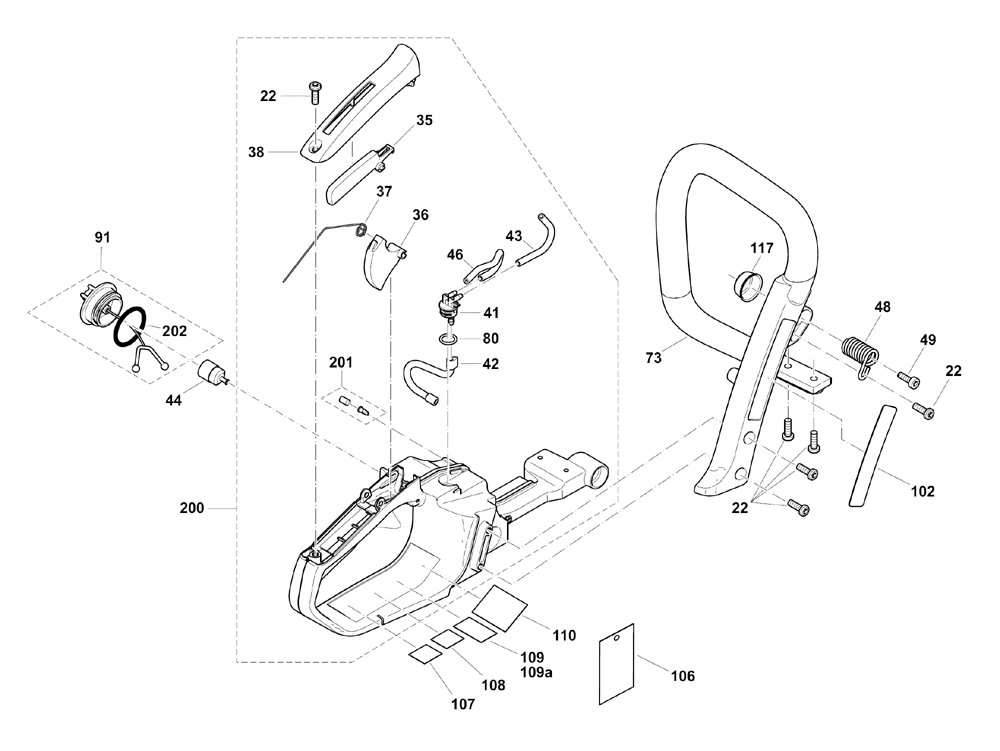

Fig-0

Fig-0

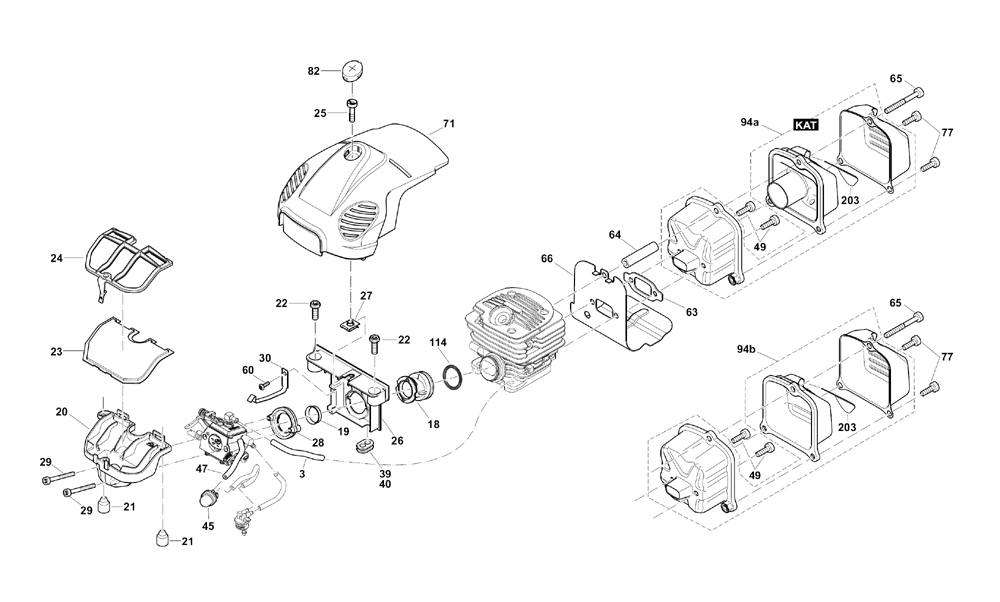

Fig-1

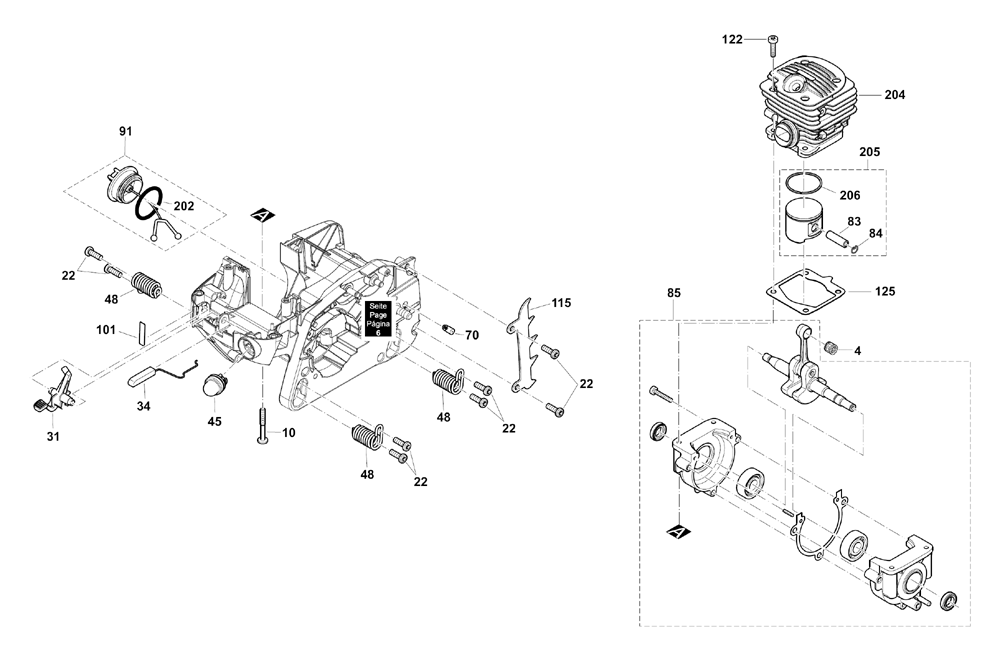

Fig-2

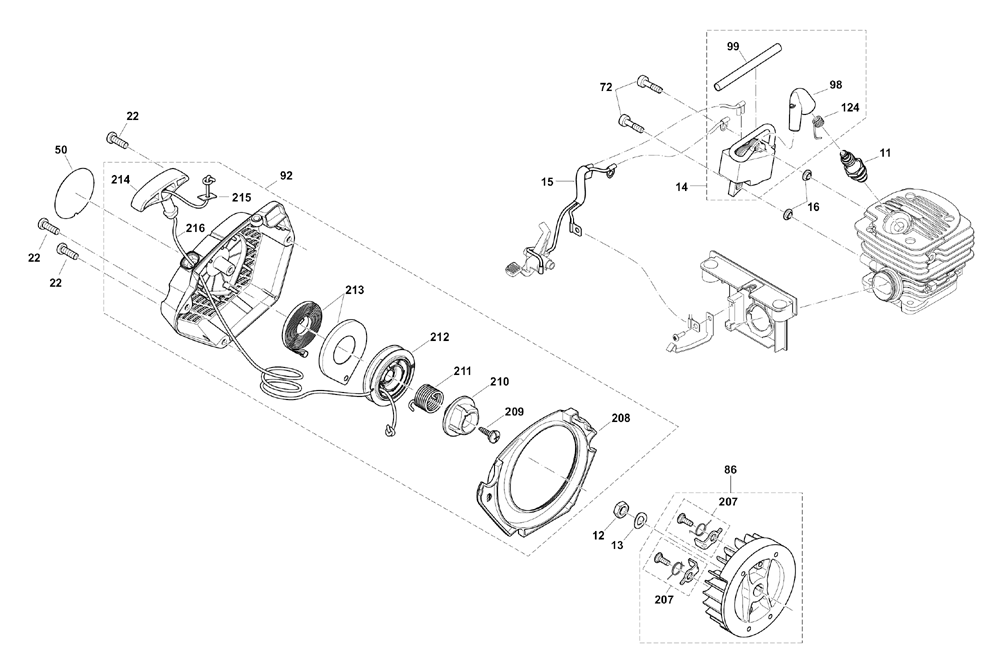

Fig-3

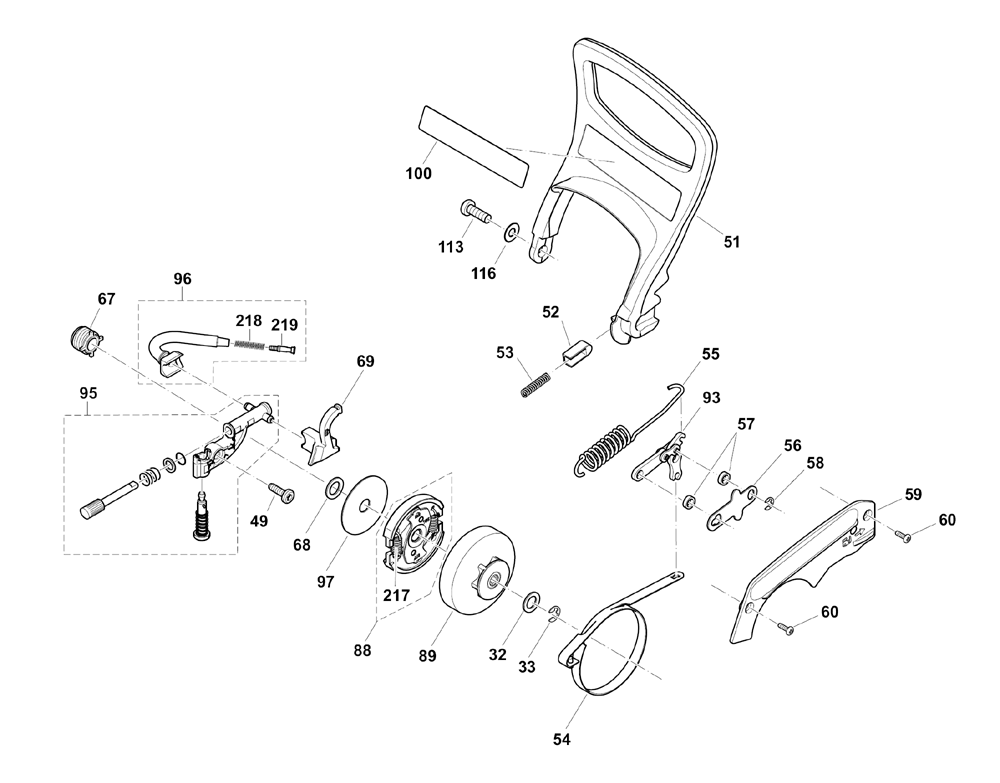

Fig-4

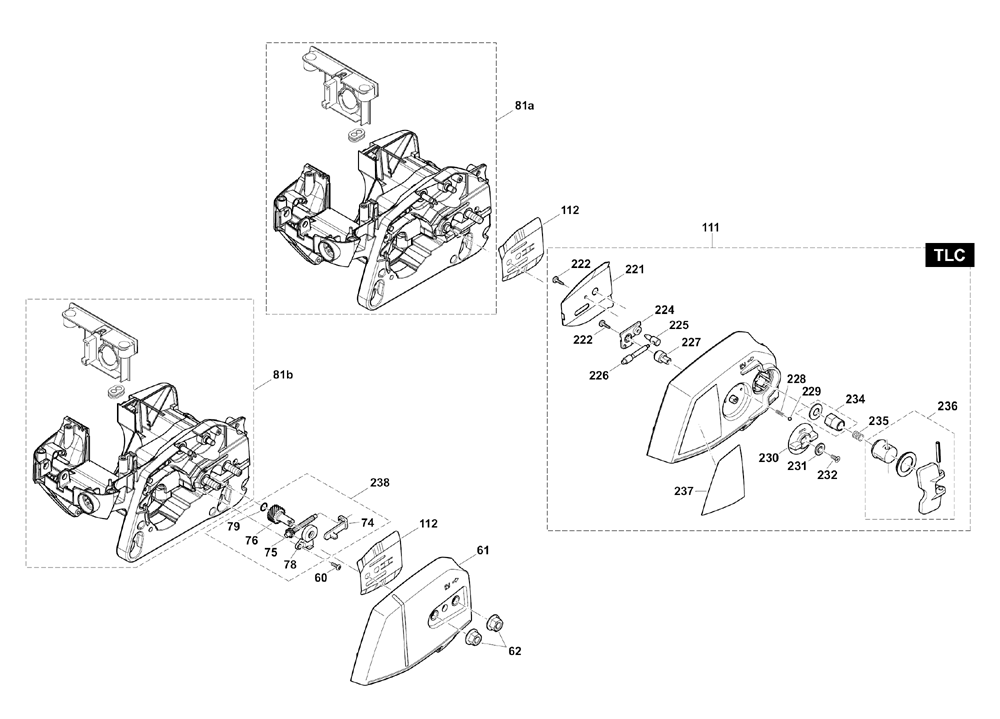

Fig-5

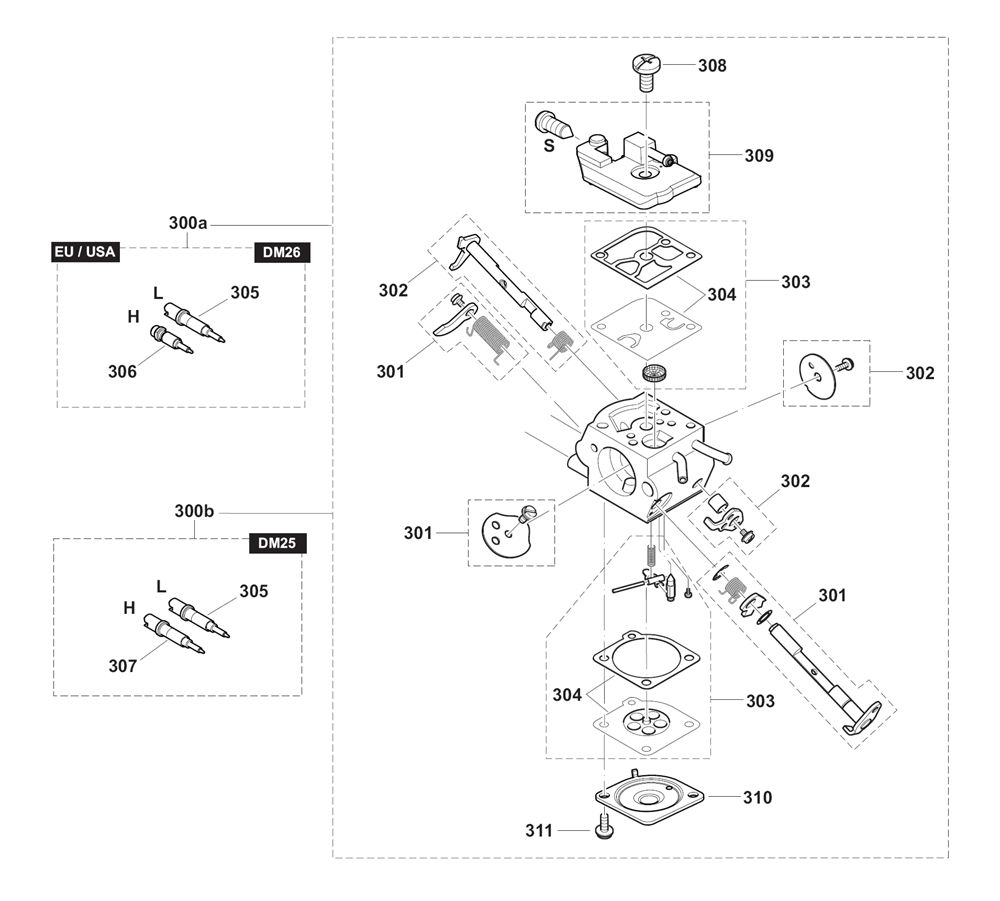

Fig-6

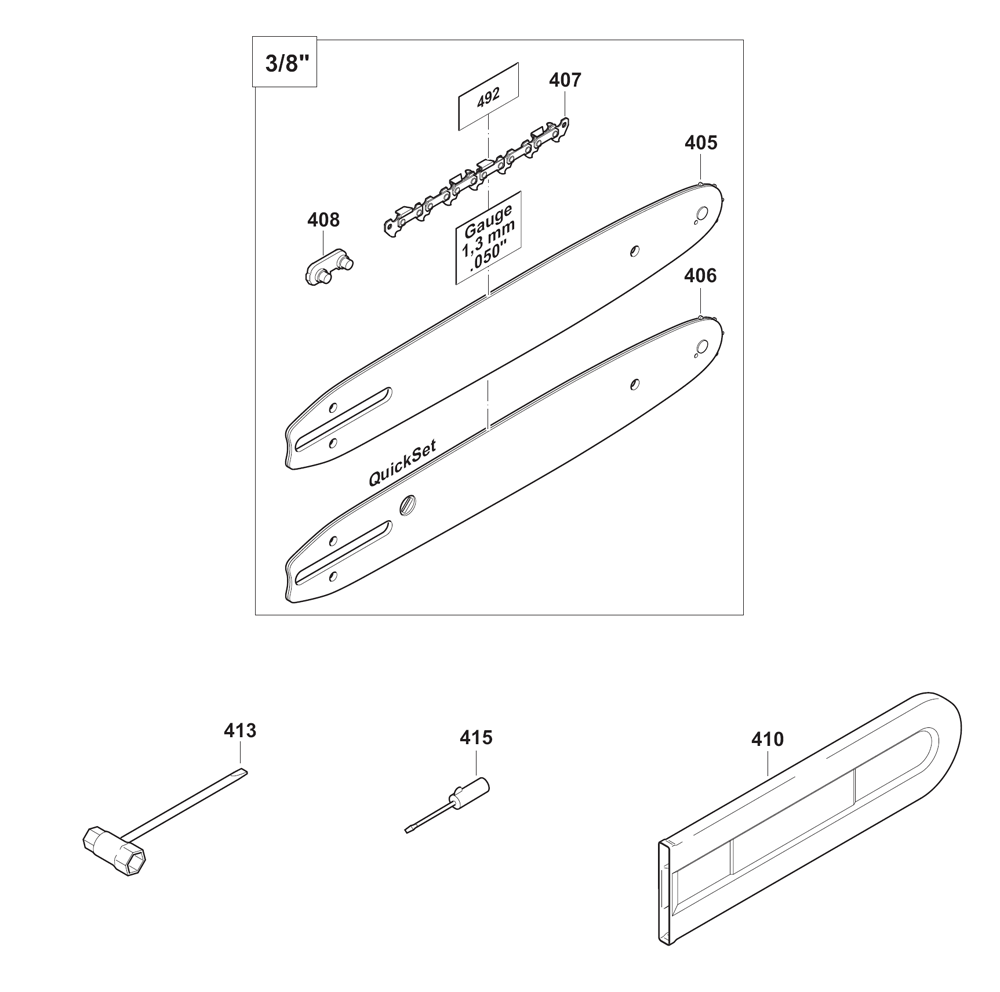

Fig-7

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Dolmar PS-35-C-TLC Replacement Parts List

3

Tube Part # 965 452 090 Currently not available

N/A
4

Needle Cage Part # 962 210 092 Currently not available

N/A
10

Screw 5X40/20 Part # 913350404 Currently not available

N/A
11

Spark Plug Part # 965 603 030 Currently not available

N/A
12

Hexagonal Nut Part # 920 308 024 Currently not available

N/A
13

Spring Washer B8 DIN137 Part # 926208001 Currently not available

N/A
14

Ignition Coil Part # 125 143 100 Currently not available

N/A
15

Cable Harness Part # 165 147 020 Currently not available

N/A
16

Isolating Washer Part # 185 143 030 Currently not available

N/A
18

Intake Hose Part # 125 131 040 Currently not available

N/A
19

Bush Part # 185 131 020 Currently not available

N/A
20

Intake Manifold Part # 165 171 010 Currently not available

N/A
21

Damping Plug Part # 181 118 070 Currently not available

N/A
22

Screw Part # 913 455 164 Currently not available

N/A
23

Air Filter Part # 125 173 010 Currently not available

N/A
24

Air Filter Cover Part # 165 173 020 Currently not available

N/A
25

Screw M5X20 Part # 908605205 Currently not available

N/A
26

Intermediate Flange Part # 125 131 052 Currently not available

N/A
27

M5 Snap Nut Part # 165 171 020 Currently not available

N/A
28

Flange Ring Part # 165 131 060 Currently not available

N/A
29

H.l. Socket Head Bolt Part # 908 004 406 Currently not available

N/A
30

Contact Spring Part # 165 155 010 Currently not available

N/A
31

Choke Lever Part # 165 155 020 Currently not available

N/A
32

Disc Part # 900 006 065 Currently not available

N/A
