Buy Ryobi 21AB454B734 Tiller & Cultivator Parts

Other tools in Ryobi Tiller & Cultivator Parts category

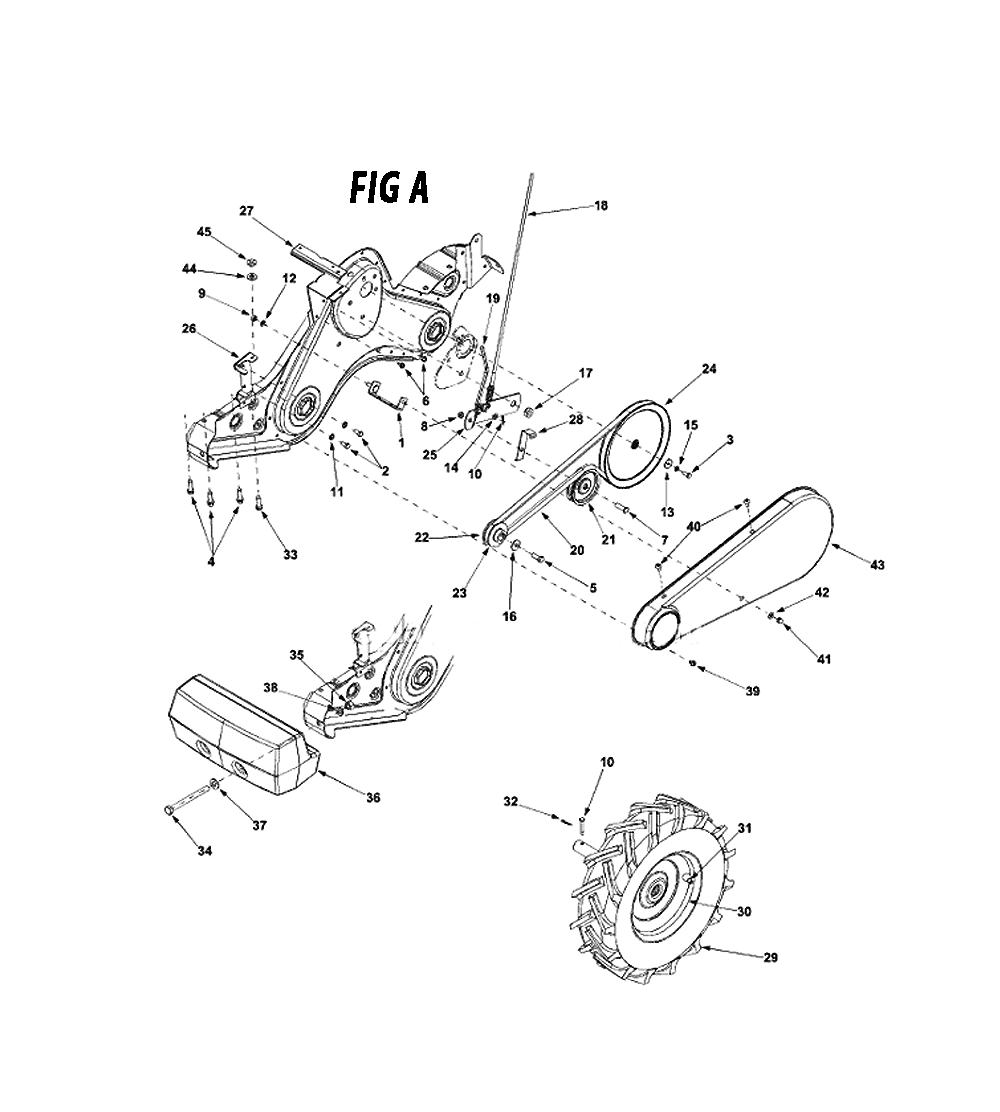

Fig-0

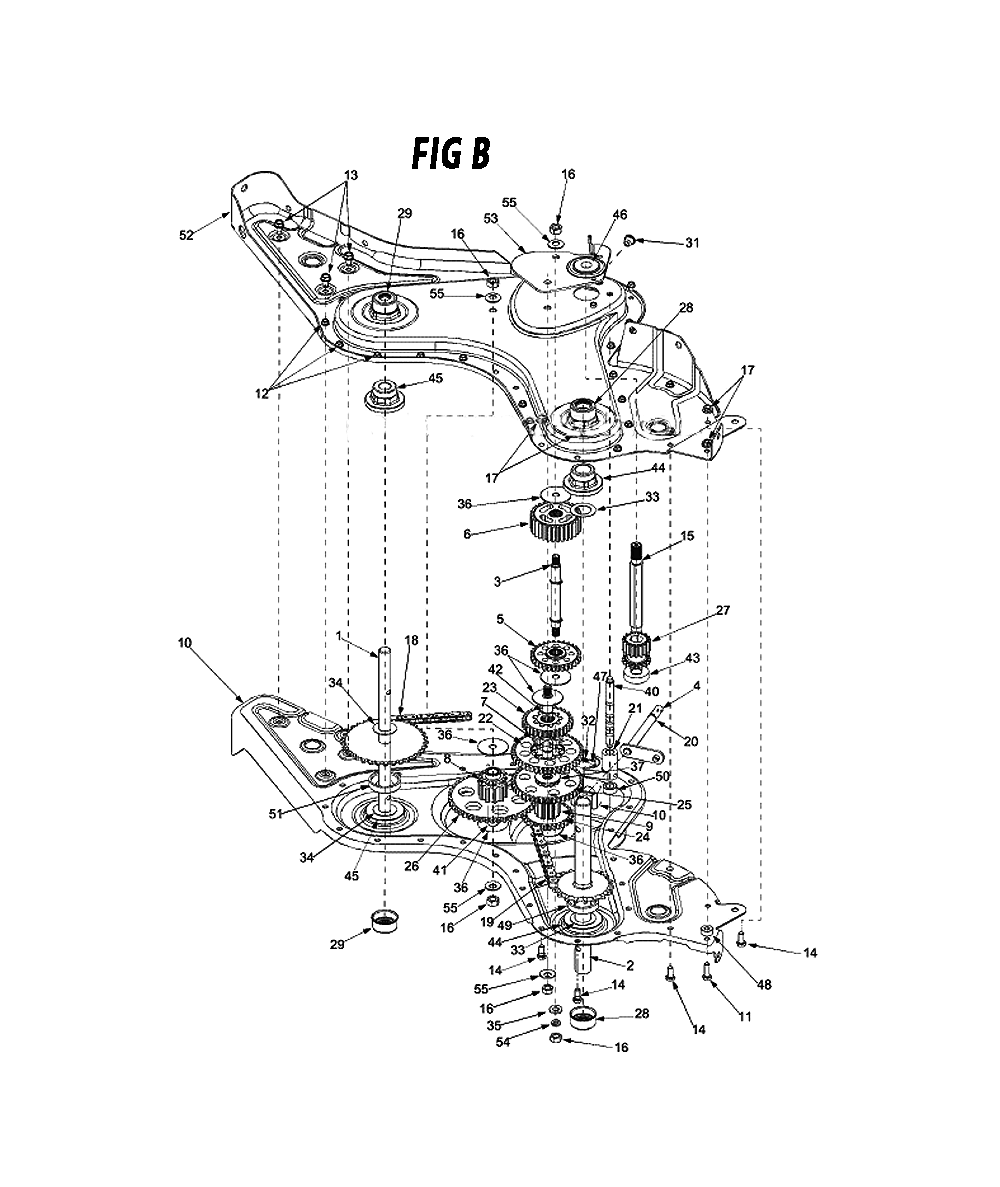

Fig-1

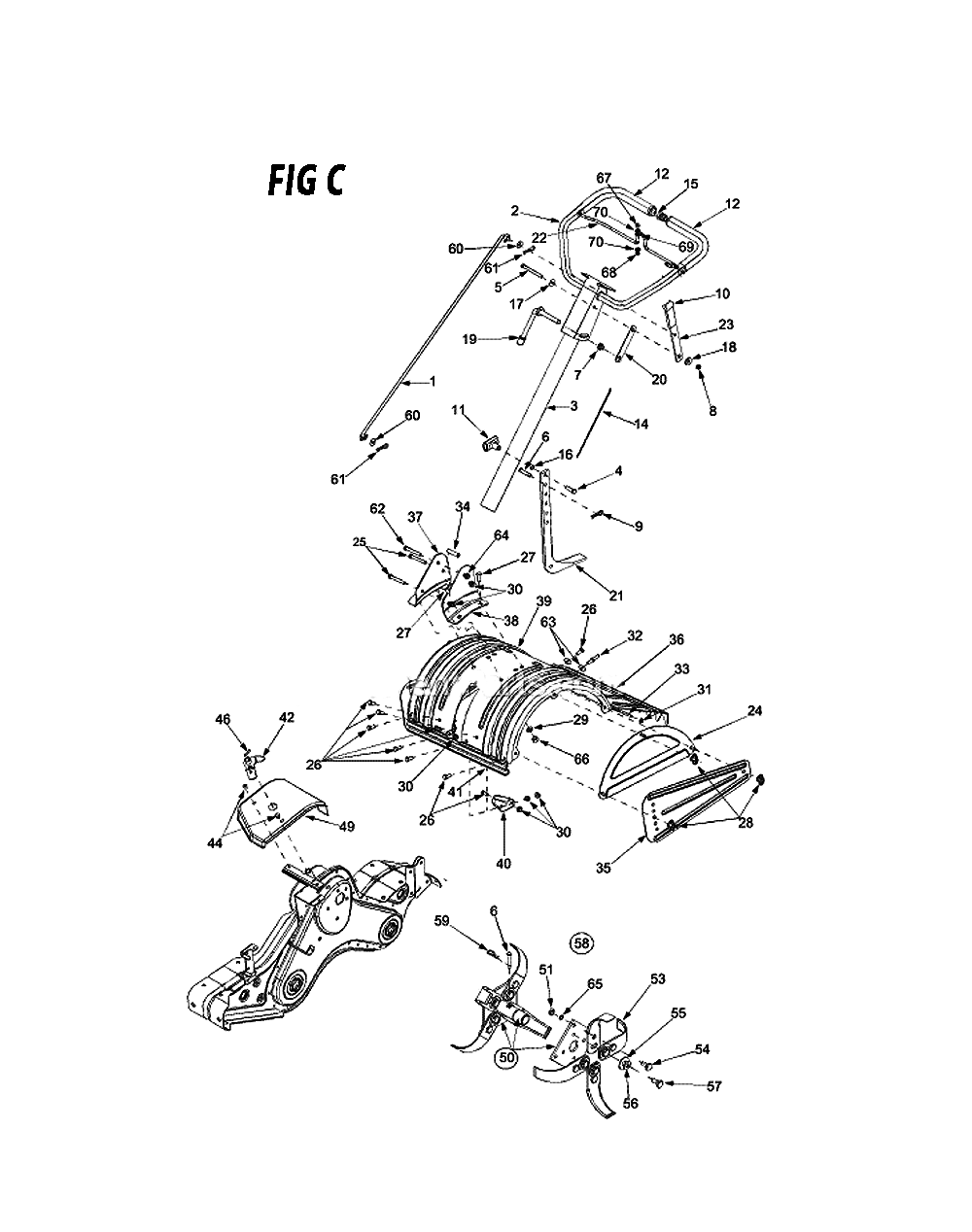

Fig-2

Reference Filter: Filter parts list by name or model number:

Ryobi 21AB454B734 Replacement Parts List

A-1

Belt Cover Bracket Ass'y Part # 686-0111-0637 Currently not available

N/A
A-2

Hex Hd. Screw 5/16-24 X 5/8 Part # 710-0237 Currently not available

N/A
A-3

Hex Bolt 1/4-28 X .75" Part # 710-0412 Currently not available

N/A
A-4

Screw-hex, Slf-tap Part # 710-0502A Currently not available

N/A
A-5

Hex Hd. Cap Scr. 3/8-24 X 1.0 Gr. 5 Part # 710-1039 Currently not available

N/A
A-6

Tt Screw 1/4-20 X 0.5 Part # 710-0599 Currently not available

N/A
A-7

Hex Cap Screw 3/8-16 X 1.25 Part # 710-0723 Currently not available

N/A
A-8

Jamlock Nut, 3/8-16 Part # 712-0266A Currently not available

N/A
A-9

Hex Nut 5/16-18 Thd. Part # 912-0267 Currently not available

N/A
A-10

Int. Cotter Pin 5/16" Dia. Part # 914-0104 Currently not available

N/A
A-11

Hairpin Clip Part # 936-0104 Currently not available

N/A
A-12

Washer-lock 5/16 Part # 936-0119 Currently not available

N/A
A-13

Flat Washer, .265 X .938 X .120 Part # 936-0176 Currently not available

N/A
A-14

Spring Wash. .32" I.d. Part # 936-0271 Currently not available

N/A
A-15

Lock Washer-1/4 Part # 936-0329 Currently not available

N/A
A-16

Bell-wash. 3/8" I.d. Part # 936-0452 Currently not available

N/A
A-17

Shld. Nut Part # 738-0876A Currently not available

N/A
A-18

Clutch Cable Part # 946-1117 Currently not available

N/A
A-19

Idler Pulley Rod Part # 747-1159 Currently not available

N/A
A-20

V-belt Part # 954-0434 Currently not available

N/A
A-21

Flat Idler W/flange 3.75 Od Part # 756-0405 Currently not available

N/A
A-22

Outer Engine Pulley Half Part # 756-0971 Currently not available

N/A
A-23

Inner Engine Pulley Half Part # 756-0972 Currently not available

N/A
A-24

Input Pulley Part # 756-1162 Currently not available

N/A
