Buy Bosch GCM18V-216D-(3601M51080) Cordless Saw Parts

Other tools in Bosch Cordless Saw Parts category

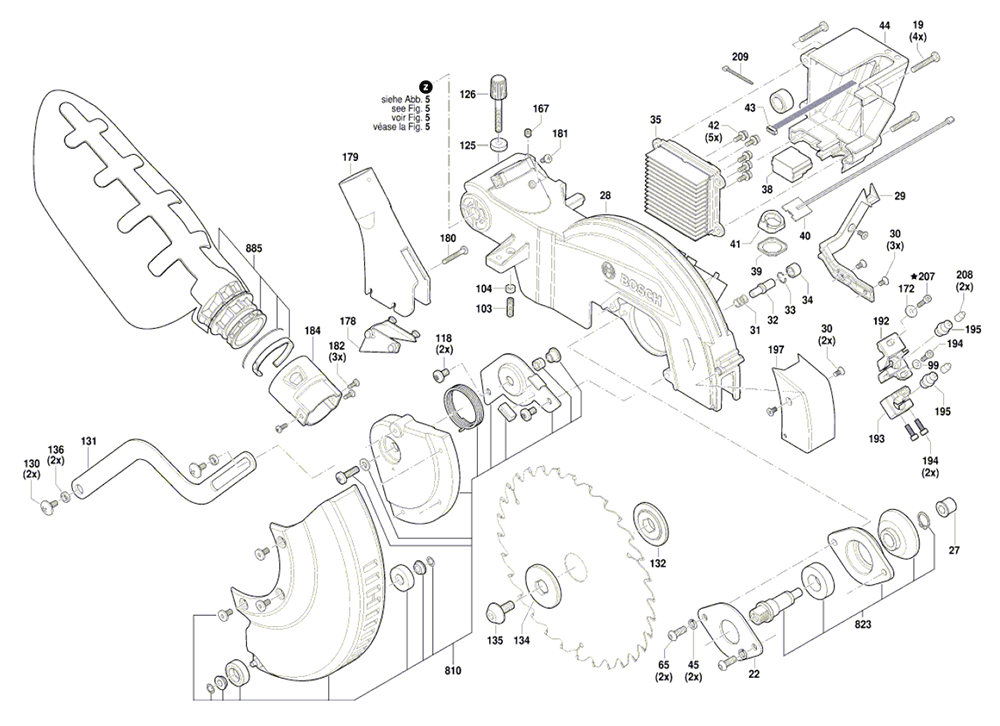

Fig-0

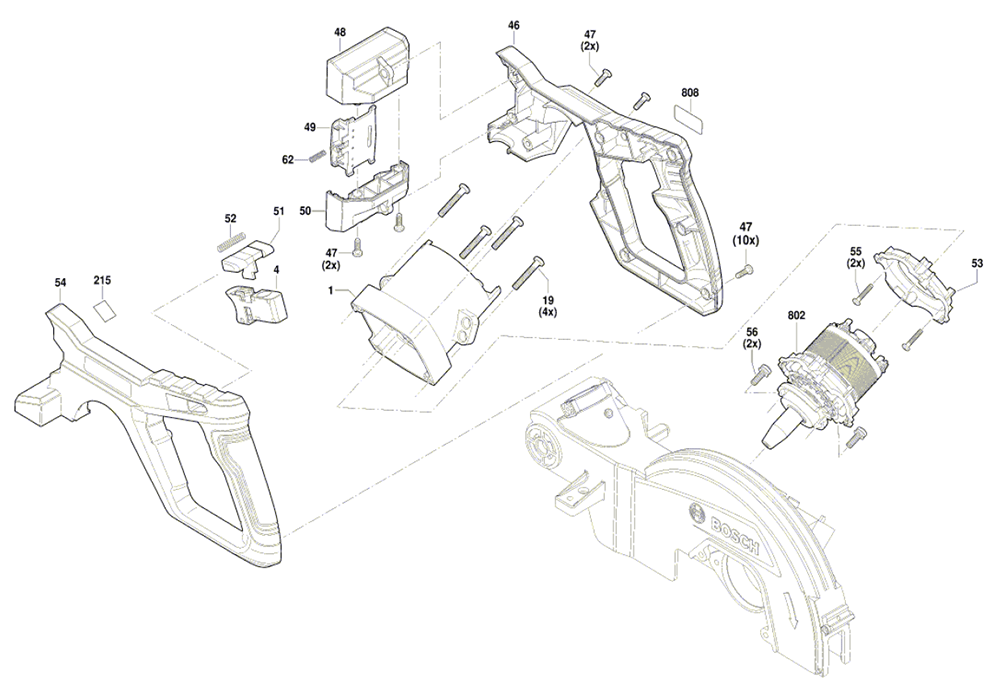

Fig-1

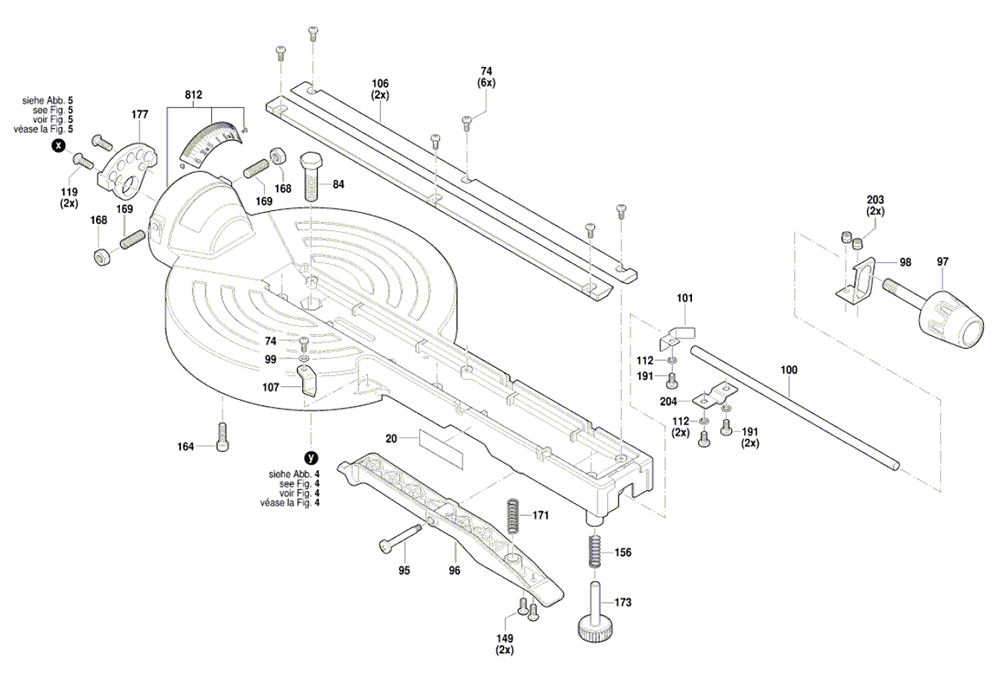

Fig-2

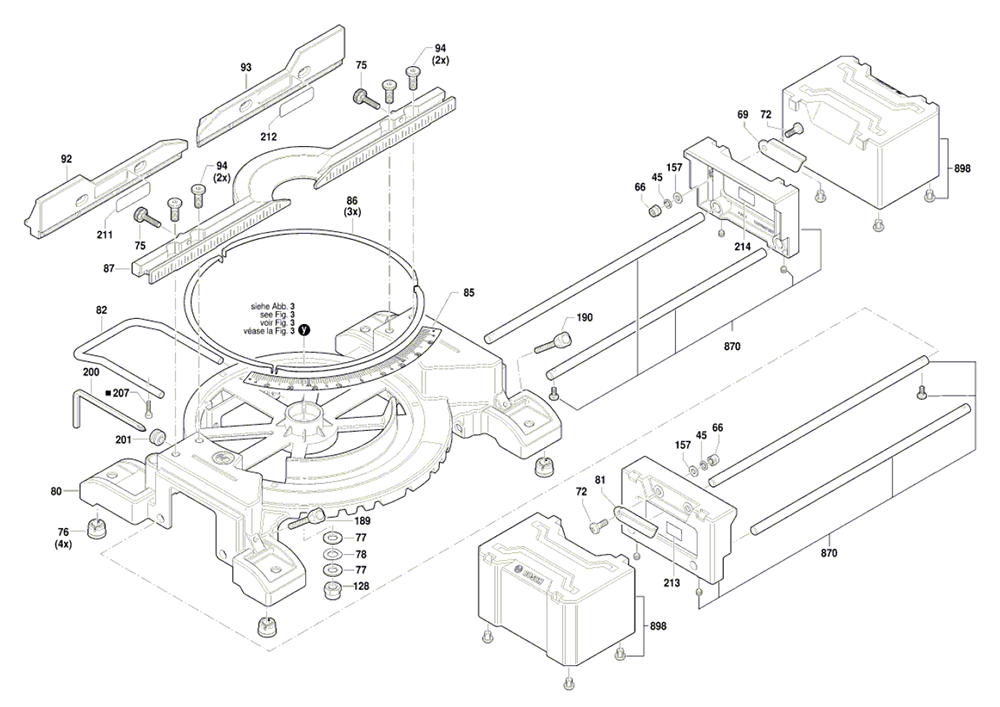

Fig-3

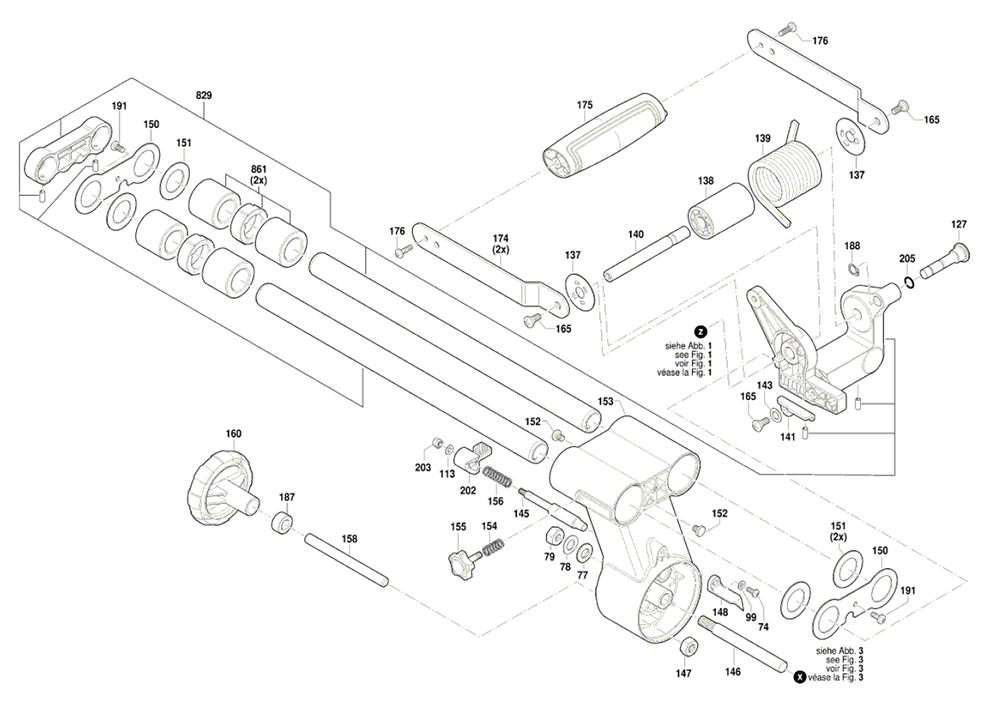

Fig-4

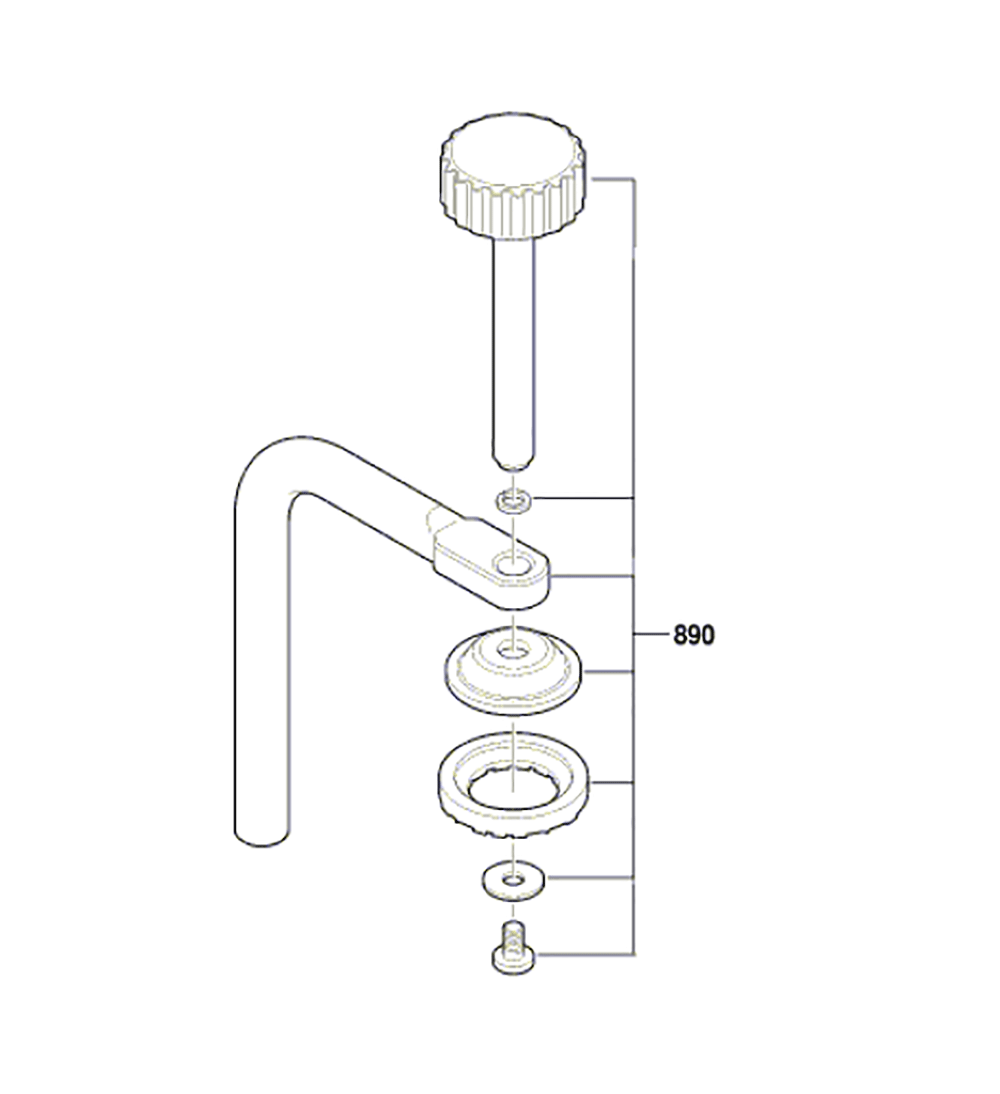

Fig-5

Reference Filter: Filter parts list by name or model number:

Bosch GCM18V-216D-(3601M51080) Replacement Parts List

19

Screw M5×30/4.8 Part # 1 609 B07 540 Currently not available

N/A
22

Mounting Plate Part # 1 609 B07 542 Currently not available

N/A
27

Porous Bearing Part # 1 609 B07 547 Currently not available

N/A
28

Arm Part # 1 609 B07 548 Currently not available

N/A
29

Cable Cover Part # 1 609 B07 549 Currently not available

N/A
30

Screw M4×8 Part # 1 609 B07 550 Currently not available

N/A
31

Compression Spring Part # 1 609 B07 551 Currently not available

N/A
32

Detent Pin Part # 1 609 B07 552 Currently not available

N/A
33

Retaining Ring Part # 1 609 B07 553 Currently not available

N/A
34

Push Button Part # 1 609 B07 554 Currently not available

N/A
35

Electronics Module Part # 1 607 233 5NJ Currently not available

N/A
38

Lamp Housing Part # 1 609 B07 557 Currently not available

N/A
39

Protective Glass Part # 1 609 B07 558 Currently not available

N/A
40

Led Board Part # 1 609 B07 560 Currently not available

N/A
41

Reflector Part # 1 609 B07 559 Currently not available

N/A
42

Screw and Washer Assembly M4×10/8.8 Part # 1 609 B07 561 Currently not available

N/A
43

Cable Part # 1 609 B07 562 Currently not available

N/A
44

Cover Part # 1 609 B07 563 Currently not available

N/A
45

Spring Washer Part # 1 609 B07 564 Currently not available

N/A
65

Screw M6×16/8.8 Part # 1 609 B07 537 Currently not available

N/A
99

Washer Part # 1 609 B07 615 Currently not available

N/A
103

Pressure Screw M6×20/45H Part # 1 609 B07 619 Currently not available

N/A
104

Rubber Retaining Ring Part # 1 609 B07 620 Currently not available

N/A
118

Screw M6×10/4.8 Part # 1 609 B07 634 Currently not available

N/A
