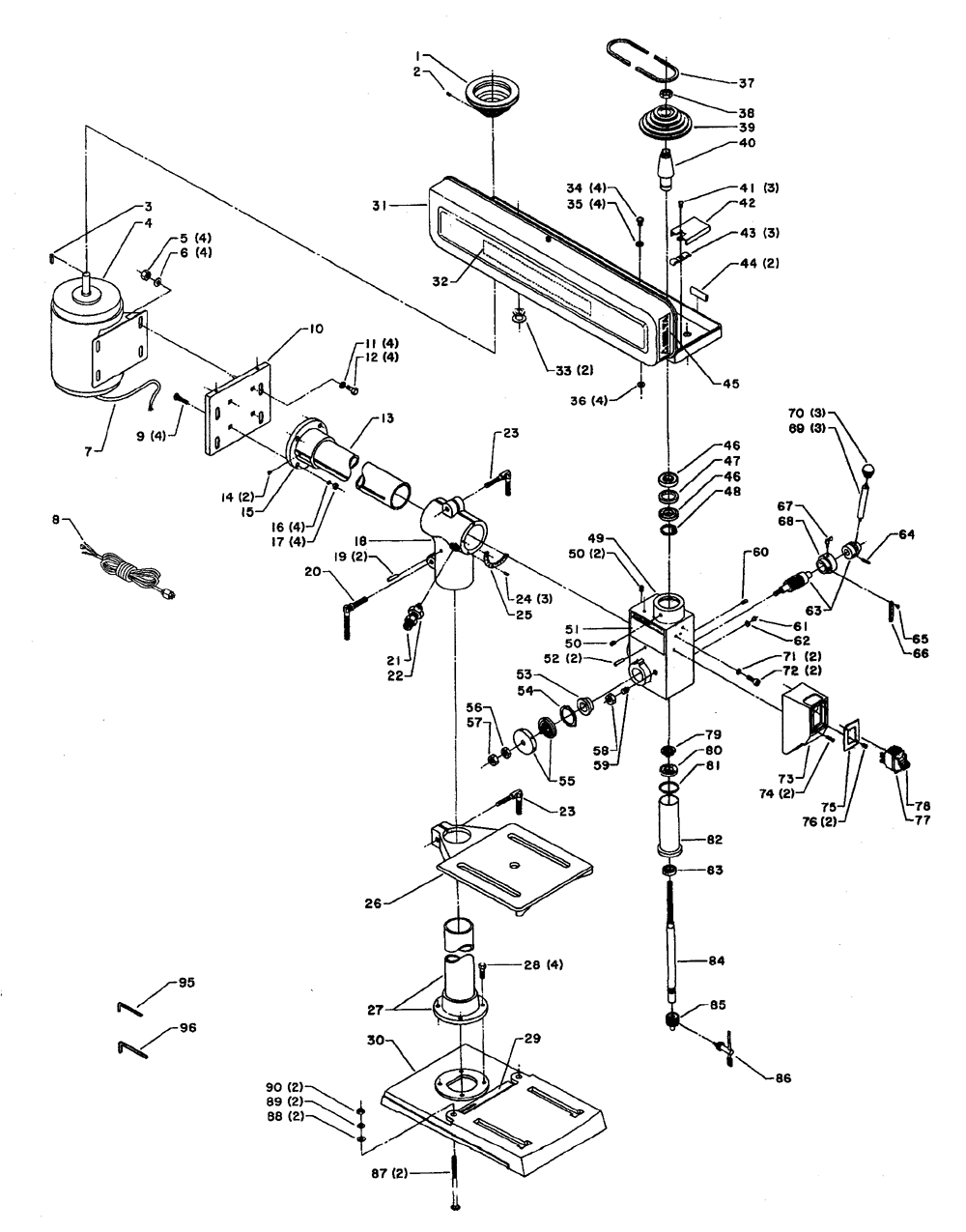

Fig-0

Fig-1

Reference Filter: Filter parts list by name or model number:

Delta 11-090 Type-1 Replacement Parts List

1

Motor Pulley Part # 1344317 Currently not available

N/A
2

Screw Part # 1243321 Currently not available

N/A
3

Key Part # 1311071 Currently not available

N/A
4

Mtr 1PH 1/3HP DP32 Part # 1344300 Currently not available

N/A
5

Replaced by 330015-03 - Nut Part # 491964-00 Currently not available

N/A
6

Washer Part # 1311069 Currently not available

N/A
9

Carriage Bolt Part # 1344318 Currently not available

N/A
10

Motor Plate Part # 1344319 Currently not available

N/A
11

Washer Part # 1311069 Currently not available

N/A
12

Cap Screw Part # 1246034

$2.52
Add to Cart
14

Screw Part # 1243339 Currently not available

N/A
16

Star Washer Part # 1313361 Currently not available

N/A
17

Nut Part # 1243456

$2.52
Add to Cart
18

T-bracket Part # 1344313 Currently not available

N/A
19

Tbo - Pin Part # 1243498 Currently not available

N/A
24

Rivet 2X5MM Part # 1310016 Currently not available

N/A
26

Table W/flange Part # 1344309 Currently not available

N/A
26

Wing Nut Part # 1344333 Currently not available

N/A
26

Flat Washer Part # 1344330 Currently not available

N/A
26

Screw Part # 1344331 Currently not available

N/A
26

Flat Washer Part # 1344332 Currently not available

N/A
28

Tbo - M8 X 25 Screw Hex Head, Standard Hardware Part # 491889-00 Currently not available

N/A
29

Warning Label Part # 1345940 Currently not available

N/A
30

Base Part # 1344307 Currently not available

N/A
