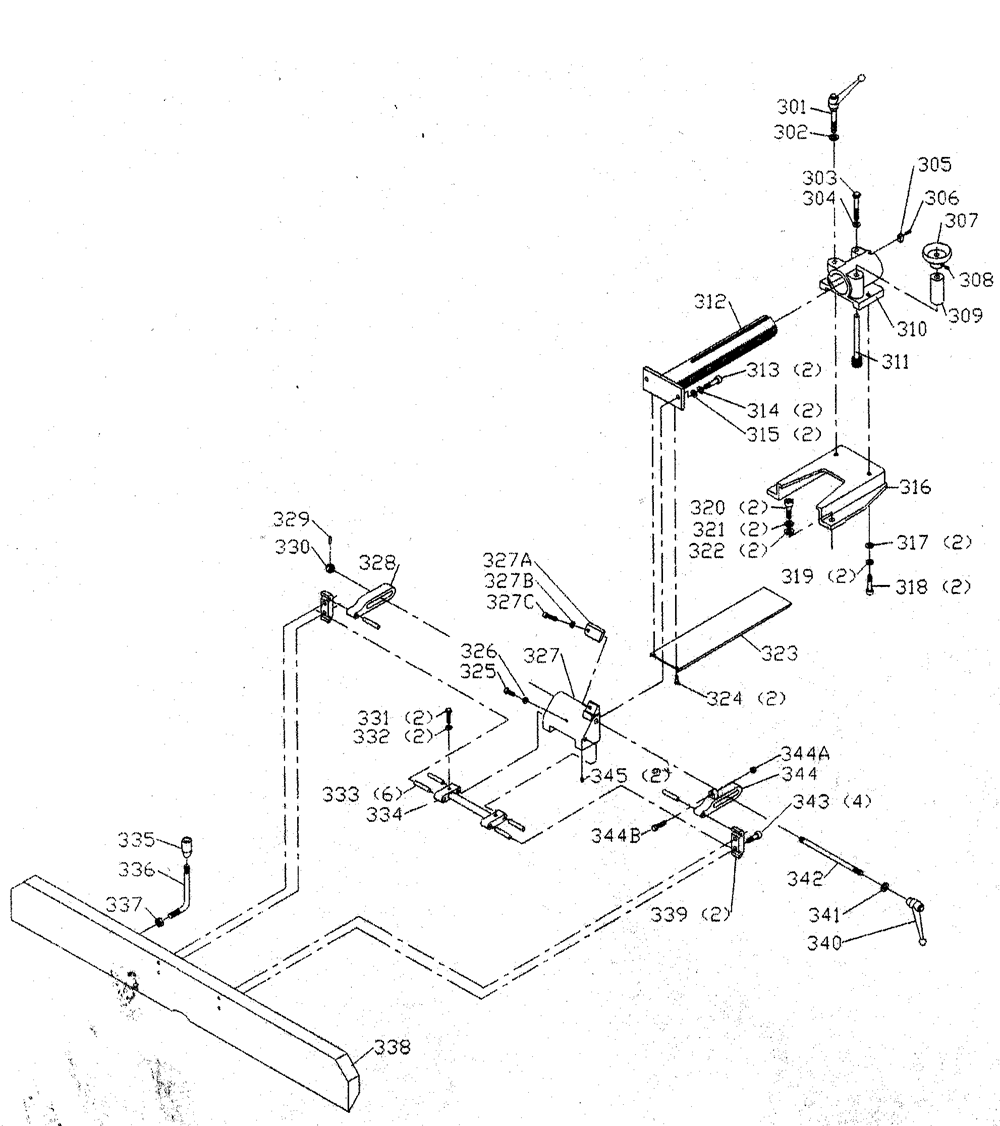

Fig-1

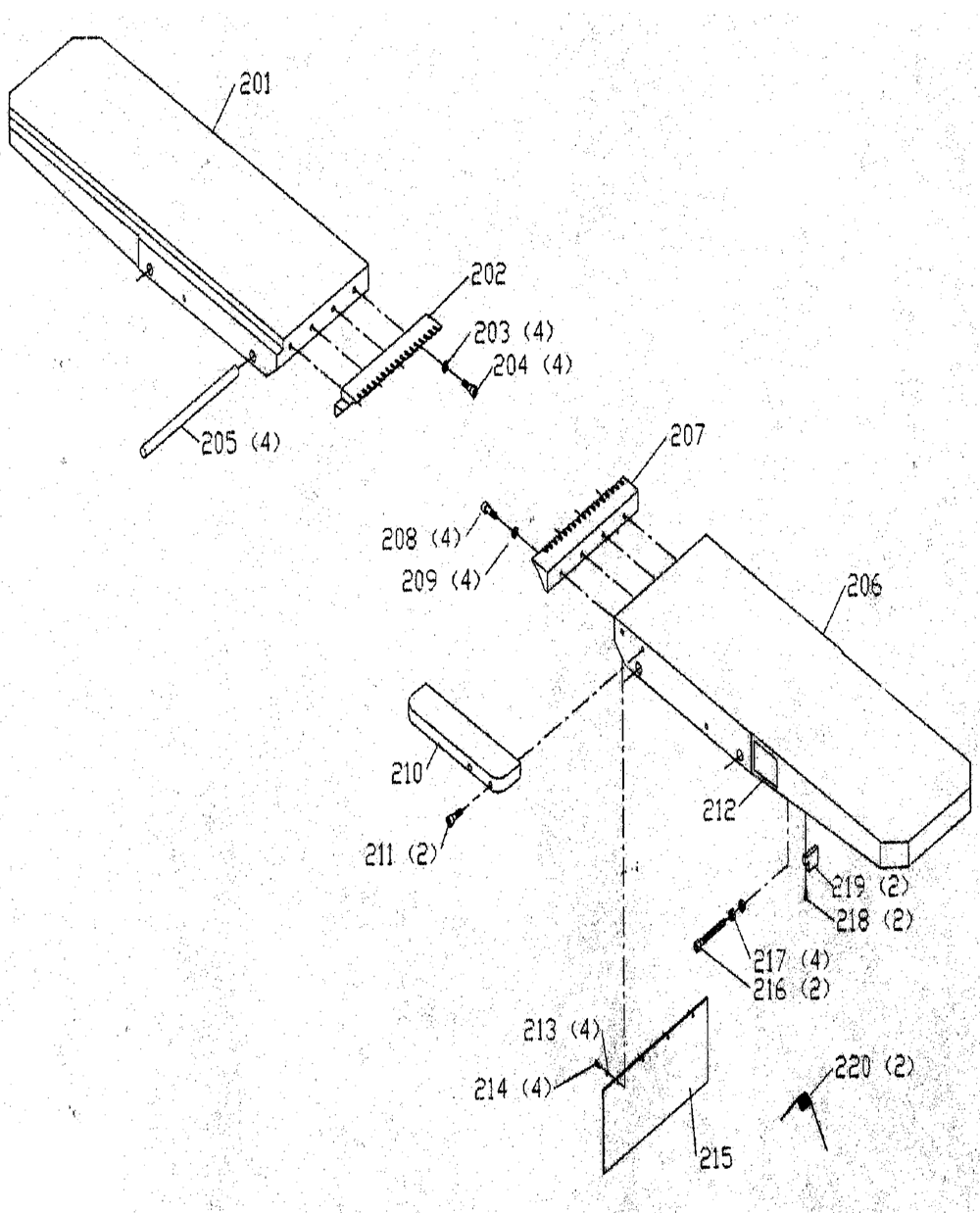

Fig-2

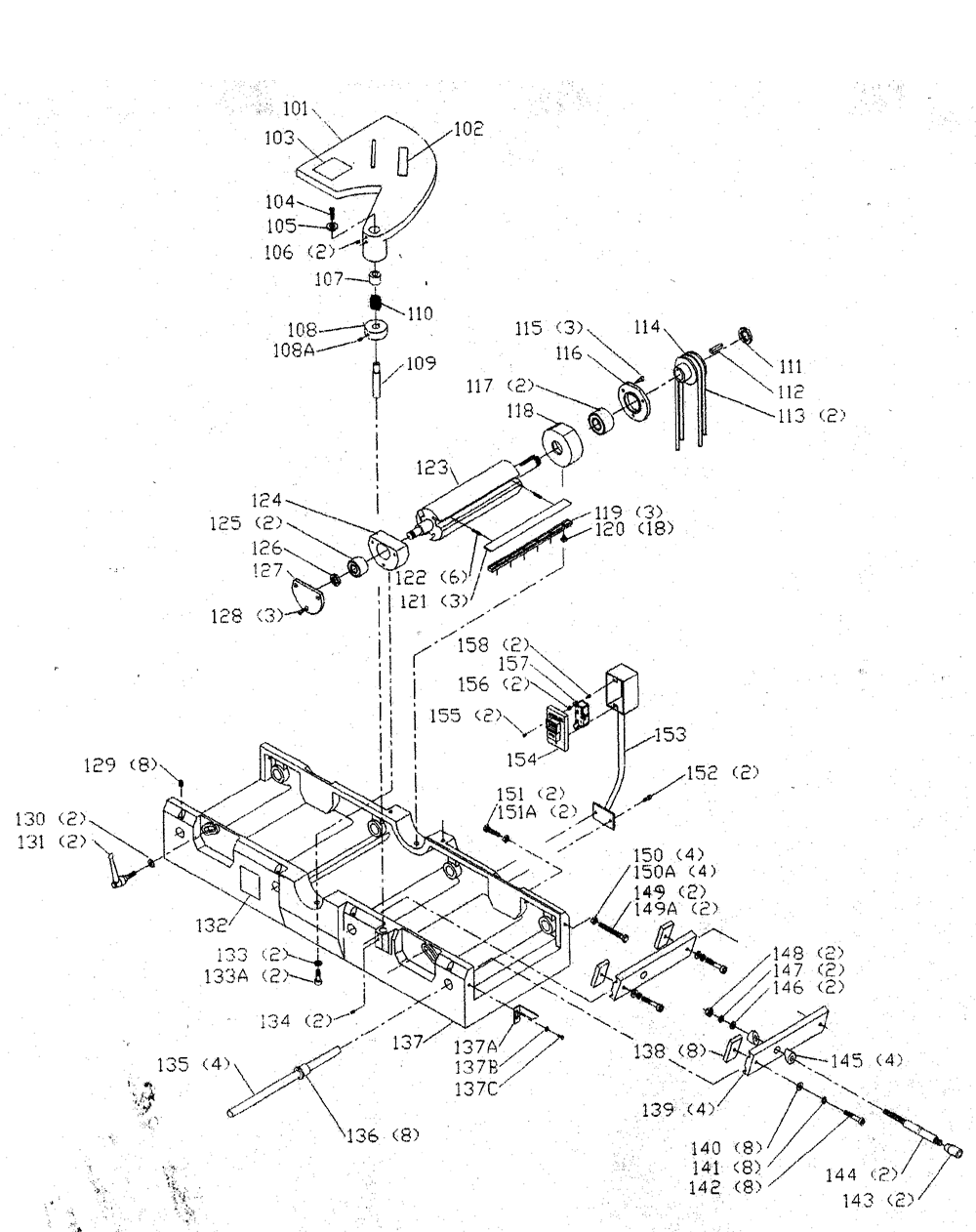

Fig-3

Reference Filter: Filter parts list by name or model number:

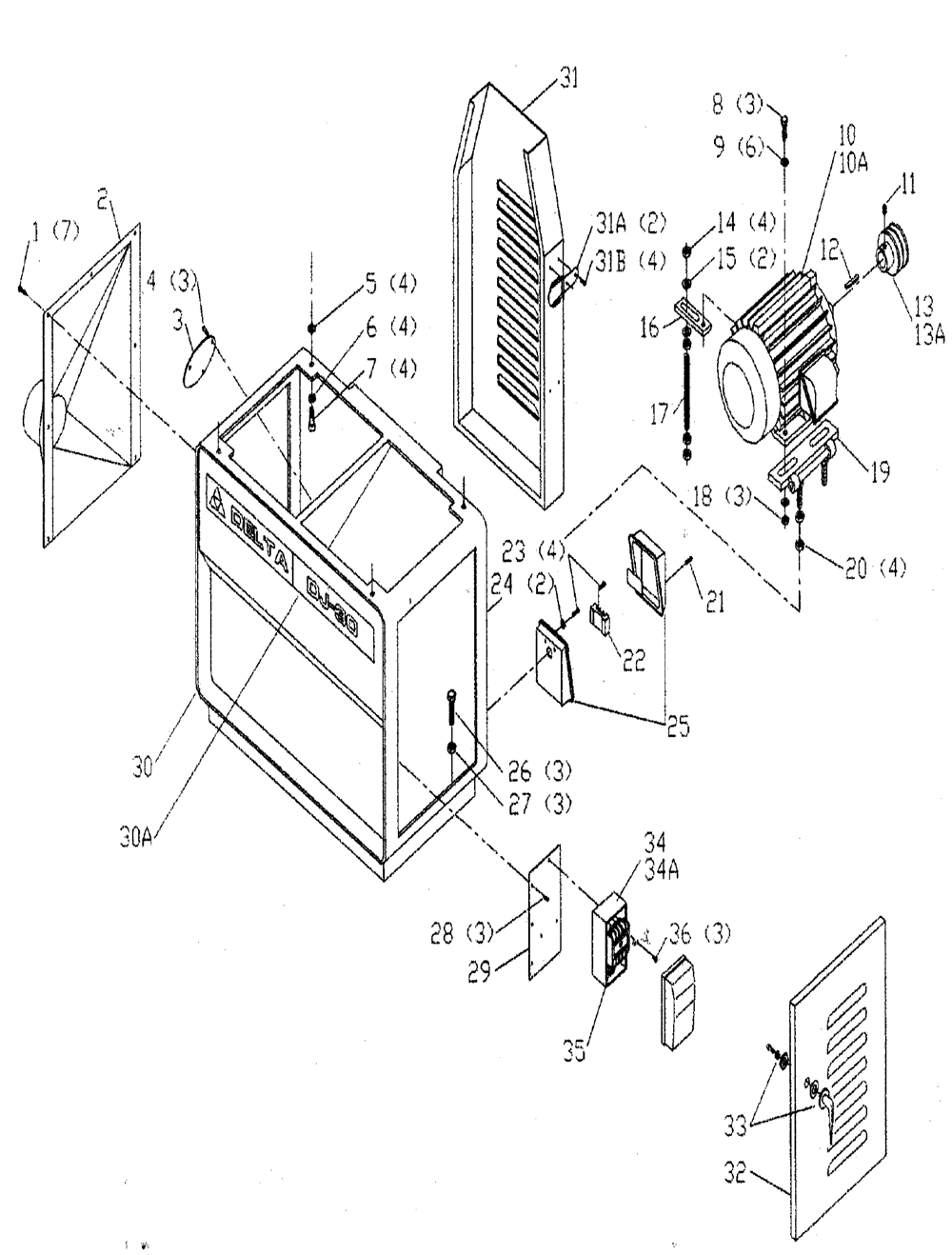

Delta 37-361 Type-1 Replacement Parts List

1

Screw Part # 1342002 Currently not available

N/A
2

Dust Hood Part # 1347725 Currently not available

N/A
3

Dust Chute Cover Part # 1347712 Currently not available

N/A
4

Screw Part # 1341046 Currently not available

N/A
5

Rubber Washer Part # 1347746 Currently not available

N/A
6

Tbo - Lockwasher M10, Standard Hardware Part # 1243360 Currently not available

N/A
7

Cap Screw Part # 1246115 Currently not available

N/A
8

Screw Part # 1330158 Currently not available

N/A
9

Washer Part # 1243502 Currently not available

N/A
10

Motor 3PH 3HP Part # 1347716 Currently not available

N/A
10

Motor 1PH 3HP Part # 1347715

$1,296.17
Add to Cart
11

Screw Part # 1243494 Currently not available

N/A
12

Key Part # 1347704 Currently not available

N/A
13

Mtr Pulley 24MM 3PH Part # 1347718 Currently not available

N/A
13

Mtr Pulley 28MM 1PH Part # 1349782 Currently not available

N/A
14

Tbo - M10 X 8 Hex Nut, Standard Hardware Part # 1243496

$2.52
Add to Cart
15

Flat Washer Part # 1341945 Currently not available

N/A
16

Plate Part # 1347714 Currently not available

N/A
17

Rod Part # 1347713 Currently not available

N/A
18

Tbo - M10 X 8 Hex Nut, Standard Hardware Part # 1243496

$2.52
Add to Cart
19

Motor Bracket Part # 1347711 Currently not available

N/A
20

Tbo - M10 X 8 Hex Nut, Standard Hardware Part # 1243496

$2.52
Add to Cart
21

Screw Part # 1243501 Currently not available

N/A
22

Terminal Strip Part # 1347720 Currently not available

N/A
