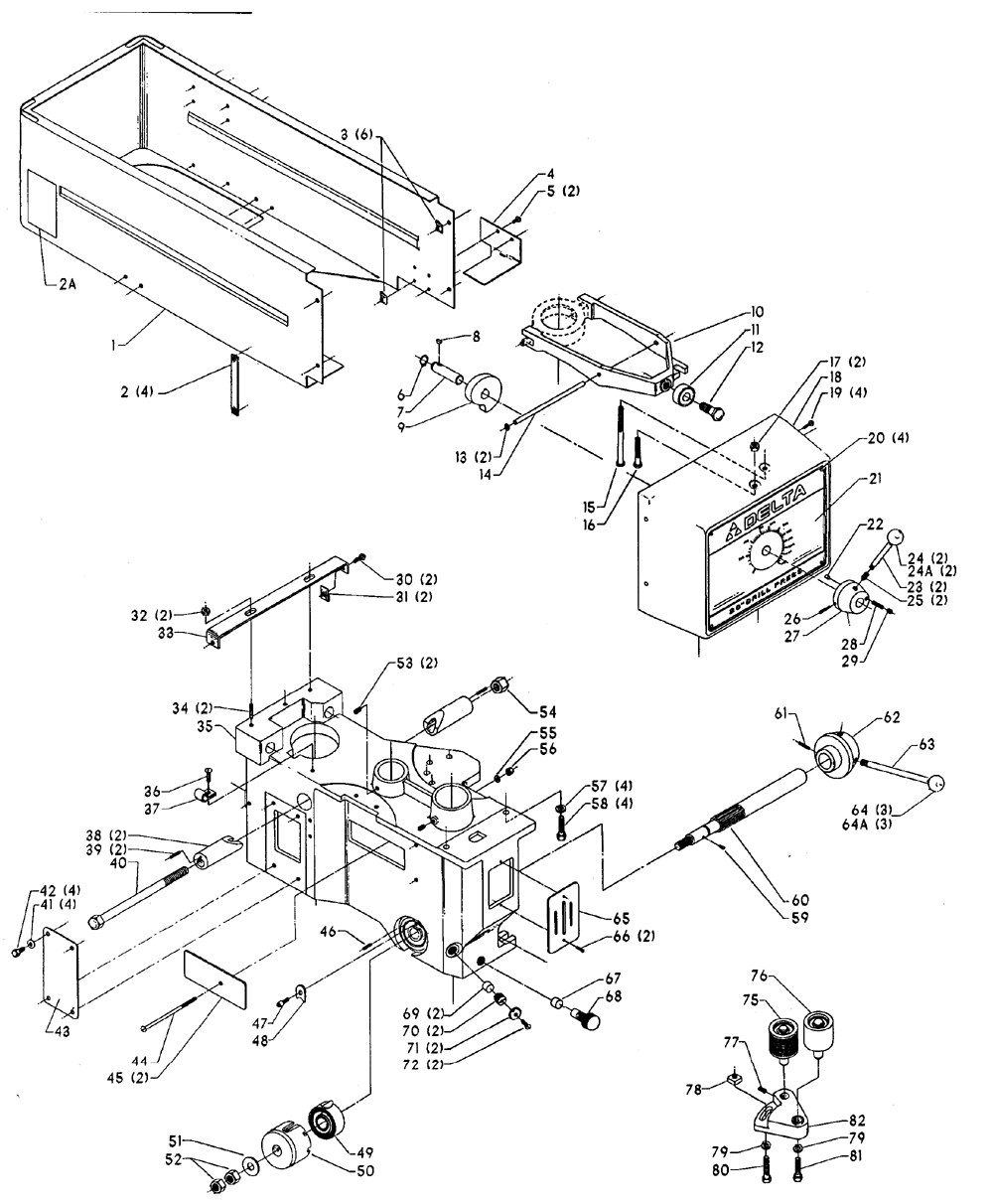

Fig-0

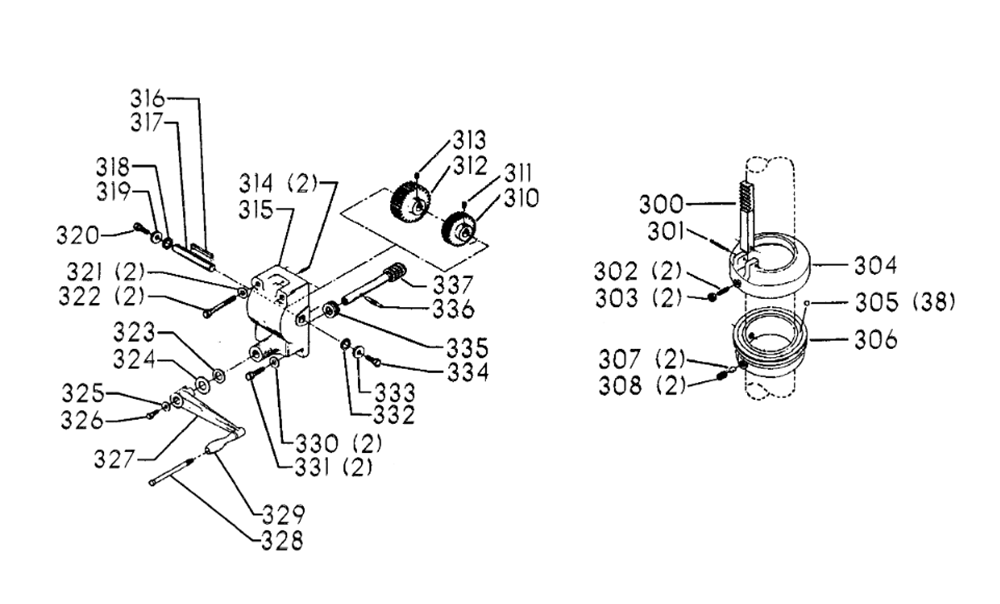

Fig-1

Fig-2

Fig-3

Reference Filter: Filter parts list by name or model number:

Delta 70-305 Type-1 Replacement Parts List

1

Rear Guard Part # 402060545006 Currently not available

N/A
2

Warning Label Part # 402007520001 Currently not available

N/A
3

Tbo - Speed Nut Part # 902030502974 Currently not available

N/A
4

Jackshaft Shield Part # 402060315004 Currently not available

N/A
6

Ring Part # 904150107008 Currently not available

N/A
7

Shaft Part # 402041065010 Currently not available

N/A
8

Key Part # 927010102633 Currently not available

N/A
9

Cam Part # 402040195001 Currently not available

N/A
10

Shifter Bracket Part # 402060145007 Currently not available

N/A
10

Shifter Bracket Assy Part # 1200220 Currently not available

N/A
11

Bearing Part # 920040205384

$23.23
Add to Cart
12

Special Bolt Part # 1200865 Currently not available

N/A
13

Tbo - Clip Part # 906855S Currently not available

N/A
14

Rod Part # 1200219 Currently not available

N/A
15

Speed Control Screw Part # 1200267 Currently not available

N/A
16

Speed Control Screw Part # 1200266 Currently not available

N/A
17

Hex Nut Part # 489191-00 Currently not available

N/A
18

Front Guard Part # 402060545003 Currently not available

N/A
19

Screw Part # 901051931196

$9.68
Add to Cart
20

Screw #4 X 3/16 Round Head Drive Screw Part # 901064502250S Currently not available

N/A
21

Dial Plate - 3:1 Part # 402060370004 Currently not available

N/A
21

Dial Plate - 2:1 Part # 402060370005 Currently not available

N/A
22

Plug Part # 1200225 Currently not available

N/A
23

Rod Assy Part # 1202610 Currently not available

N/A
