Buy Delta 70-331 Type-1 Drill Press Parts

Other tools in Delta Drill Press Parts category

Fig-0

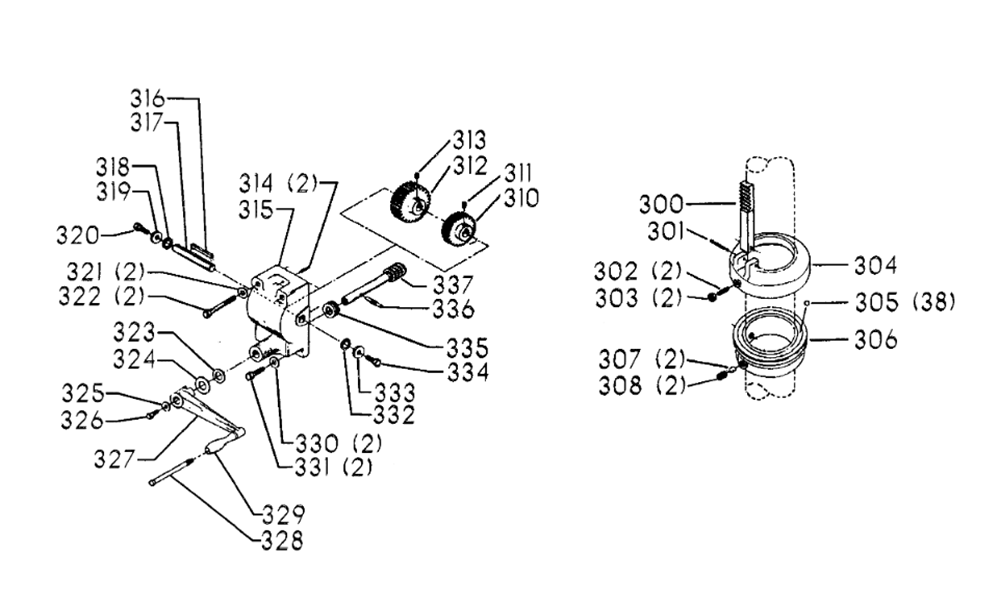

Fig-1

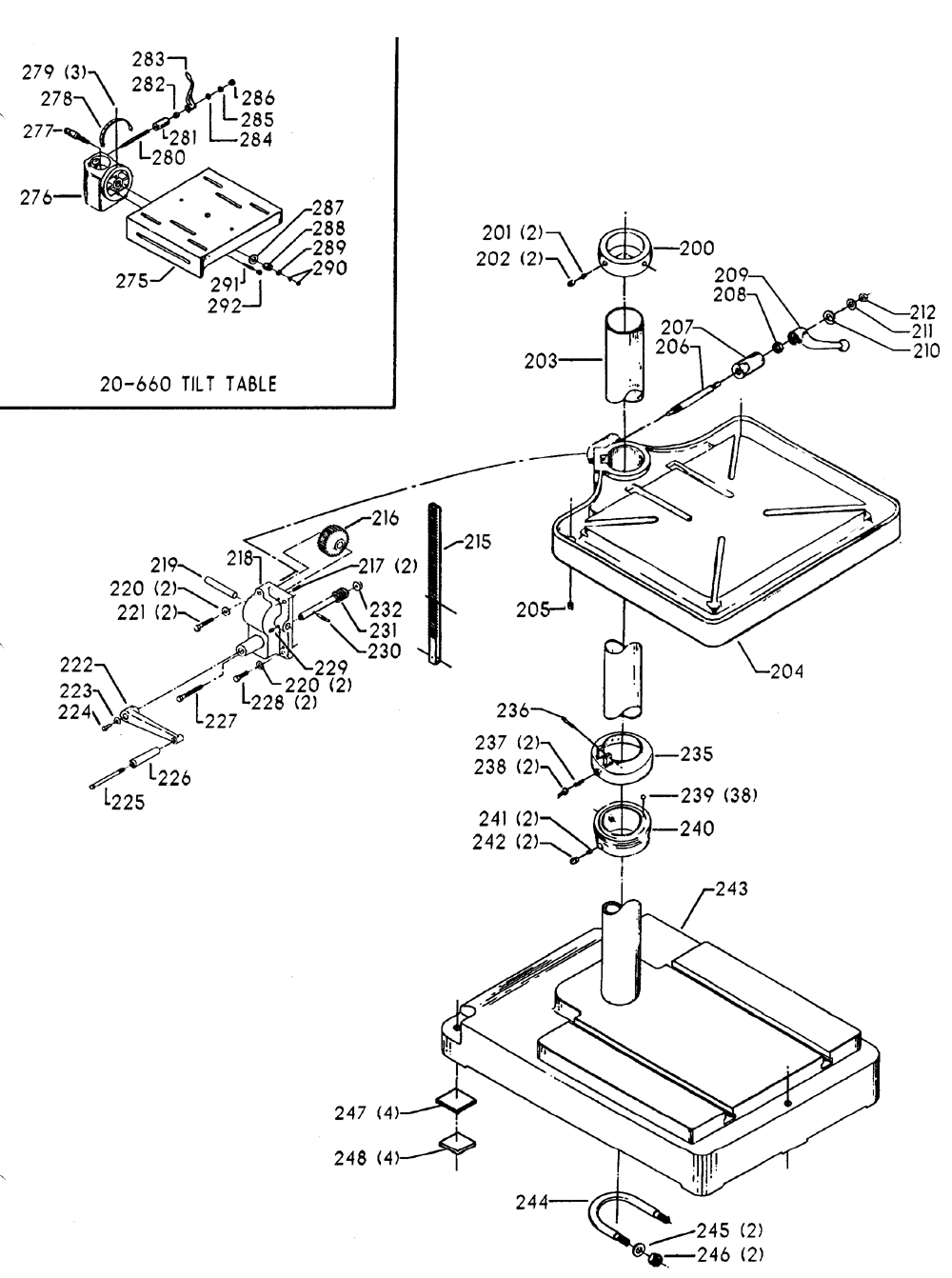

Fig-2

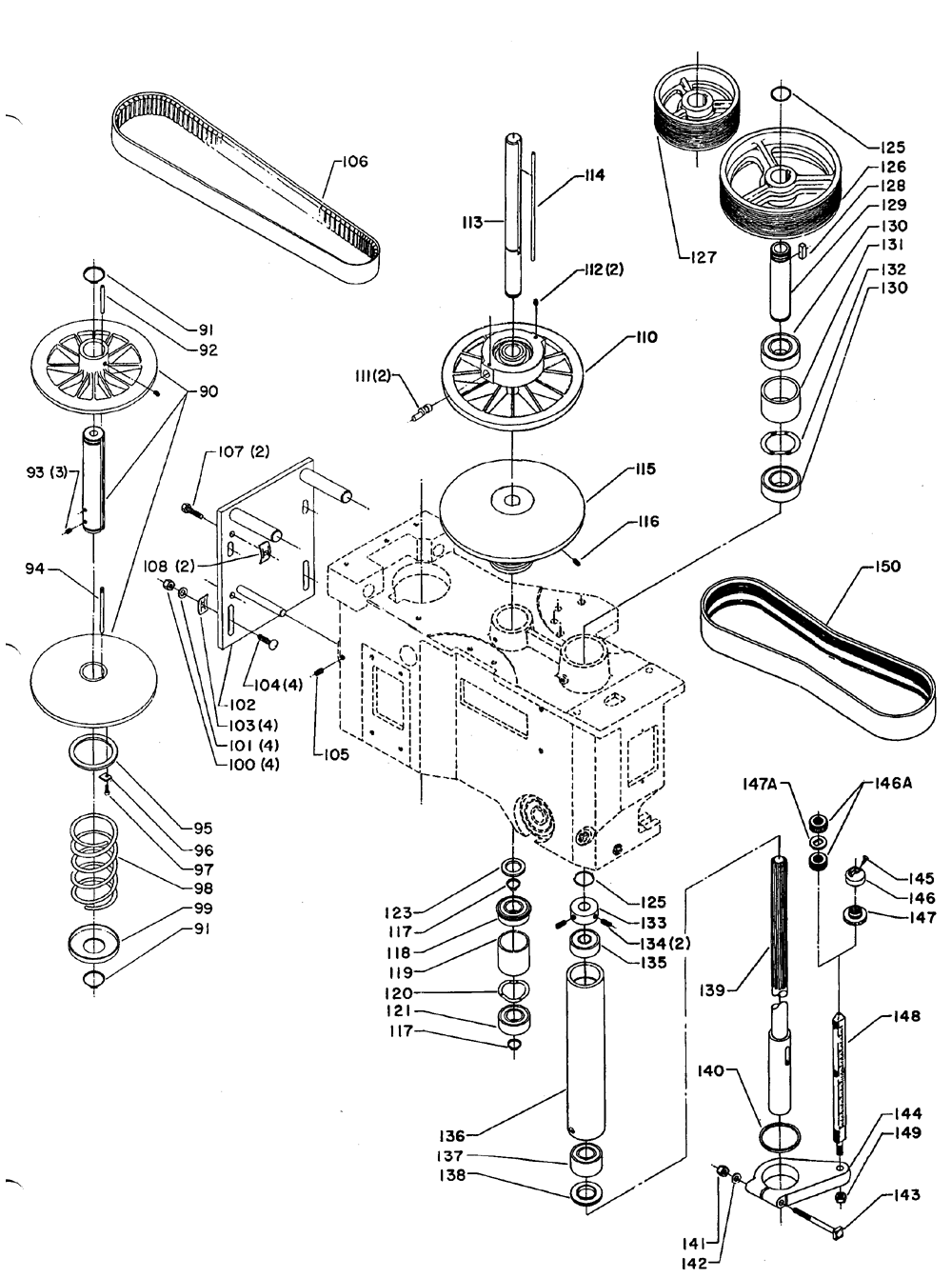

Fig-3

Reference Filter: Filter parts list by name or model number:

Delta 70-331 Type-1 Replacement Parts List

232

Thrust Bearing Part # 1202154 Currently not available

N/A
237

Guide Screw Part # 901043804562 Currently not available

N/A
238

Jam Nut Part # 902010205435S Currently not available

N/A
239

Steel Ball Part # 921010100031 Currently not available

N/A
244

U-bolt Part # 401040275001 Currently not available

N/A
246

Hex Jam Nut Part # 902010101282S

$2.52
Add to Cart
247

Cap for Pad Part # 402070205006 Currently not available

N/A
248

Pad Part # 402070895005 Currently not available

N/A
276

Bracket Assy Part # 401043145005 Currently not available

N/A
277

Stud Part # 401041115001 Currently not available

N/A
278

Tilt Scale Part # 951020114326 Currently not available

N/A
279

Screw #4 X 3/16 Round Head Drive Screw Part # 901064502250S Currently not available

N/A
280

Tbo - Stud Part # 952011413285 Currently not available

N/A
281

Nut Part # 852573 Currently not available

N/A
281

Locking Plug Part # 904101315359 Currently not available

N/A
283

Lock Lever Part # 402070275002 Currently not available

N/A
284

Washer Part # 904010315651 Currently not available

N/A
285

Lock Washer Part # 904020101713 Currently not available

N/A
286

Tbo - 5/8FLEXLCKNUT Part # 902012101084 Currently not available

N/A
287

Flat Washer Part # 904010315654 Currently not available

N/A
288

Hex Nut Part # 902012012594 Currently not available

N/A
290

Nut Part # 902010201226S Currently not available

N/A
292

Hex Nut Part # 902010101232 Currently not available

N/A
300

Rack Part # 402060515005 Currently not available

N/A

Delta 70-331 Type-1 Replacement Parts
