Buy Delta 70-343 Type-1 Drill Press Parts

Other tools in Delta Drill Press Parts category

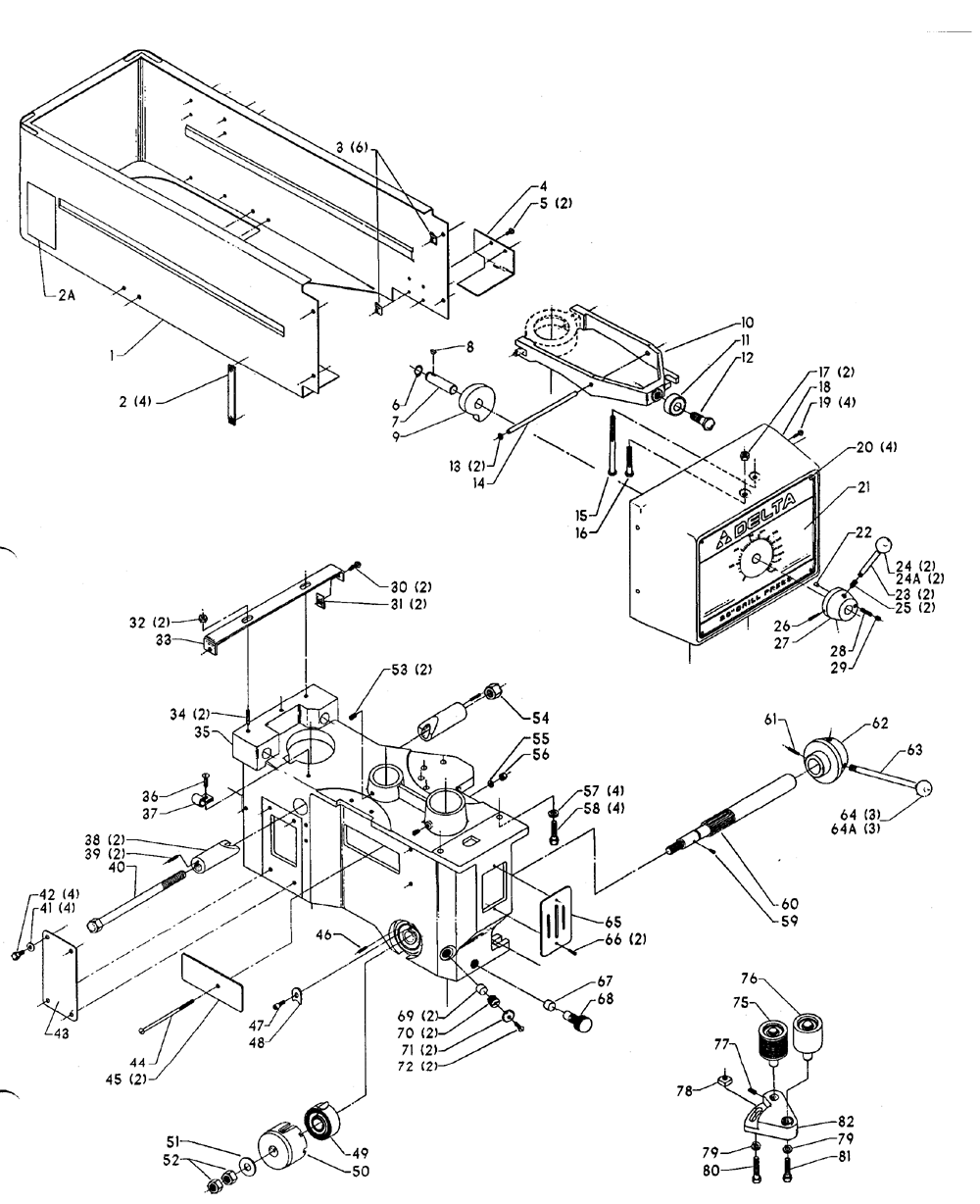

Fig-0

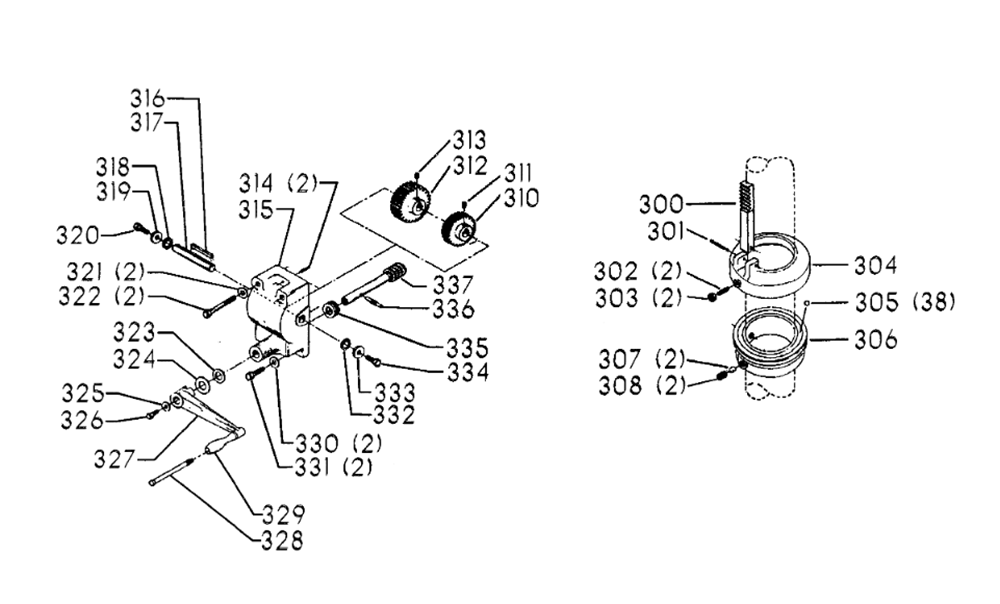

Fig-1

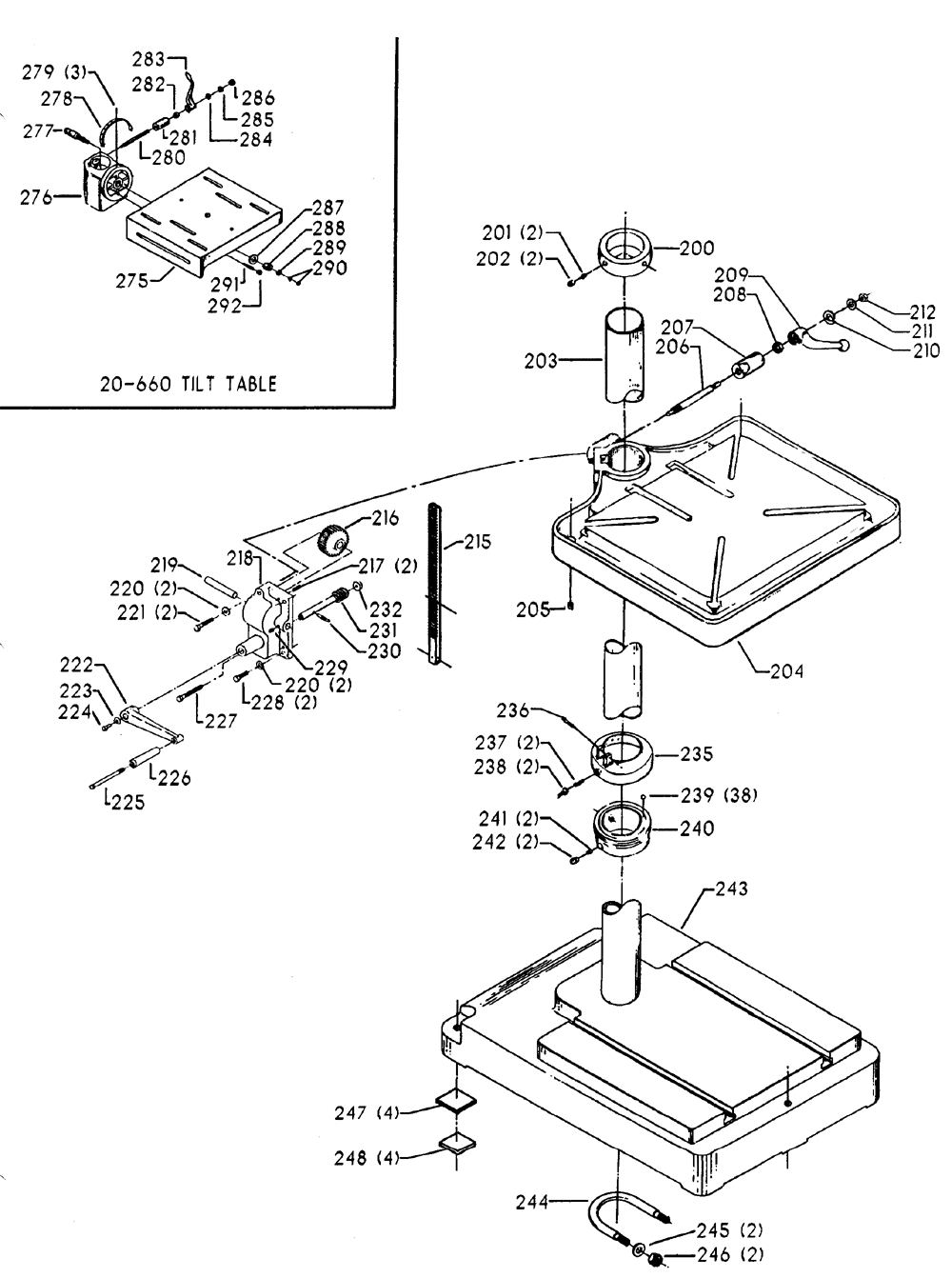

Fig-2

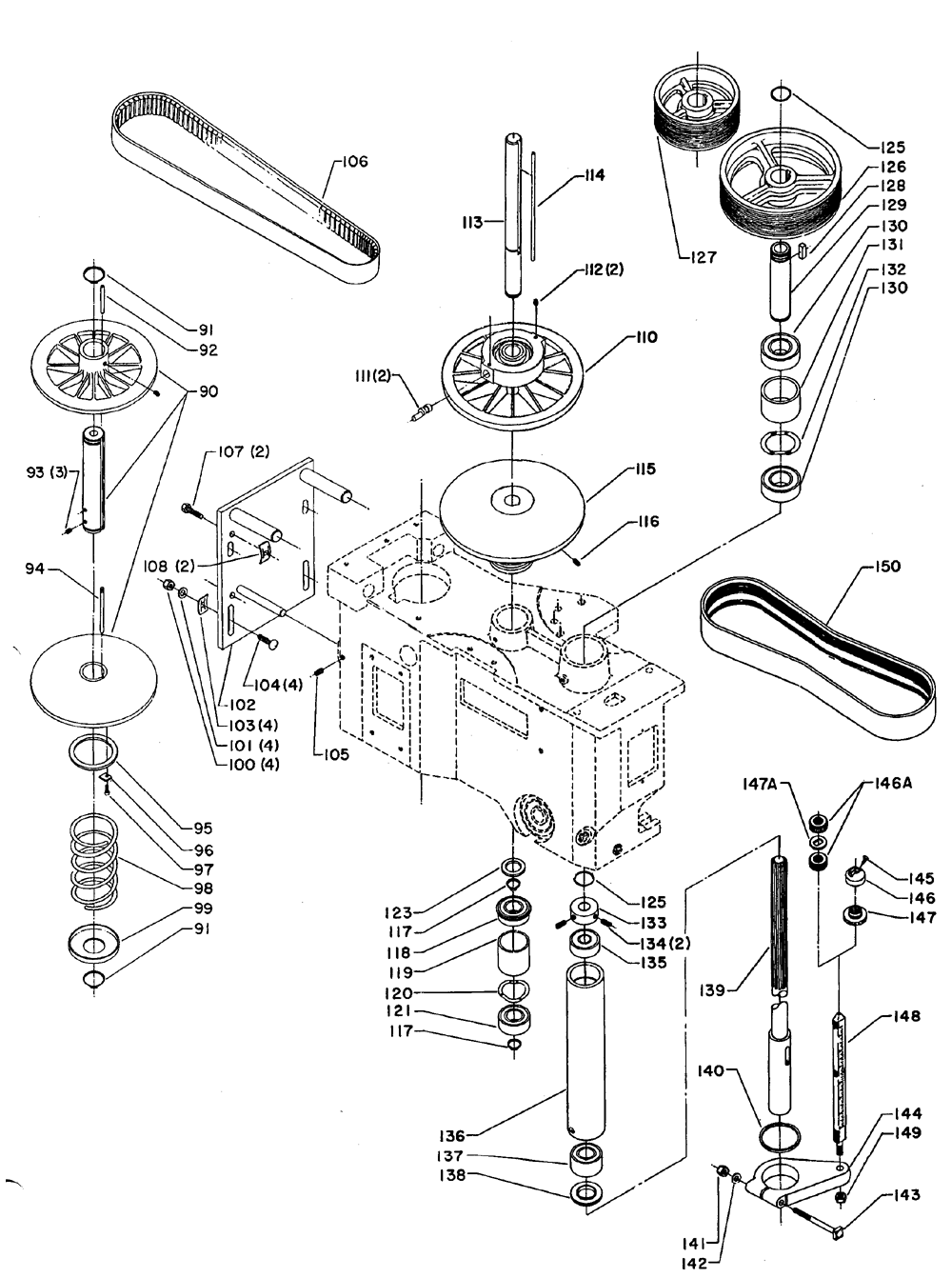

Fig-3

Reference Filter: Filter parts list by name or model number:

Delta 70-343 Type-1 Replacement Parts List

98

Spring Part # 1200207 Currently not available

N/A
99

Retainer Part # 1200208 Currently not available

N/A
100

Hex Nut Part # 902010101300S

$2.52
Add to Cart
101

Washer Part # 904010101620S

$2.52
Add to Cart
102

Motor Plate Assy Part # 1200296 Currently not available

N/A
103

Tbo - Speed Nut Part # 902030002951 Currently not available

N/A
105

Set Screw Part # 901041500206 Currently not available

N/A
106

Tbo - Belt Part # 1200203 Currently not available

N/A
107

Cap Screw Part # 901010600649S

$2.52
Add to Cart
108

Tbo - Speed Nut Part # 902030002951 Currently not available

N/A
110

Tbo - Pulley Retainer Assy Part # 1200293 Currently not available

N/A
111

Eccentric Part # 1200245 Currently not available

N/A
112

Tbo - Set Screw Part # 901041506227 Currently not available

N/A
113

Jackshaft Pully Assy Part # 1200885 Currently not available

N/A
113

Jackshaft Part # 1200277 Currently not available

N/A
115

Fix Pulley Part # 1200294 Currently not available

N/A
118

Bearing Part # 920040215116 Currently not available

N/A
120

Spring Washer Part # 928060107352 Currently not available

N/A
121

Bearing Part # 920040205360

$27.10
Add to Cart

In-Stock. Same Day Shipping
125

Ring Part # 906467S Currently not available

N/A
126

Pulley Assy 3:1 Part # 1200275 Currently not available

N/A
127

Pulley Assy 2:1 Part # 1200276 Currently not available

N/A
128

Key Part # 927030102688 Currently not available

N/A
129

Tbo - Shaft Part # 1200236 Currently not available

N/A

Delta 70-343 Type-1 Replacement Parts

Buy Delta 70-343 Type-1 Drill Press Parts

Other tools in Delta Drill Press Parts category

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Delta 70-343 Type-1 Replacement Parts List
