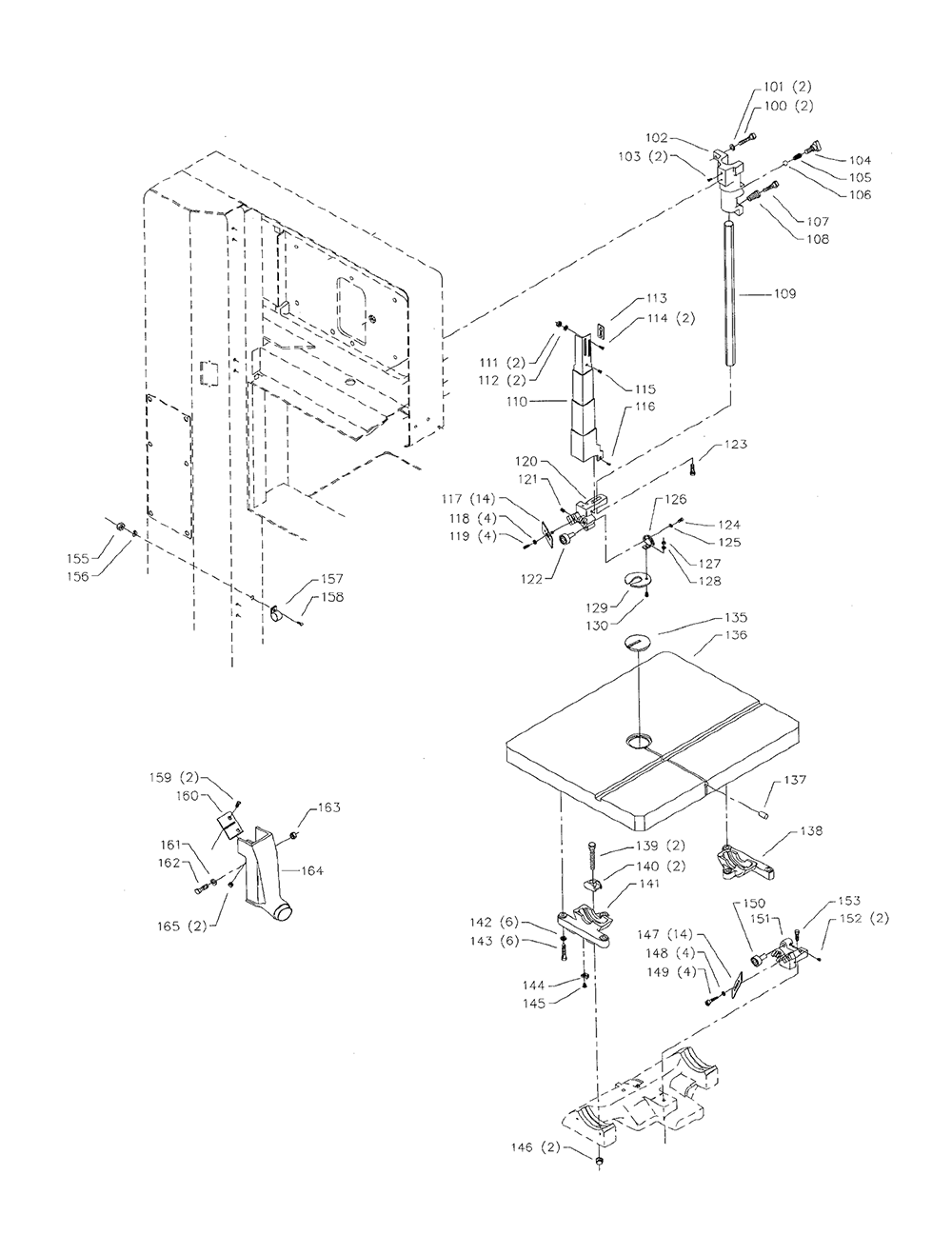

Fig-1

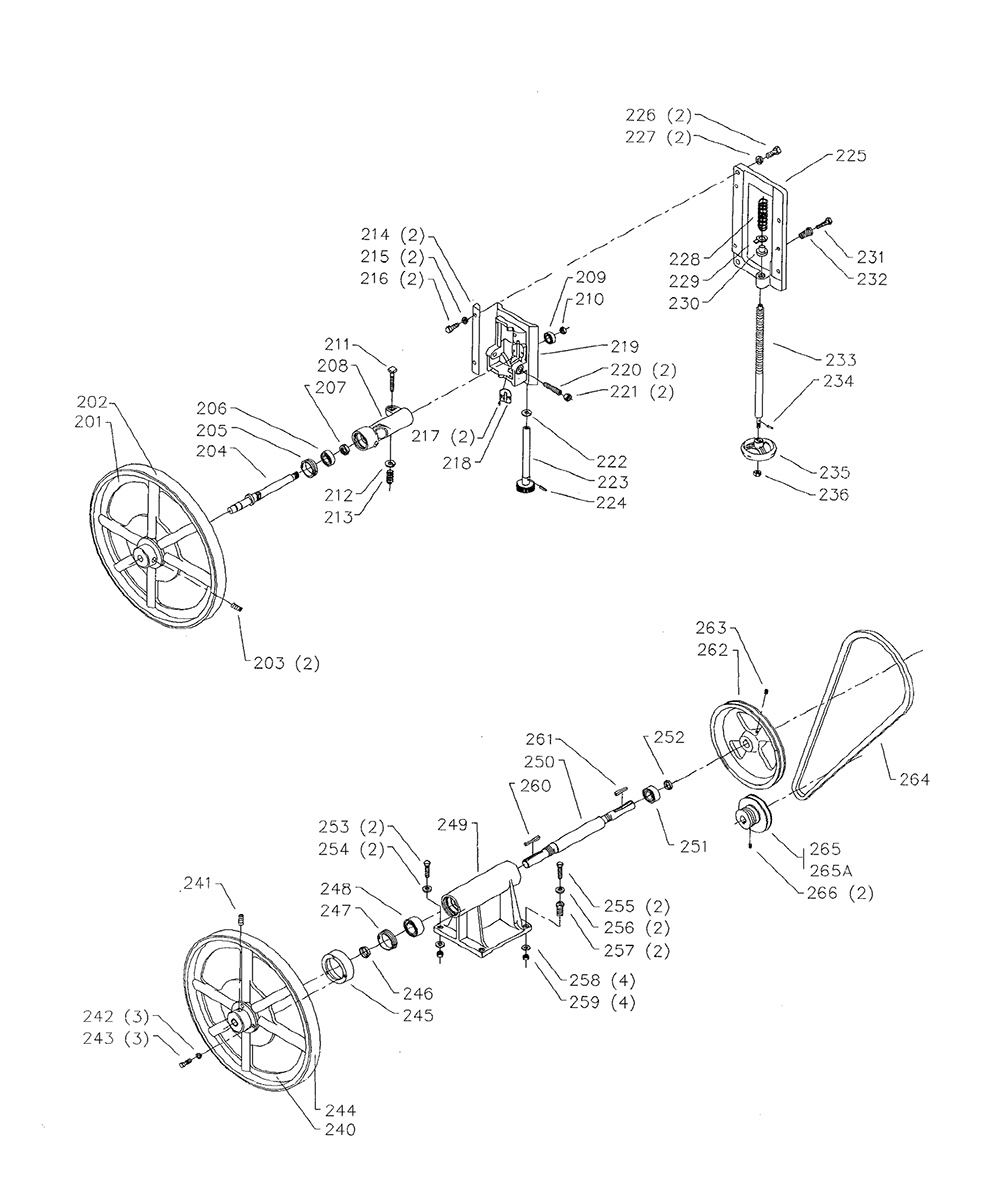

Fig-2

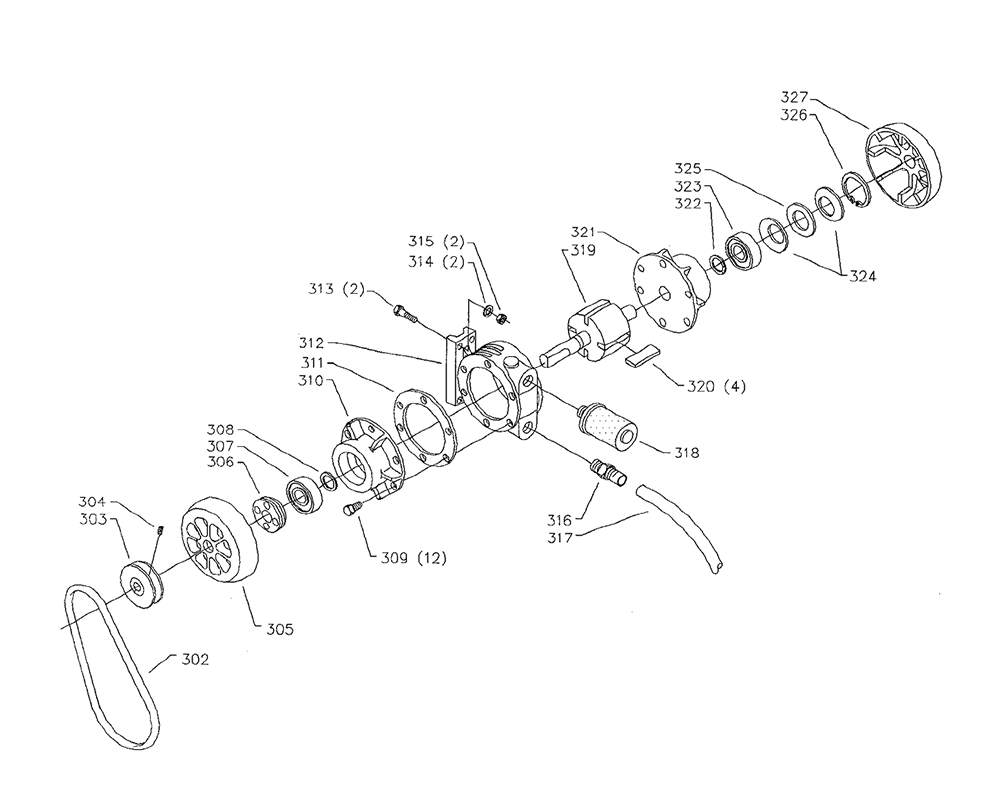

Fig-3

Reference Filter: Filter parts list by name or model number:

Delta BS3A1 Replacement Parts List

1

Frame Assy Part # 426-04-318-5007 Currently not available

N/A
2

Cover Part # 426050315007 Currently not available

N/A
3

Machine Screw Part # 901020100502 Currently not available

N/A
4

#10 Int Tooth Lockwasher Part # 904-03-020-1775 Currently not available

N/A
5

Screw Part # 901021400584 Currently not available

N/A
6

Drive Screw Part # 901-06-450-2250 Currently not available

N/A
7

Nameplate Part # 426047540001 Currently not available

N/A
8

Upper Door Assy Part # 426053315003 Currently not available

N/A
9

Warning Label Part # 426-00-752-0006 Currently not available

N/A
10

#10-32 Hex Nut Part # 902-01-120-1203 Currently not available

N/A
11

#10 Int Tooth Lockwasher Part # 904-03-020-1775 Currently not available

N/A
12

Latch Part # 426050685001 Currently not available

N/A
13

#10-32 X 3/8" Round Head Screw Part # 901-02-010-0561 Currently not available

N/A
14

Insert Handle Part # 426050635006 Currently not available

N/A
15

Lower Door Assy Part # 426053315012 Currently not available

N/A
16

#10-32 Hex Nut Part # 902-01-120-1203 Currently not available

N/A
17

#10 Int Tooth Lockwasher Part # 904-03-020-1775 Currently not available

N/A
18

Latch Part # 426050685001 Currently not available

N/A
19

#10-32 X 3/8" Round Head Screw Part # 901-02-010-0561 Currently not available

N/A
20

Insert Handle Part # 426050635006 Currently not available

N/A
22

Motor Plate Shaft Part # 426-05-106-5012 Currently not available

N/A
23

Ring Part # 904150107008 Currently not available

N/A
24

Lock Washer Part # 904-03-030-1656 Currently not available

N/A
25

Tbo - Stud Part # 1202596 Currently not available

N/A
