Homelite 245-(UT-10643) Replacement Parts

Model: 245-(UT-10643)

Brand: Homelite

Download Schematics

Buy Homelite 245-(UT-10643) Chain Saw Parts

Other tools in Homelite Chain Saw Parts category

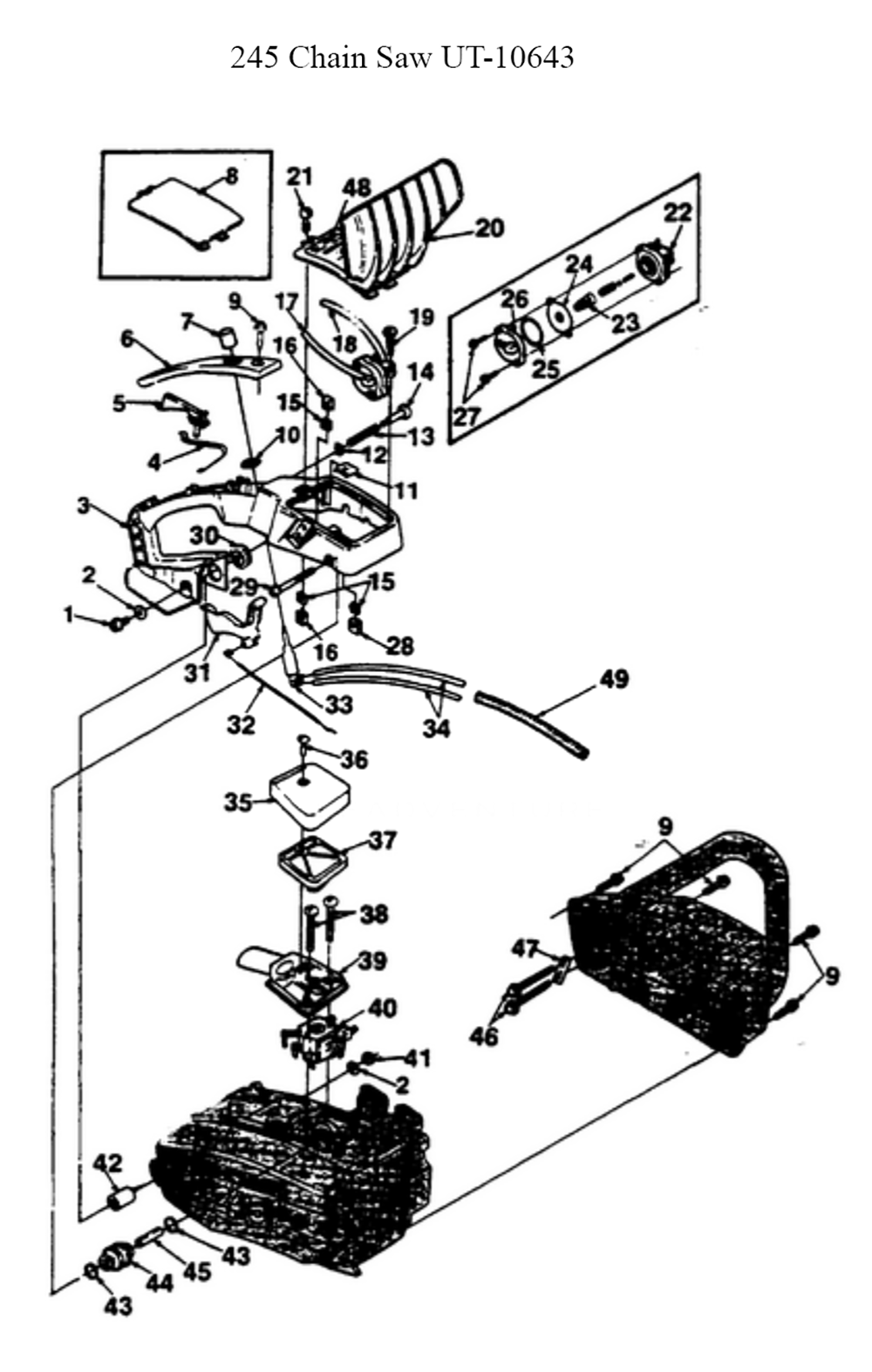

Fig-0

Fig-0

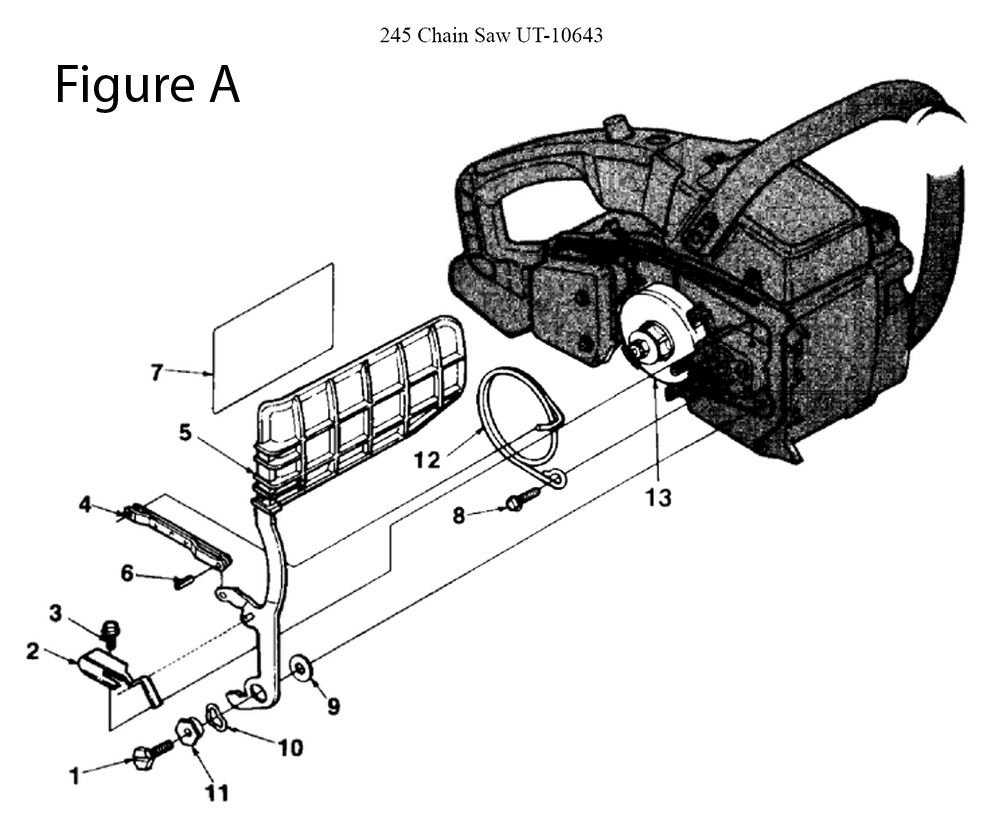

Fig-1

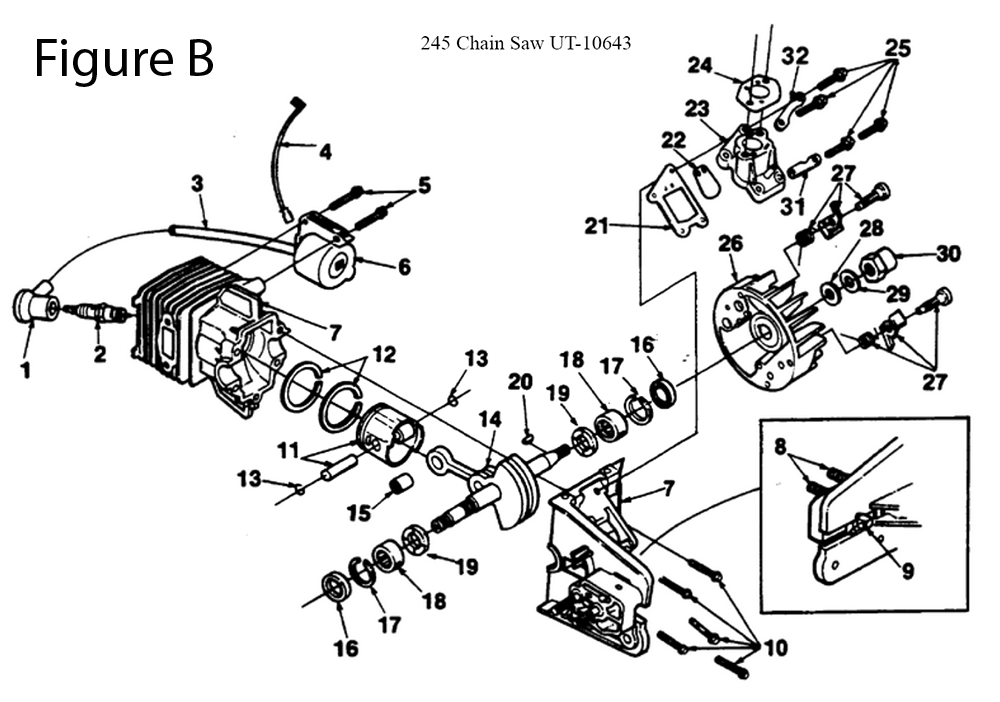

Fig-2

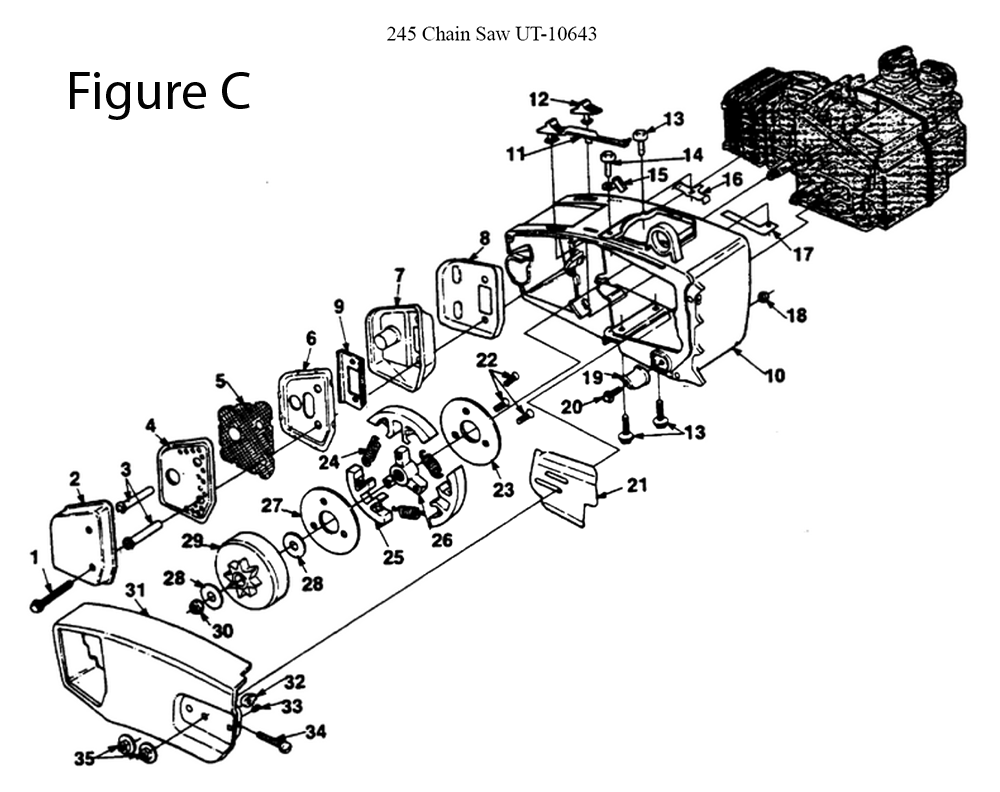

Fig-3

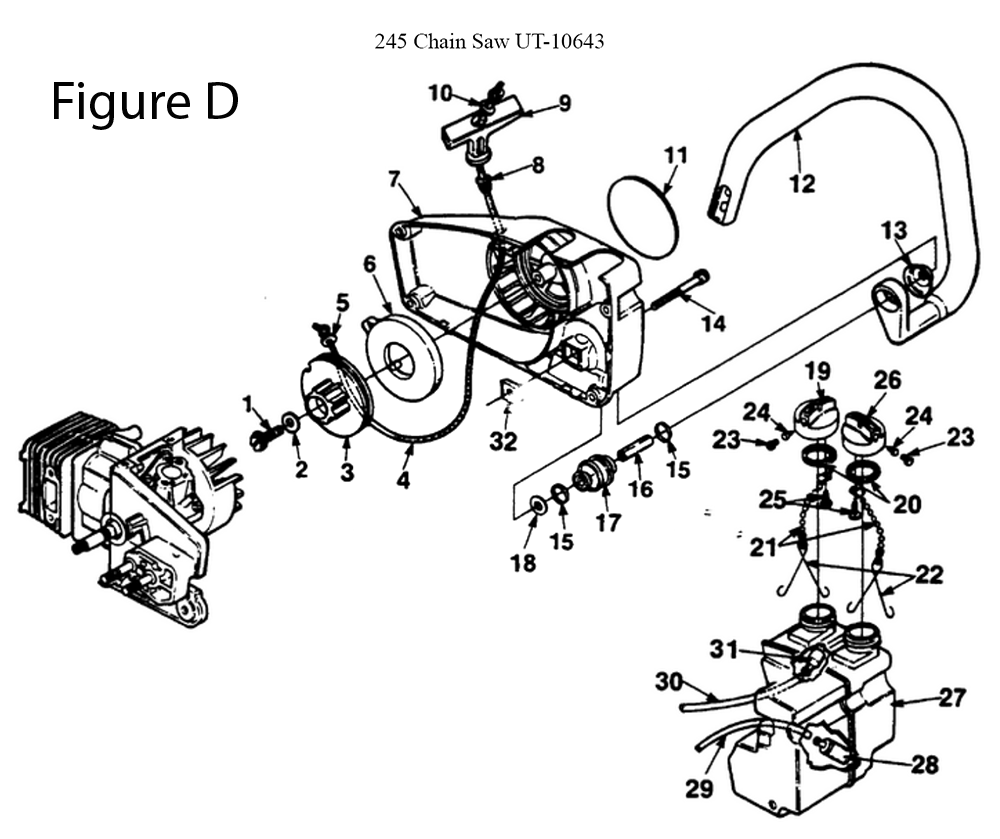

Fig-4

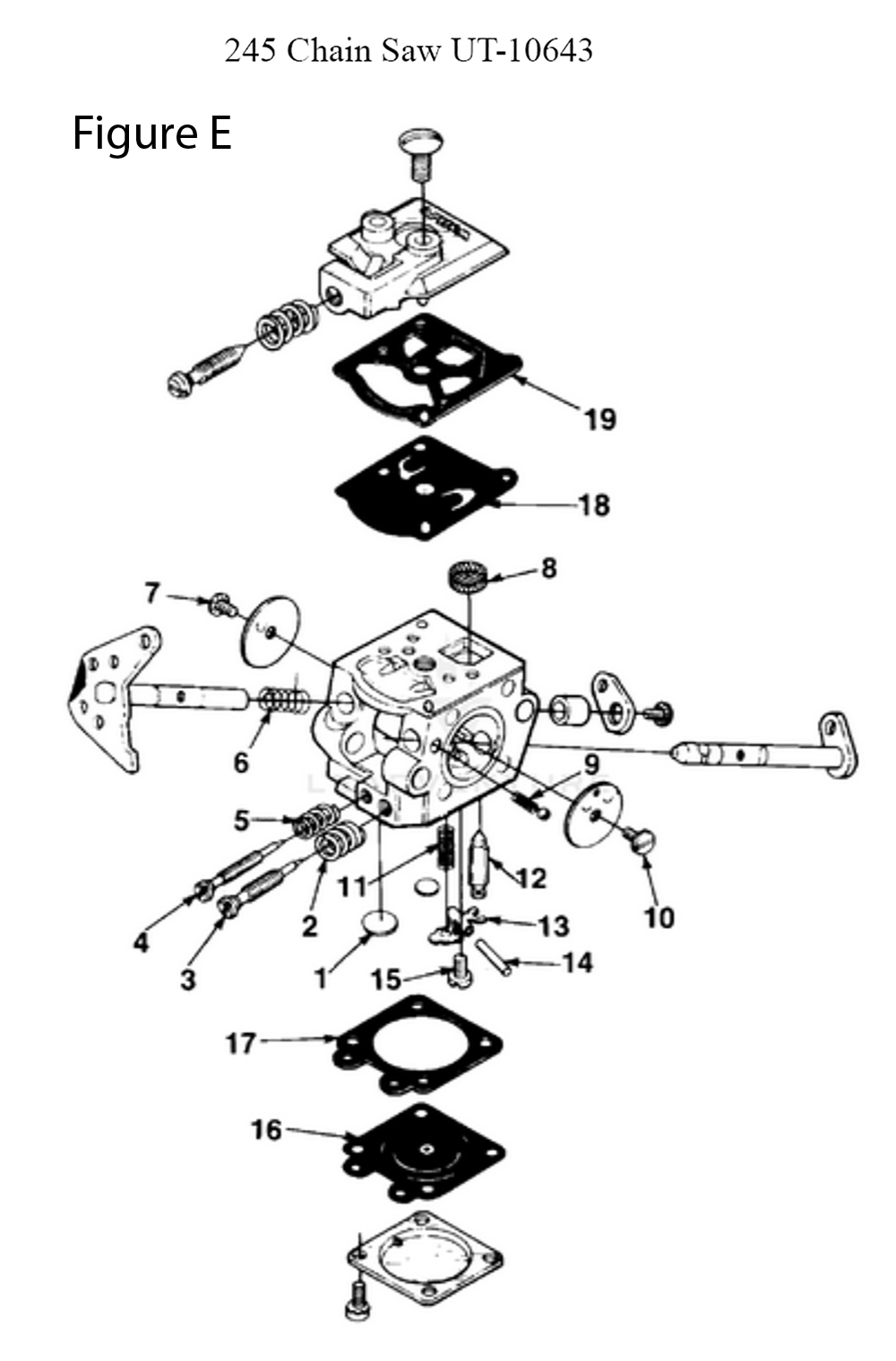

Fig-5

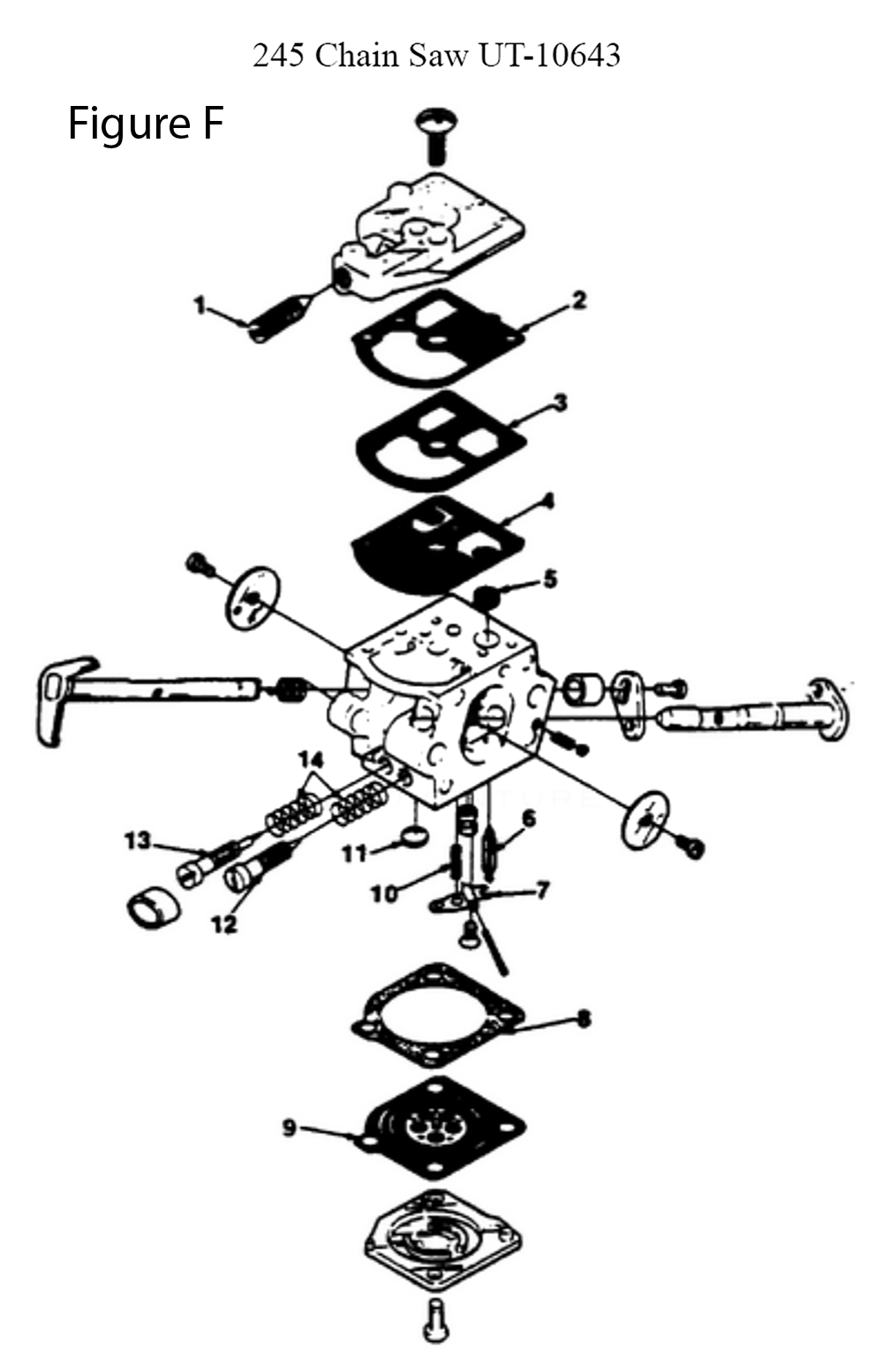

Fig-6

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Homelite 245-(UT-10643) Replacement Parts List

1

Screw- 10-32 X 3/8 Part # 80870

$2.54
Add to Cart
2

Washer Part # 84003

$2.54
Add to Cart
3

Chamber- Carburetor Part # 96224 Currently not available

N/A
4

Spring- Throttle Lock Part # 97076 Currently not available

N/A
5

Interlock- Trigger Part # 96213 Currently not available

N/A
6

Cover- Handle Part # 96225 Currently not available

N/A
7

Button- Oil Pump Part # 97072 Currently not available

N/A
8

Cover- Air Filter (245 Sl Only) Part # A95297 Currently not available

N/A
00

Screw- Retaining Part # 97596 Currently not available

N/A
9

Screw- #10 X 3/4 Part # 70771 Currently not available

N/A
10

Nut- Hex (15/32 X 32) Part # 81266 Currently not available

N/A
11

Nut- Speed Part # 96576 Currently not available

N/A
12

Ring-retaining Part # 58409 Currently not available

N/A
13

Spring- Compression Part # 95020 Currently not available

N/A
14

Pin- Throttle Lock Part # 95671 Currently not available

N/A
15

Nut-square Part # 70810 Currently not available

N/A
16

Retainer Not Part # 95337 Currently not available

N/A
17

Line- Pulse 3 1/4" Part # A96778 Currently not available

N/A
00

Spring (not Shown) Part # 95216 Currently not available

N/A
18

Tubing- (oil Outlet) 4 1/2" (auto) Part # 7031018 Currently not available

N/A
19

Screw - Thd Rolling #10 X 5/8 Part # 82312 Currently not available

N/A
20

Guard- Hand (w/cover) (245HG Only) Part # A93573A Currently not available

N/A
21

Screw-retaining Part # 95217 Currently not available

N/A
22

Body- Oil Pump Part # A97524 Currently not available

N/A
