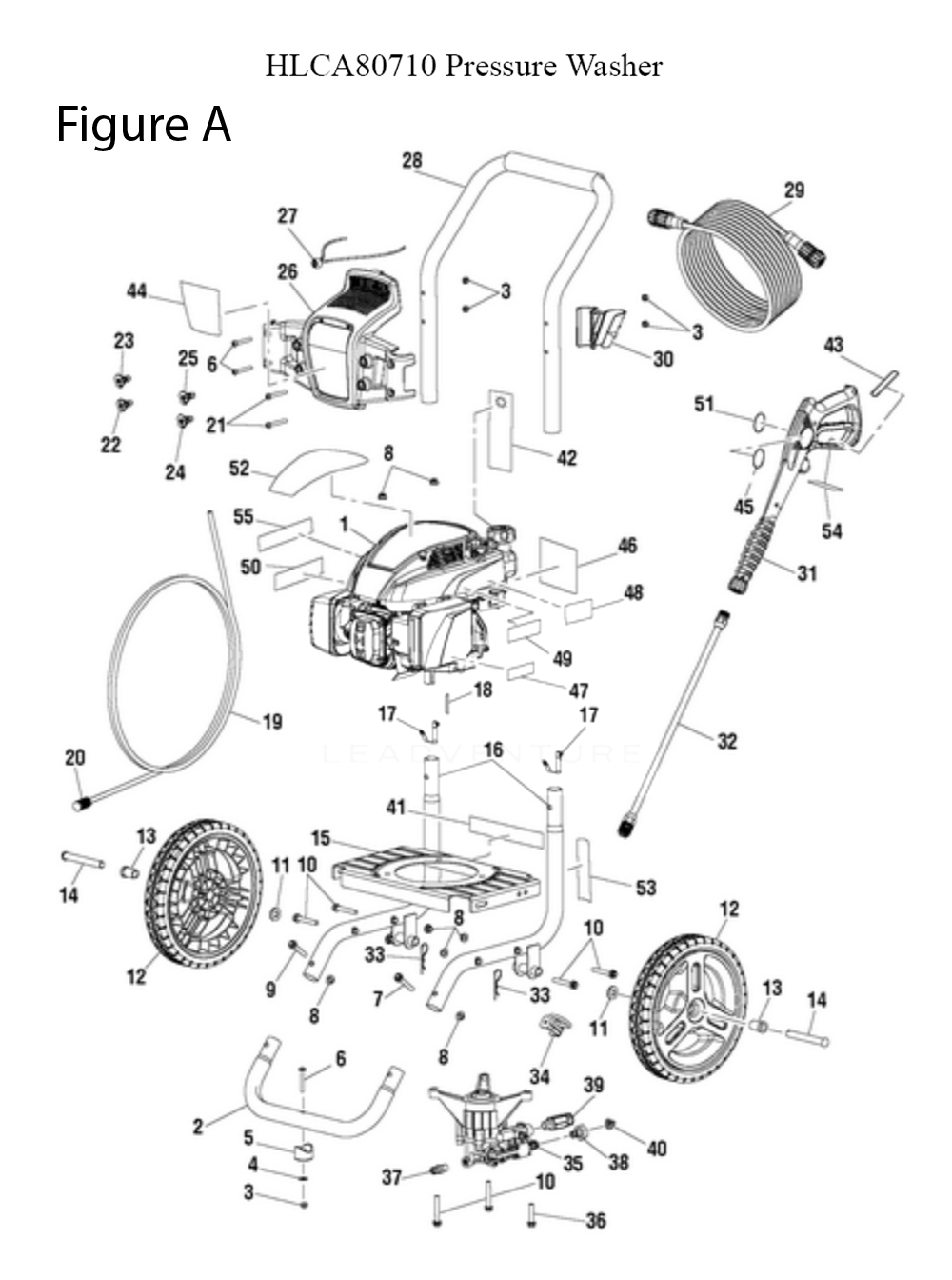

Fig-0

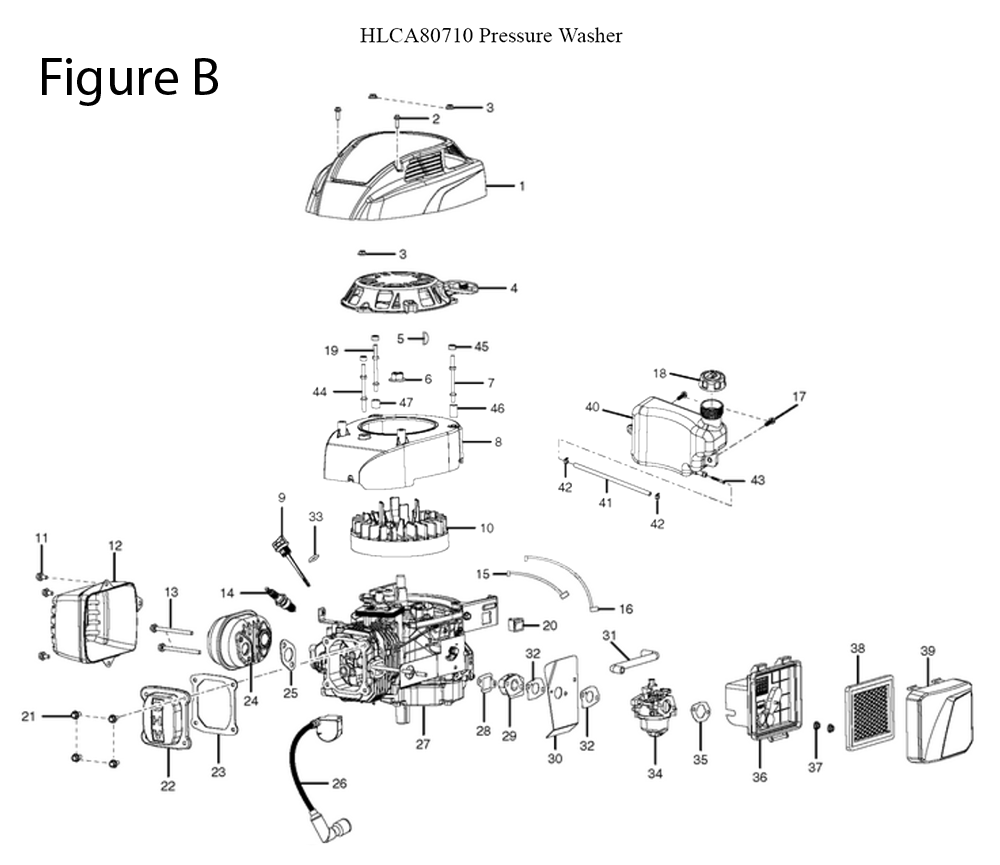

Fig-1

Reference Filter: Filter parts list by name or model number:

Homelite HLCA80710 Replacement Parts List

A-1

163 Cc Engine Part # 308655003 Currently not available

N/A
A-2

Front Frame Red Part # 308659013 Currently not available

N/A
A-3

Nut 1/4 - 20 Nylon Locking Part # 678016006 Currently not available

N/A
A-3

NUT,1/4-20 Nylon Locking Part # 678016002 Currently not available

N/A
A-4

Washer Sae Plain 1/4 (w) Part # 638128004

$2.54
Add to Cart
A-5

Wear Pad Non-marring Rubber Part # 570554002

$2.54
Add to Cart
A-6

Screw 1/4-20 X 1.85 T30 Torx Part # 661501001 Currently not available

N/A
A-7

Bolt M8 X 50 Flange Head Part # 661505003

$2.54
Add to Cart
A-8

Nut M8 X 1.25 Selflocking Part # 678774001

$2.54
Add to Cart
A-9

Bolt M8 X 45 Flange Head Part # 661505004

$2.54
Add to Cart
A-10

Bolt Washerhex M8x55 Part # 660962001 Currently not available

N/A
A-10

Bolt Washer Hex M8x50 Part # 660969001

$2.54
Add to Cart
A-11

Washer 1/2SAE Flat Part # 638275002

$2.54
Add to Cart
A-12

Wheel 12 In. x2 In. Part # 308451006 Currently not available

N/A
A-13

Wheel Sleeve Plastic Part # 519857001 Currently not available

N/A
A-14

Axle 13.3 X 101mm Part # 620599007 Currently not available

N/A
A-15

Engine Plate Part # 638662003

$26.65
Add to Cart
A-16

Front Frame Assy Red Part # 310742002 Currently not available

N/A
A-17

Lock Button W/spring Clip Part # 308421001 Currently not available

N/A
A-18

Output Shaft Key Part # 678041002 Currently not available

N/A
A-18

Output Shaft Key 40mm Part # 678041007 Currently not available

N/A
A-19

Plasticchemical Siphon Tube - Part # 561399003

$2.54
Add to Cart
A-20

Plasticfilter - 518391001 Part # 518391001 Currently not available

N/A
A-21

Screw (1/4 - 20 X 2.0 In. Torx Part # 661501007

$2.54
Add to Cart
