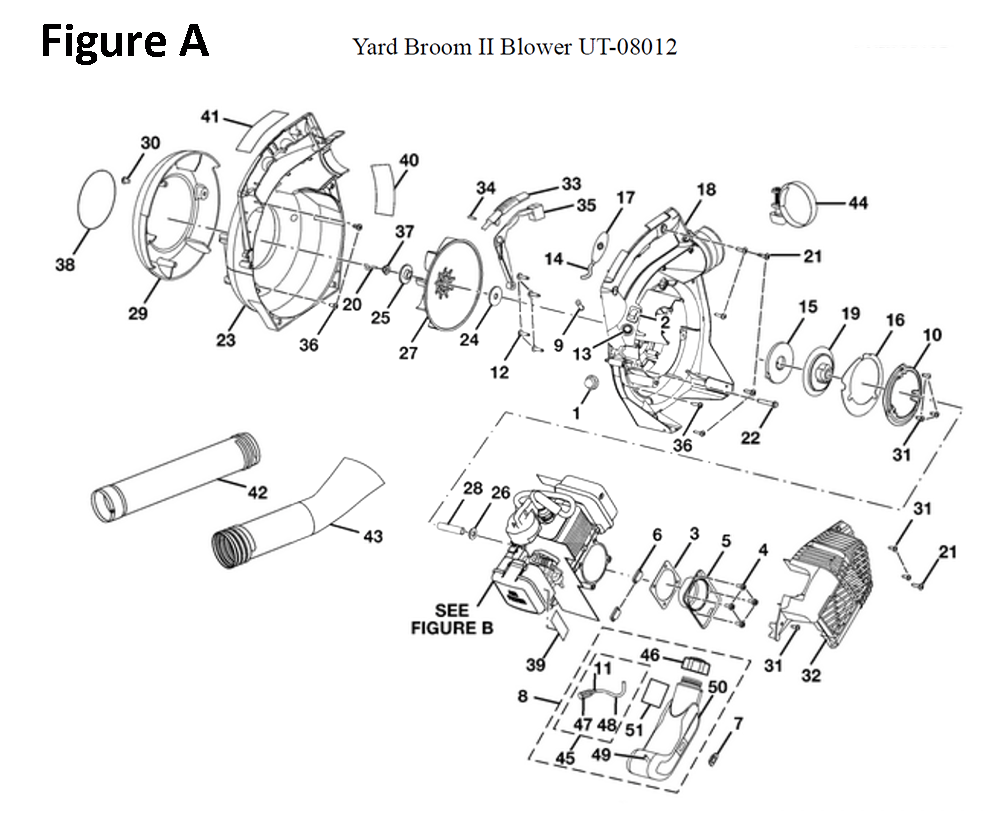

Fig-0

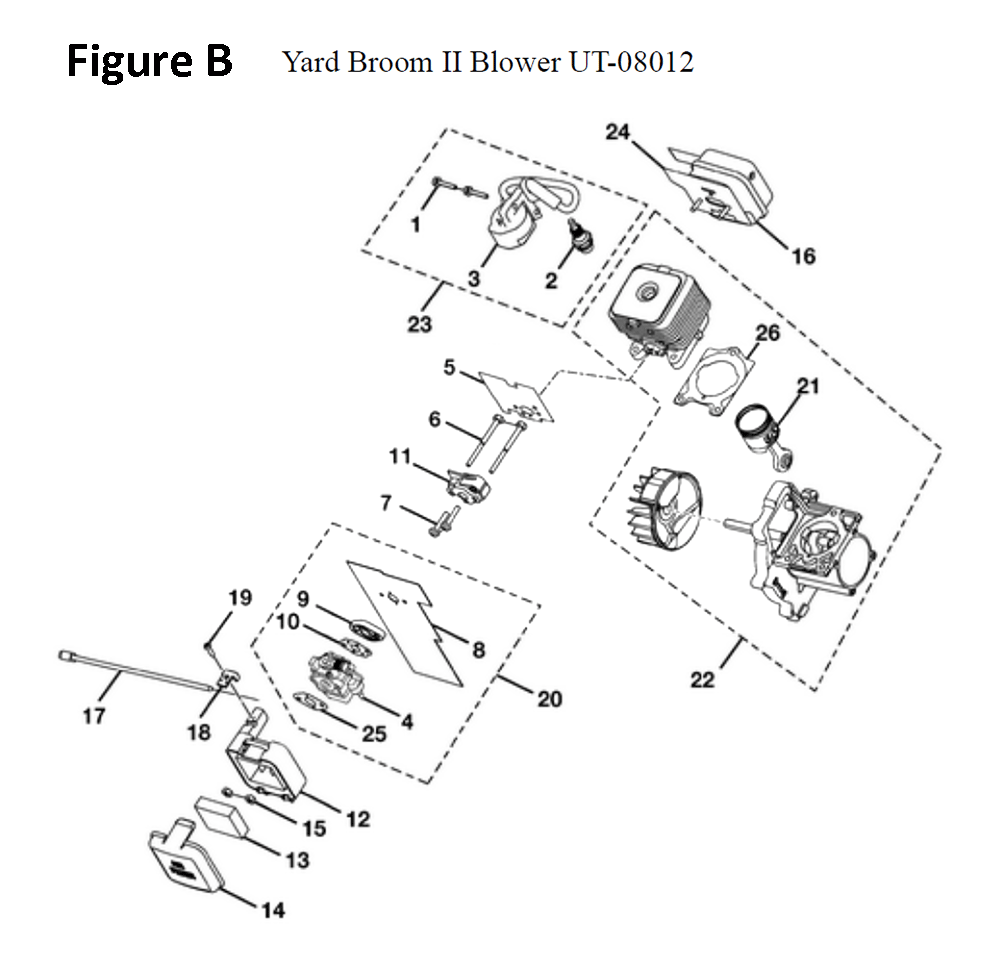

Fig-1

Reference Filter: Filter parts list by name or model number:

Homelite Yard-Broom-II-(UT-08012) Replacement Parts List

A-1

Primer Bulb Part # 308088001

$5.29
Add to Cart
A-2

Switch Part # 760363002 Currently not available

N/A
A-3

Crankcase Gasket Part # 900954001 Currently not available

N/A
A-4

Screw (10-24 X 9/16 In. Pan Hd.) Part # 660664001 Currently not available

N/A
A-5

Crankcase Cover Part # 638031001 Currently not available

N/A
A-6

Rubber Bumper Part # 570256001 Currently not available

N/A
A-7

Big Bumper Part # 570549001 Currently not available

N/A
A-8

Fuel Tank Assembly Part # 308123004 Currently not available

N/A
A-9

Bushing-starter Rope Part # 650013001 Currently not available

N/A
A-10

Baffle Plate Part # 638032001 Currently not available

N/A
A-11

Wire Clamp Part # 690765001

$2.54
Add to Cart
A-12

Screw (10-24 X 3/4 In. Truss Hd.) Part # 660630002 Currently not available

N/A
A-13

Bushing Starter Part # 650014001 Currently not available

N/A
A-14

Starter Rope Part # 900849004 Currently not available

N/A
A-15

Spring & Container Assembly Part # 638033001

$3.24
Add to Cart
A-16

Baffle Gasket Part # 900957001 Currently not available

N/A
A-17

Starter Grip Part # 518073001 Currently not available

N/A
A-18

Inner Volute Housing Part # 518249001 Currently not available

N/A
A-19

Pulley Assembly Part # 308134001 Currently not available

N/A
A-20

Wire Loop Part # 638074001 Currently not available

N/A
A-21

Screw (10-14 X 3/4 In.) Part # 660629001 Currently not available

N/A
A-22

Screw (10 X 1-5/8 In. Hex Hd.) Part # 660667001 Currently not available

N/A
A-23

Outer Volute Part # 518250001 Currently not available

N/A
A-24

Washer (ID9.8 X OD34.27 X 2.28t) Part # 650016001

$2.54
Add to Cart
