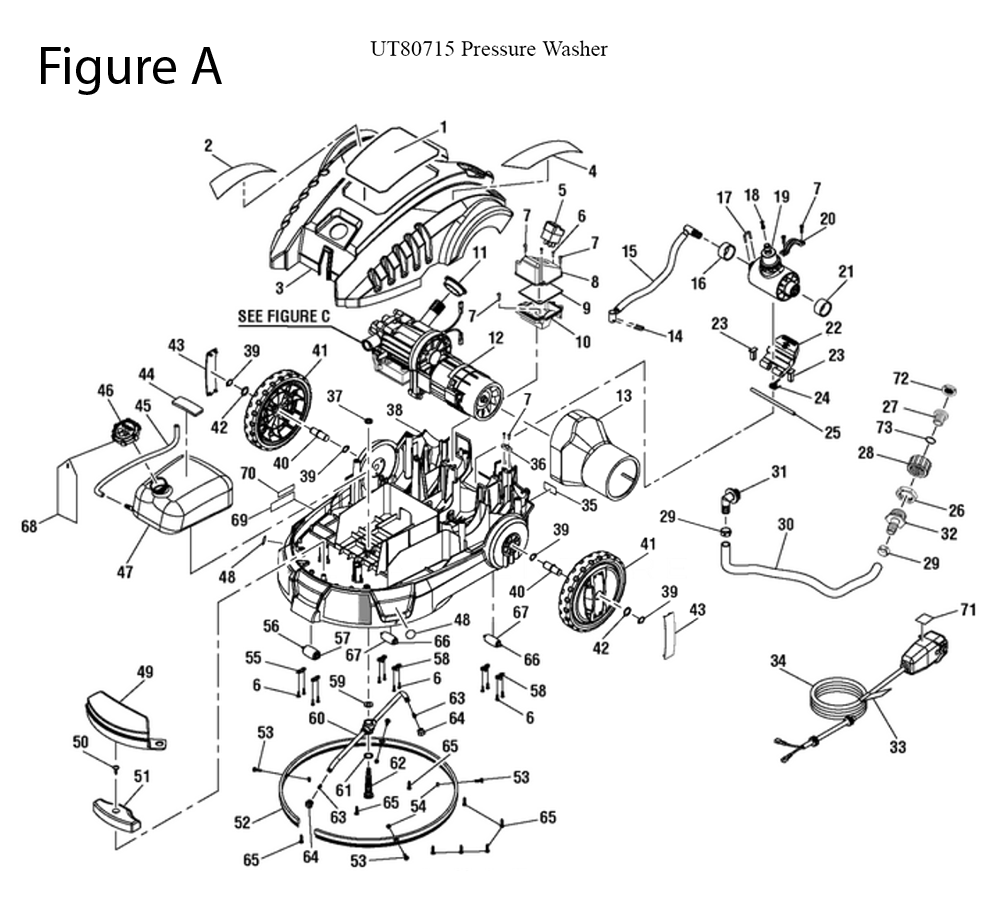

Fig-0

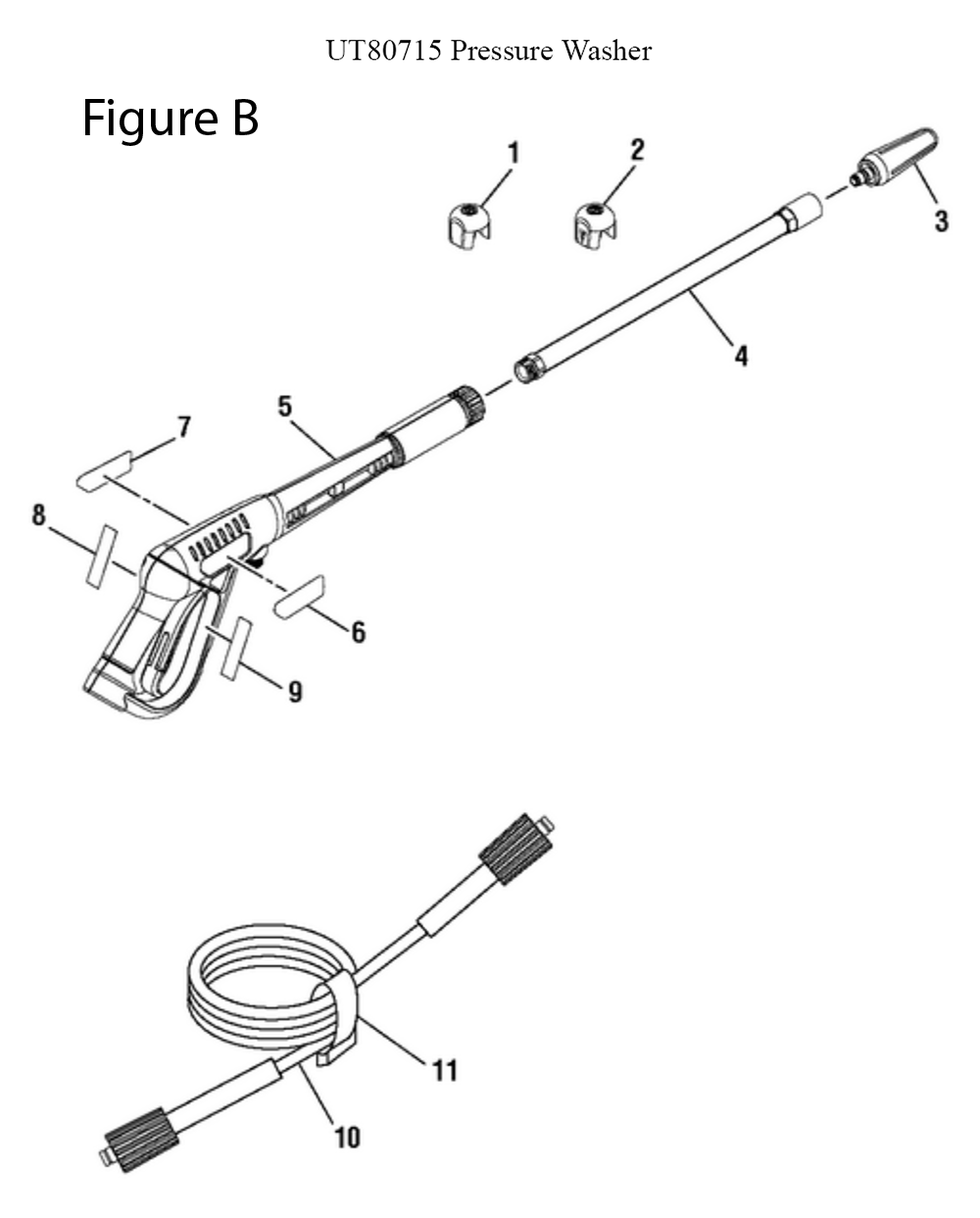

Fig-1

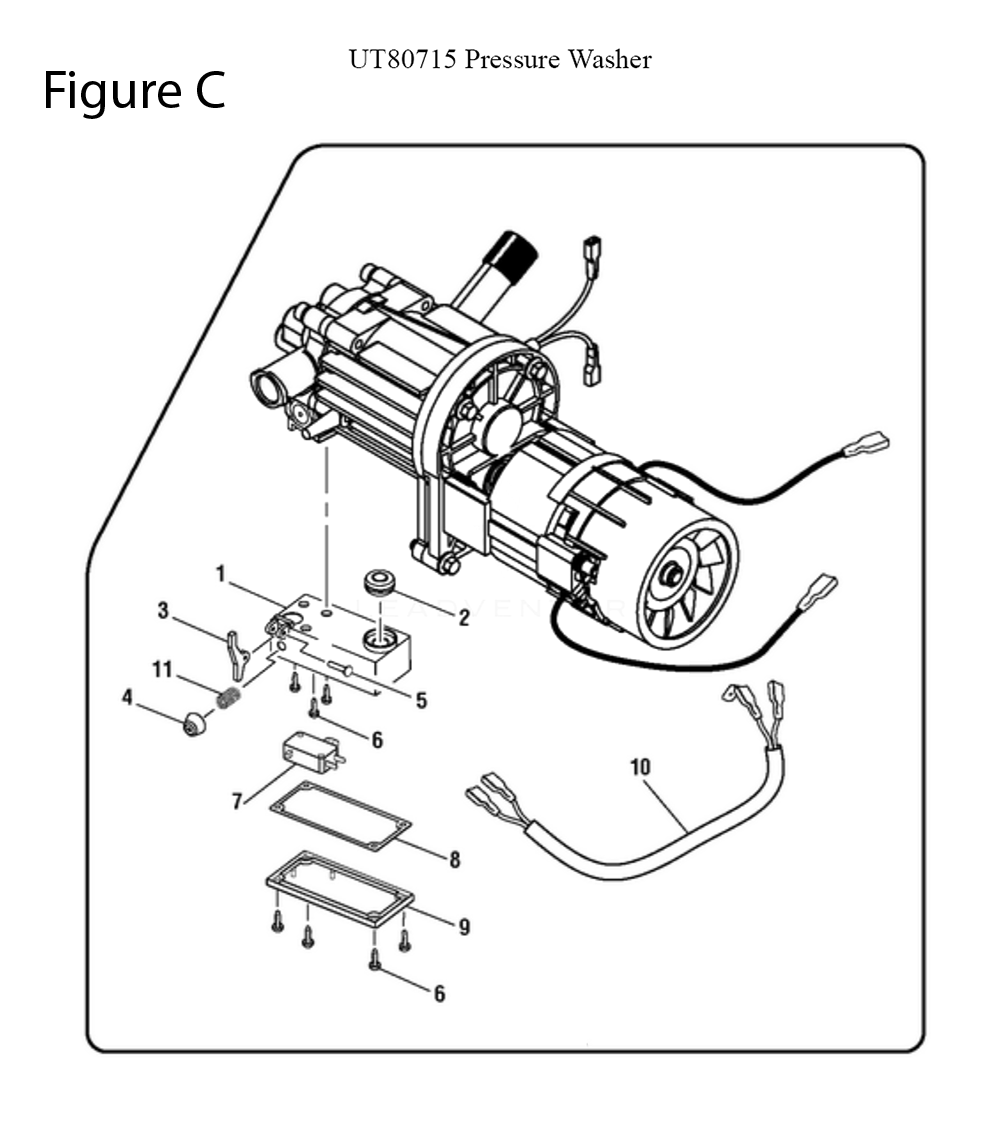

Fig-2

Reference Filter: Filter parts list by name or model number:

Homelite UT80715 Replacement Parts List

A-1

Performance Label Part # 940779050 Currently not available

N/A
A-2

Quick Start Label Part # 940617080 Currently not available

N/A
A-3

Top Housing Assembly (incl. Key Nos. 1-2 & 4) Part # 308999009 Currently not available

N/A
A-4

Warning Label Part # 940707020 Currently not available

N/A
A-5

Switch Part # 36302301AG Currently not available

N/A
A-6

Screw (M3.5 X 12 Mm) Part # 32210302G Currently not available

N/A
A-7

Screw (M4.2 X 15 Mm) Part # 32208302G Currently not available

N/A
A-8

Switch Box Cover Part # 34122302G Currently not available

N/A
A-9

Switch Box Gasket Part # 34121302G Currently not available

N/A
A-10

Switch Box Part # 34120302G Currently not available

N/A
A-11

Pump Outlet Ring Part # 34125302G Currently not available

N/A
A-12

Motor and Pump Assembly Part # 308833007 Currently not available

N/A
A-13

Motor Baffle Part # 34101302G Currently not available

N/A
A-14

U Pin (2.5 Mm) Part # 33308302G Currently not available

N/A
A-15

High Pressure Hose Assembly Part # 308835041 Currently not available

N/A
A-16

Left Pivot Bushing Part # 33237302G Currently not available

N/A
A-17

U Pin (3 Mm) Part # 33307302G Currently not available

N/A
A-18

Nipple Filter Part # 33232302G Currently not available

N/A
A-19

Pivot Part # 34119302G Currently not available

N/A
A-20

Pivot Clamp Part # 33306302G Currently not available

N/A
A-21

Right Pivot Bushing Part # 33238302G Currently not available

N/A
A-22

Foot Pedal Part # 34127302G Currently not available

N/A
A-23

Bearing Block Part # 34128302G Currently not available

N/A
A-24

Torsion Spring Part # 33909302G Currently not available

N/A

Homelite UT80715 Replacement Parts
