Makita BCM3310 Replacement Parts

Model: BCM3310

Brand: Makita

Download Schematics

Buy Makita BCM3310 Electric Trimmer Parts

Other tools in Makita Electric Trimmer Parts category

Fig-0

Fig-0

Fig-1

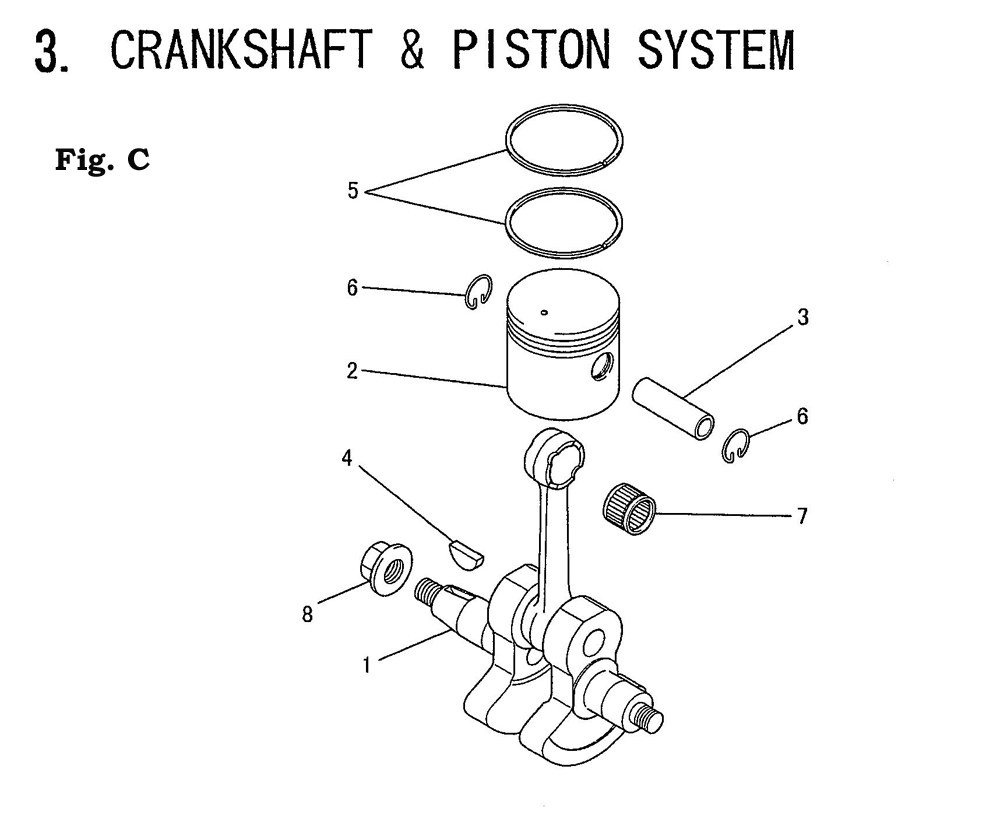

Fig-2

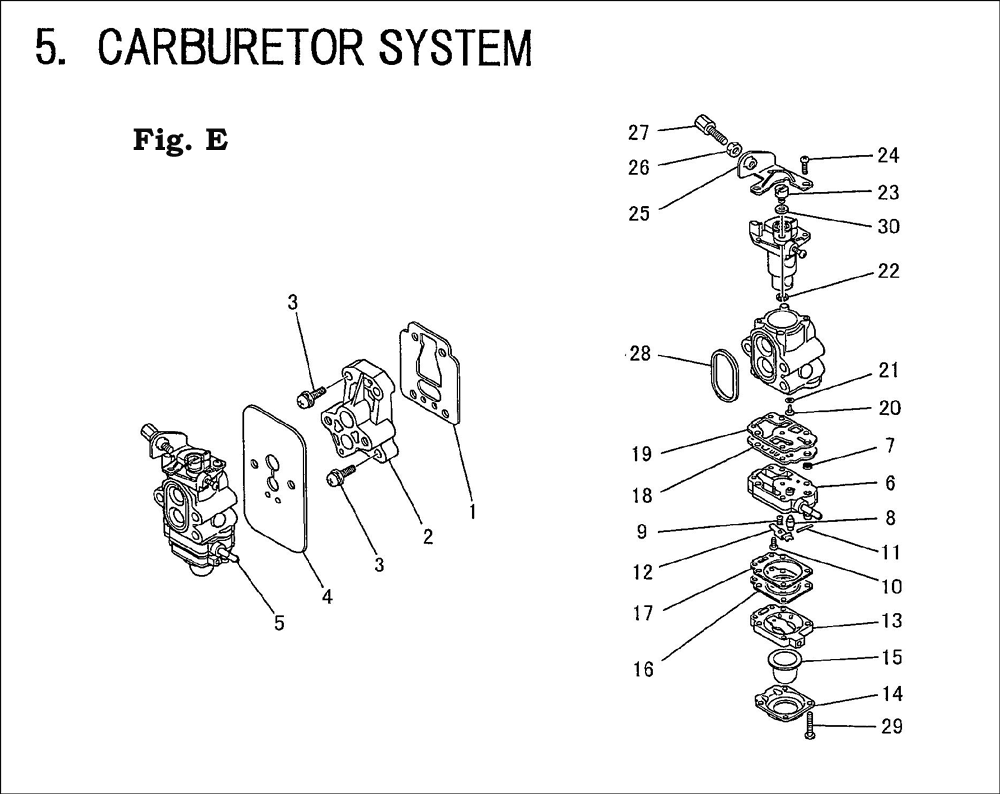

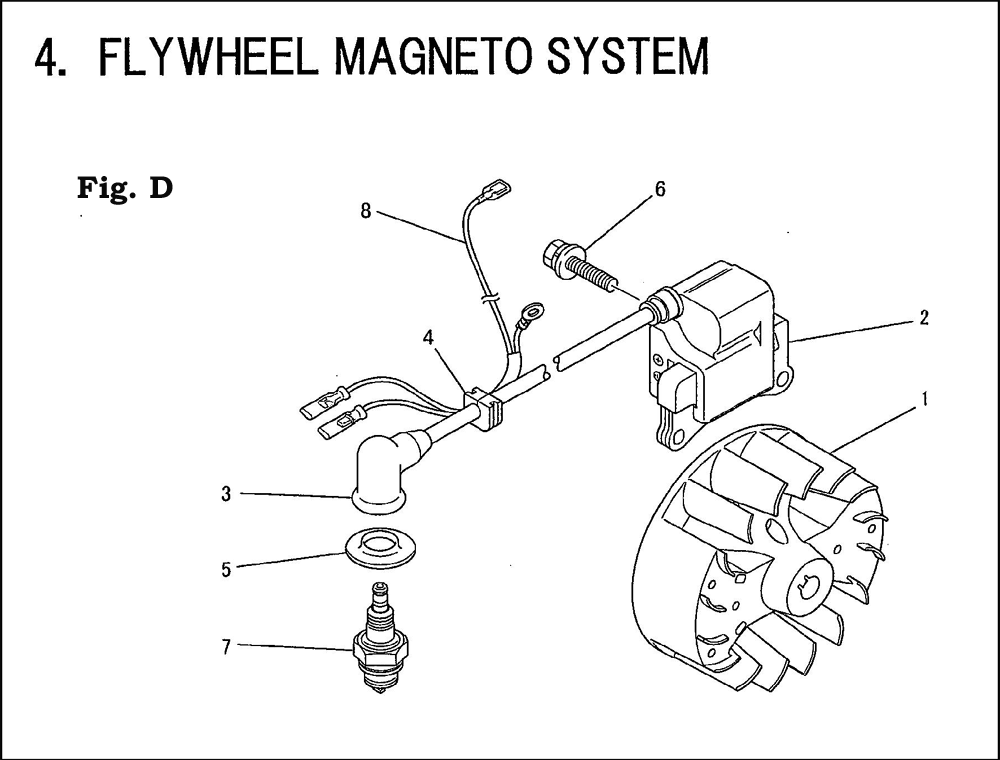

Fig-3

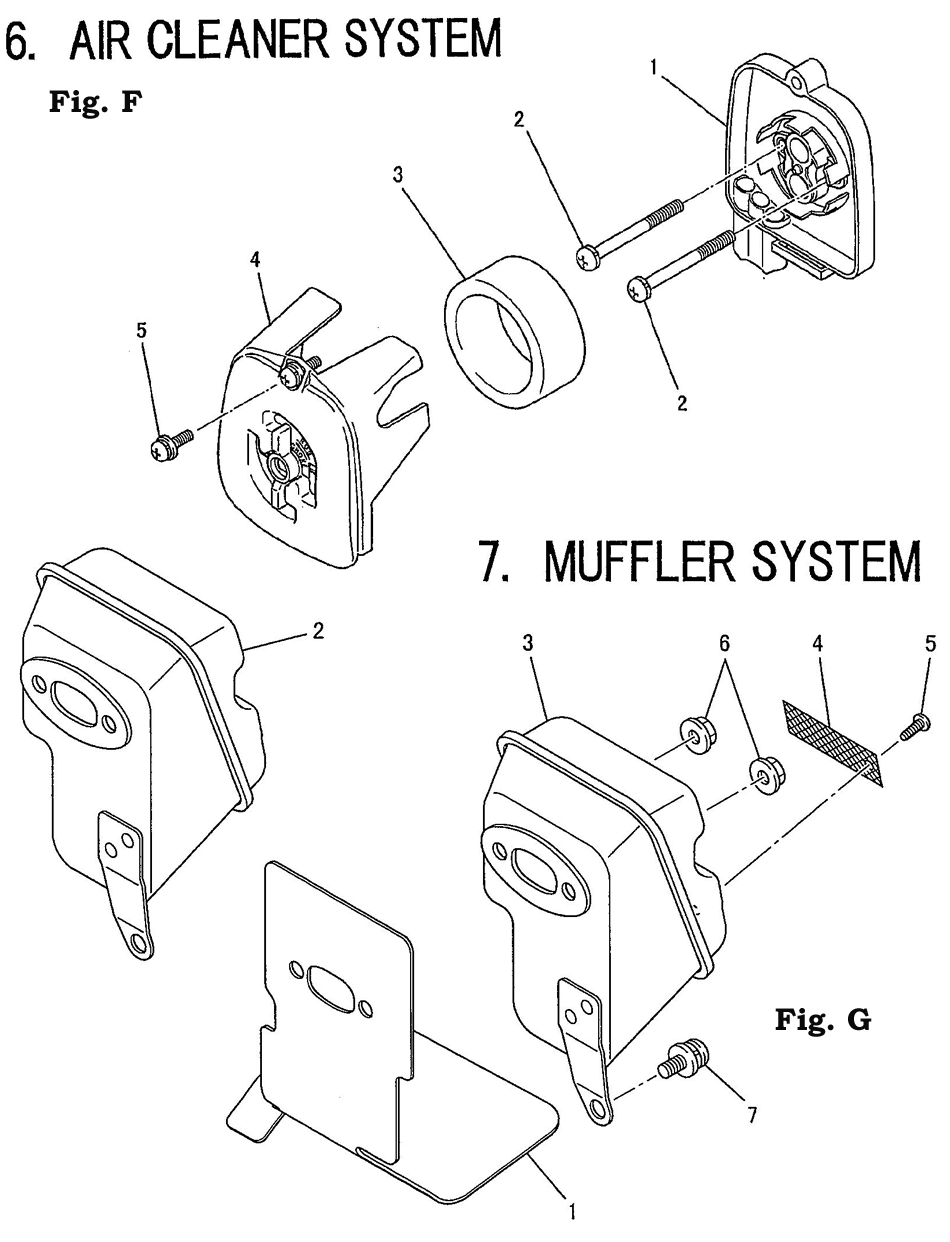

Fig-4

Fig-5

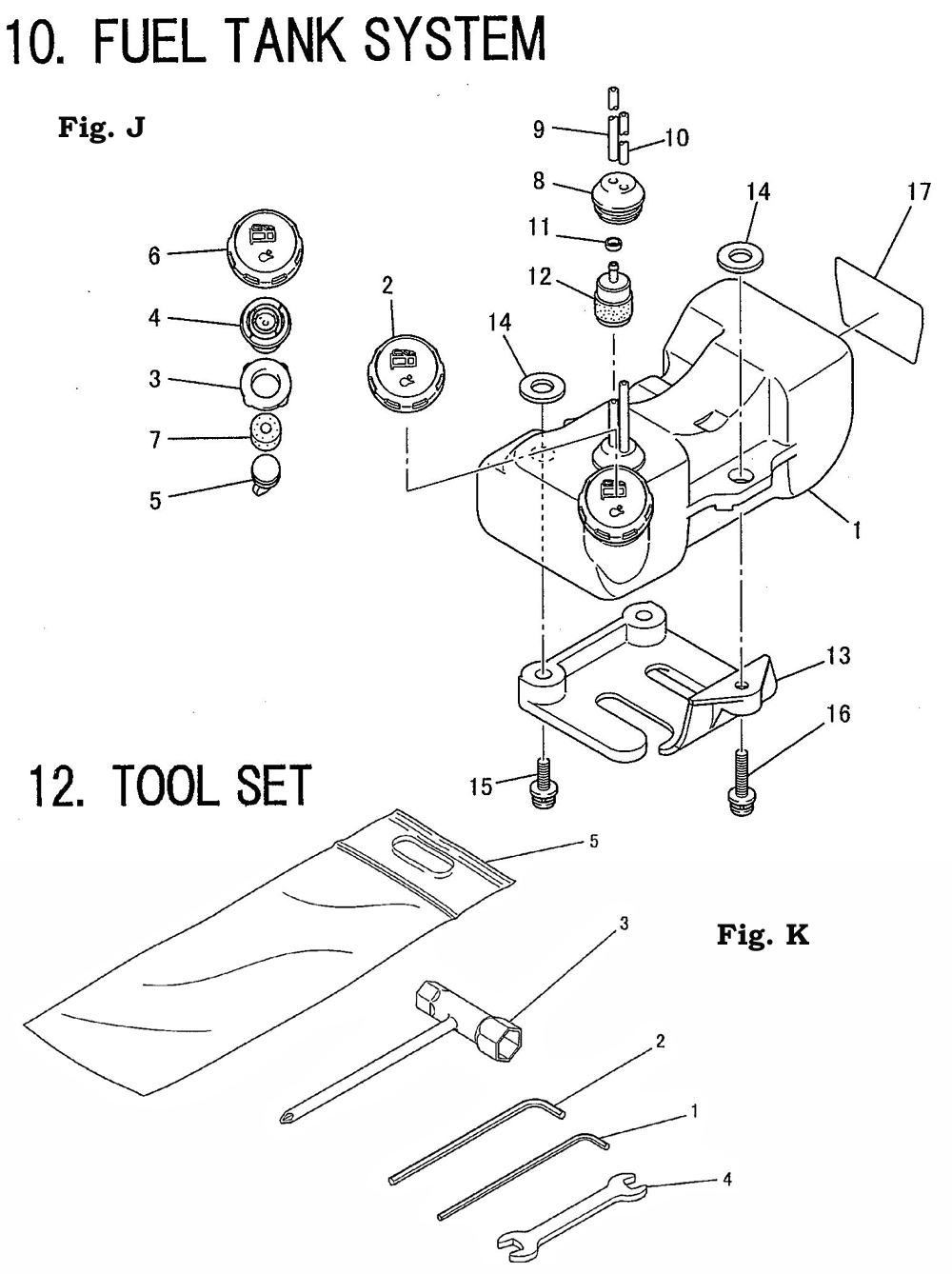

Fig-6

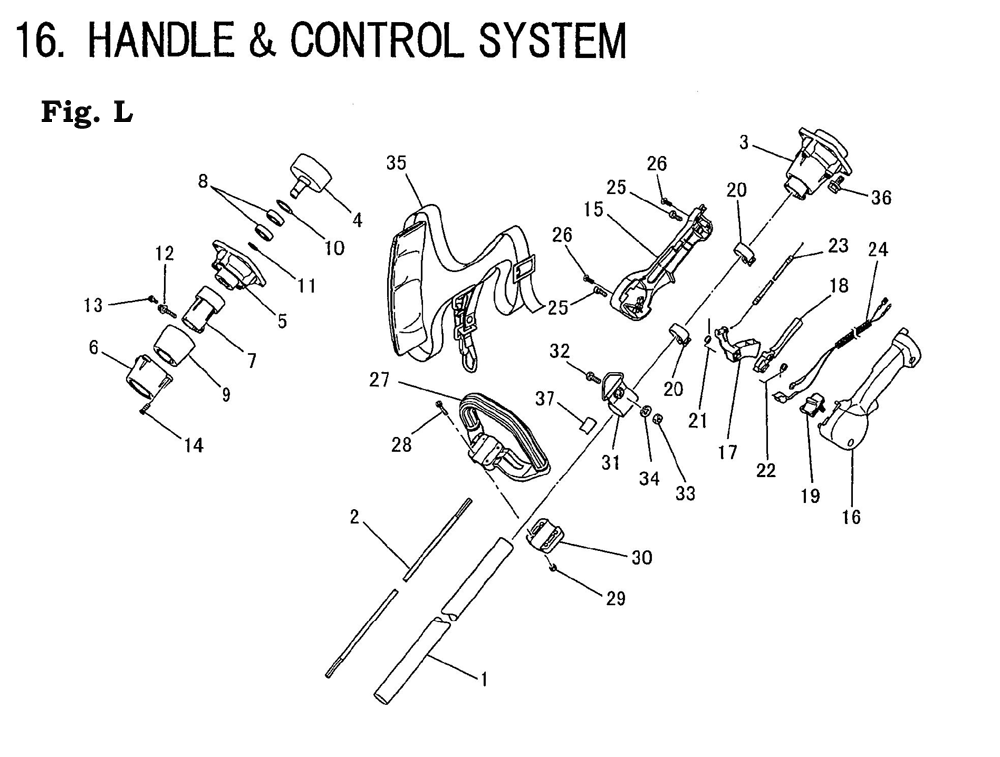

Fig-7

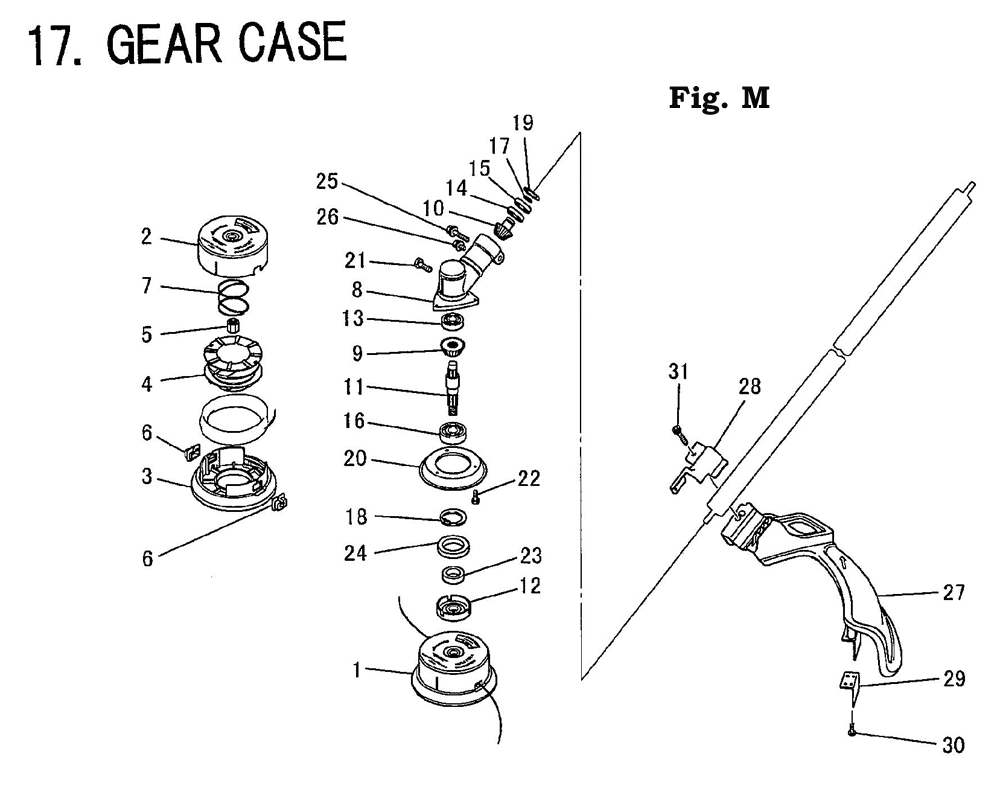

Fig-8

Fig-9

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

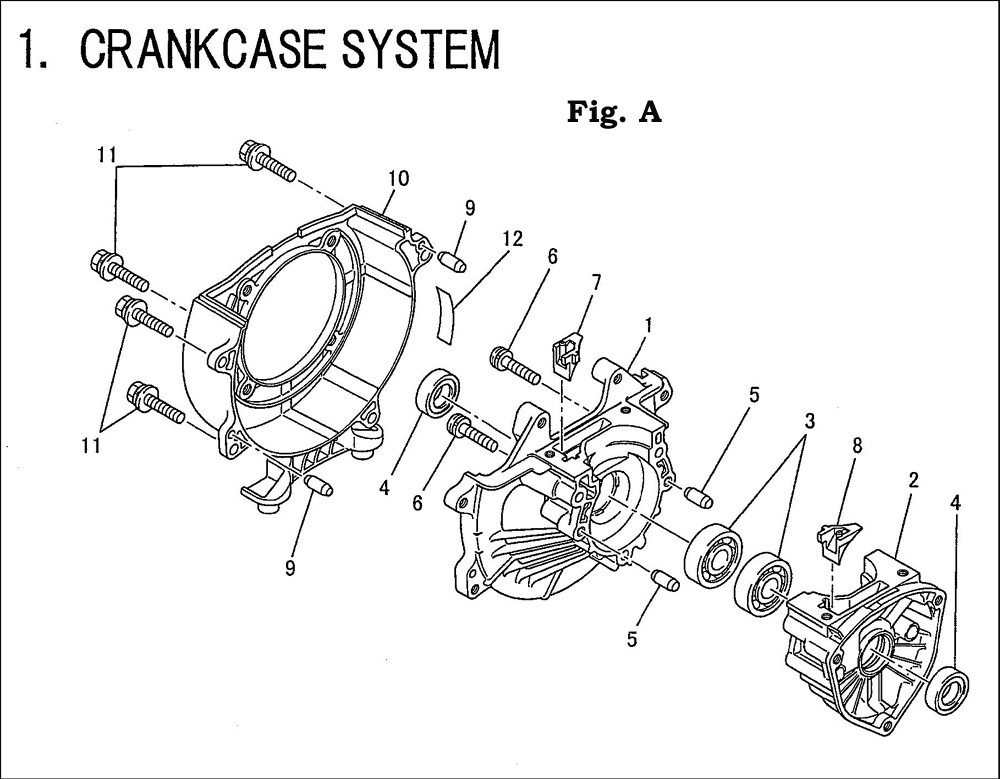

Makita BCM3310 Replacement Parts List

1-A

Case,drive, BCM2310 Part # KB14010AA Currently not available

N/A
2-A

Case,starter, BCM3300 Part # KB14011AA Currently not available

N/A
3-A

Bearing,ball #6001, BCM2310 Part # 110X60X010 Currently not available

N/A
4-A

Oil Seal, BCM2310 Part # KW21005AA Currently not available

N/A
5-A

Pin,dowel, BCM2310 Part # KU40003AA Currently not available

N/A
6-A

Screw & Washer, BCM2310 Part # KU12028AA Currently not available

N/A
7-A

Guide, BCM2310 Part # KB90007AA Currently not available

N/A
8-A

Guide, BCM2310 Part # KB90008AA Currently not available

N/A
9-A

Pin, Dowel, BCM2310 Part # KU40004AA Currently not available

N/A
10-A

Case,fan, BCM3310 Part # KH30027DA Currently not available

N/A
11-A

Bolt & Washer. BCM3310 Part # FR64569F Currently not available

N/A
12-A

Label, BCM2310 Part # KW56056AA Currently not available

N/A

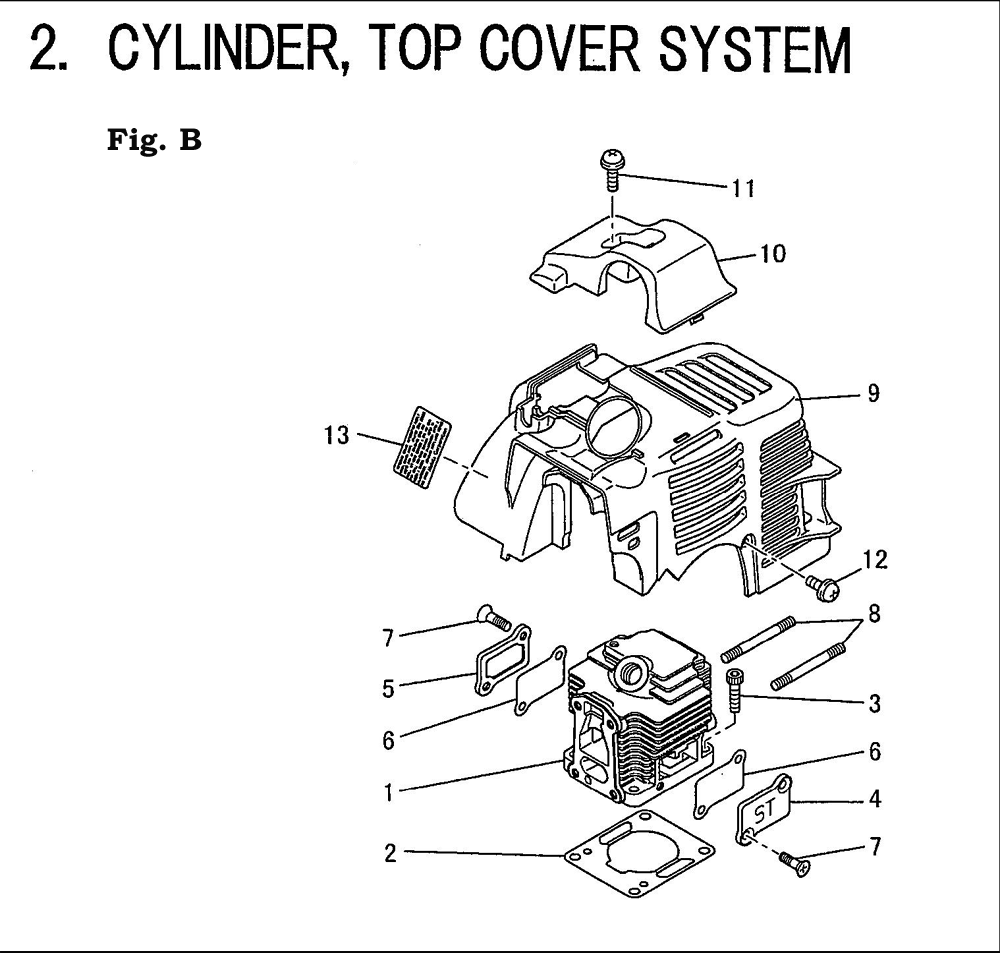

1-B

Cylinder, BCM3310 Part # KC13023AA Currently not available

N/A
2-B

Gasket,cylinder, BCM2310' Part # KW32016AA Currently not available

N/A
3-B

Bolt,sch, BCM2310 Part # 121C05X020 Currently not available

N/A
4-B

Cover, BCM2310 Part # KC90016AA Currently not available

N/A
5-B

Cover, BCM2310 Part # KC90017AA Currently not available

N/A
6-B

Gasket, BCM2310 Part # KW39079AA Currently not available

N/A
7-B

Screw,ctsk-crs, BCM2310 Part # KU12031AA Currently not available

N/A
8-B

Bolt,stud, BCM2310 Part # 151B05X050 Currently not available

N/A
9-B

Cover,top, BCM3310 Part # KH40096DA Currently not available

N/A
10-B

Guard,plug, BCM3310 Part # KH70021AA Currently not available

N/A
11-B

Screw & Washer, BCM2310 Part # 71D05X020K Currently not available

N/A
12-B

Screw & Washer, BCM2310 Part # KU12018CA Currently not available

N/A
