Makita DCS330S Replacement Parts

Model: DCS330S

Brand: Makita

Download Schematics

Buy Makita DCS330S Electric Saw Parts

Other tools in Makita Electric Saw Parts category

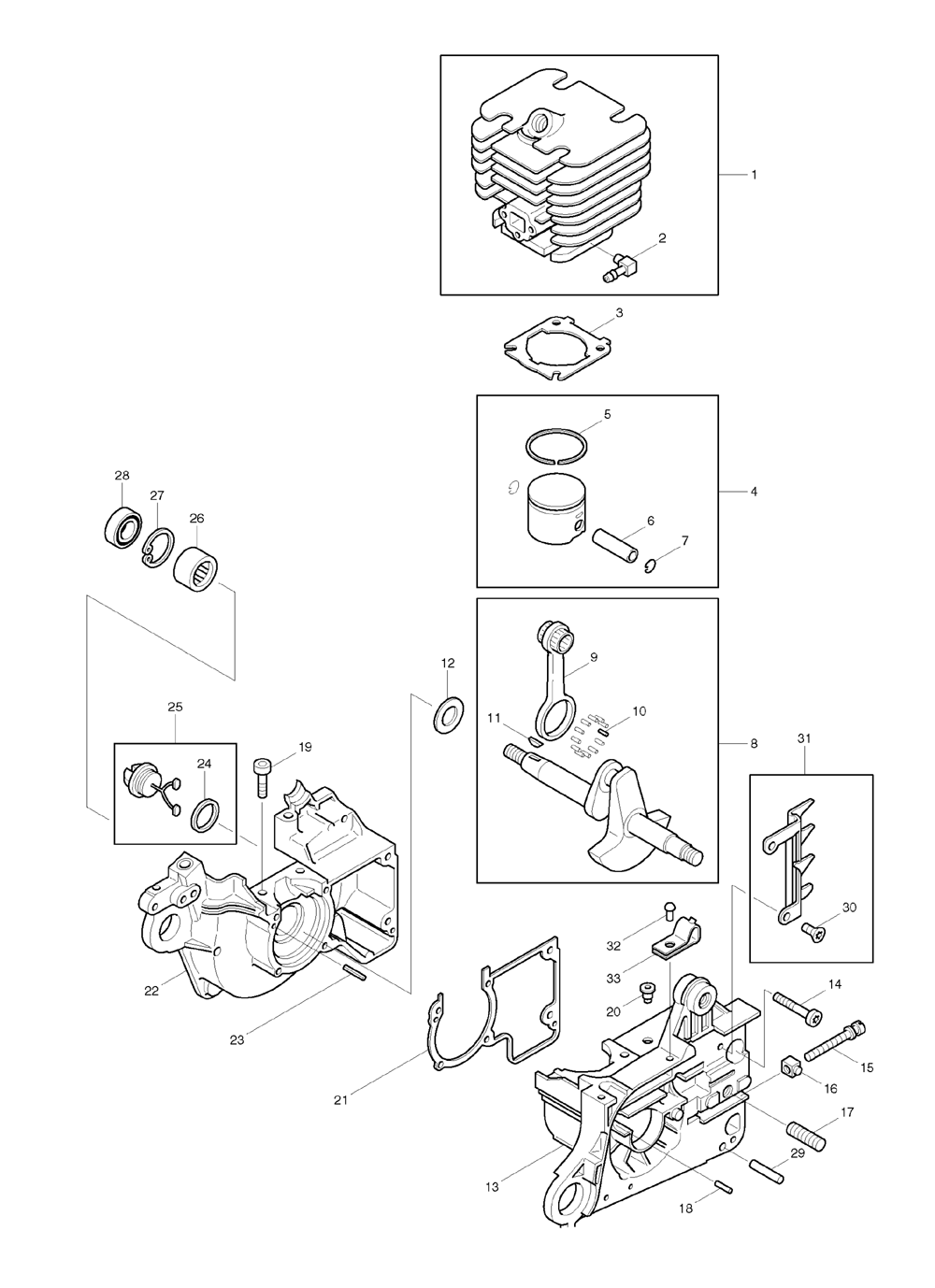

Fig-0

Fig-0

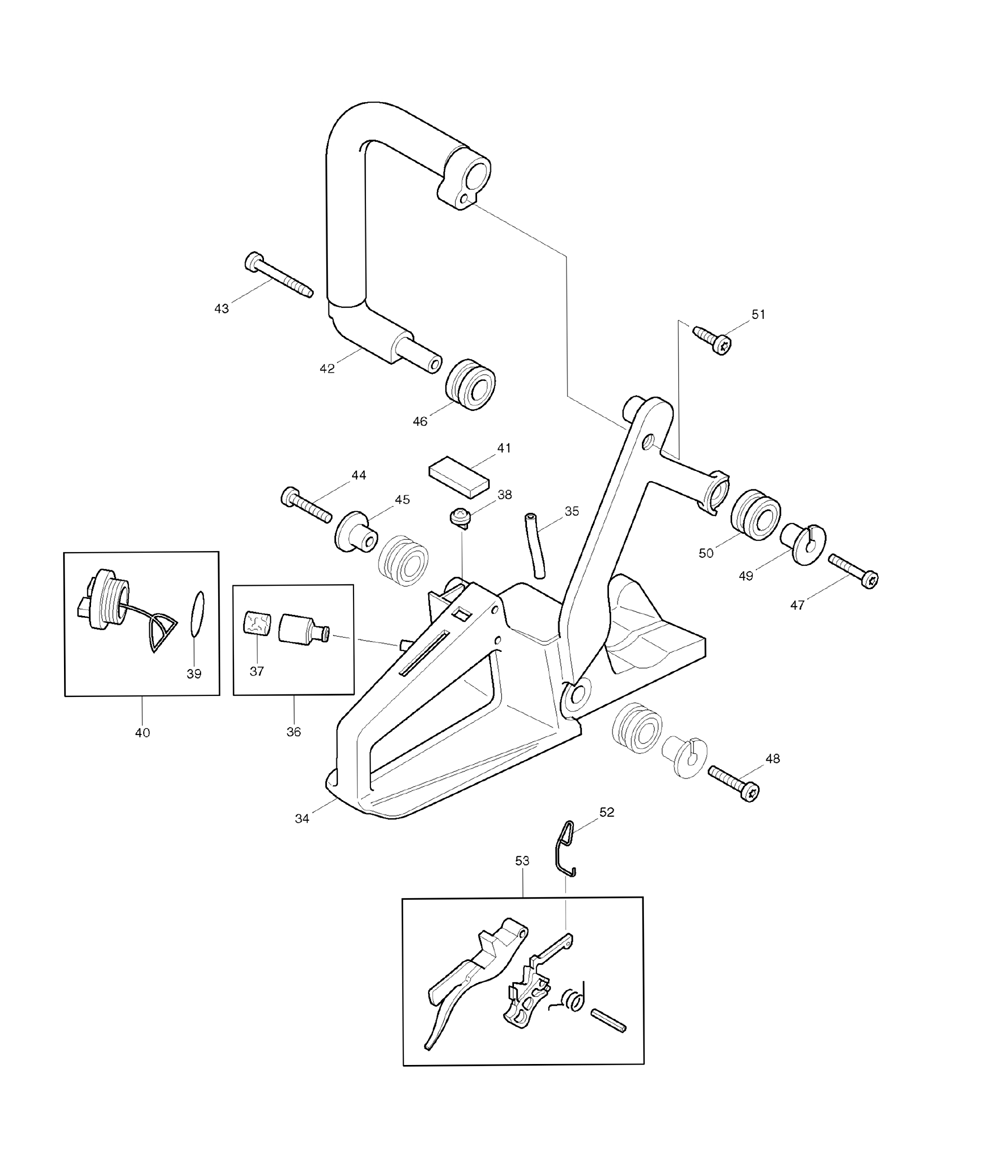

Fig-1

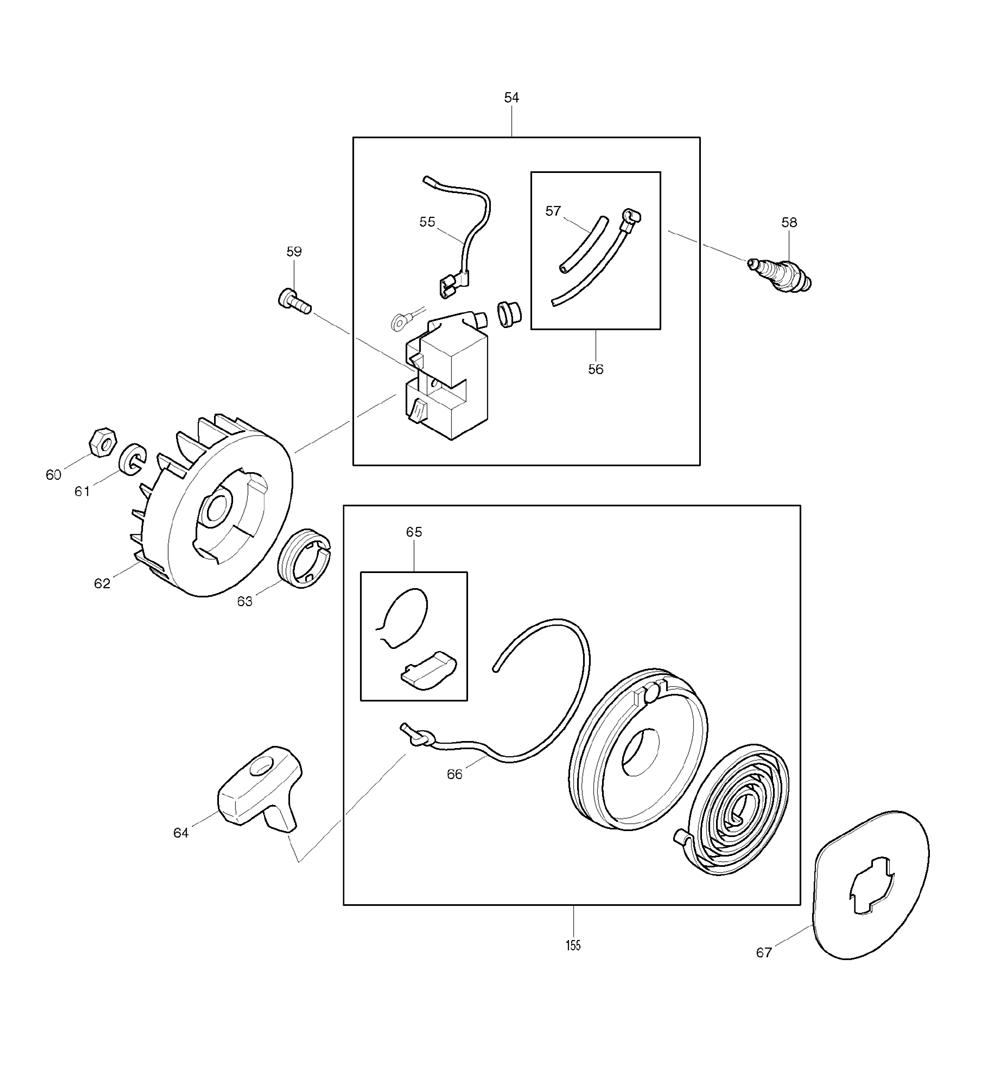

Fig-2

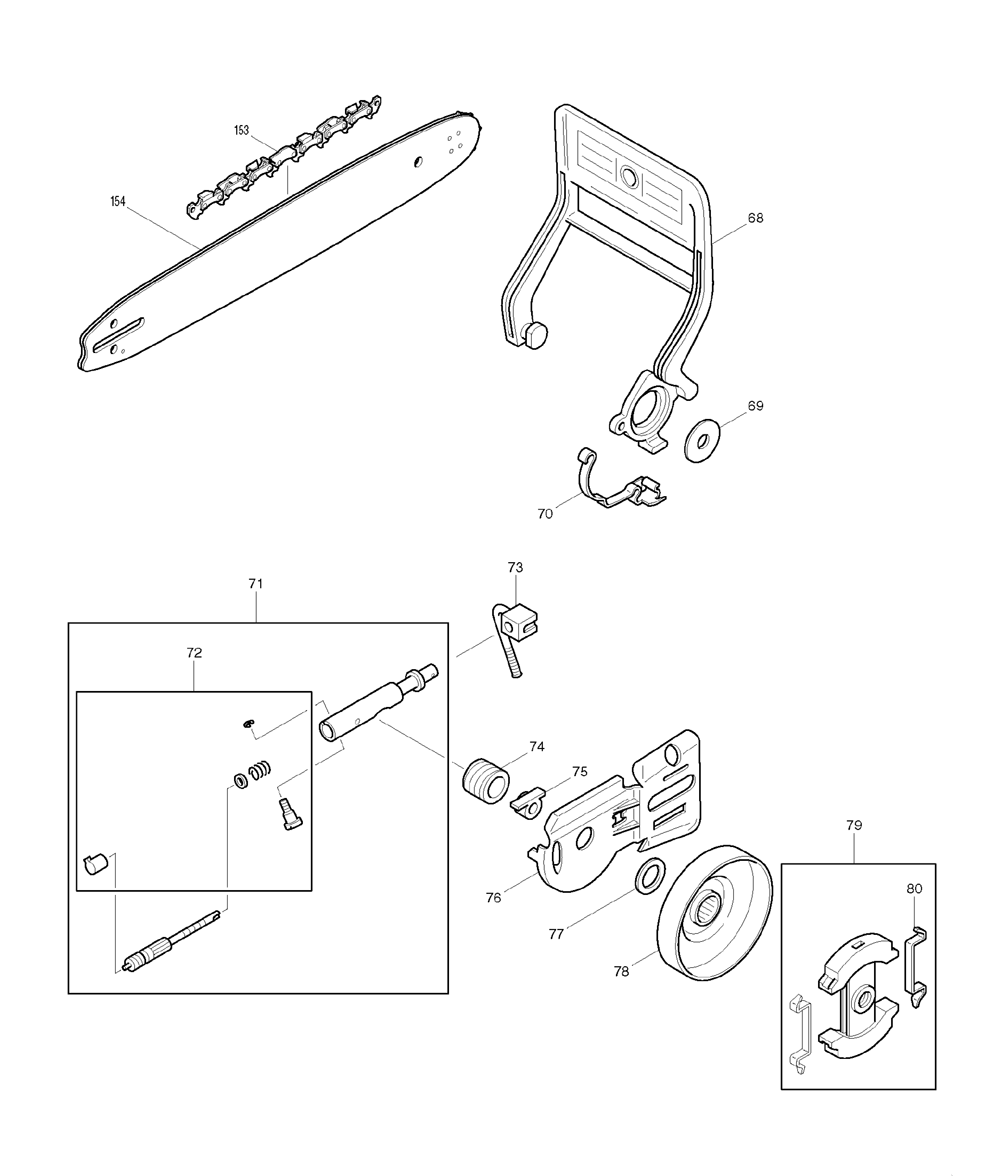

Fig-3

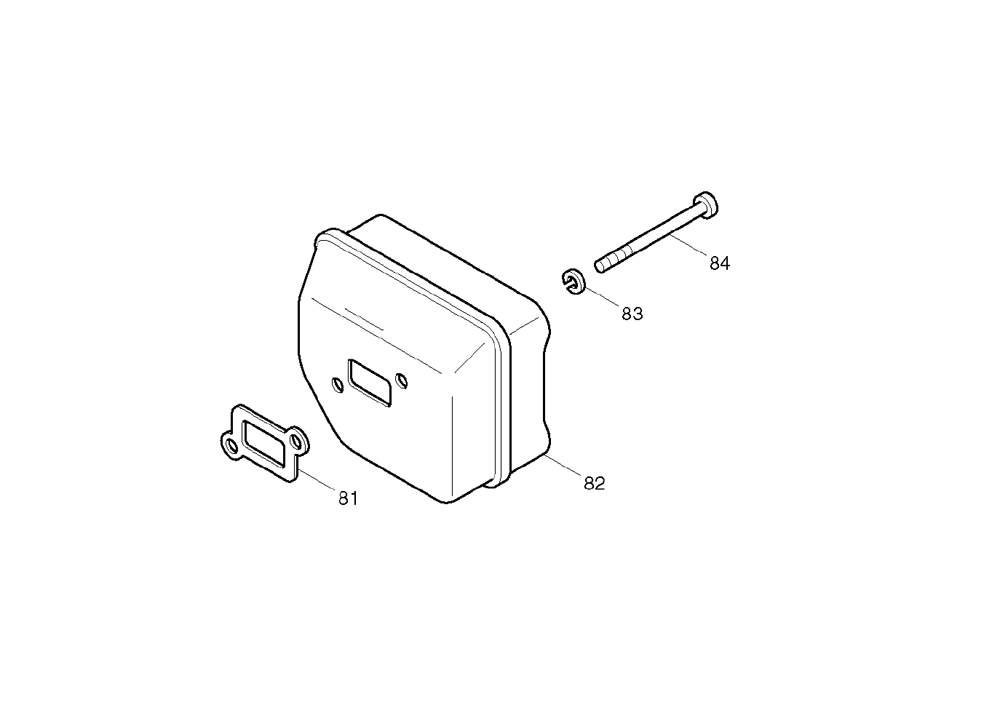

Fig-4

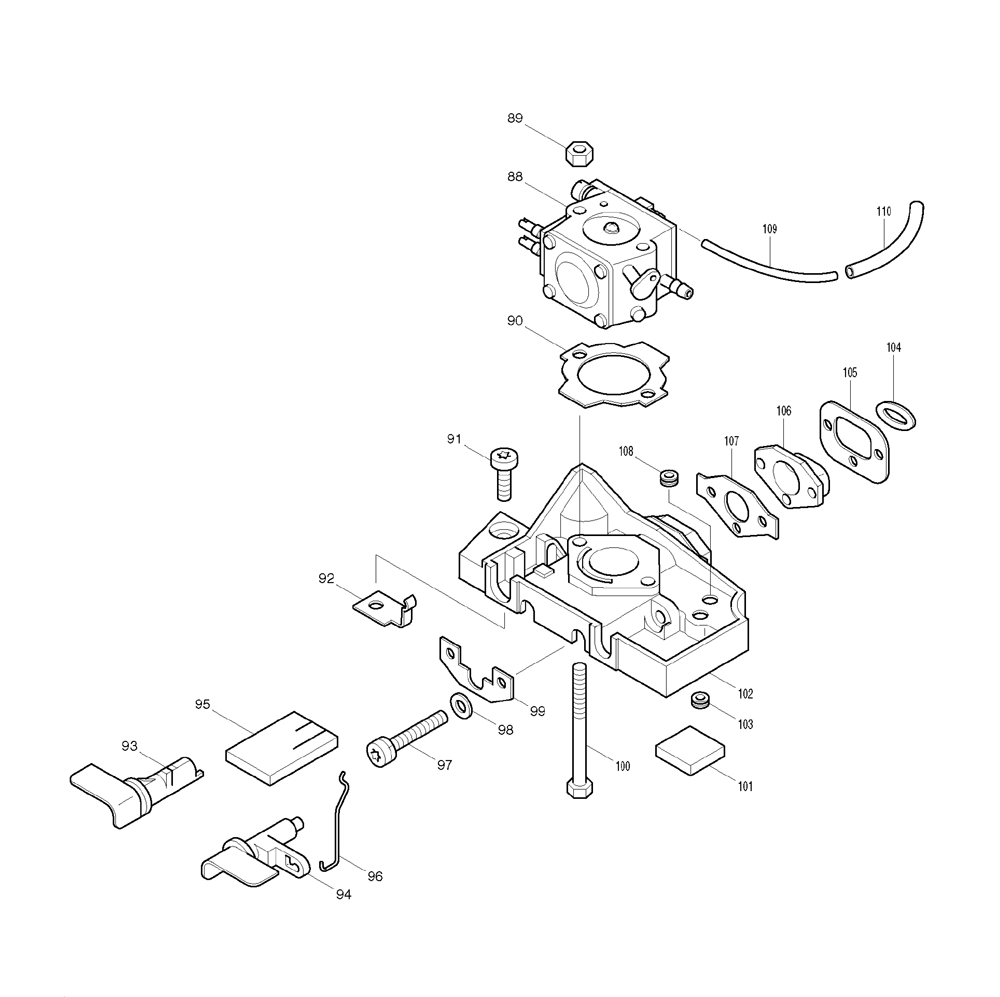

Fig-5

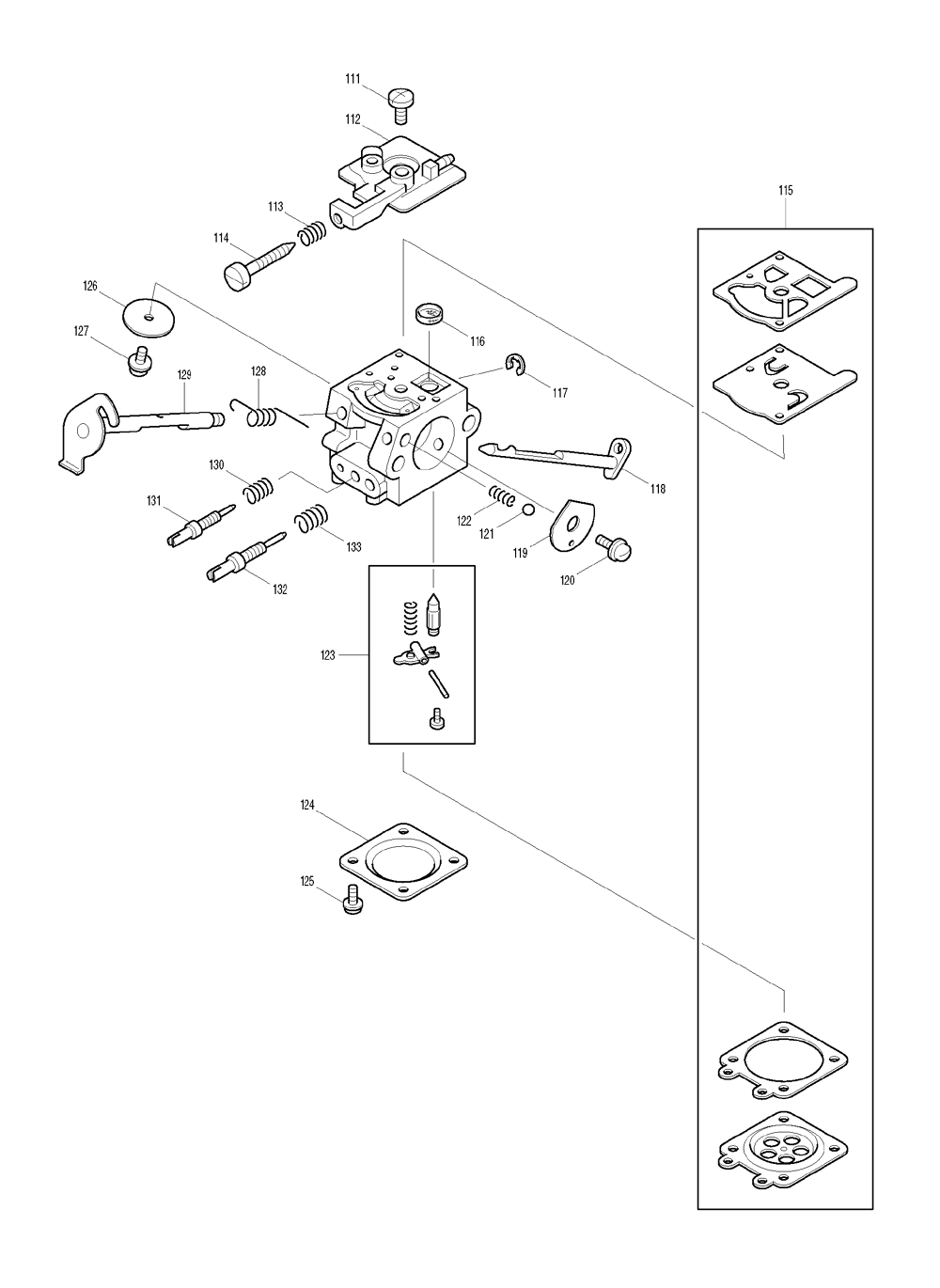

Fig-6

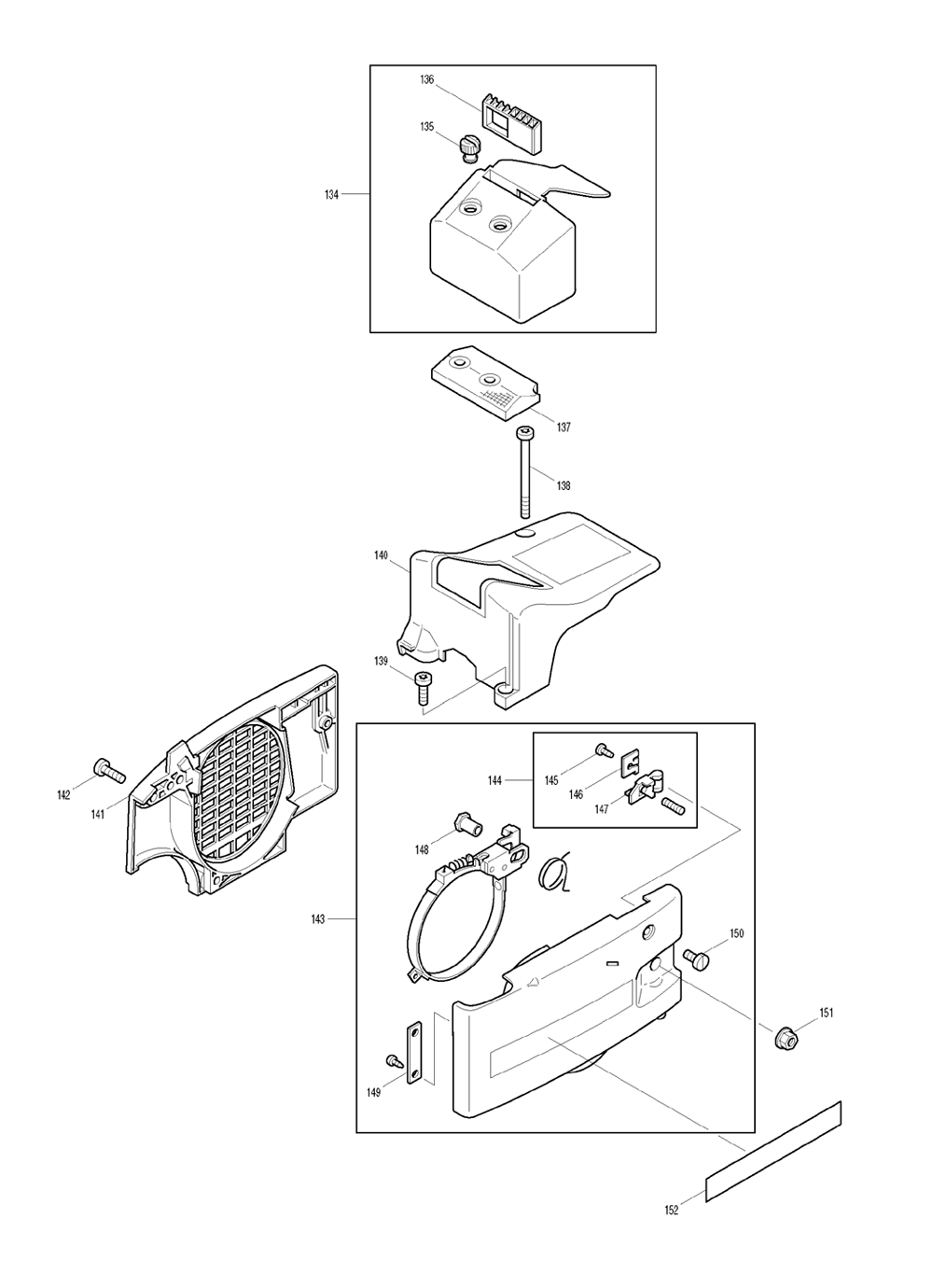

Fig-7

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Makita DCS330S Replacement Parts List

1

"cylinder ""DUPLEX"",DCS330S,T1" Part # 021-131-090 Currently not available

N/A
1

Quad Port Cylinder, DCS340 Part # 021-131-110 Currently not available

N/A
2

Angular NIPPLE,DCS340 Part # 001-151-670 Currently not available

N/A
3

Gasket, DCS341 Part # 965-524-042 Currently not available

N/A
3

Gasket, Dolmar PS-401 Part # 965-524-043 Currently not available

N/A
4

Piston Ass'y, DCS330S Part # 021-132-000 Currently not available

N/A
4

Piston Ass'y, Dolmar PS-341 Part # 021-132-111 Currently not available

N/A
5

Piston Ring, DS340 Part # 021-132-030 Currently not available

N/A
6

Piston Pin, DCS340 Part # 021-132-020 Currently not available

N/A
7

Spring Ring, DCS34 Part # 108-132-050 Currently not available

N/A
8

Crankshaft CPL.,DCS330S Part # 957-120-021 Currently not available

N/A
9

Con-rod CPL.,DCS340 Part # 021-123-010 Currently not available

N/A
10

Roller 4X6, DCS340 Part # 962-640-061 Currently not available

N/A
11

Key, DCS340 Part # 939-615-260 Currently not available

N/A
12

Stop Disc, DCS340 Part # 108-121-010 Currently not available

N/A
13

Crankcase, DCS330S Part # 021-111-600 Currently not available

N/A
14

Torx Screw 5X30, DCS340 Part # 908-005-305 Currently not available

N/A
14

Screw Part # 266945-4

$2.95
Add to Cart
15

Straining Screw, DCS340 Part # 389-213-080 Currently not available

N/A
15

Straining Screw, DCS340 Part # 389-213-081 Currently not available

N/A
16

Nut, DCS341 Part # 001-213-041 Currently not available

N/A
16

Nut with Pivot, DCS341 Part # 001-213-042 Currently not available

N/A
17

Fast Bolt M8X25, DCS340 Part # 905-808-254 Currently not available

N/A
18

Guide Pin, DCS340 Part # 021-245-070 Currently not available

N/A
