Makita DPC9500 Replacement Parts

Model: DPC9500

Brand: Makita

Download Schematics

Buy Makita DPC9500 Electric Saw Parts

Other tools in Makita Electric Saw Parts category

Fig-0

Fig-0

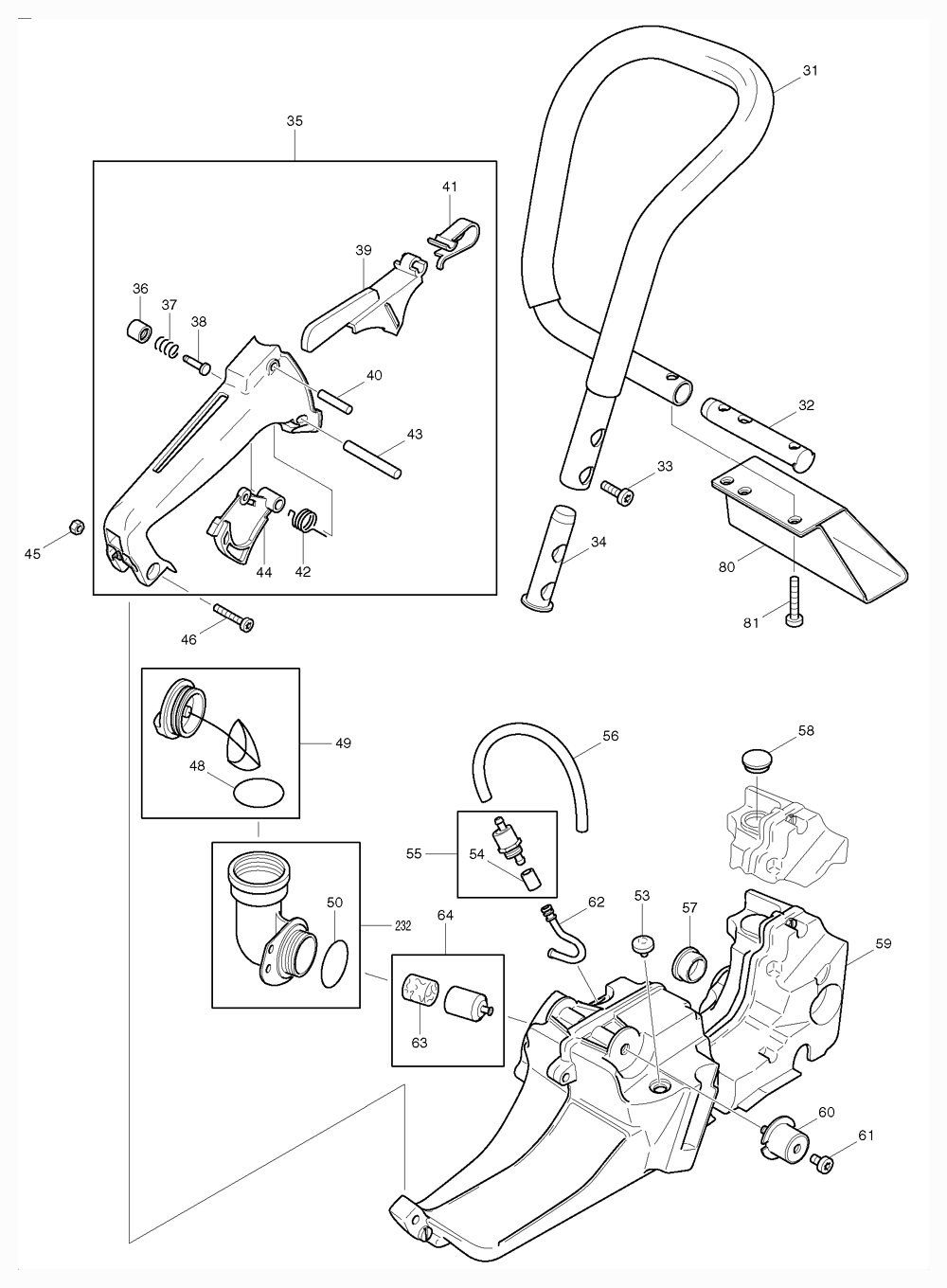

Fig-1

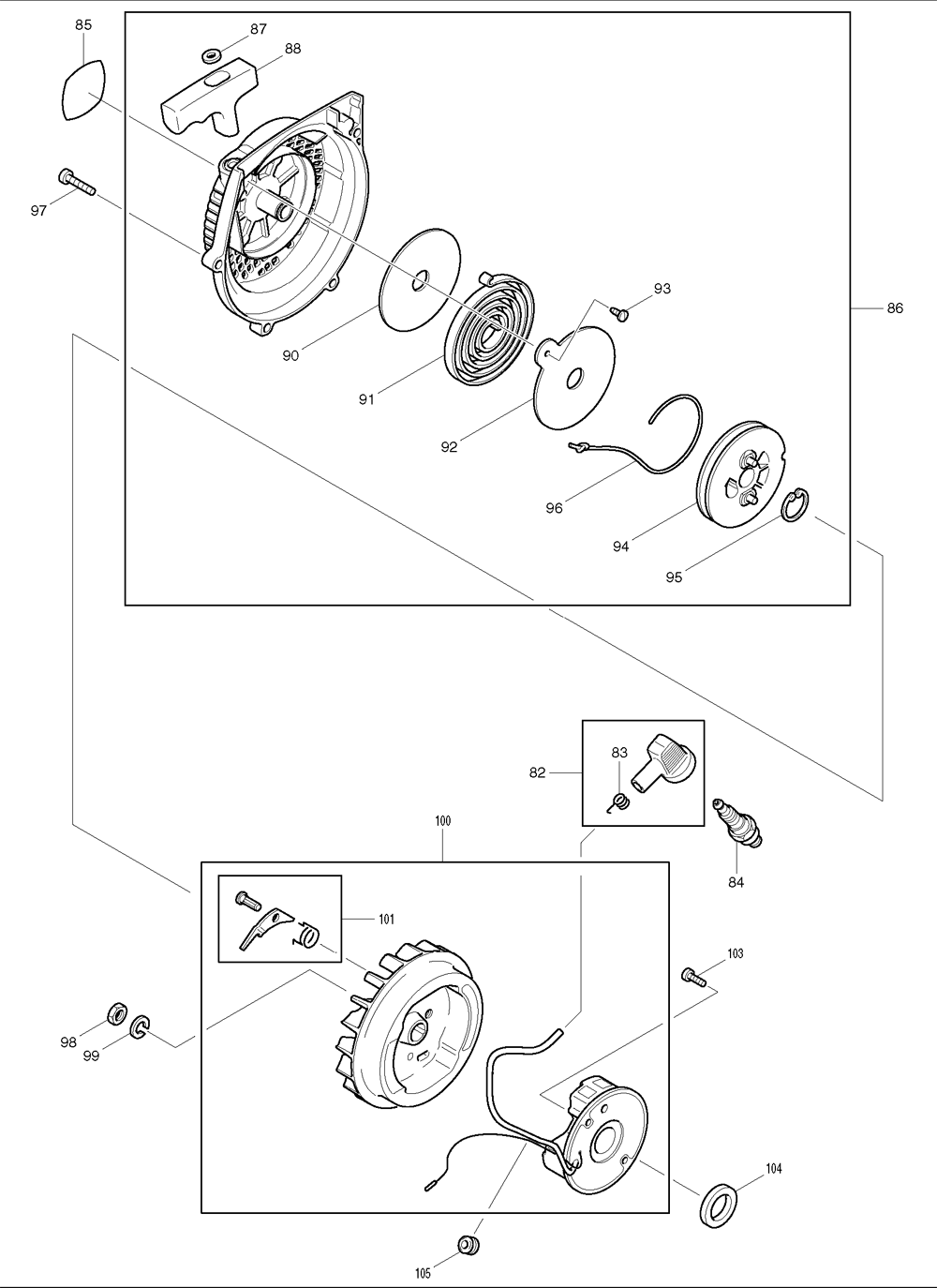

Fig-2

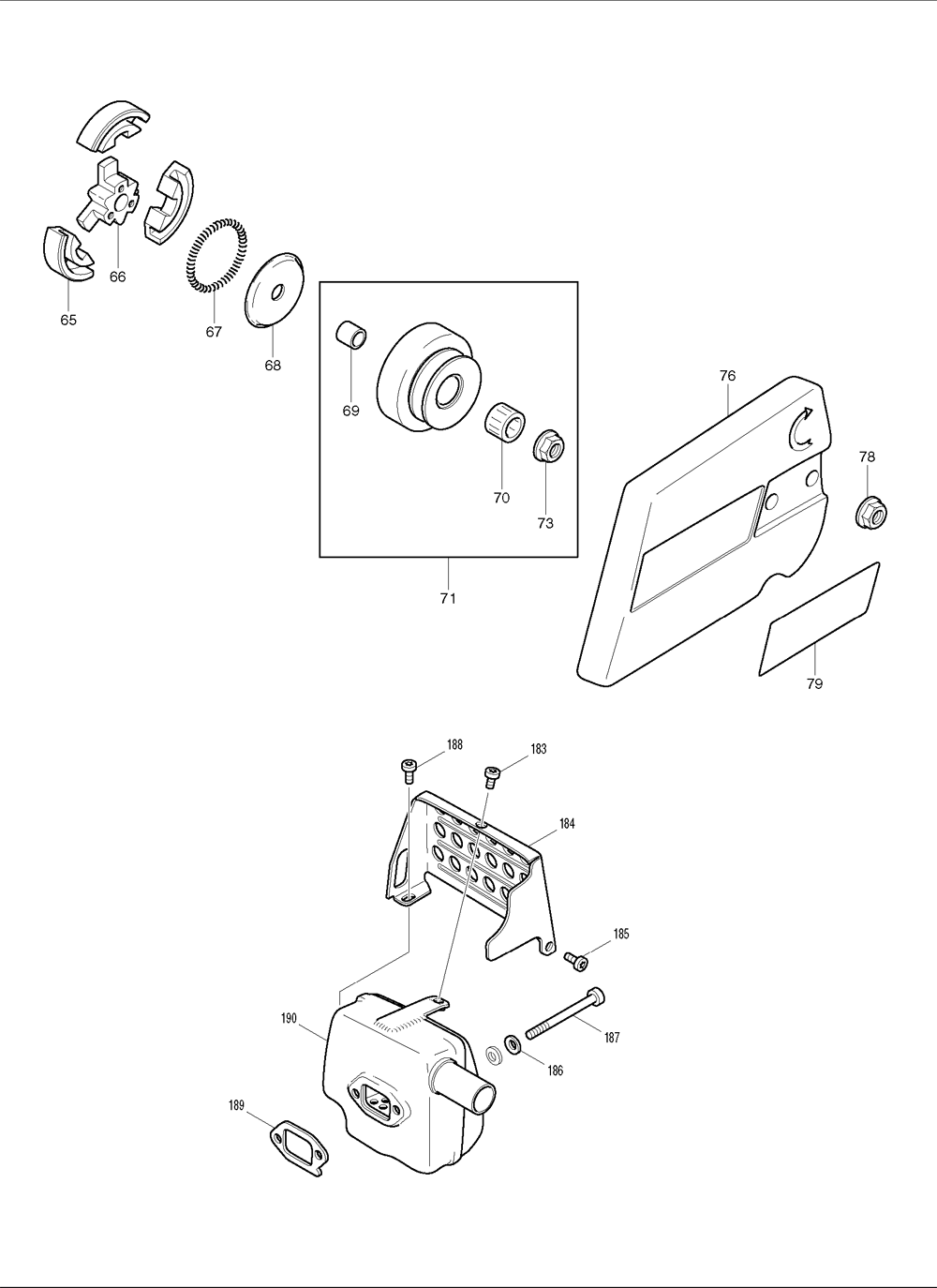

Fig-3

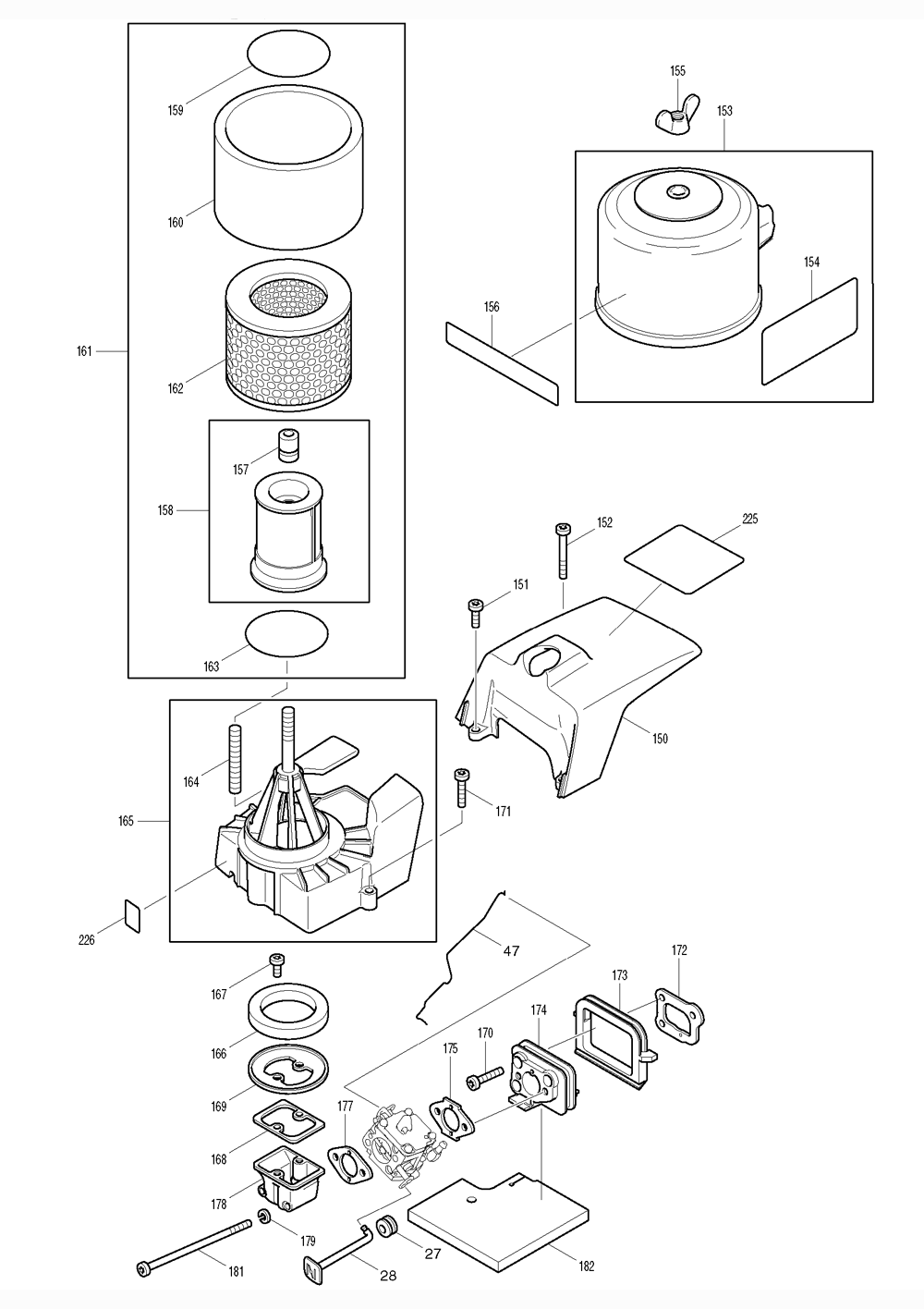

Fig-4

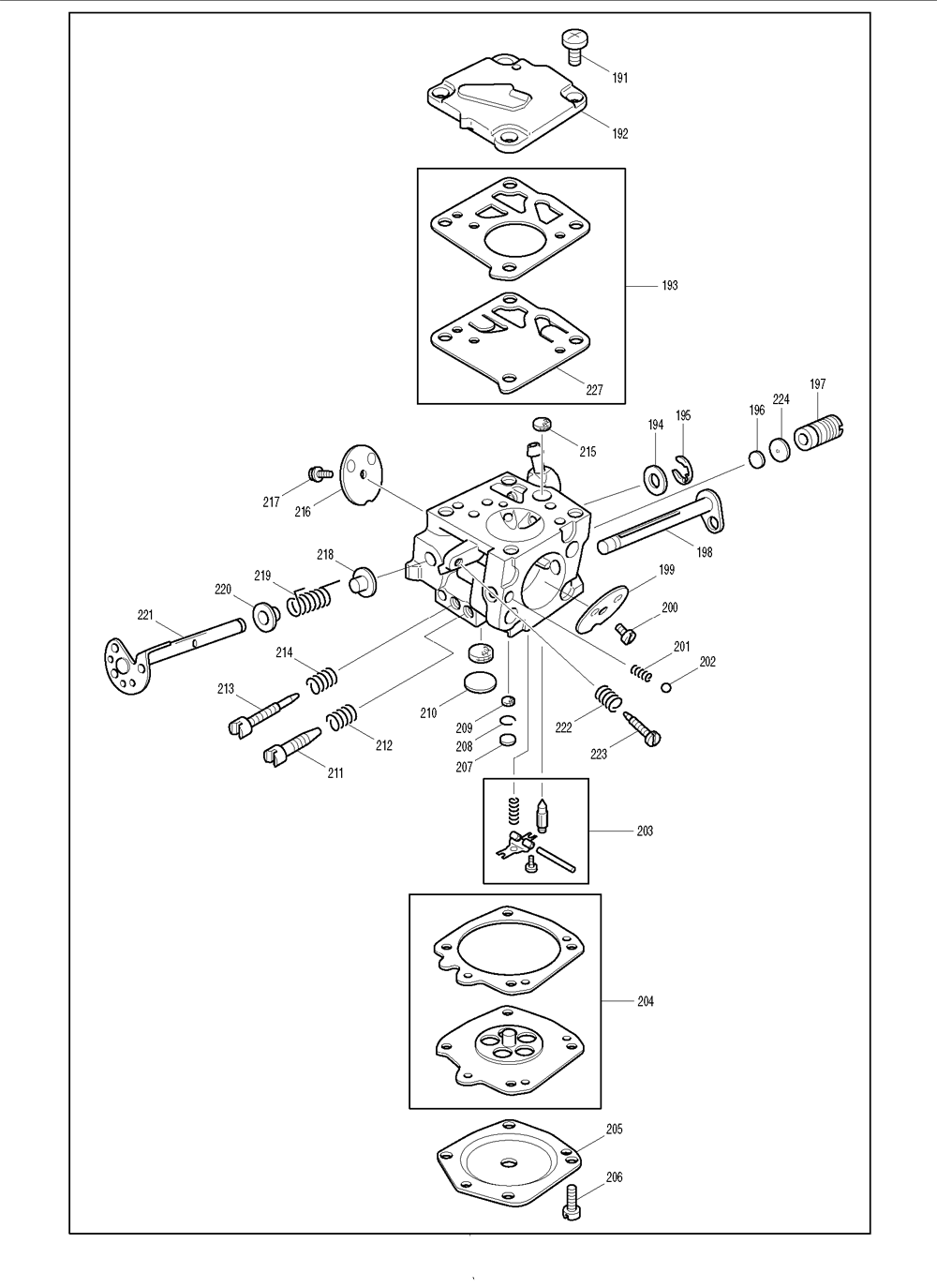

Fig-5

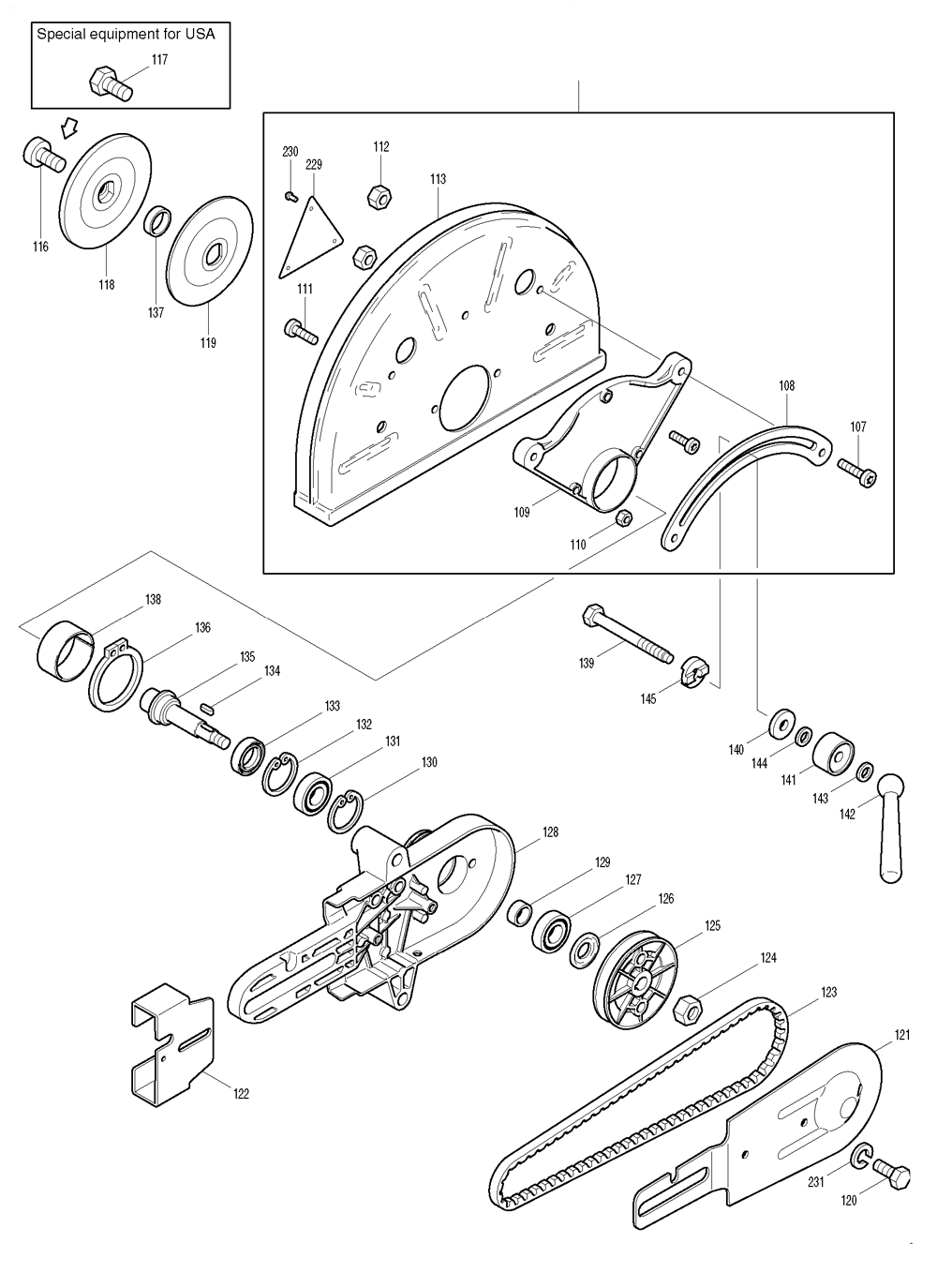

Fig-6

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

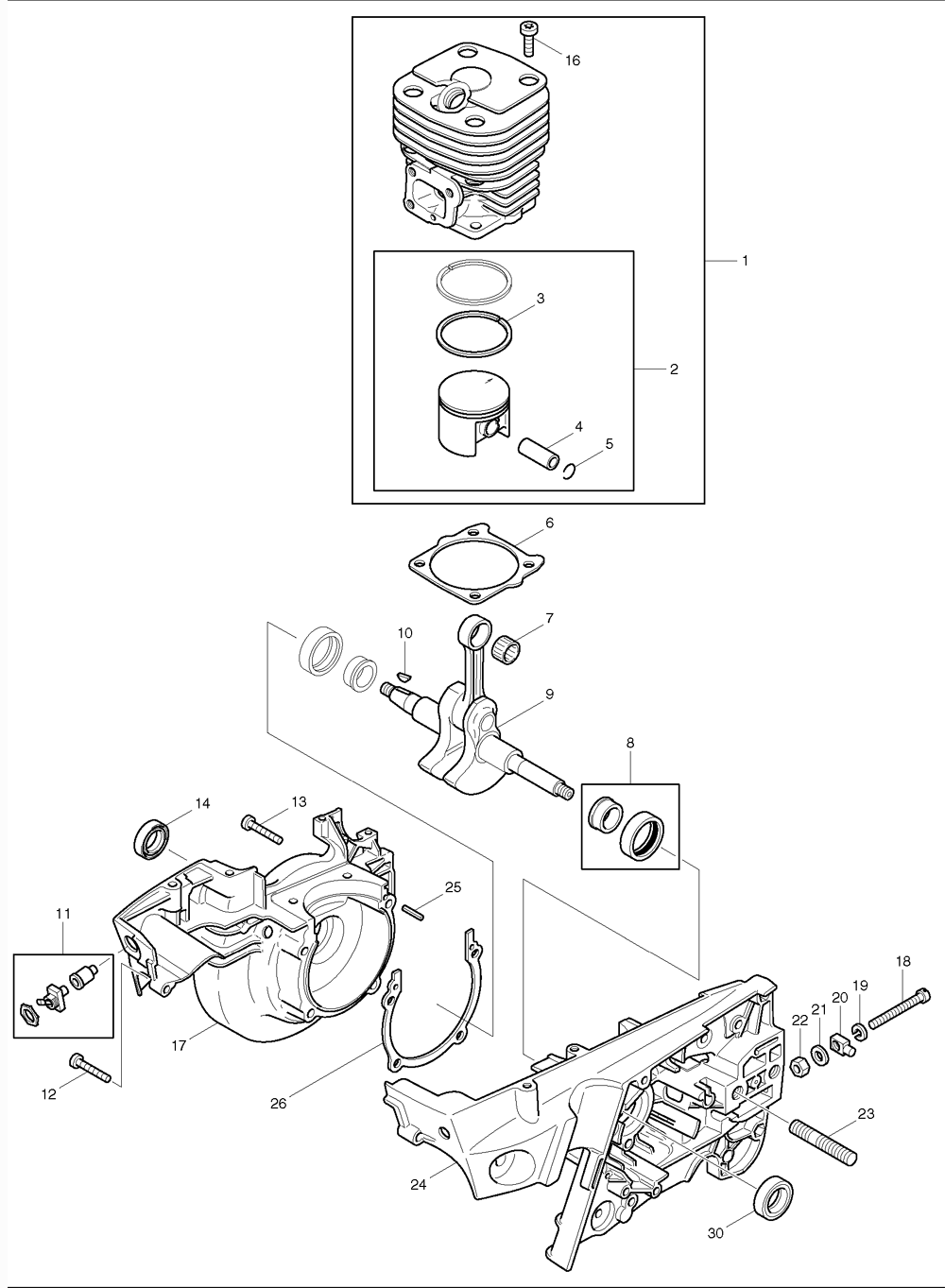

Makita DPC9500 Replacement Parts List

1

Cylinder & Piston, DPC9500 Part # 031-130-004 Currently not available

N/A
2

Piston COMPLETE,DPC9500 Part # 031-132-003 Currently not available

N/A
53

Rubber Buffer, DPC9500 Part # 965-403-260 Currently not available

N/A
3

Piston Ring, DPC9500 Part # 031-132-050 Currently not available

N/A
4

Piston Pin, DPC9500,T1 Part # 031-132-020 Currently not available

N/A
5

Spring Ring, DCS6000I21 Part # 119-132-060

$3.10
Add to Cart
6

Gasket, DPC7000 Part # 965-521-023 Currently not available

N/A
7

Needle Cage, DCS6000I21 Part # 962-210-015 Currently not available

N/A
7

Needle Cage, DCS6421 Part # 962-210-121 Currently not available

N/A
7

Needle Cage, EA7900 Part # 212133-1

$28.13
Add to Cart
8

Roller Bearing, DPC9500 Part # 960-602-173 Currently not available

N/A
9

Crankshaft, DPC9500 Part # 031-120-001 Currently not available

N/A
10

Key, DPC7000 Part # 939-630-370 Currently not available

N/A
10

Key, EK7301 Part # 254042-8

$2.95
Add to Cart
11

Short C.switch Assy, DCS431 Part # 957-605-112 Currently not available

N/A
12

Torx Screw 5X30, DCS340 Part # 908-005-305 Currently not available

N/A
12

Screw Part # 266945-4

$2.95
Add to Cart
14

Radial Ring, DPC7000 Part # 962-900-054 Currently not available

N/A
16

F.h.screw, DCS460 Part # 908-006-205

$2.95
Add to Cart
17

Crankcase, Mag.side, DPC7001 Part # 031-111-630 Currently not available

N/A
18

F.h. Screw M6X70,DPC7000 Part # 965-551-051 Currently not available

N/A
19

Spring Washer 6, DCS6800I Part # 926-206-000 Currently not available

N/A
20

Sq.nut W/pivot, DPC7000 Part # 123-213-010 Currently not available

N/A
21

Disc, DCS6000I21 Part # 924-306-400 Currently not available

N/A
