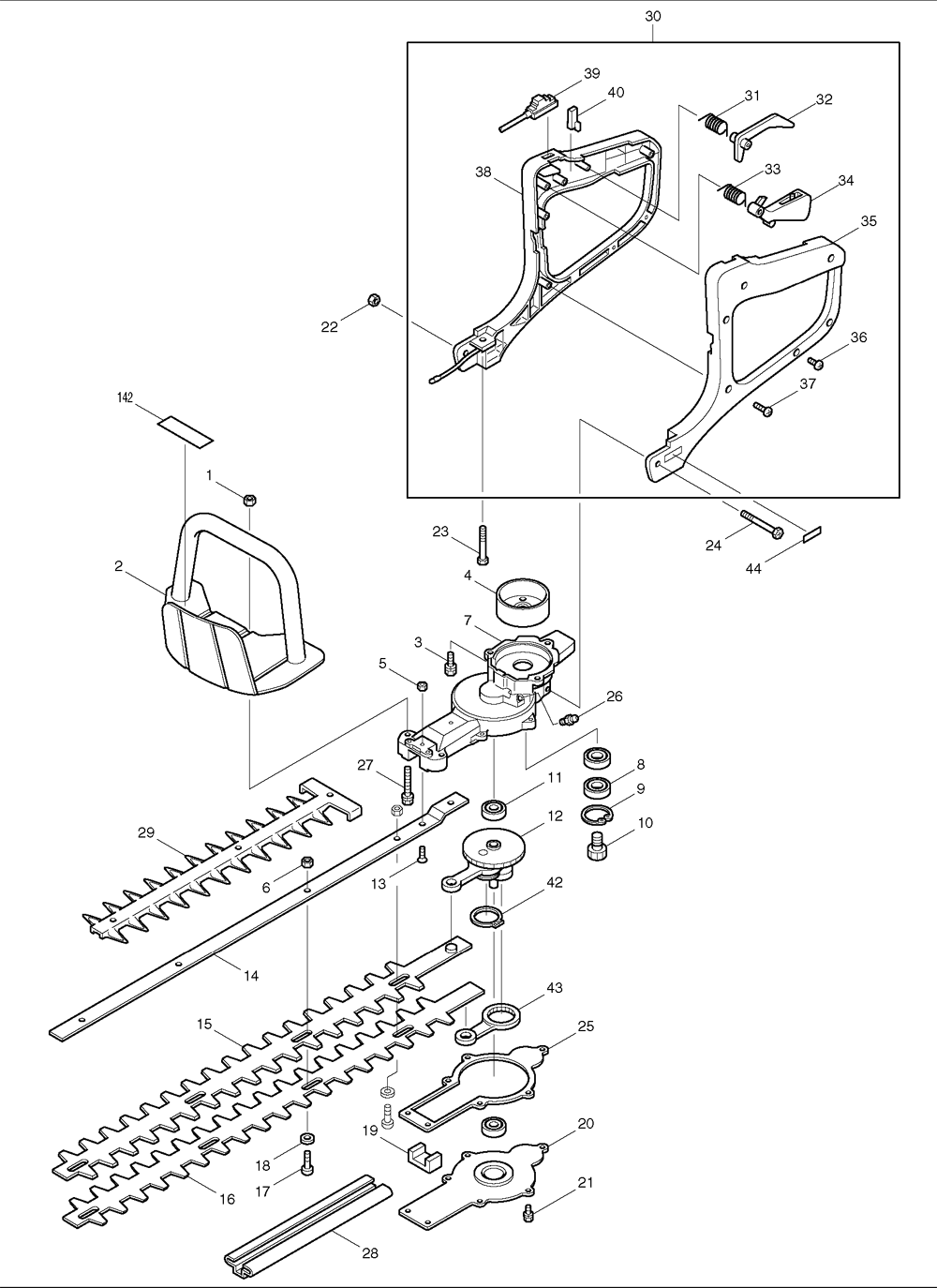

Fig-0

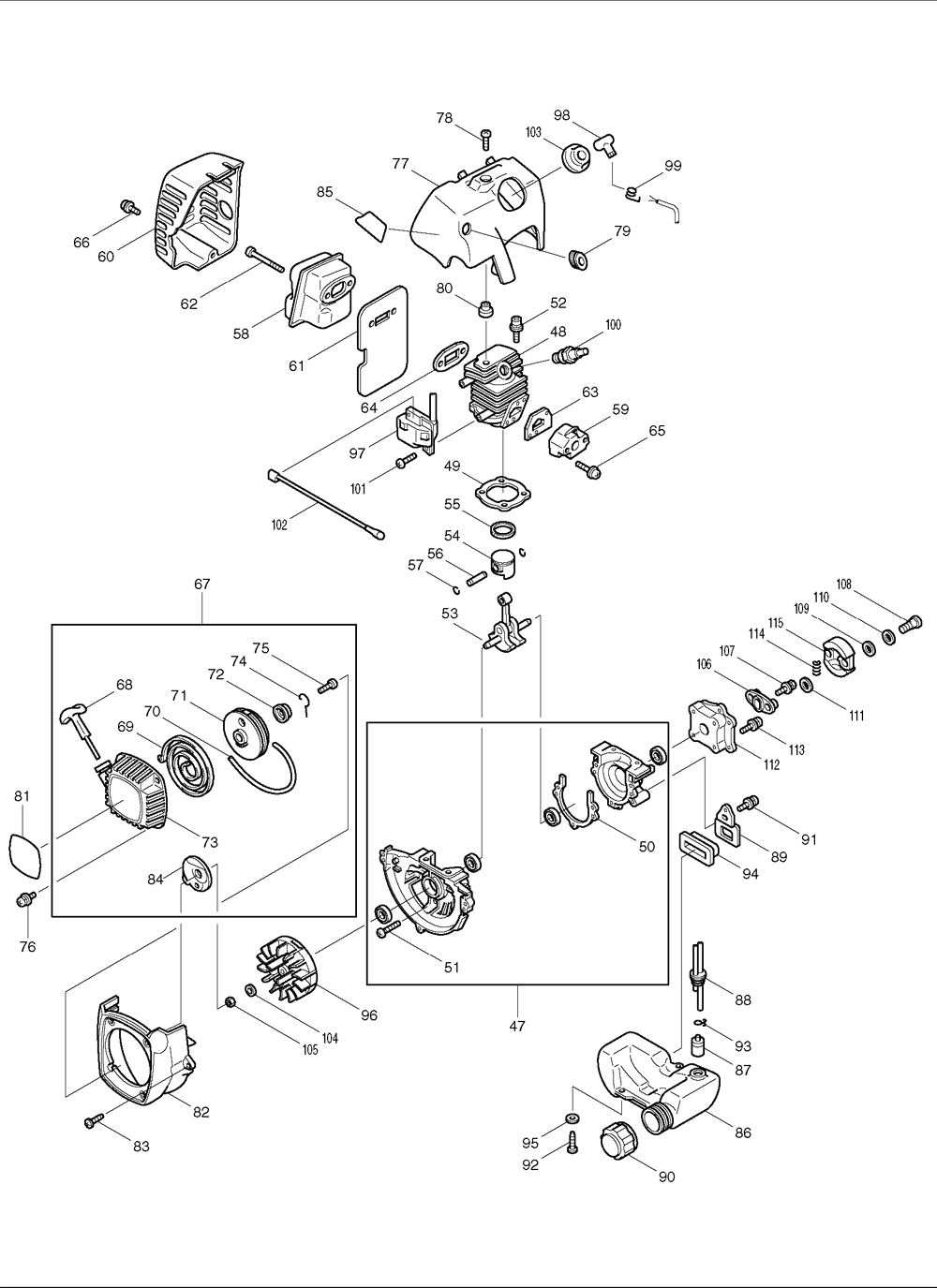

Fig-1

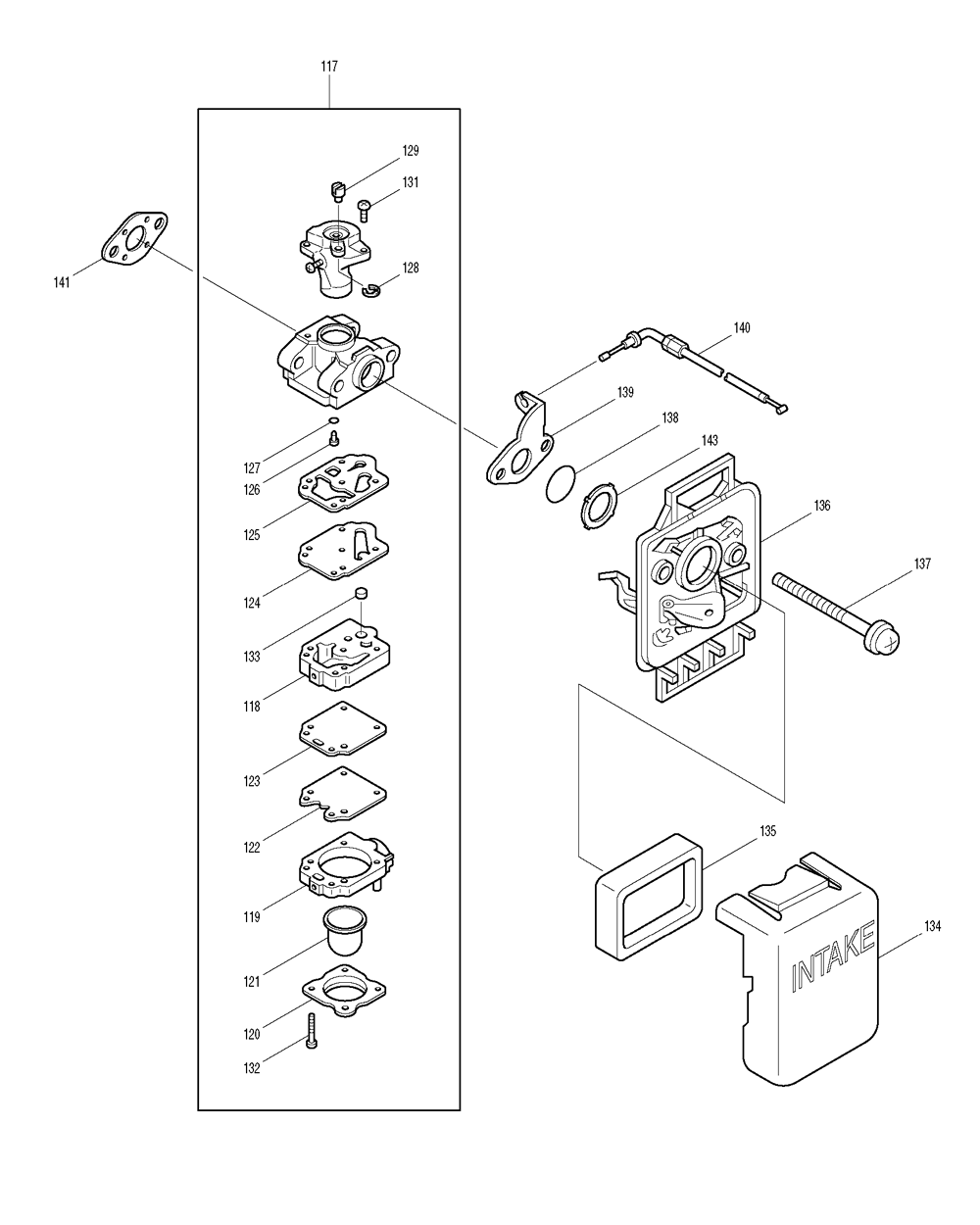

Fig-2

Reference Filter: Filter parts list by name or model number:

Makita EH450 Replacement Parts List

1

Hex Nut M6, EH561 Part # 150-06000-0K Currently not available

N/A
2

Front Handle, EH561 Part # 118-155B0-00 Currently not available

N/A
3

Hex. Bolt M6X15, EH561 Part # 054-06015-0K Currently not available

N/A
4

Drum Cpl., EH561 Part # 136-14100-00 Currently not available

N/A
5

Hex. U-nut M5, EN5550SH Part # 164-05000-0K Currently not available

N/A
6

Hex U-nut M6, EN5550SH Part # 164-06000-0K Currently not available

N/A
7

Crank Case, EN5550SH Part # 287-10000-2A Currently not available

N/A
8

Ball Bearing 6001 2RS, EN5550SH Part # 354-06001-0K Currently not available

N/A
9

Retaining Ring RTW-28, EN5550SH Part # 282-02800-0K Currently not available

N/A
10

Pinion Gear, EH450 Part # 286-10400-4A Currently not available

N/A
11

Bearing 608ZZ, EN5550SH Part # 353-00608-0K Currently not available

N/A
12

Gear Crank Ass'y, EN5550SH Part # 286-10300-4A Currently not available

N/A
13

Countersunk Head Screw, EH450 Part # 031-05016-0K Currently not available

N/A
14

Blade Support Bar, EH450 Part # 287-10300-2A Currently not available

N/A
15

Blade EH450 Part # 6018506000 Currently not available

N/A
15

Blade EH450 Part # 287109002A Currently not available

N/A
16

Blade EH450 Part # 6018506000 Currently not available

N/A
16

Blade EH450 Part # 287109002A Currently not available

N/A
17

Blade Sliding Screw (L=19), EN5550SH Part # 040-00200-9A Currently not available

N/A
18

Blade Sliding Washer, EN5550SH Part # 008-25000-00 Currently not available

N/A
19

Felt, EN5550SH Part # 286-11200-4A Currently not available

N/A
20

Case Lid, EH450 Part # 287-10100-3A Currently not available

N/A
21

Hex. Bolt M5X12, EN5550SH Part # 054-05012-0K Currently not available

N/A
22

Hex Nut M6, EH561 Part # 150-06000-0K Currently not available

N/A
