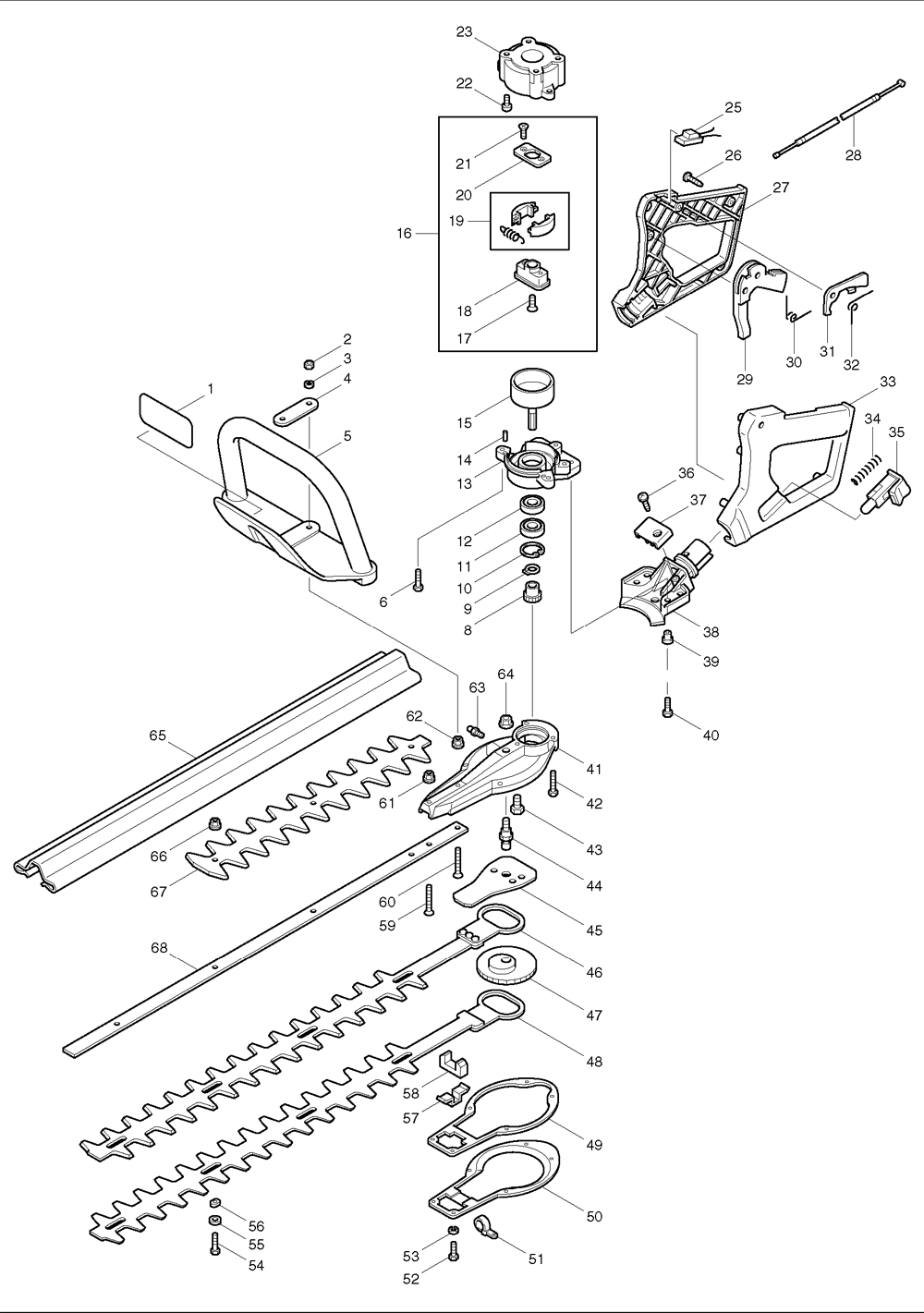

Fig-0

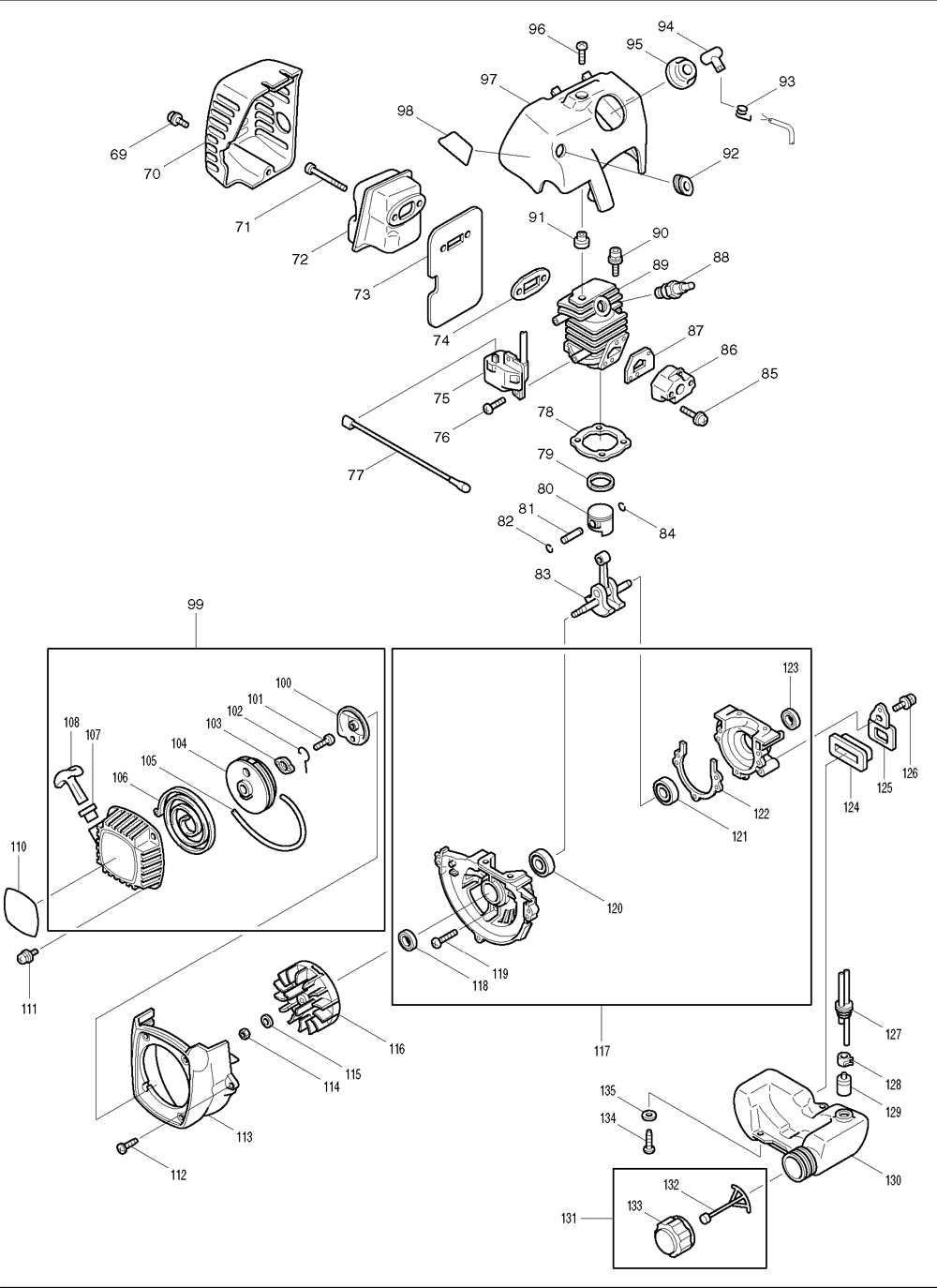

Fig-1

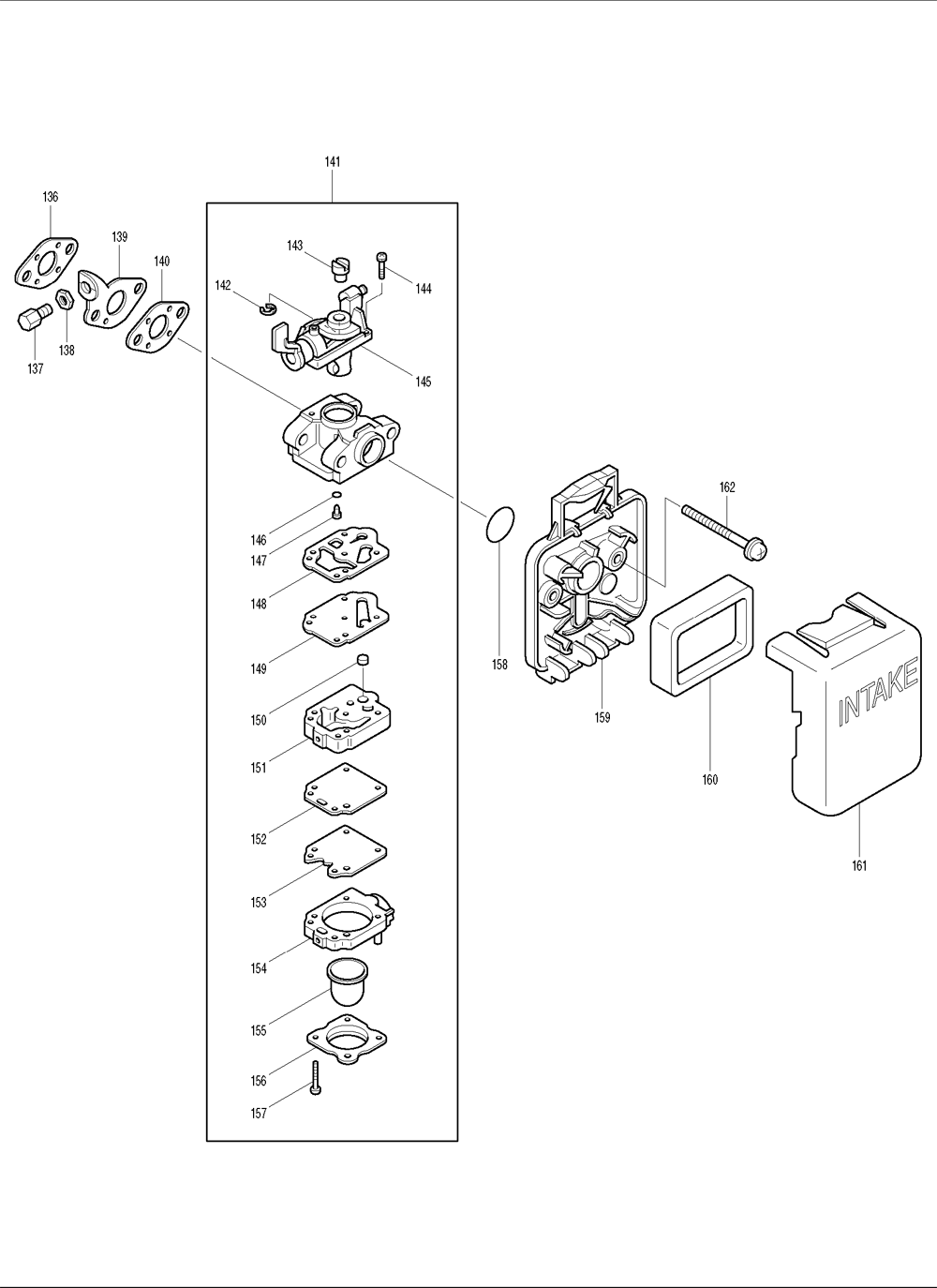

Fig-2

Reference Filter: Filter parts list by name or model number:

Makita EH490V Replacement Parts List

1

N/a Part # 736359980 Currently not available

N/A
2

Nylon Nut, EH490V Part # 030-05160-0N Currently not available

N/A
3

Spring Washer 5, EH490V Part # 032-05000-0N Currently not available

N/A
4

Front Handle PLATE,EH490V Part # 303-33110-0N Currently not available

N/A
5

Front Handle, EH490V Part # 303-33010-0N Currently not available

N/A
6

Torx Screw M5X20, EH490V Part # 065-05200-0N Currently not available

N/A
8

Gear, EH490V Part # 303-35530-0N Currently not available

N/A
9

Snap Ring S-12, EH490V Part # 045-00120-2N Currently not available

N/A
10

Snap Ring R-28, EH490V Part # 045-00280-0N Currently not available

N/A
11

Ball Bearing 6001LL, EH490V Part # 035-60010-3N Currently not available

N/A
12

Ball Bearing 6001LL, EH490V Part # 035-60010-3N Currently not available

N/A
13

Flange, EH490V Part # 370-35510-0N Currently not available

N/A
14

Pin, EH490V Part # 048-04120-0N Currently not available

N/A
15

Clutch Drum, EH490V Part # 303-55520-0N Currently not available

N/A
16

Clutch Ass'y, EH490V Part # 370-54000-0N Currently not available

N/A
17

F.h. Screw M6X18, EH490V Part # 005-06180-0N Currently not available

N/A
18

Clutch Guide, EH490V Part # 370-54010-0N Currently not available

N/A
19

Clutch Shoe W/SPR.,EH490V Part # 305-07700-0N Currently not available

N/A
20

Clutch Plate, EH490V Part # 305-04041-1N Currently not available

N/A
21

F.h. Screw M4X12, EH490V Part # 005-04120-0N Currently not available

N/A
22

Screw M5X12, EH490V Part # 002-05120-0N Currently not available

N/A
23

Engine Base, EH490V Part # 303-35010-0N Currently not available

N/A
25

Stop Switch, EH490V Part # 099-83260-0N Currently not available

N/A
26

T. Screw 4.5X16, EH490V Part # 303-34130-0N Currently not available

N/A
