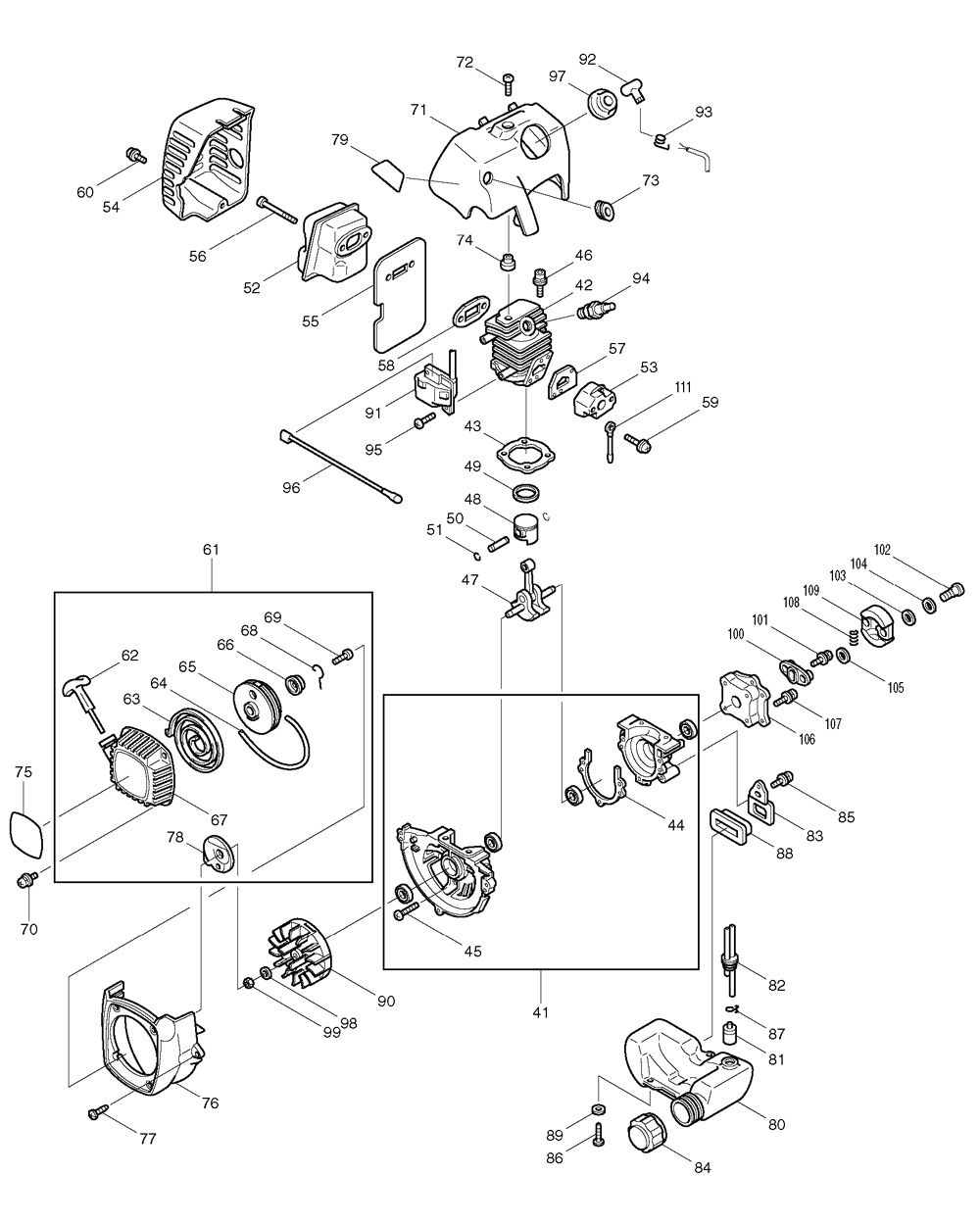

Fig-1

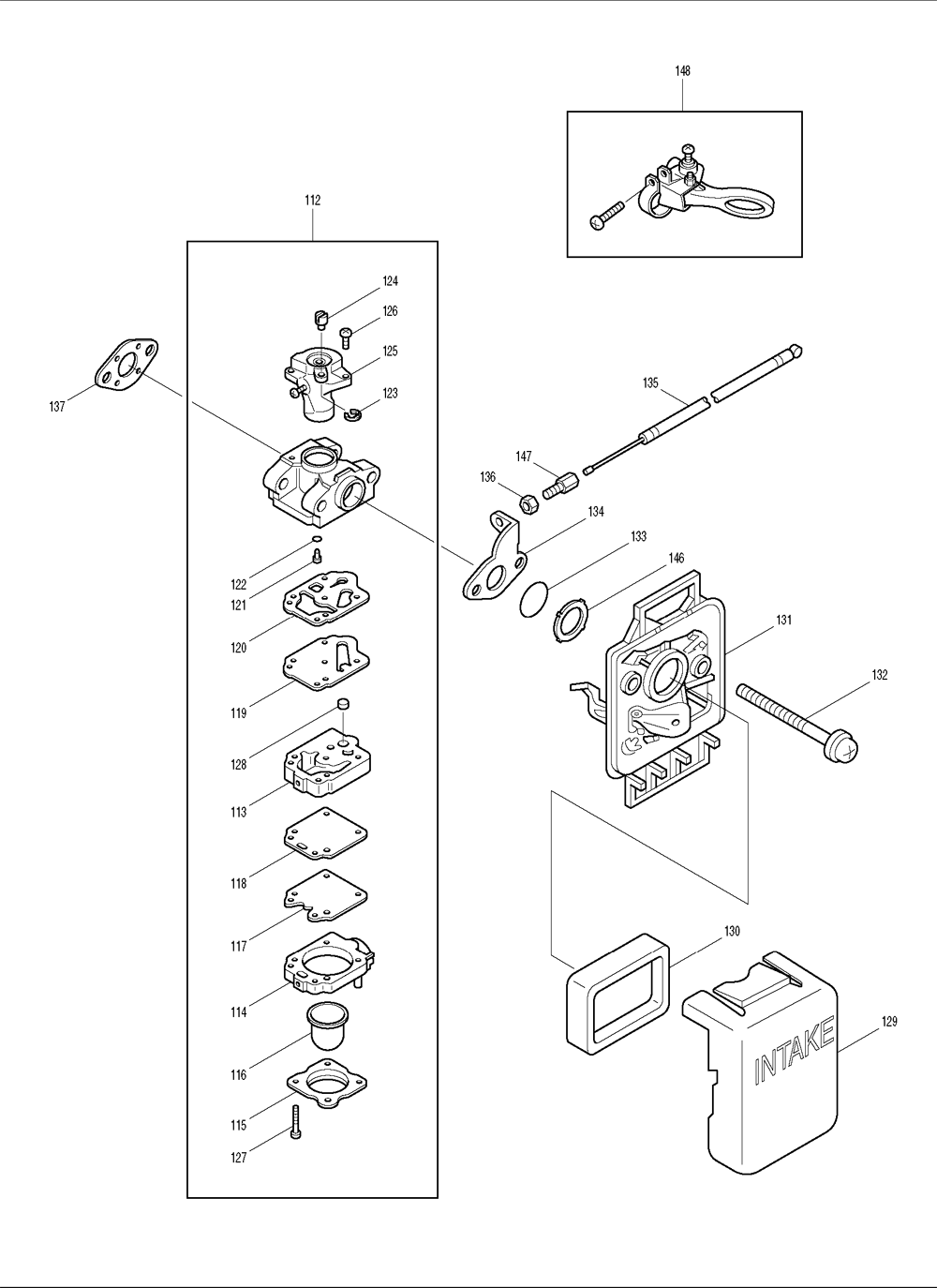

Fig-2

Reference Filter: Filter parts list by name or model number:

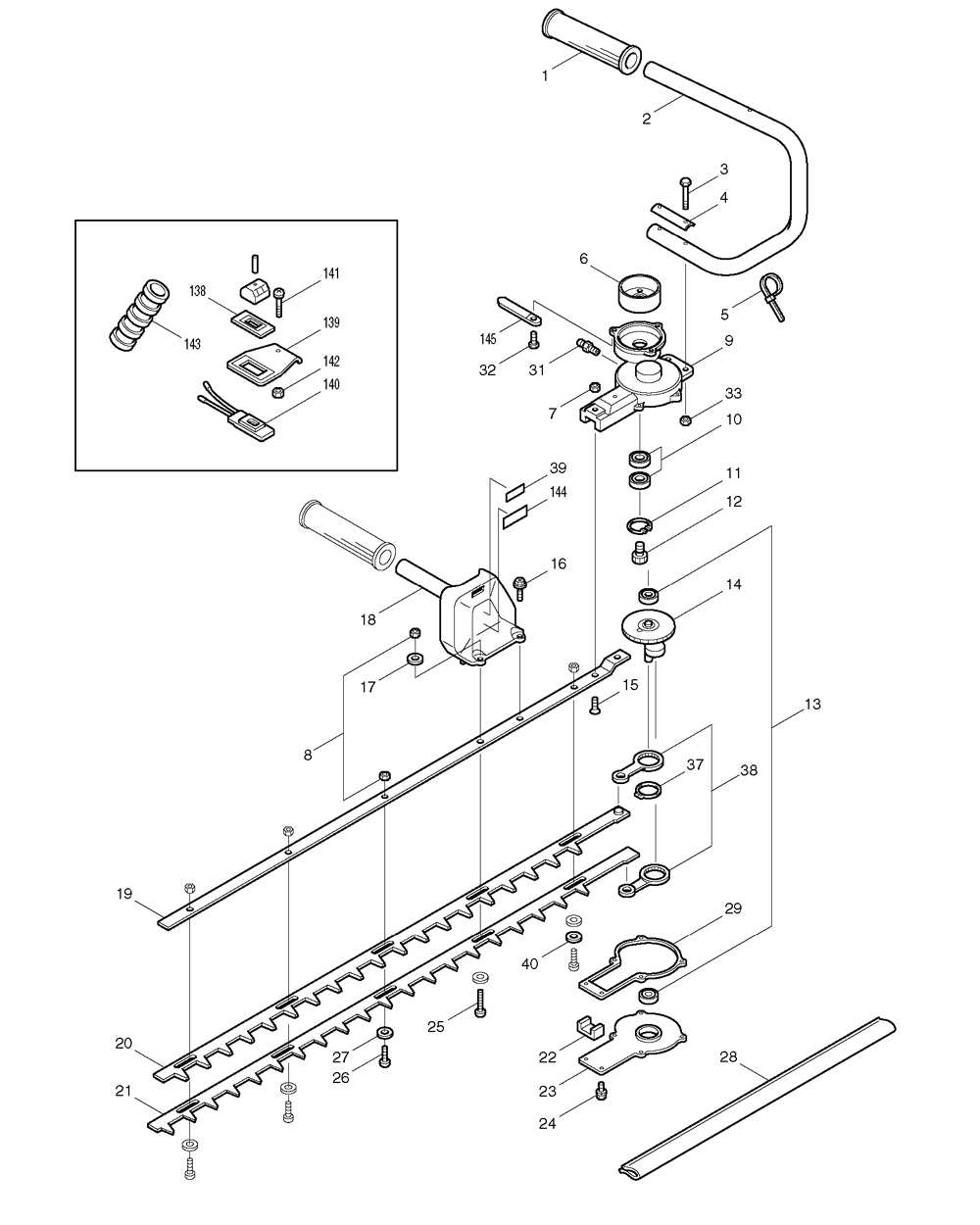

Makita EH620 Replacement Parts List

1

Grip, EH760 Part # 008-34500-00 Currently not available

N/A
2

Handle (left), EH620 Part # 286-11400-3A Currently not available

N/A
3

Hex Bolt, EH620 Part # 040-05025-1K Currently not available

N/A
4

Handle Fitting, EH760 Part # 136-10300-00 Currently not available

N/A
5

Band, EH620 Part # 610-55003-00 Currently not available

N/A
6

Drum Cpl., EH561 Part # 136-14100-00 Currently not available

N/A
7

Hex. U-nut M5, EN5550SH Part # 164-05000-0K Currently not available

N/A
8

Hex U-nut M6, EN5550SH Part # 164-06000-0K Currently not available

N/A
9

Crank Case, EH620 Part # 286-10000-2A Currently not available

N/A
10

Ball Bearing 6001 2RS, EN5550SH Part # 354-06001-0K Currently not available

N/A
11

Retaining Ring RTW-28, EN5550SH Part # 282-02800-0K Currently not available

N/A
12

Pinion Gear, EH450 Part # 286-10400-4A Currently not available

N/A
13

Bearing 608ZZ, EN5550SH Part # 353-00608-0K Currently not available

N/A
14

Gear Crank Ass'y, EN5550SH Part # 286-10300-4A Currently not available

N/A
15

Countersunk Head Screw, EH450 Part # 031-05016-0K Currently not available

N/A
16

(+)hex Bolt, EH620 Part # 055-06018-1K Currently not available

N/A
17

Washer, EH620 Part # 207-06010-4A Currently not available

N/A
18

Handle (right), EH760 Part # 136-19000-00 Currently not available

N/A
19

Blade Support Bar, EH620 Part # 286-10500-9A Currently not available

N/A
20

Upper Blade EH620 Part # 286107009A Currently not available

N/A
20

Upper Blade Part # 6018505600 Currently not available

N/A
21

Lower Blade Part # 6018505800 Currently not available

N/A
21

Lower Blade EH620 Part # 286109009A Currently not available

N/A
22

Felt, EN5550SH Part # 286-11200-4A Currently not available

N/A
