Buy Makita EH760 Electric Trimmer Parts

Other tools in Makita Electric Trimmer Parts category

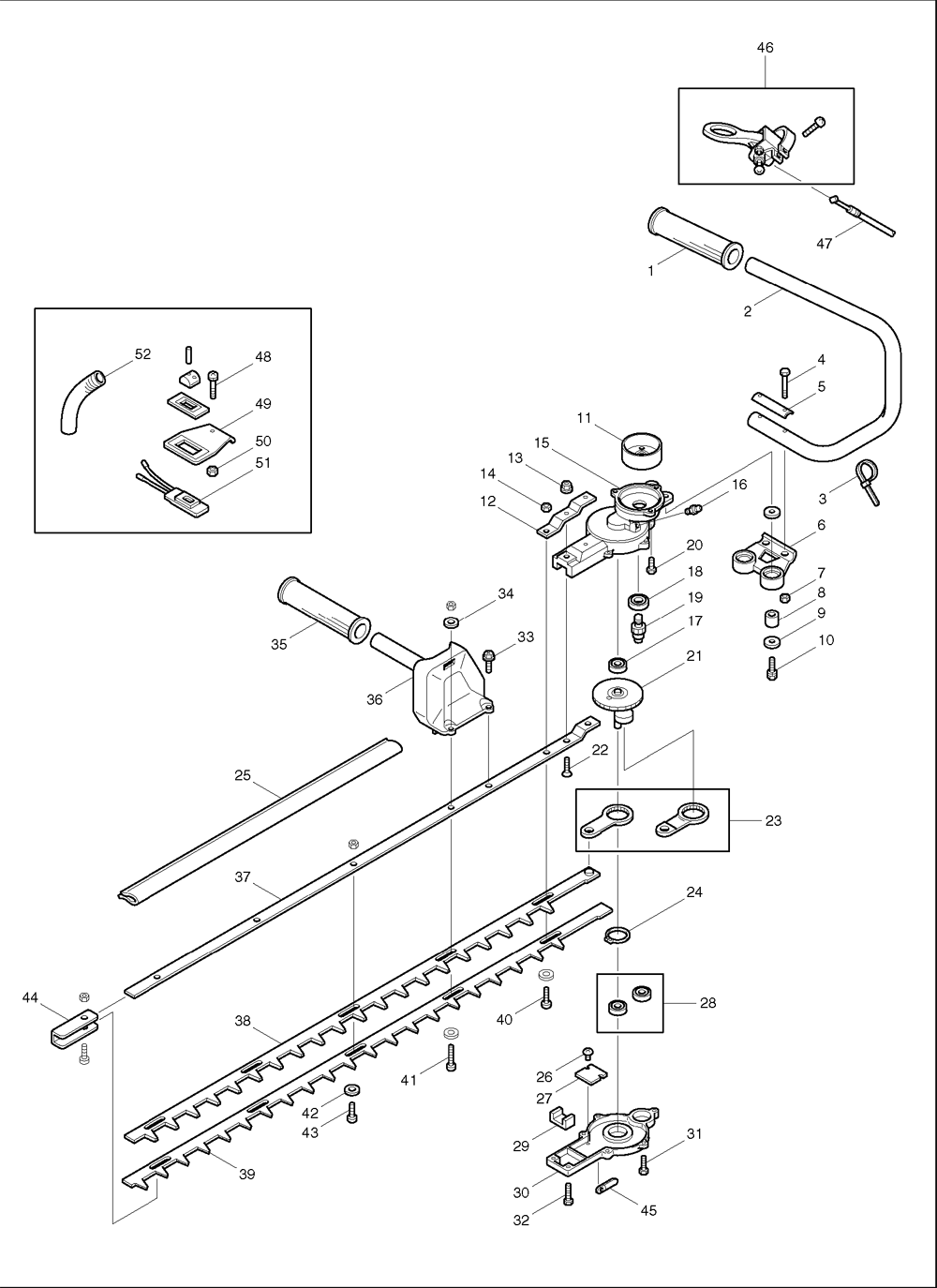

Fig-0

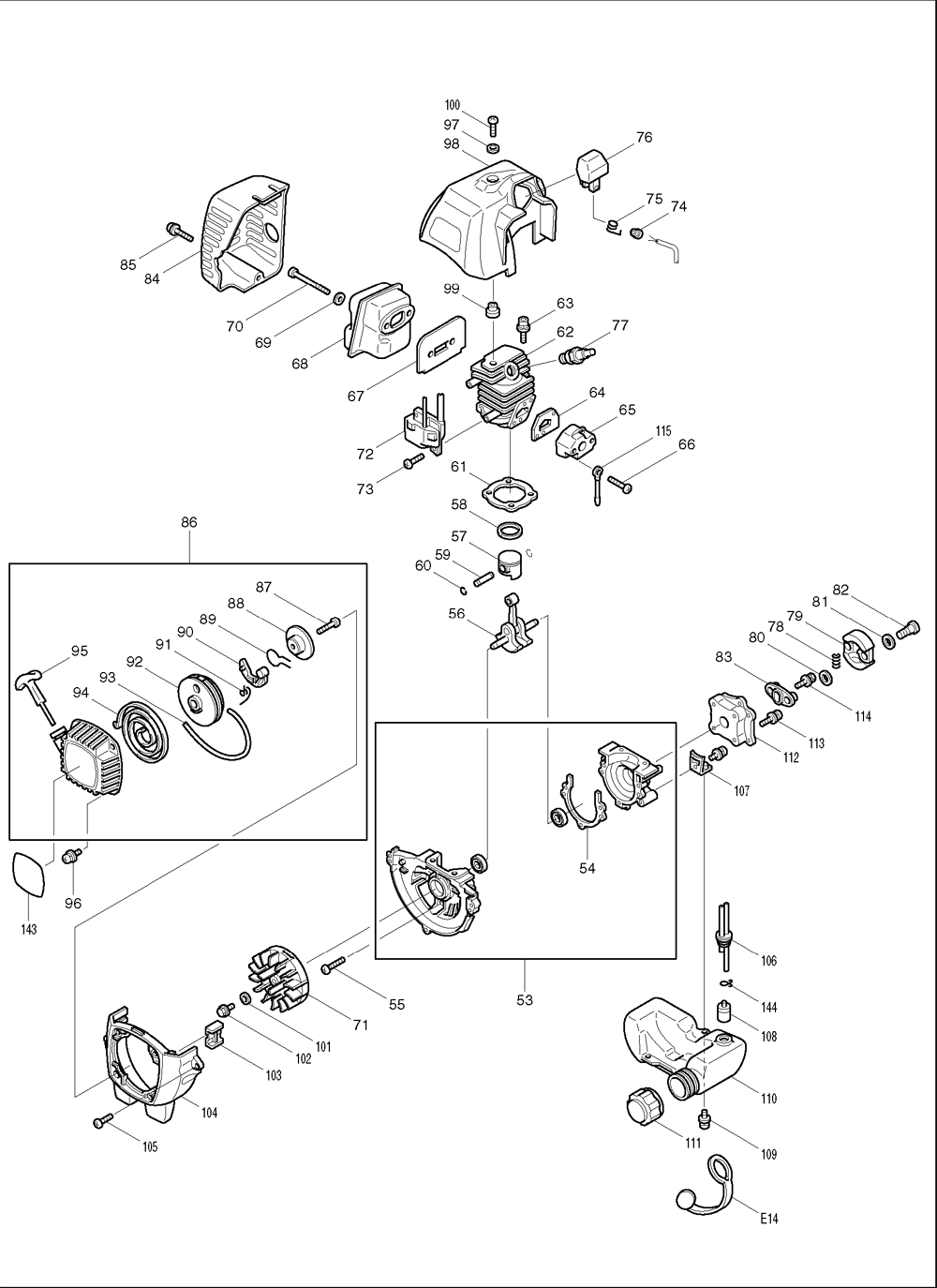

Fig-1

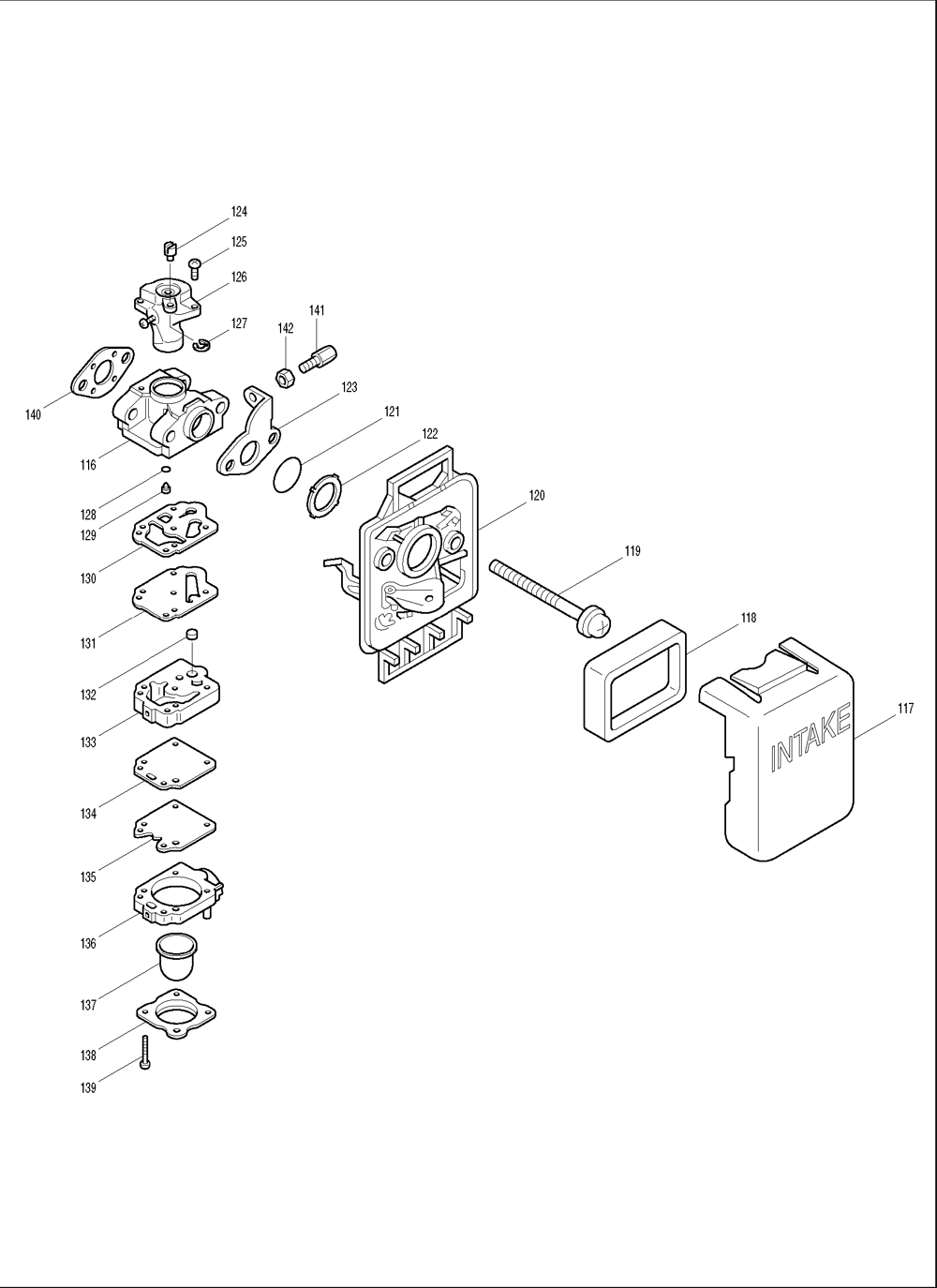

Fig-2

Reference Filter: Filter parts list by name or model number:

Makita EH760 Replacement Parts List

1

Grip, EH760 Part # 008-34500-00 Currently not available

N/A
2

Handle (left), EH760 Part # 136-16200-00 Currently not available

N/A
3

Clip (CV-150), EH760 Part # 035-00210-0R Currently not available

N/A
4

N/a Part # L040050283 Currently not available

N/A
4

Bolt M5X30, EH760 Part # 040-05030-1K Currently not available

N/A
4

Bolt M5X28, EH760 Part # 040-05028-3L Currently not available

N/A
5

Handle Fitting, EH760 Part # 136-10300-00 Currently not available

N/A
6

Handle Holder, EH760 Part # 136-10000-00 Currently not available

N/A
7

Nut M5, EH760 Part # 150-05000-0K Currently not available

N/A
8

Collar, EH760 Part # 073-20900-00 Currently not available

N/A
9

Washer 6X22X2.3, EH760 Part # 207-06023-1K Currently not available

N/A
10

Bolt M6X25, EH760 Part # 054-06025-0K Currently not available

N/A
11

Drum Cpl., EH561 Part # 136-14100-00 Currently not available

N/A
12

Reinforcing Plate, EH760 Part # 030-10800-00 Currently not available

N/A
13

Flange Nut M5, EH760 Part # 162-05000-0K Currently not available

N/A
14

Hex U-nut M6, EN5550SH Part # 164-06000-0K Currently not available

N/A
15

Case (upper), EH760 Part # 136-14300-00 Currently not available

N/A
16

Greasing Nipple M6, EH561 Part # 055-00100-0R Currently not available

N/A
17

Ball Bearing 608Z, EH760 Part # 351-00608-0K Currently not available

N/A
18

Ball Bearing 6001 2RS, EN5550SH Part # 354-06001-0K Currently not available

N/A
19

Pinion Gear, EH561 Part # 136-14200-00 Currently not available

N/A
20

Hex. Bolt M6X15, EH561 Part # 054-06015-0K Currently not available

N/A
21

Crank Gear, EH561 Part # 136-00300-00 Currently not available

N/A
22

Screw M5X20, EH760 Part # 011-05020-0K Currently not available

N/A

Makita EH760 Replacement Parts
