Makita EHW120 Replacement Parts

Model: EHW120

Brand: Makita

Download Schematics

Buy Makita EHW120 Electric Trimmer Parts

Other tools in Makita Electric Trimmer Parts category

Fig-0

Fig-0

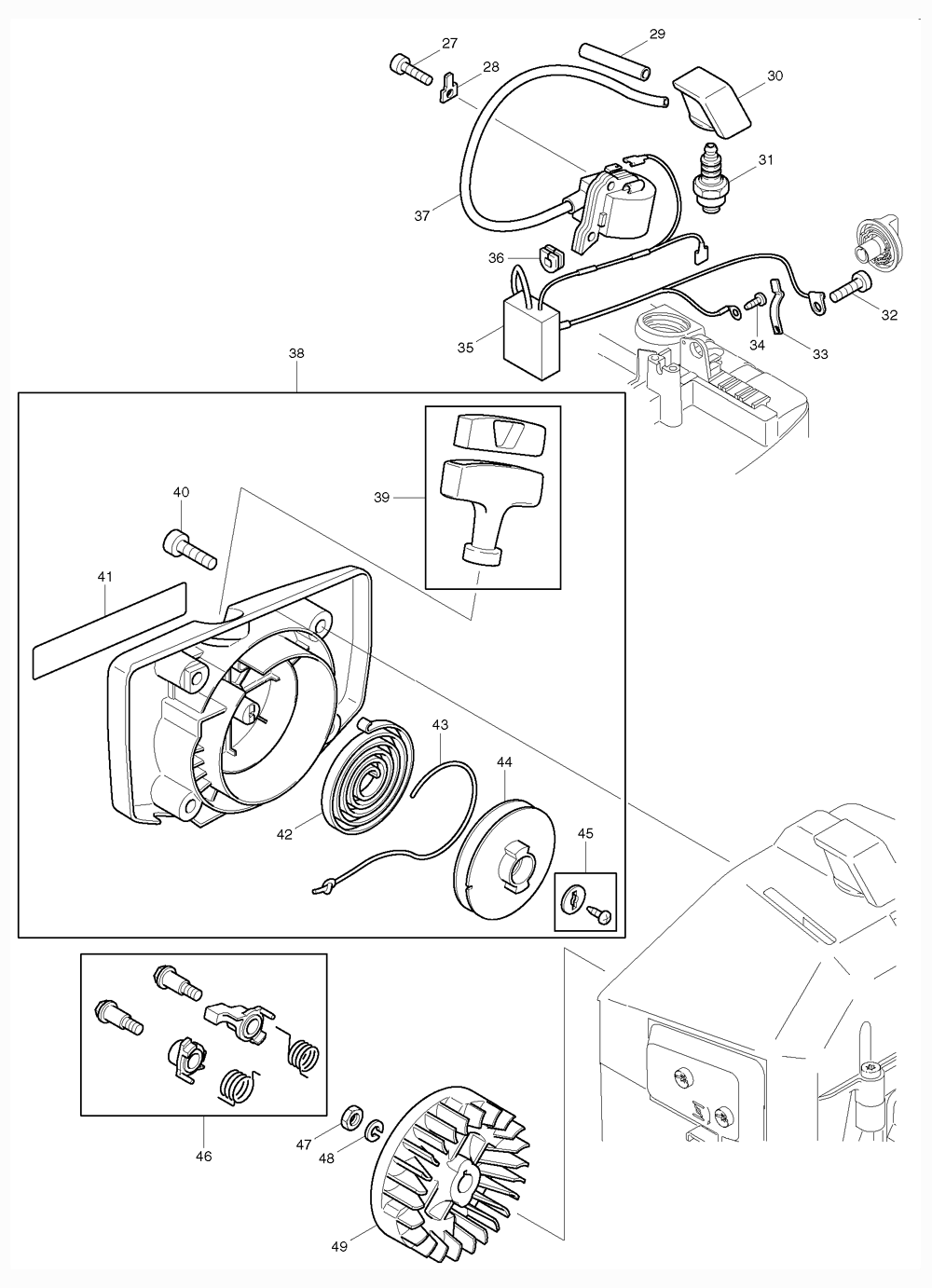

Fig-1

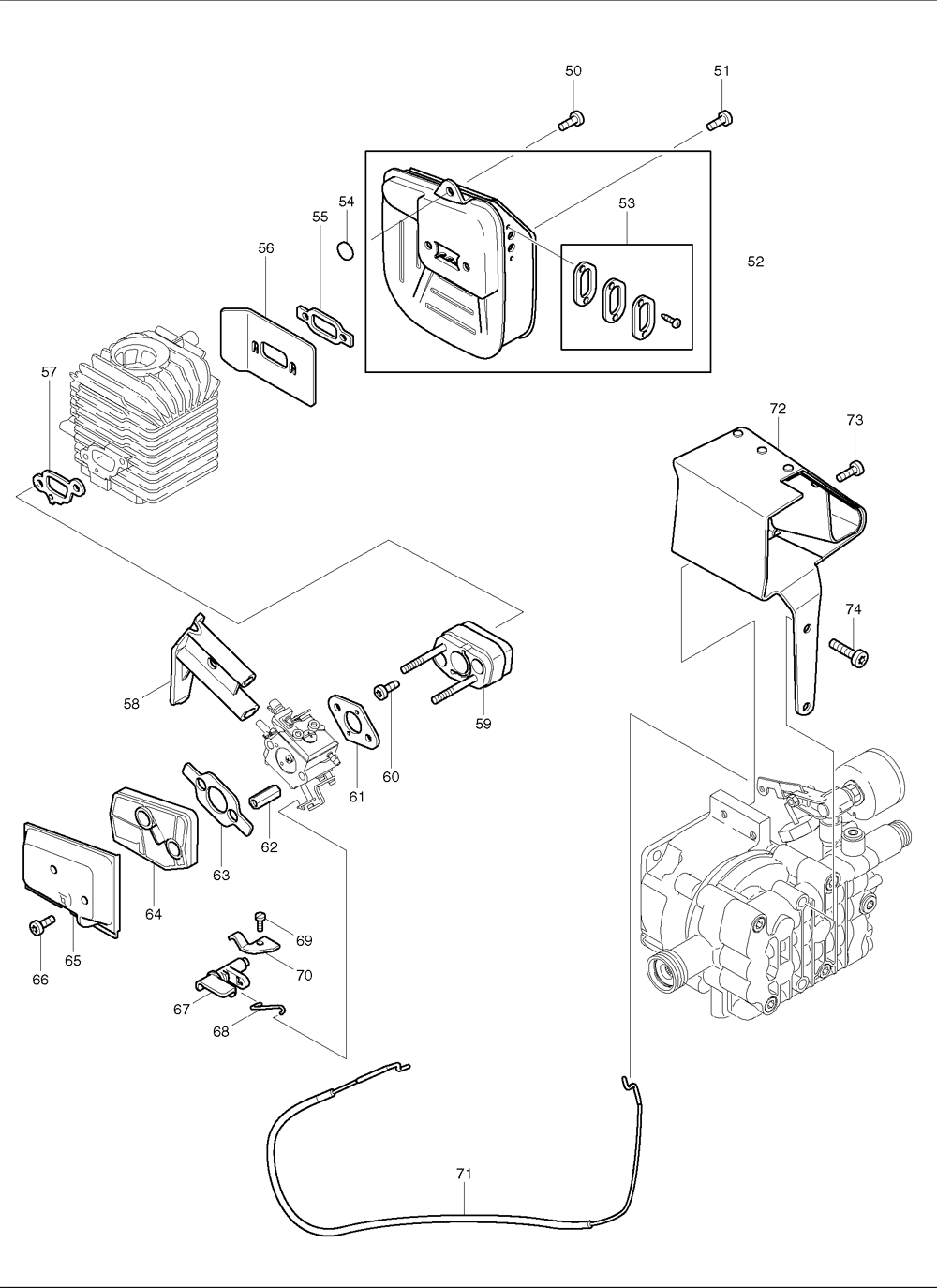

Fig-2

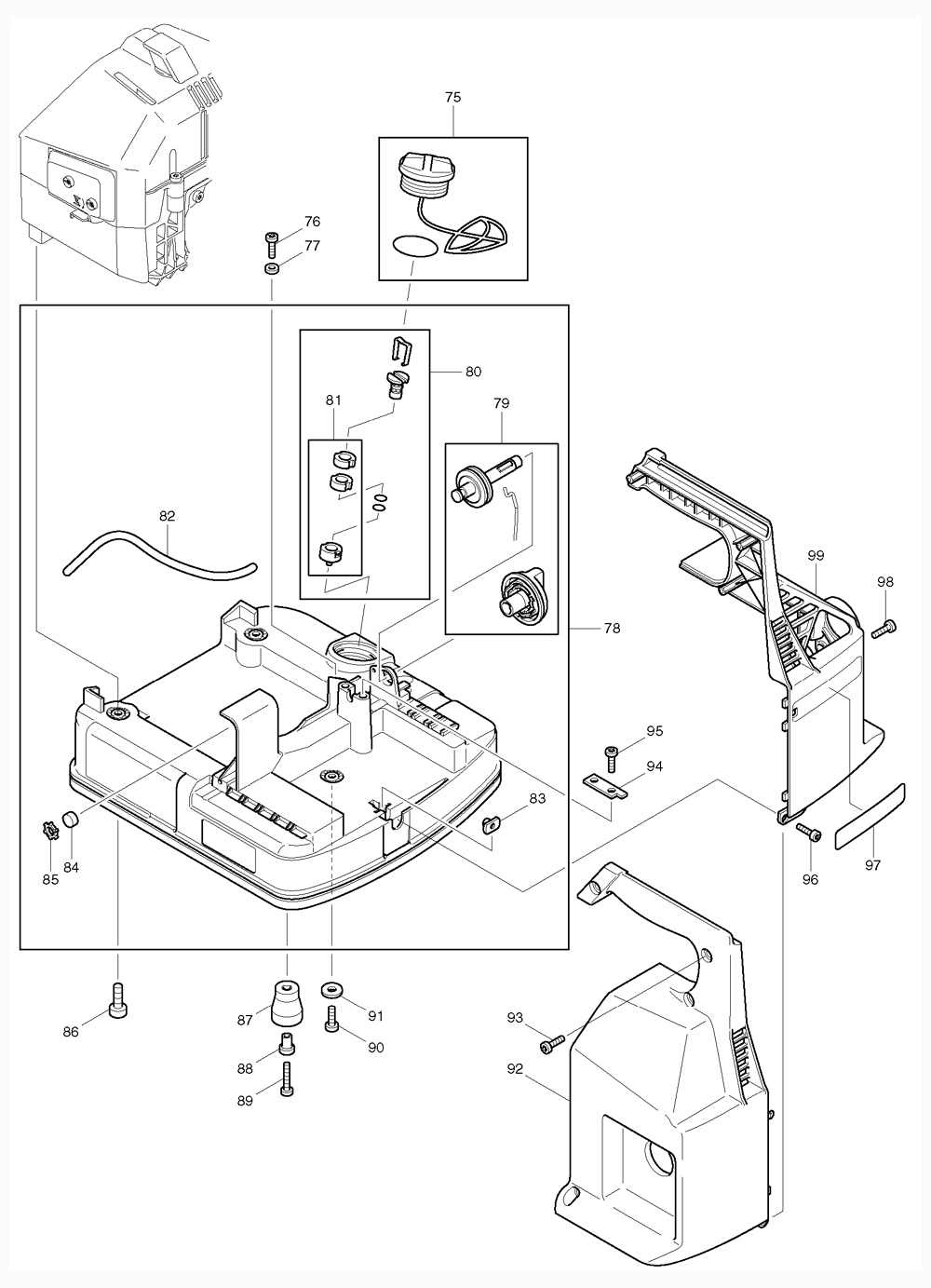

Fig-3

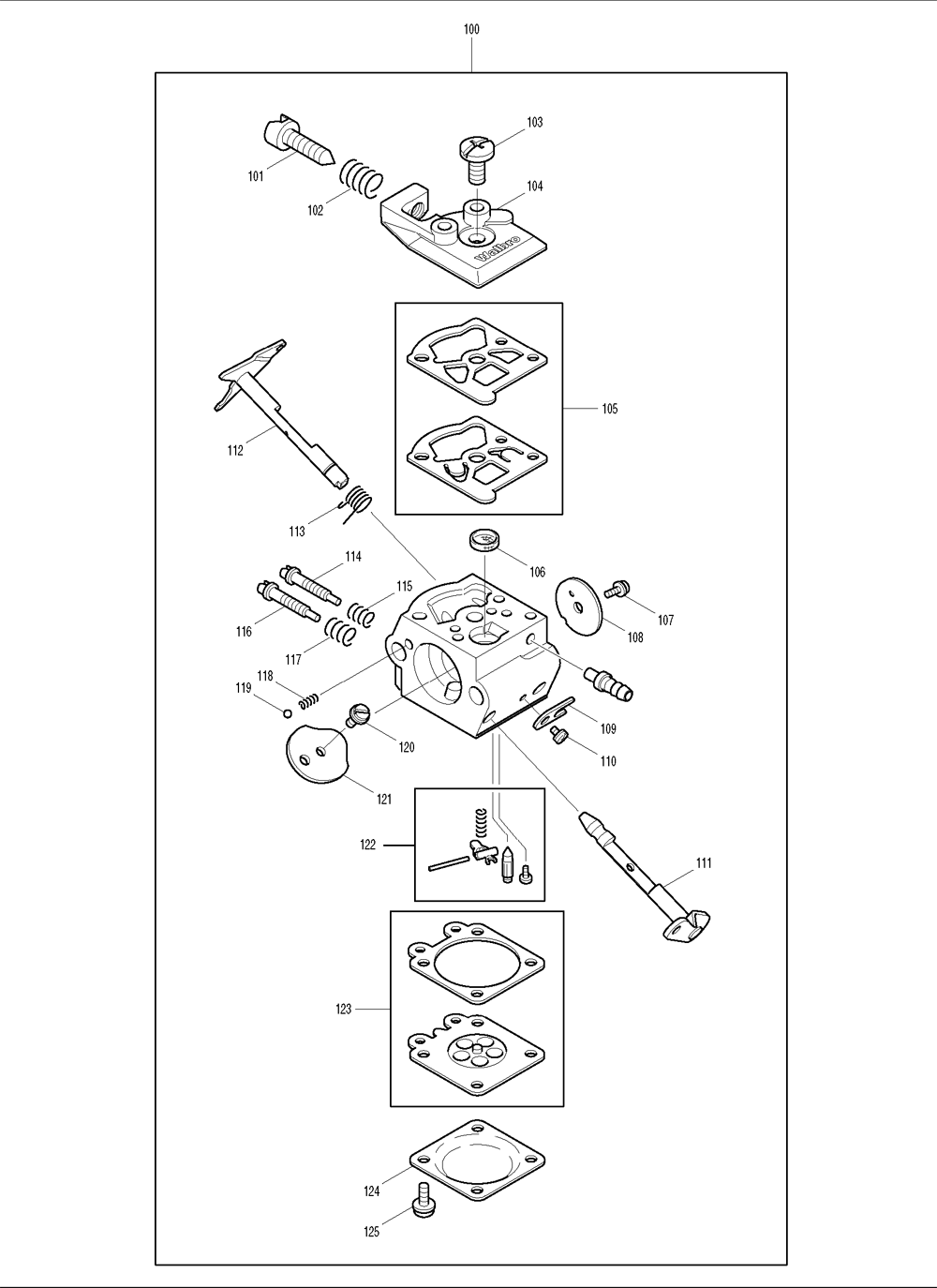

Fig-4

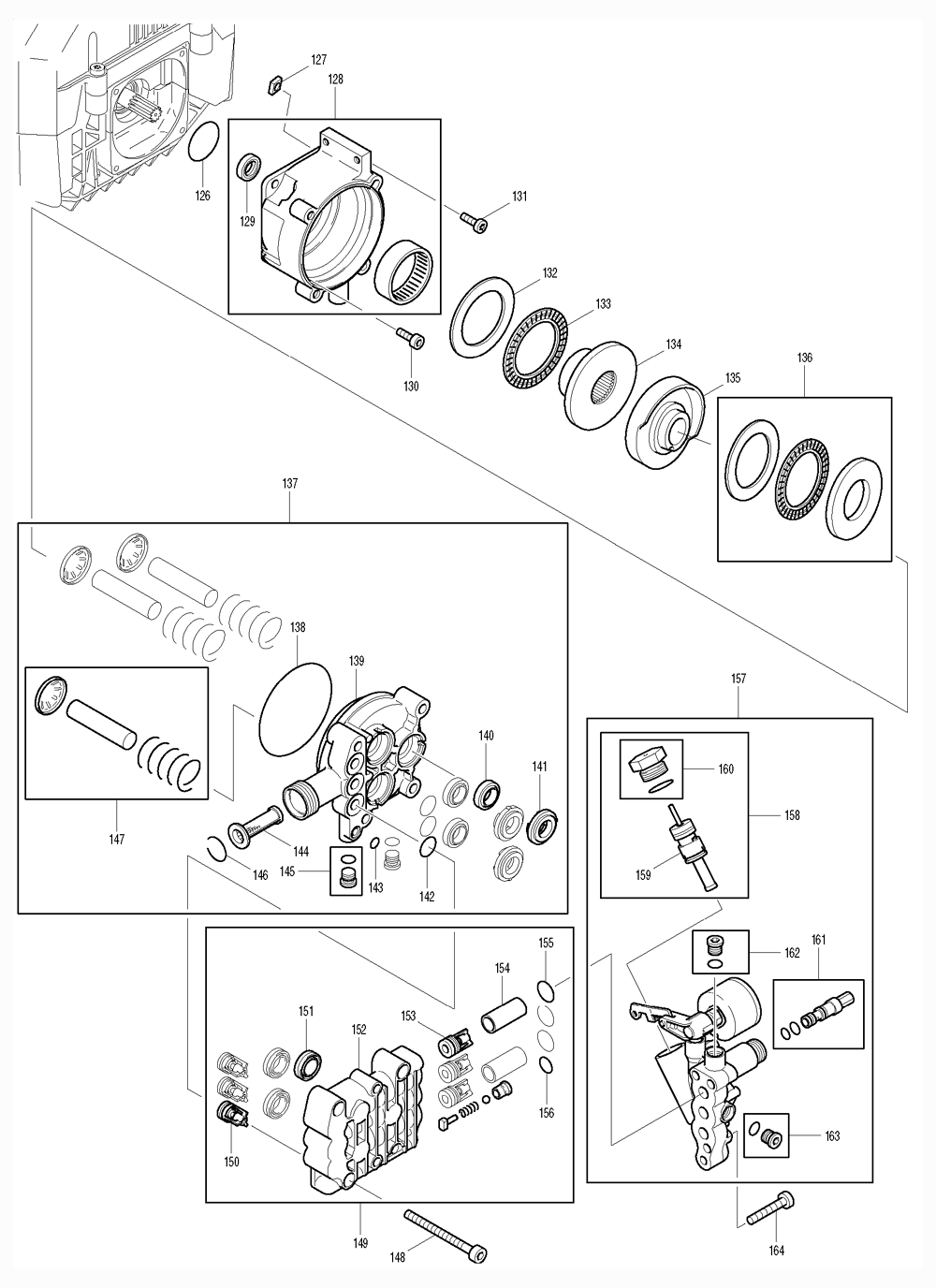

Fig-5

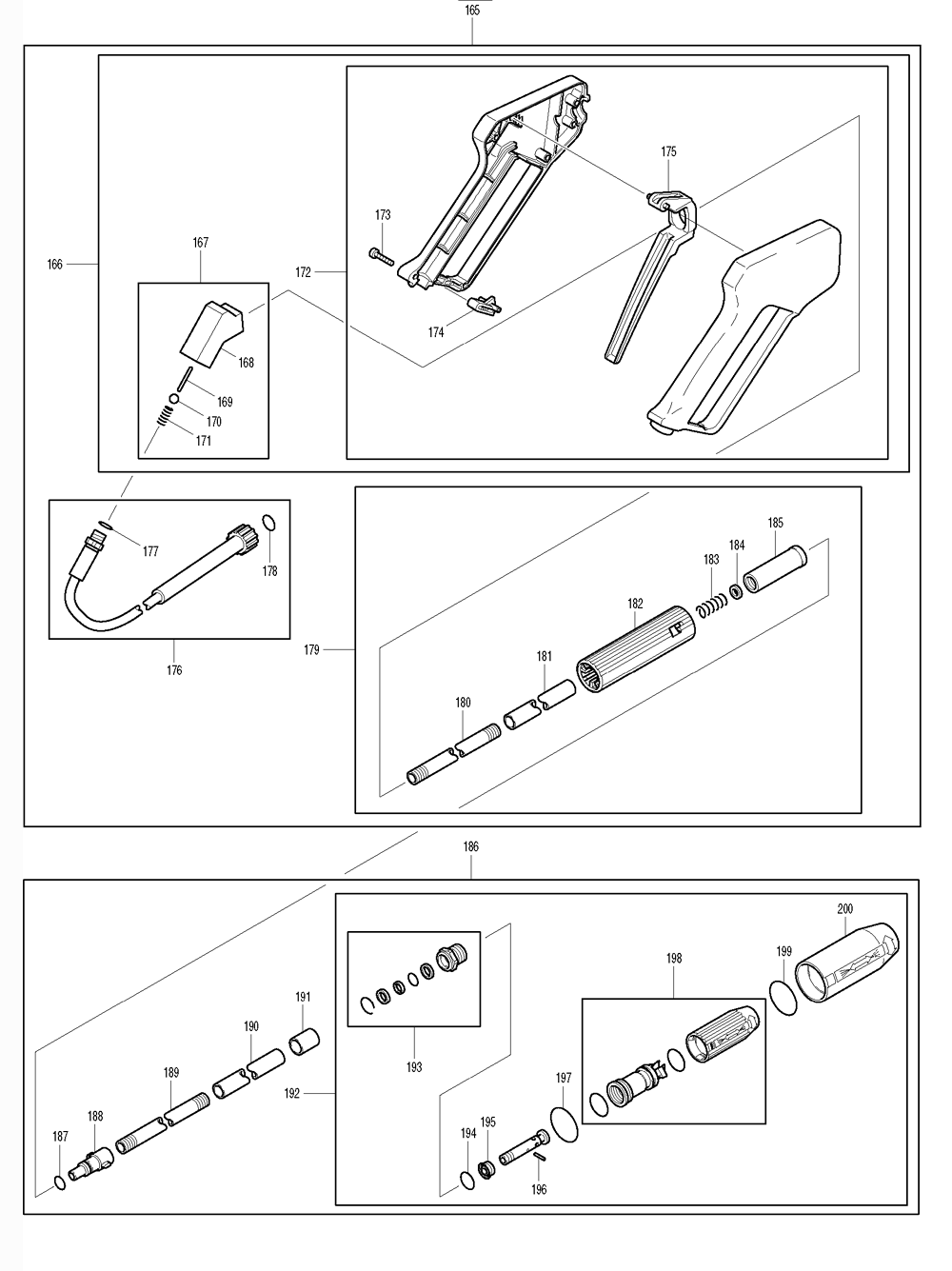

Fig-6

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

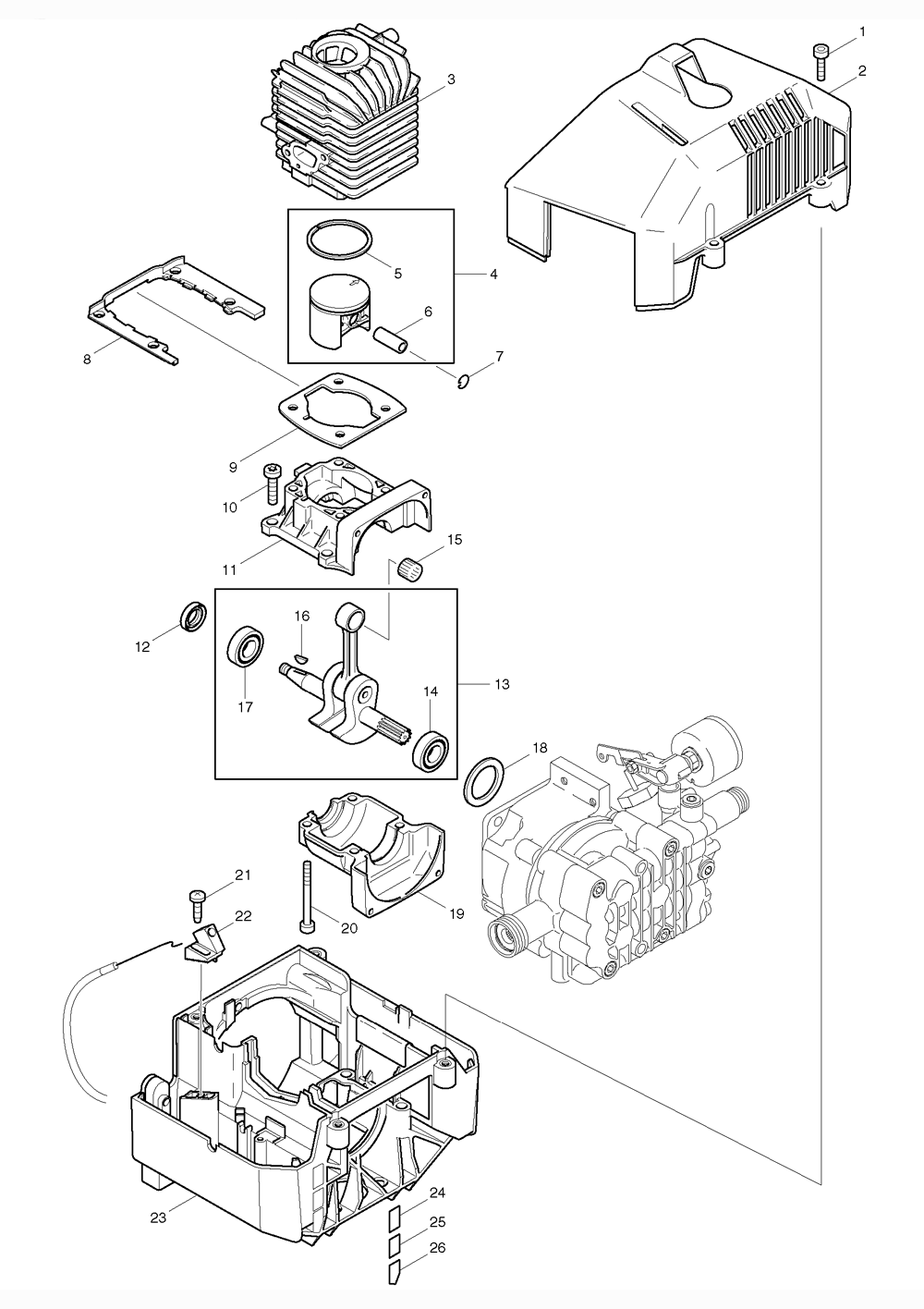

Makita EHW120 Replacement Parts List

1

Hood, EHW120 Part # 385-118-010 Currently not available

N/A
2

F.h. Screw M5X20, DCS9000 Part # 908-605-205 Currently not available

N/A
2

H.l. Socket Head Bolt M5X20, EA3201S Part # 266607-4

$2.95
Add to Cart
3

Cylinder, MS4510 Part # 386-131-011 Currently not available

N/A
4

Piston, EHW120 Part # 386-132-000 Currently not available

N/A
4

Piston Assy Part # 957-132-386 Currently not available

N/A
5

Piston Ring, EHW120 Part # 386-132-010 Currently not available

N/A
6

Piston Pin, EHW120 Part # 385-132-030 Currently not available

N/A
7

Spring Ring, EHW120 Part # 385-132-040 Currently not available

N/A
8

Air Guide Plate, EHW120 Part # 385-118-081 Currently not available

N/A
9

Gasket, EHW120 Part # 965-527-050 Currently not available

N/A
10

Torx Screw 6.7X25, EHW120 Part # 913-467-254 Currently not available

N/A
11

Crankcase Assy., EHW120 Part # 385-111-100 Currently not available

N/A
12

Radial Ring, DCS34 Part # 962-900-057 Currently not available

N/A
13

Crankshaft Ass'y, EHW120 Part # 356-120-000 Currently not available

N/A
14

Ball Bearing, DCS431 Part # 960-102-129 Currently not available

N/A
14

Ball Bearing 6201, PS-35C Part # 211494-6 Currently not available

N/A
14

Ball Bearing 6201, EA3201 Part # 211341-1

$28.49
Add to Cart
15

Needle Cage Bearing, EHW120 Part # 962-211-033 Currently not available

N/A
16

Key , DCS431 Part # 939-620-371 Currently not available

N/A
17

Ball Bearing, DCS431 Part # 960-102-129 Currently not available

N/A
17

Ball Bearing 6201, PS-35C Part # 211494-6 Currently not available

N/A
17

Ball Bearing 6201, EA3201 Part # 211341-1

$28.49
Add to Cart
18

Disc, EHW120 Part # 900-006-217 Currently not available

N/A
