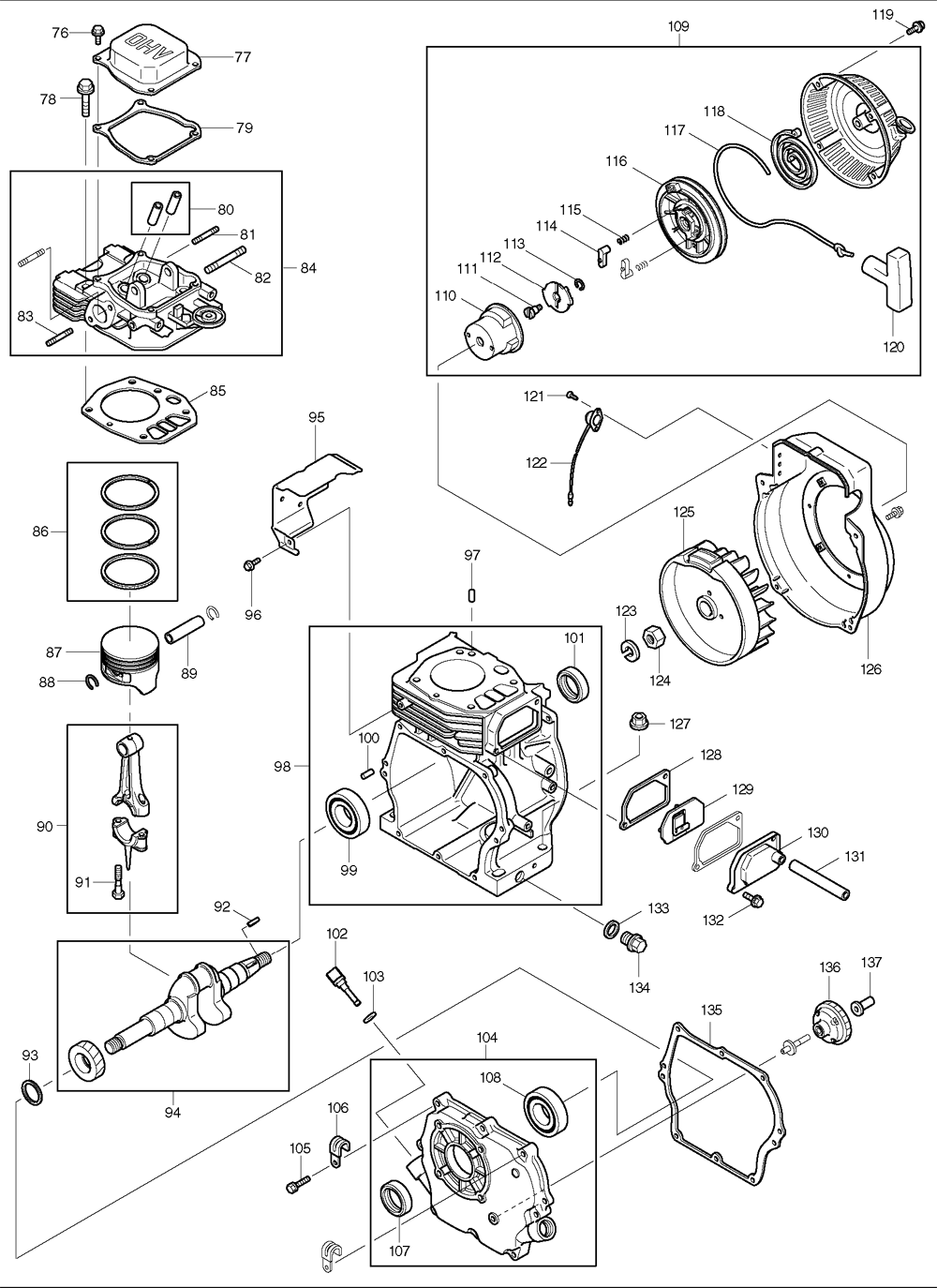

Fig-1

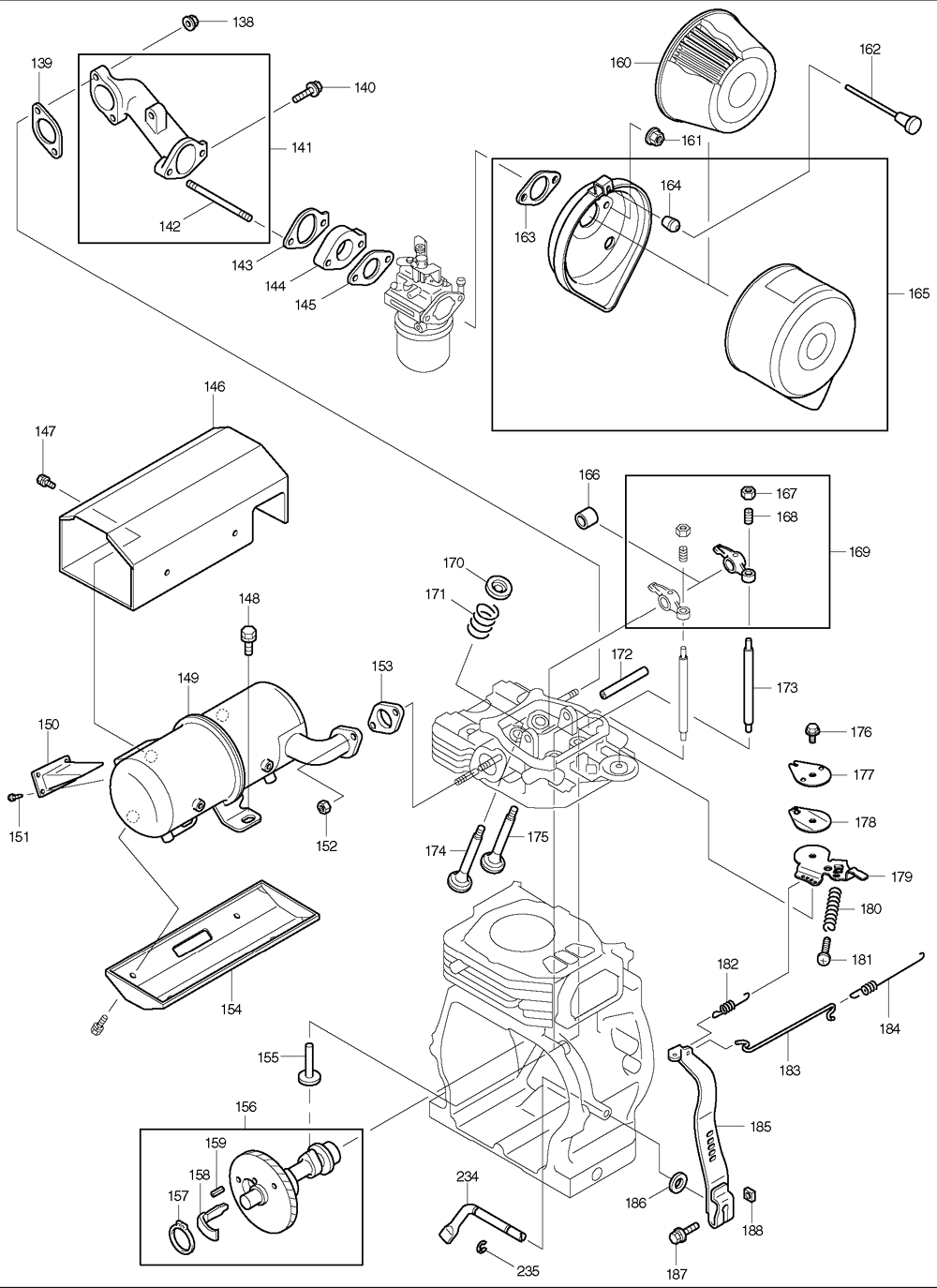

Fig-2

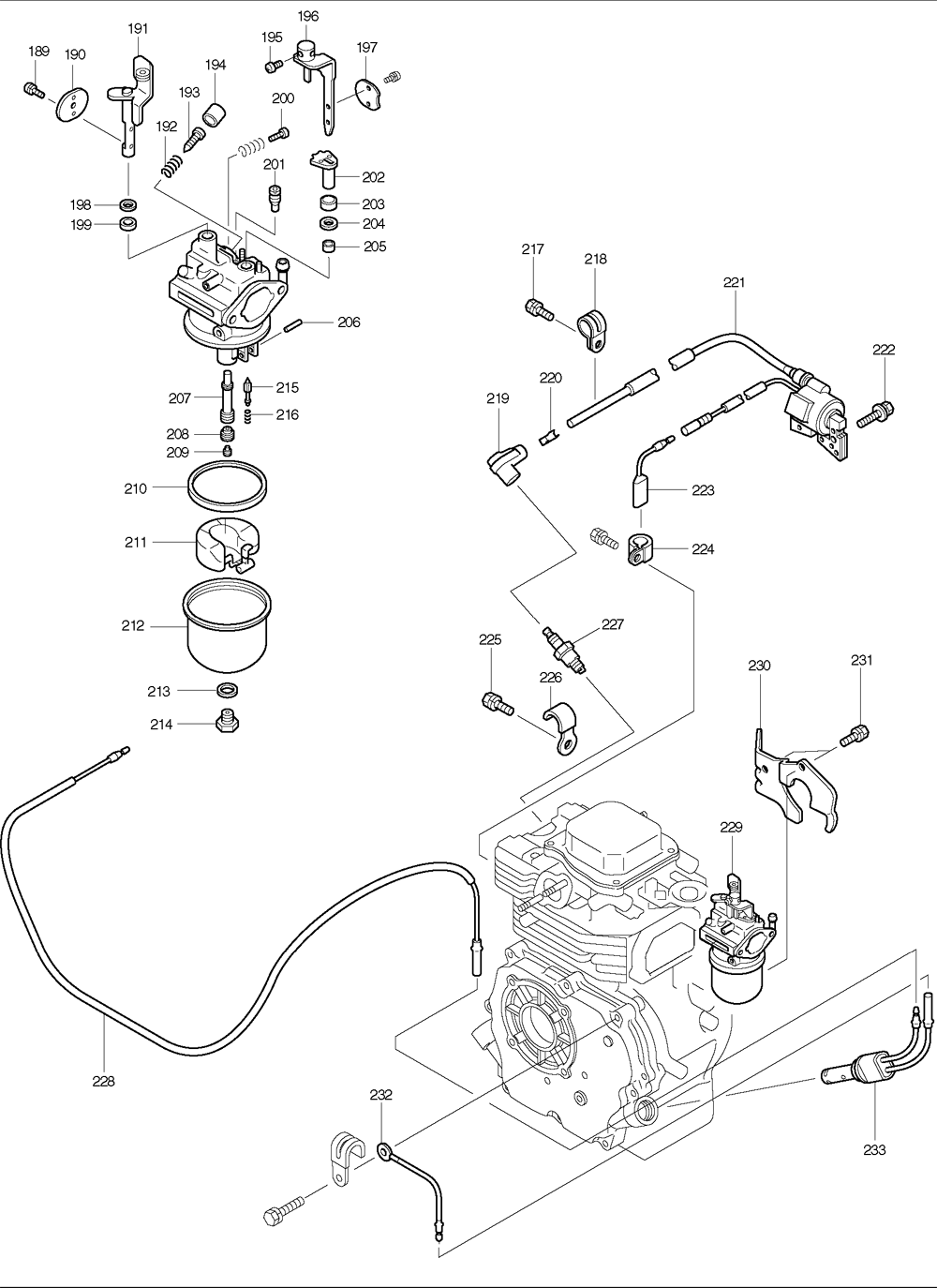

Fig-3

Reference Filter: Filter parts list by name or model number:

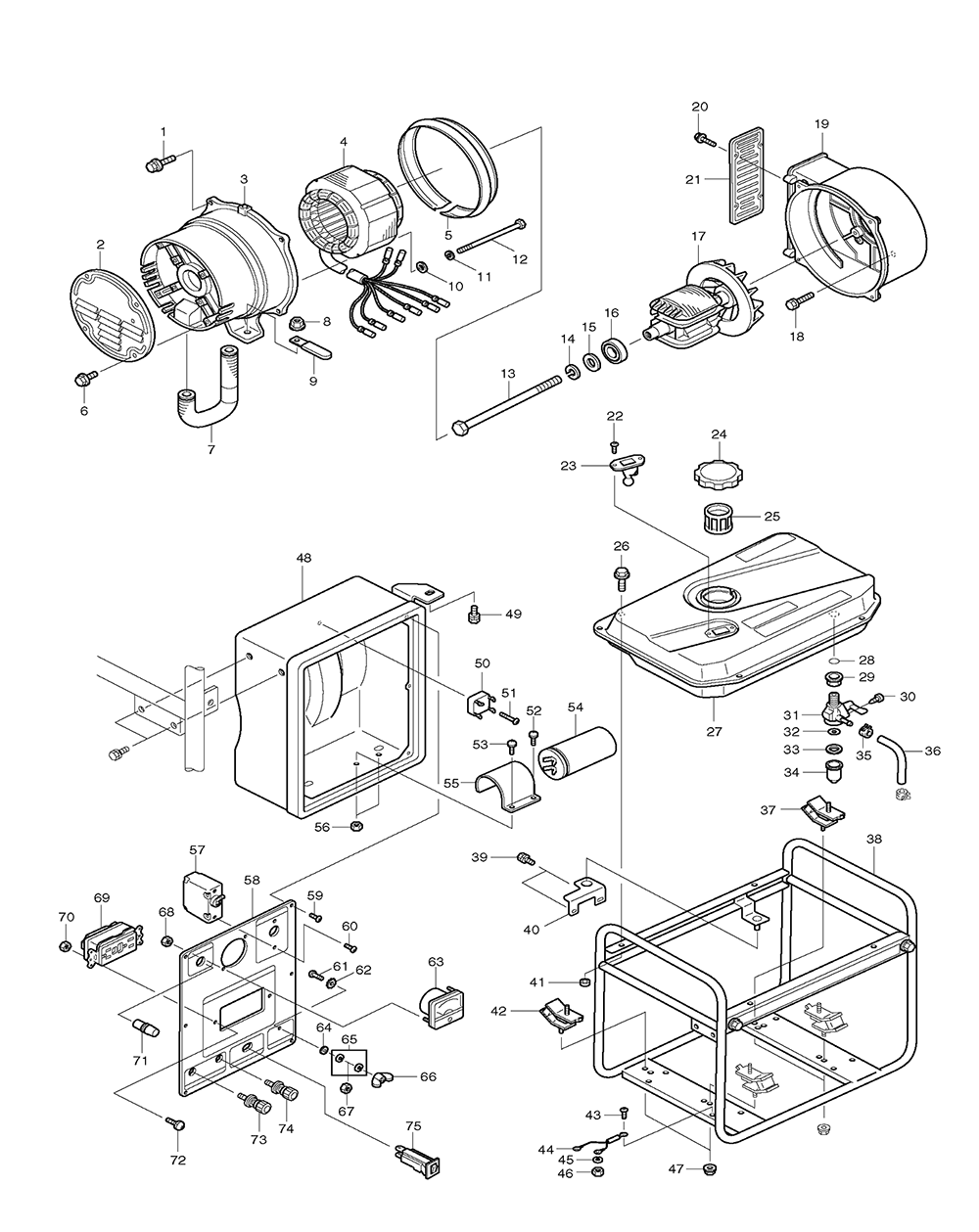

Makita G2410R Replacement Parts List

174

Exhaust Valve, G2410R Part # 253-33501-13 Currently not available

N/A
1

Bolt & Washer, G2800R Part # 001-14062-50 Currently not available

N/A
2

No Longer Available - End Cover, G3511R Part # 388-55001-13 Currently not available

N/A
3

Rear Cover, G3510R Part # 31B-26001-01 Currently not available

N/A
4

Stator Ass'y, G2410R Part # 388-01300-21 Currently not available

N/A
5

Support Ring, G2410R Part # 388-54381-03 Currently not available

N/A
6

Flange Bolt, G6100R Part # 011-00600-10 Currently not available

N/A
7

Bushing, G2800R Part # 391-29000-13 Currently not available

N/A
8

Flange Nut, G6100R Part # 002-38080-00 Currently not available

N/A
9

Clamp, G2410R Part # 056-60001-70 Currently not available

N/A
10

Washer, G2410R Part # 003-10060-00 Currently not available

N/A
11

Spring Washer, G2800R Part # 003-20060-00 Currently not available

N/A
12

Bolt, G2410R Part # 001-65067-50 Currently not available

N/A
13

Through Bolt, G2410R Part # 391-25100-03 Currently not available

N/A
14

Spring Washer, G2800R Part # 003-20080-00 Currently not available

N/A
15

Washer, G2410R Part # 003-12080-00 Currently not available

N/A
16

Ball Bearing G2800R Part # 353-58208-08 Currently not available

N/A
17

Rotor Ass'y, G2410R Part # 388-21000-11 Currently not available

N/A
18

Bolt & Washer, G2410R . Part # 001-13082-00 Currently not available

N/A
19

Front Cover, G2410R Part # 388-54101-13 Currently not available

N/A
20

Tapping Screw, G3511R Part # 015-20500-10 Currently not available

N/A
21

Front Protector, G3511R Part # 388-55101-03 Currently not available

N/A
22

Counter Head Screw, G2800R Part # 014-50500-40 Currently not available

N/A
23

Fuel Gauge Complete, G2800R Part # 064-80005-00 Currently not available

N/A
