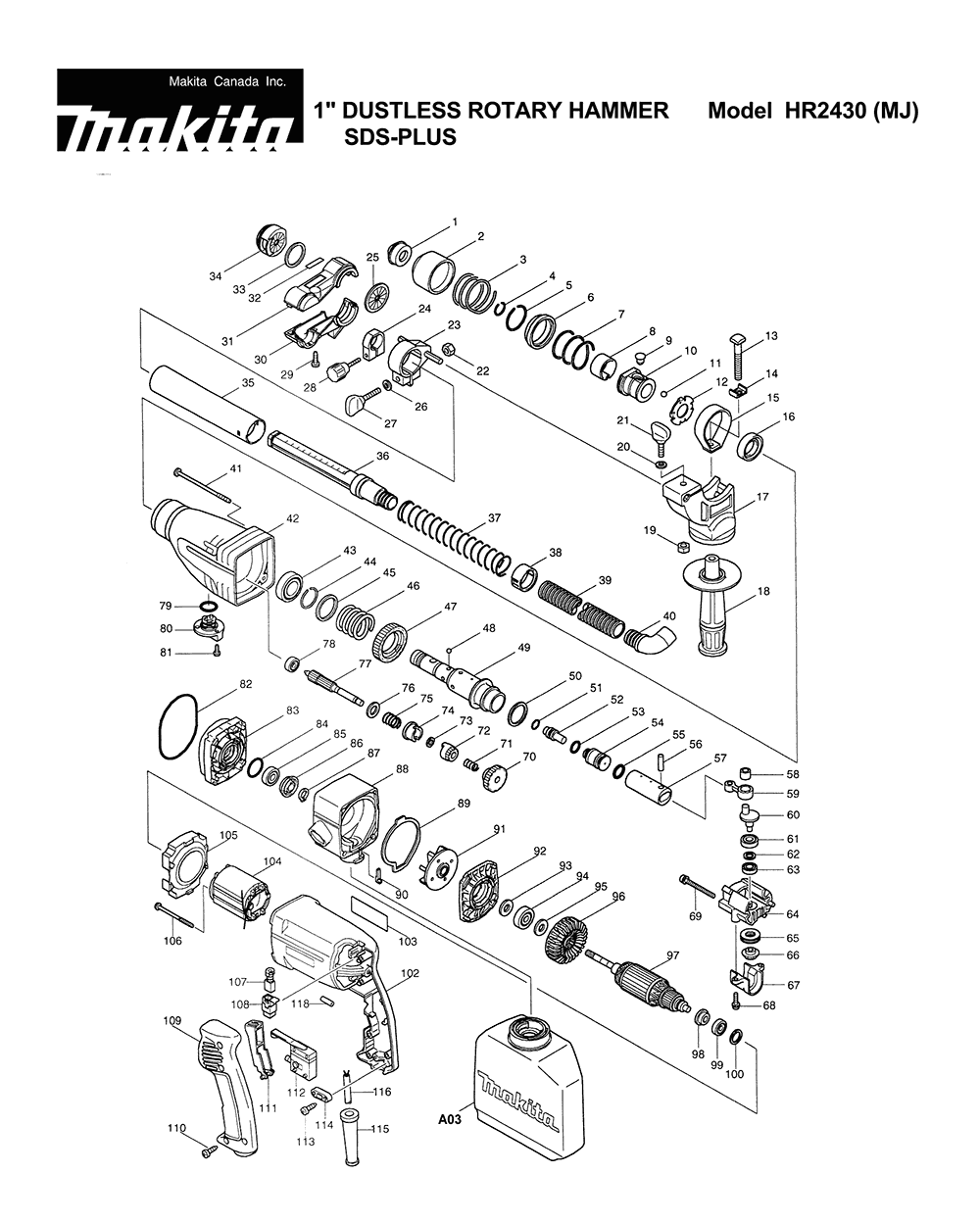

Fig-0

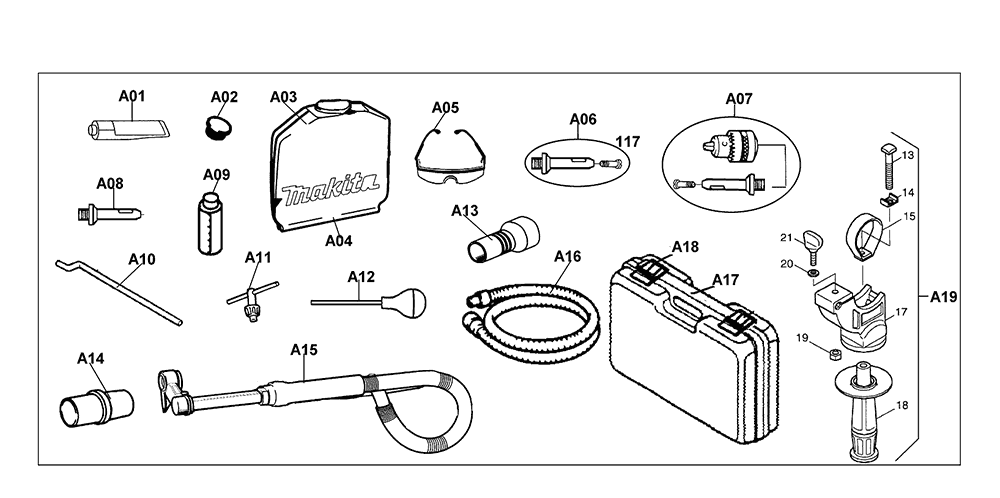

Fig-1

Reference Filter: Filter parts list by name or model number:

Makita HR2430 Replacement Parts List

1

Cap 31, HR2400,T2 Part # 286265-0 Currently not available

N/A
2

Chuck Cover, HR2400 Part # 416410-5 Currently not available

N/A
3

Compression Spring 38, HR2400 Part # 233203-3 Currently not available

N/A
4

Ring Spring 16, HR2400 Part # 231979-6 Currently not available

N/A
5

Ring Spring 30.5, HR2000 Part # 231936-4 Currently not available

N/A
6

Spring Guide, HR2410 Part # 323819-3 Currently not available

N/A
7

Comp. Spring 35, HR2410 Part # 233234-2 Currently not available

N/A
8

Leaf Spring 26, HR2410 Part # 232190-3 Currently not available

N/A
9

Pin 8, HR2420 Part # 256447-8 Currently not available

N/A
10

Chuck Ring, HR2410 Part # 323820-8 Currently not available

N/A
11

Steel Ball 7.0, HR2400 Part # 216022-2

$2.52
Add to Cart
12

Guide Washer, HR2410 Part # 344690-2 Currently not available

N/A
13

Square Bolt M8X60, HR2410 Part # 266092-1 Currently not available

N/A
14

Square Washer 9, HR2410 Part # 267719-6 Currently not available

N/A
15

Belt, HR2410 Part # 344205-5 Currently not available

N/A
16

Oil Seal 20, HM1214C Part # 213313-2

$12.01
Add to Cart
17

Grip Base, HR2431 Part # 417157-4 Currently not available

N/A
18

Grip 36 Cpl., DP4002 Part # 152521-9 Currently not available

N/A
19

Hex Nut M5, HR2410 Part # 931202-6

$2.52
Add to Cart
20

F. Washer 5, 5007NK Part # 941101-4

$2.52
Add to Cart
21

Screw M5X20, UM140D Part # 251878-6

$5.88
Add to Cart
22

Hex Nut M6, HR2400 Part # 931302-2

$2.52
Add to Cart
23

Pipe Holder, HR2431 Part # 417156-6 Currently not available

N/A
24

Stopper Ring, HR2431 Part # 414795-3 Currently not available

N/A
