Buy Makita HTR7610 Type-2 Electric Trimmer Parts

Other tools in Makita Electric Trimmer Parts category

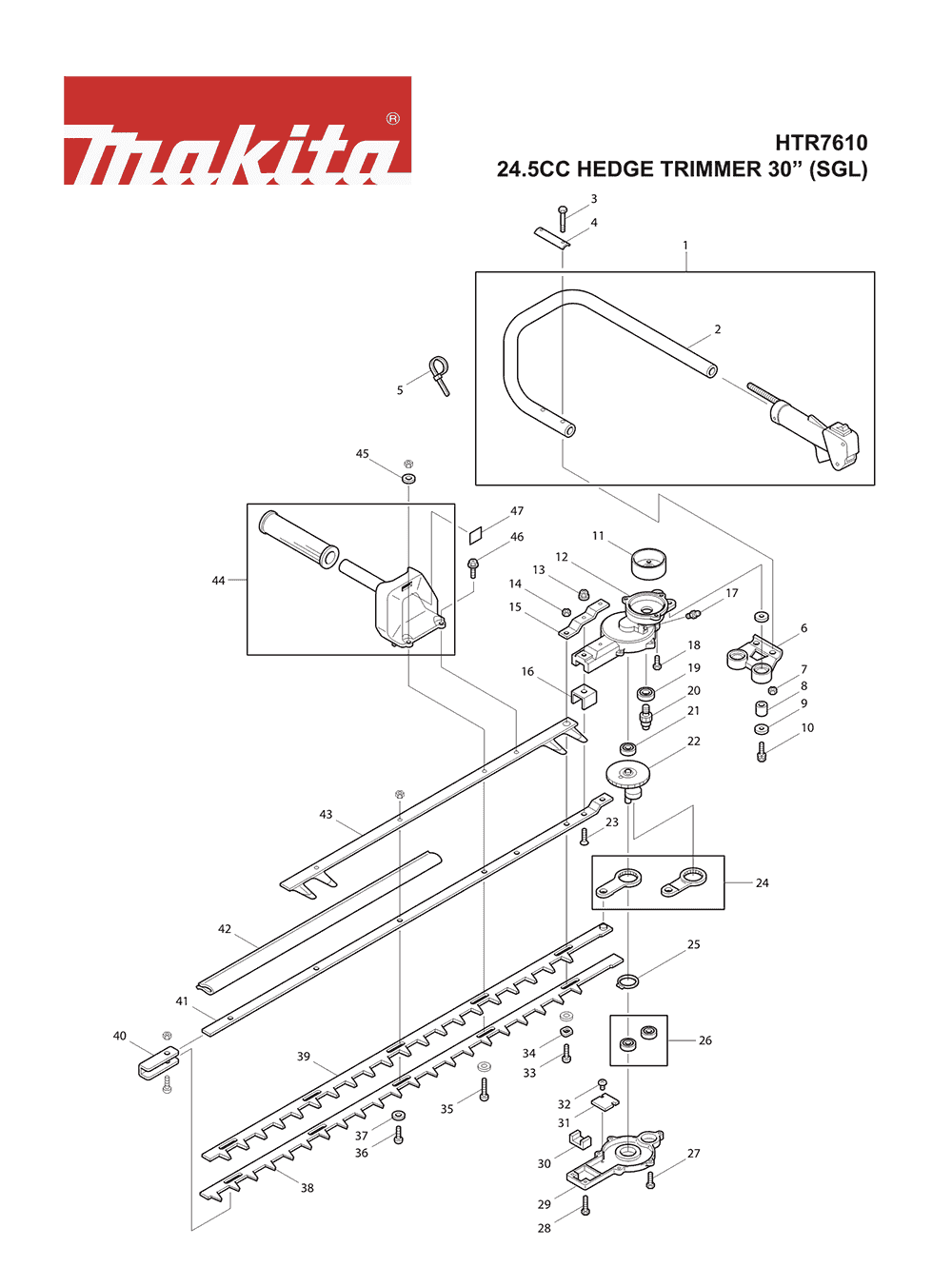

Fig-0

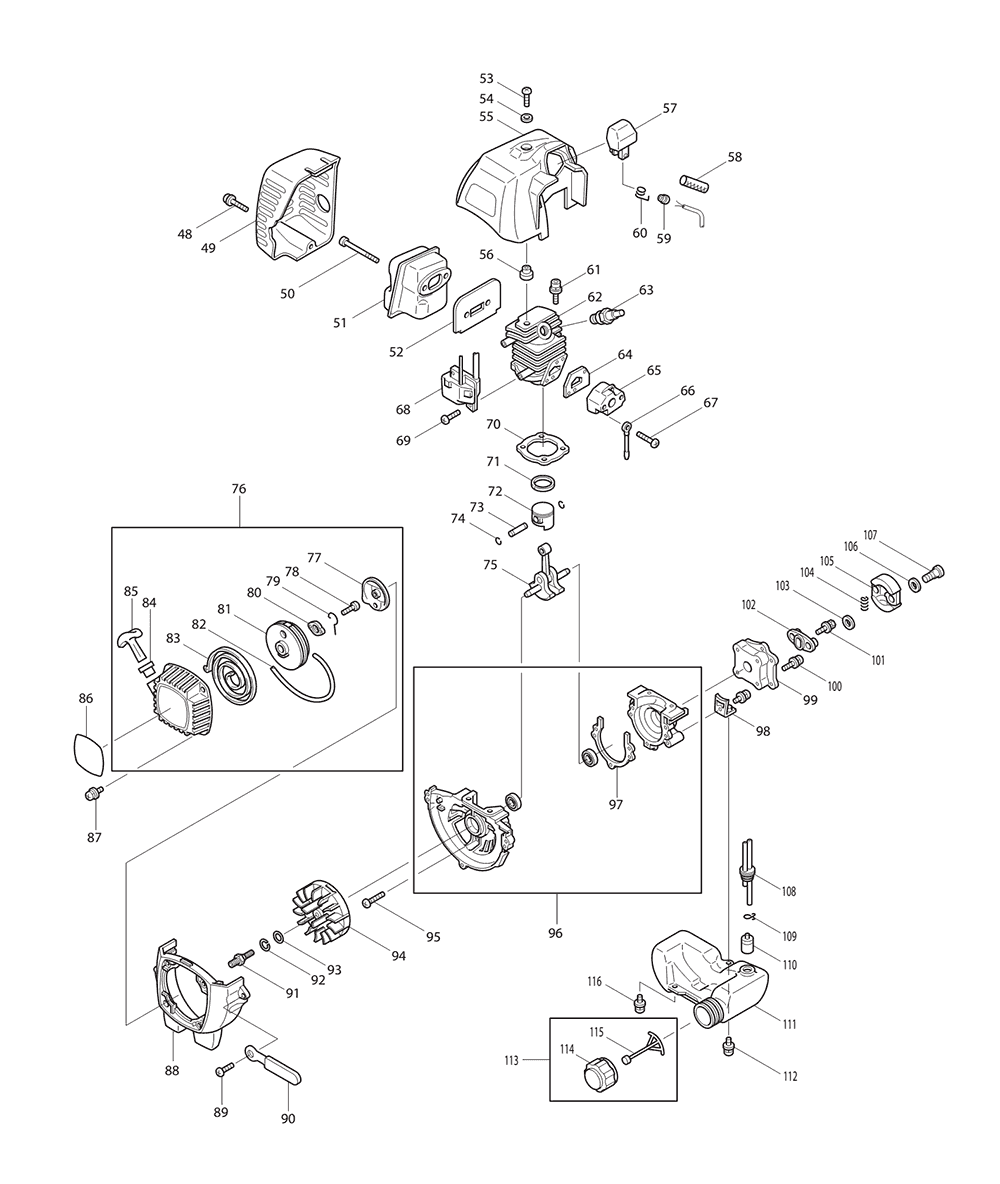

Fig-1

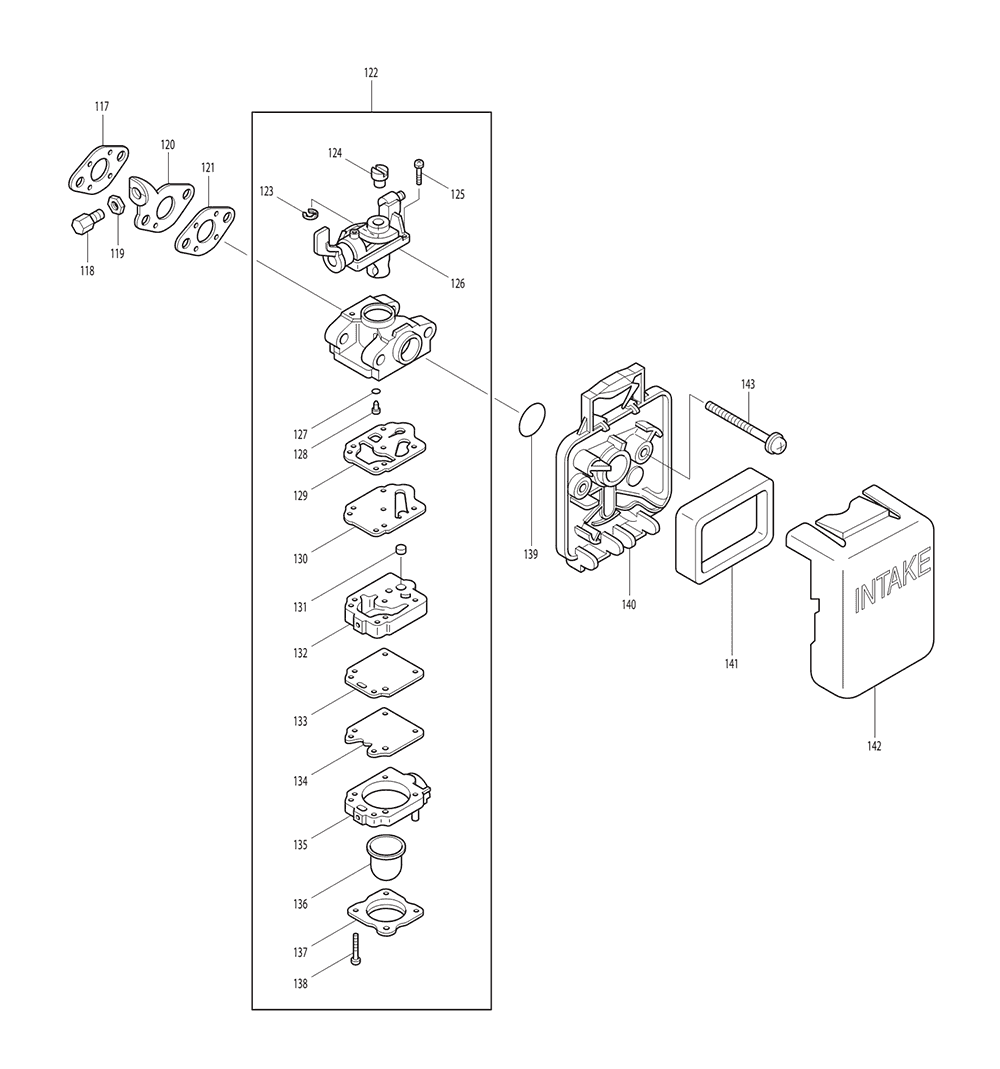

Fig-2

Reference Filter: Filter parts list by name or model number:

Makita HTR7610 Type-2 Replacement Parts List

2

Handle (left), EH760 Part # 136-16200-00 Currently not available

N/A
3

N/a Part # L040050283 Currently not available

N/A
4

Handle Fitting, EH760 Part # 136-10300-00 Currently not available

N/A
5

Cord Binder, HT2162E Part # 003-50021-00 Currently not available

N/A
6

Handle Holder, EH760 Part # 136-10000-00 Currently not available

N/A
7

Nut M5, HT2162E Part # 015-00500-00 Currently not available

N/A
8

Collar, EH760 Part # 073-20900-00 Currently not available

N/A
9

Washer 6X22X2.3, EH760 Part # 207-06023-1K Currently not available

N/A
10

Bolt M6X25 Part # 0054060250 Currently not available

N/A
11

Drum Cpl., EH561 Part # 136-14100-00 Currently not available

N/A
12

Upper Case Part # 0326100002 Currently not available

N/A
13

Flange Nut M5, A-89523 Part # 016-20500-00 Currently not available

N/A
14

Hex U-nut M6, EN5550SH Part # 164-06000-0K Currently not available

N/A
14

U-nut M6, A-89523 Part # 016-40600-00 Currently not available

N/A
15

Plate Part # 0325102004 Currently not available

N/A
16

Plate Part # 0325103004 Currently not available

N/A
17

Grease Nipple M6, A-89523 Part # 005-50001-00 Currently not available

N/A
17

Grease Nipple, EN5550SH Part # 055-00010-0R Currently not available

N/A
18

Bolt M6X16, HT2162E Part # 005-40601-60 Currently not available

N/A
19

Ball Bearing UU6001, HT2162E Part # 035-40600-10 Currently not available

N/A
20

Pinion Gear, EH561 Part # 136-14200-00 Currently not available

N/A
21

Bearing 608ZZ, EN5550SH Part # 353-00608-0K Currently not available

N/A
21

Ball Bearing ZZ608, A-89523 Part # 035-30060-80 Currently not available

N/A
22

Crank Gear, EH561 Part # 136-00300-00 Currently not available

N/A

Makita HTR7610 Type-2 Replacement Parts
