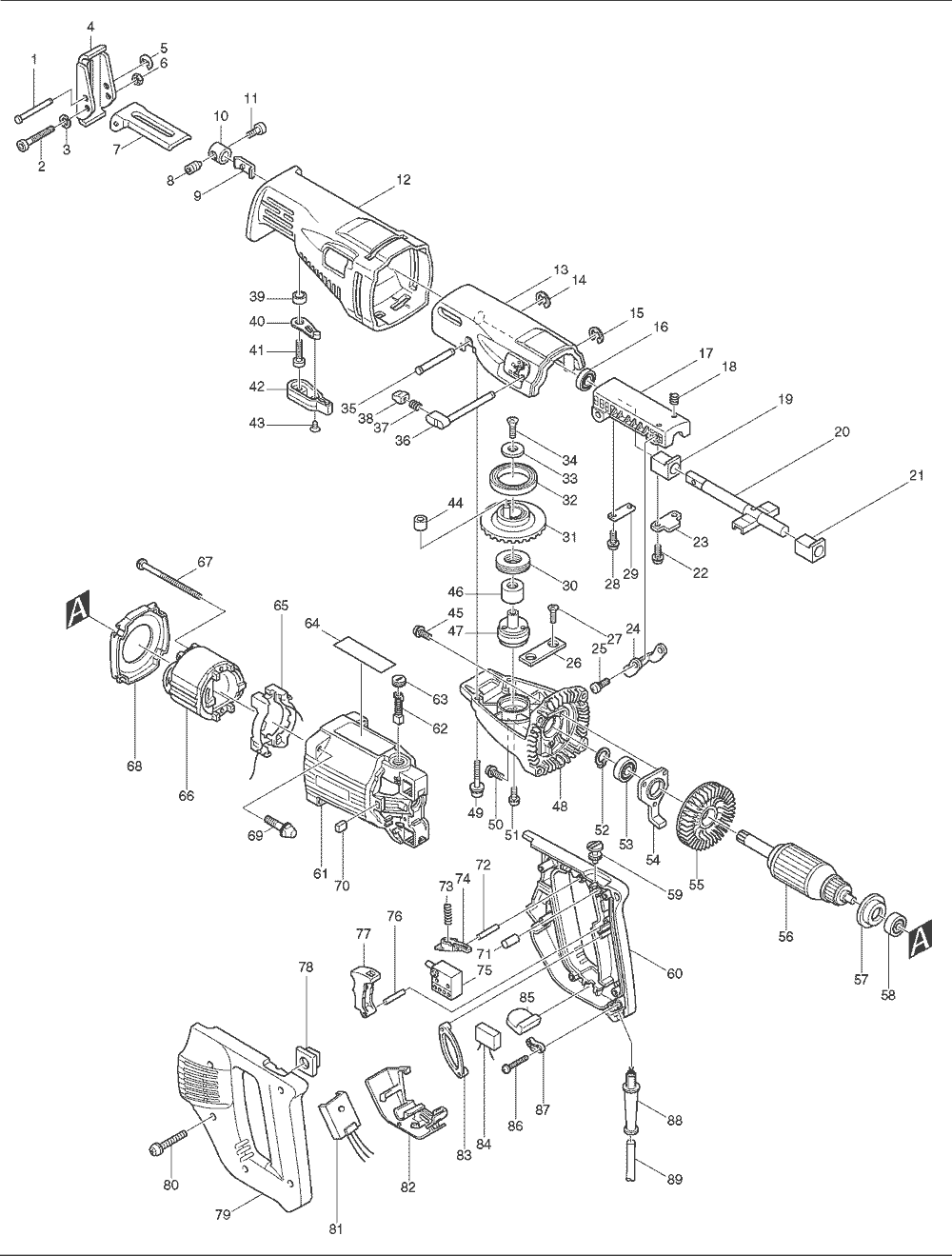

Makita JR3020 Replacement Parts List

1

Pin 4, 4390DW Part # 256654-3 Currently not available

N/A
2

H.s.h. Bolt M5X45, JR3020 Part # 266242-8 Currently not available

N/A
56

Armature Ass'y, JR3020 Part # 516166-1 Currently not available

N/A
3

Spring Washer 5, 9005B Part # 942101-7 Currently not available

N/A
3

Spindle Part # 253427-5

$2.52
Add to Cart
4

Shoe Plate, JR3020 Part # 344095-6 Currently not available

N/A
5

Stop Ring E-3, 4304, SH01 Part # 961017-7

$2.52
Add to Cart
6

Hex. Lock Nut M5-8, 5007FK Part # 252103-8

$3.64
Add to Cart
7

Shoe Supporter, JR3020 Part # 344096-4 Currently not available

N/A
8

Set Screw M8X9,JR3000V Part # 265836-6 Currently not available

N/A
9

Leaf Spring. JR3020 Part # 232165-2 Currently not available

N/A
10

No Longer Available - Blade Clamp, JR3000V (T3) Part # 313067-2 Currently not available

N/A
10

Blade Clamp, JR3020 Part # 313075-3 Currently not available

N/A
11

H.s.h.screw M5X15, JR3000V-T2 Part # 266090-5 Currently not available

N/A
11

H.s. Bolt M5X14, JR3000V,T1 Part # 265986-A Currently not available

N/A
12

Insulation Cover, JR3020 Part # 421451-8 Currently not available

N/A
13

Gear Housing Cover, JR3020 Part # 159614-3 Currently not available

N/A
14

Stop Ring E-6, 2030S Part # 961012-7

$2.52
Add to Cart
15

Stop Ring E-6, 2030S Part # 961012-7

$2.52
Add to Cart
16

Dust Seal 12.7, JR3020 Part # 213171-6 Currently not available

N/A
17

Slider Support, JR3020 Part # 316765-7 Currently not available

N/A
18

Comp. Spring 4, 6920B, JR3020 Part # 231342-3 Currently not available

N/A
19

Plane Bearing 12.7, JR3000V,T2 Part # 214167-0 Currently not available

N/A
19

Plane Bearing 12.7, JR3020,T1 Part # 214161-2 Currently not available

N/A
