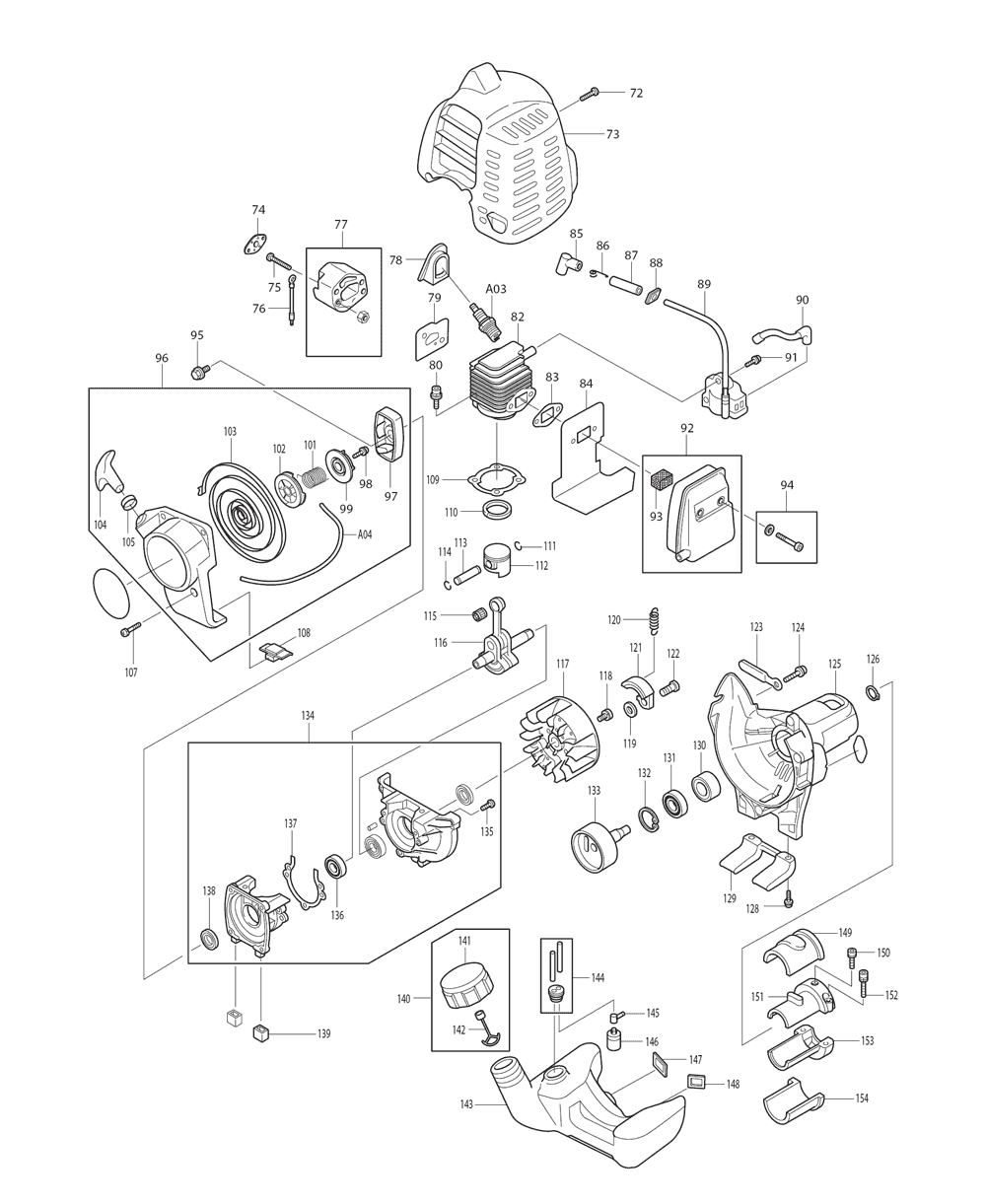

Fig-1

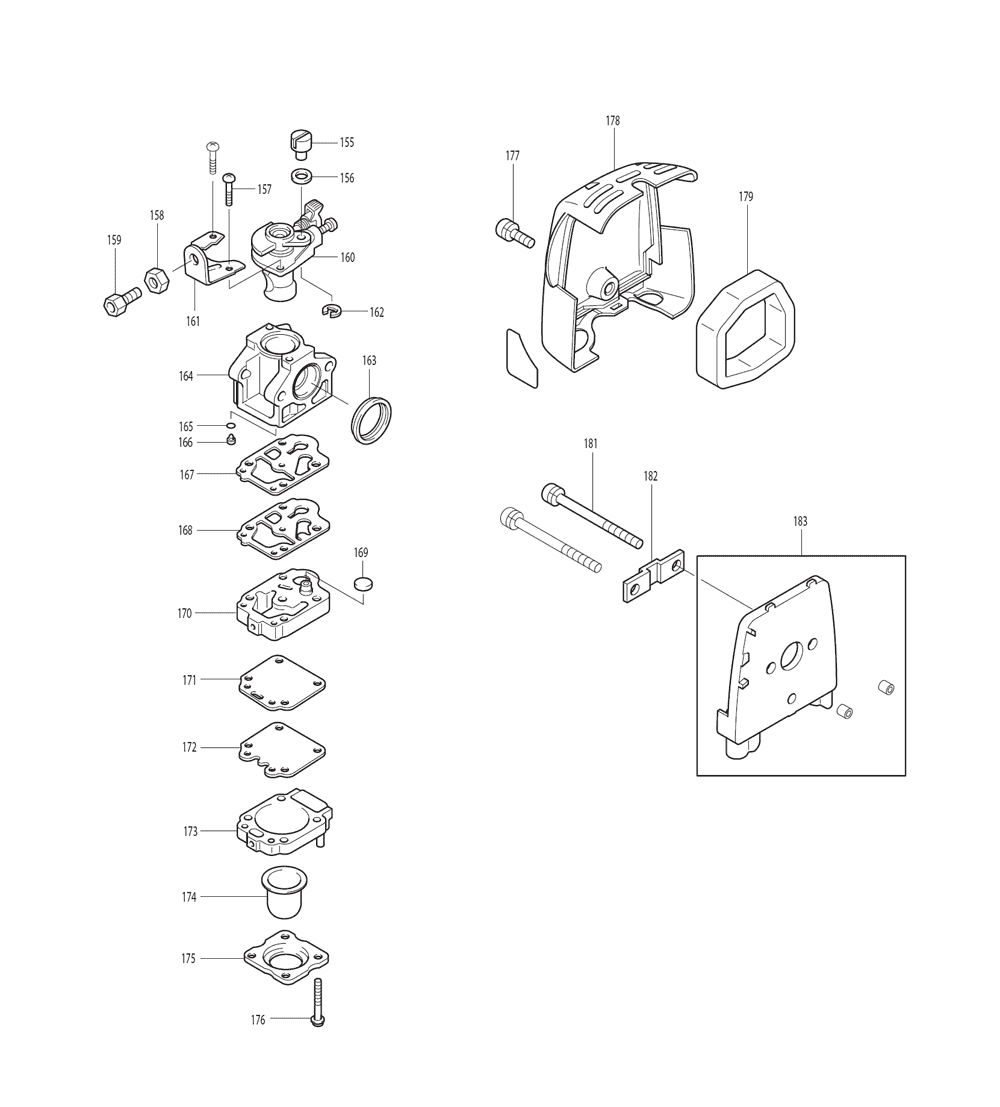

Fig-2

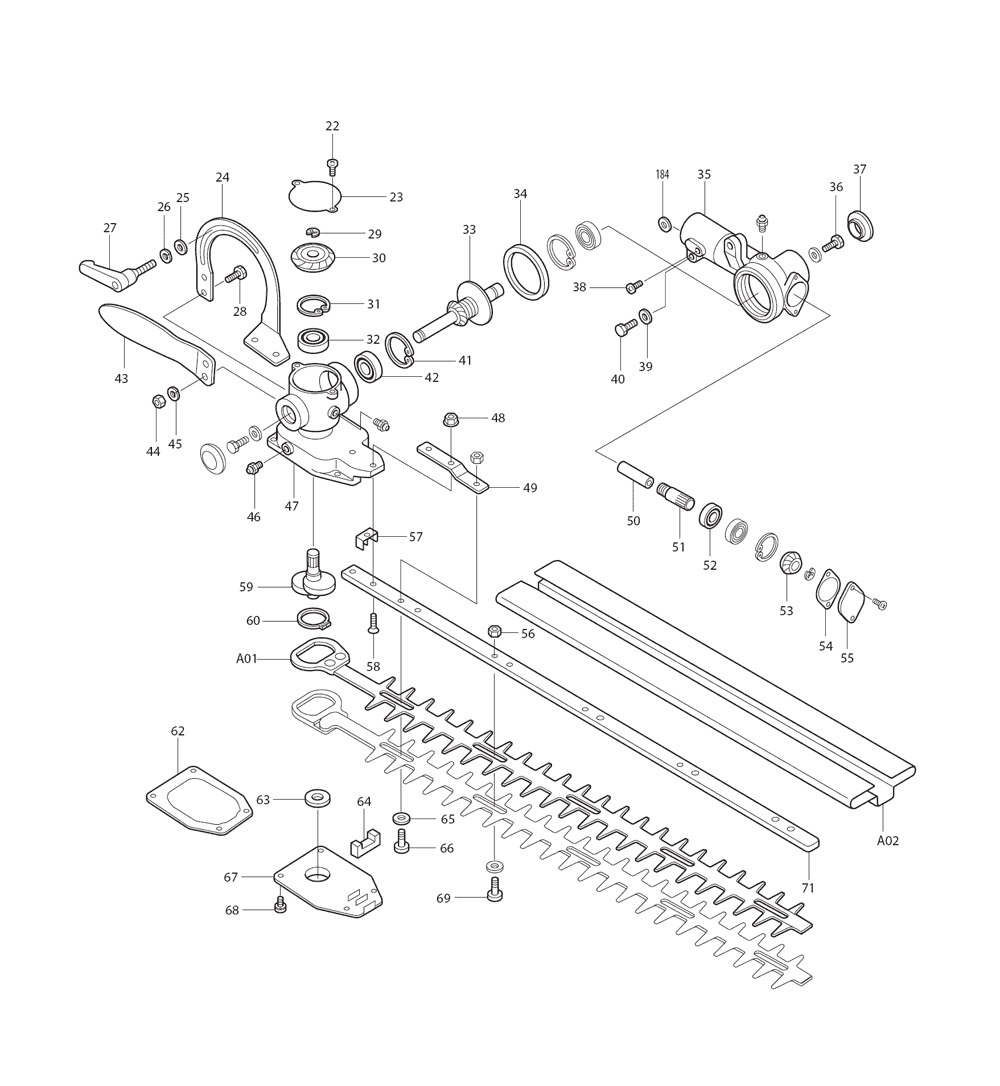

Fig-3

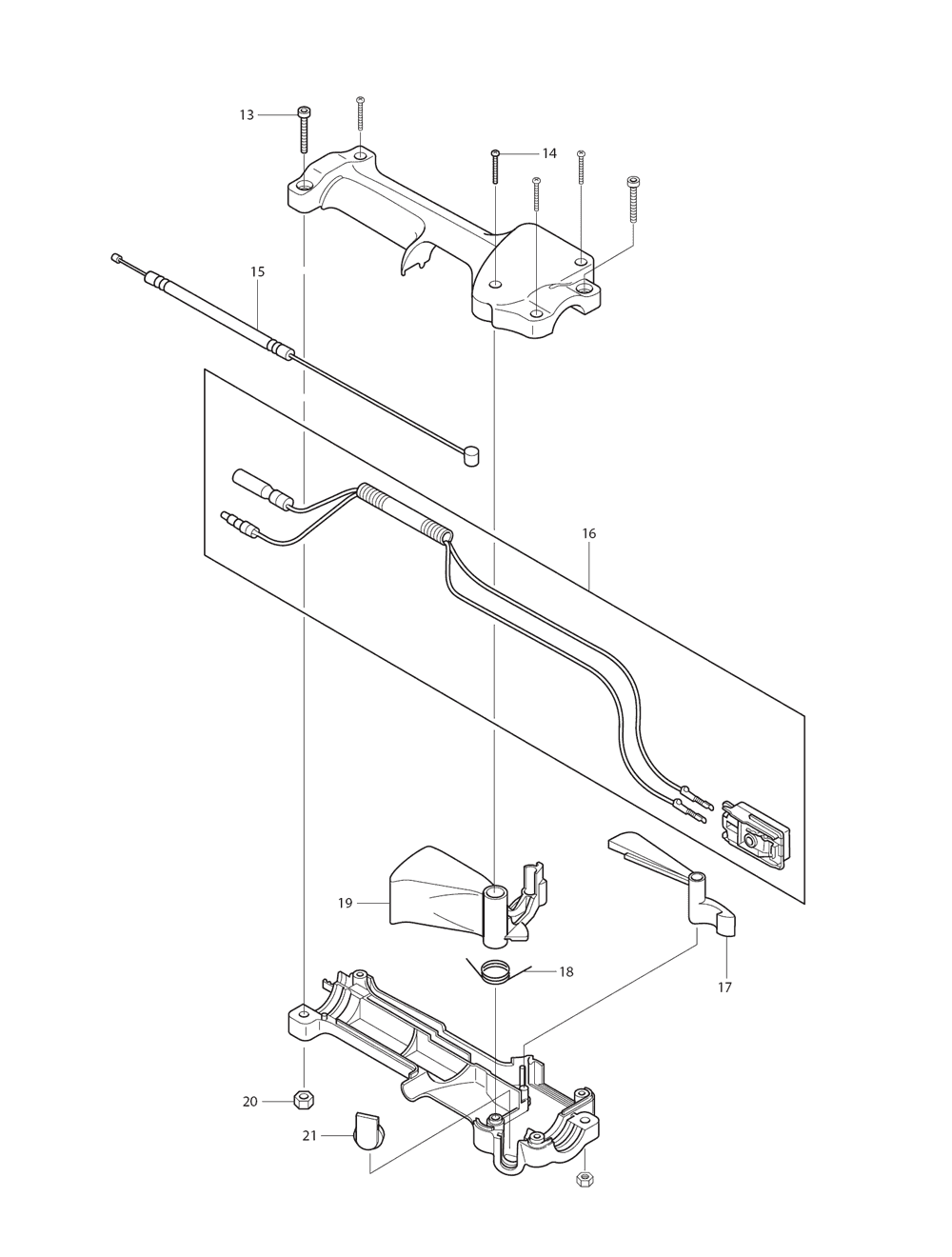

Fig-4

Reference Filter: Filter parts list by name or model number:

Makita PTR2500 Type-3 Replacement Parts List

7

Shaft Pipe Cpl., Dolmar MH-2556 Part # 621-10250-00 Currently not available

N/A
35

Case B, A-89523 Part # 601-35090-00 Currently not available

N/A
39

Washer (old) Part # 0200050000 Currently not available

N/A
65

Blade Sliding Washer, EN5550SH Part # 008-25000-00 Currently not available

N/A
73

Cylinder Cover Part # 5255506600 Currently not available

N/A
76

Wire, BBX7600 Part # 638784-6 Currently not available

N/A
79

Insulator Gasket Part # 5253503800 Currently not available

N/A
83

Muffler Gasket, RST250 Part # 523-35043-02 Currently not available

N/A
84

Muffler Gasket Part # 5253503500 Currently not available

N/A
87

Tube Part # 0851139930 Currently not available

N/A
88

Grommet Part # 5257501100 Currently not available

N/A
89

Coil Part # 5257037020 Currently not available

N/A
91

Screw Ass'y M4X20, BHX2500 Part # 004-37042-00 Currently not available

N/A
91

Socket Head Bolt, BBX7600 Part # 011-90499-70 Currently not available

N/A
92

Exhaust Muffler Item No. 93 Part # 5253057000 Currently not available

N/A
96

Starter Rewind Item No. 97105 Part # 5255049000 Currently not available

N/A
97

Pulley Part # 5255051000 Currently not available

N/A
99

Cam Plate Part # 5255050020 Currently not available

N/A
108

Damper Part # 5256503000 Currently not available

N/A
115

Needle R. Bearing, RBC230 Part # 061-00899-90 Currently not available

N/A
116

Crankshaft COMPLETE,RBC255 Part # 525-20070-00 Currently not available

N/A
117

Hex Head Bolt M6X14 Part # 266746-0 Currently not available

N/A
119

Washer, RBC255 Part # 625-25009-00 Currently not available

N/A
120

Spring, EM4251 Part # 592-85001-00 Currently not available

N/A
