Buy Makita RBC2510 Type-3 Electric Trimmer Parts

Other tools in Makita Electric Trimmer Parts category

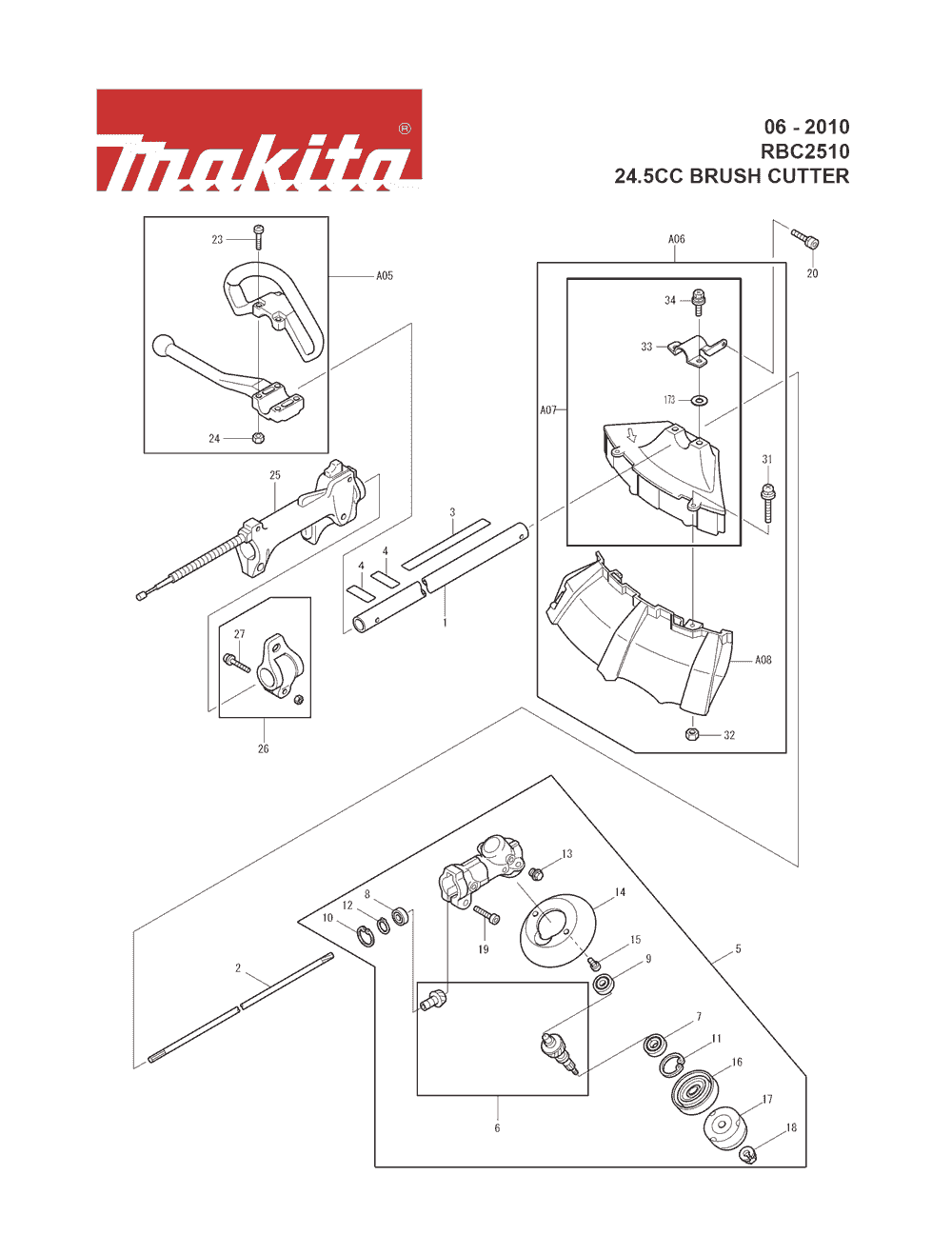

Fig-0

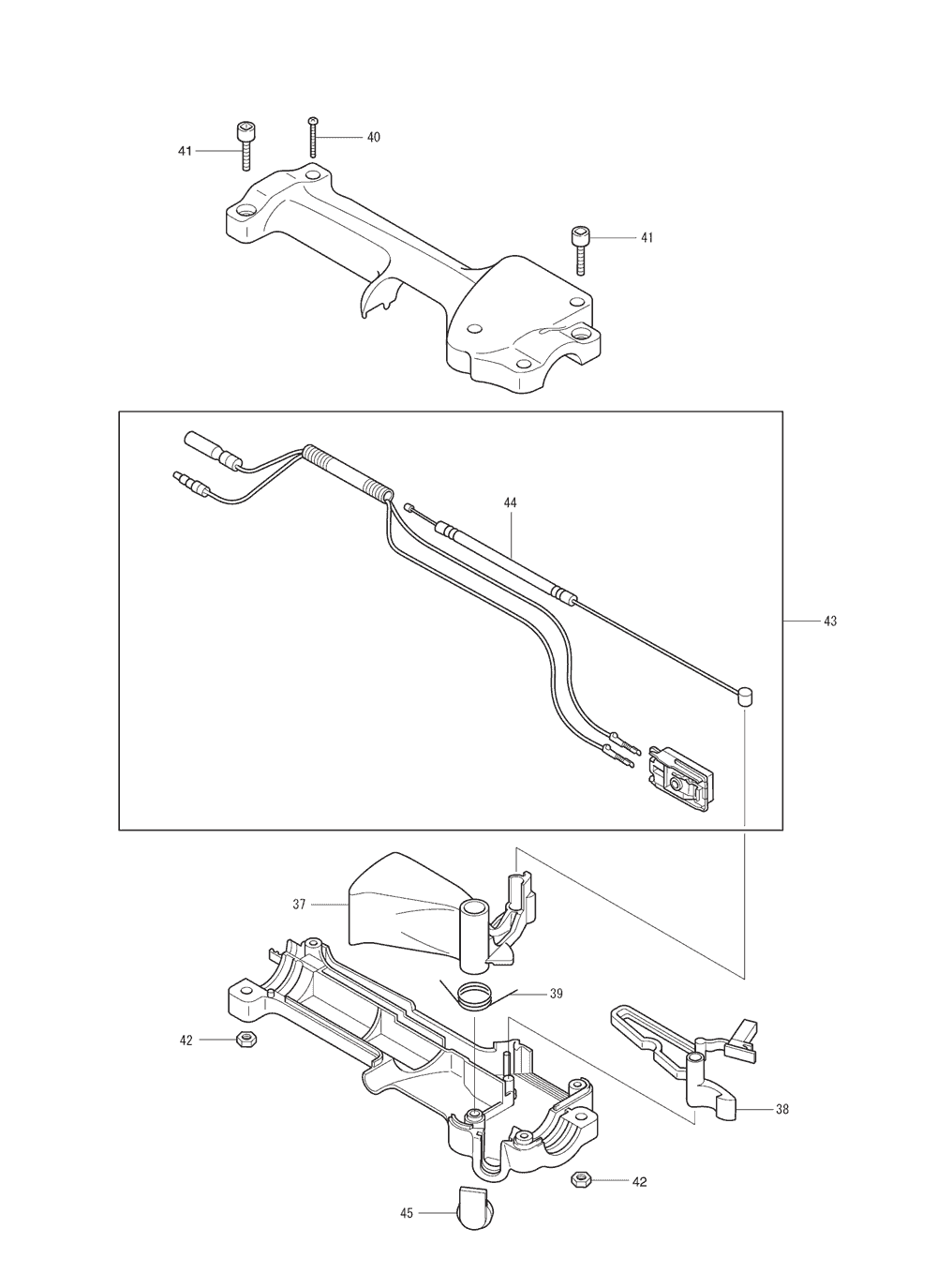

Fig-1

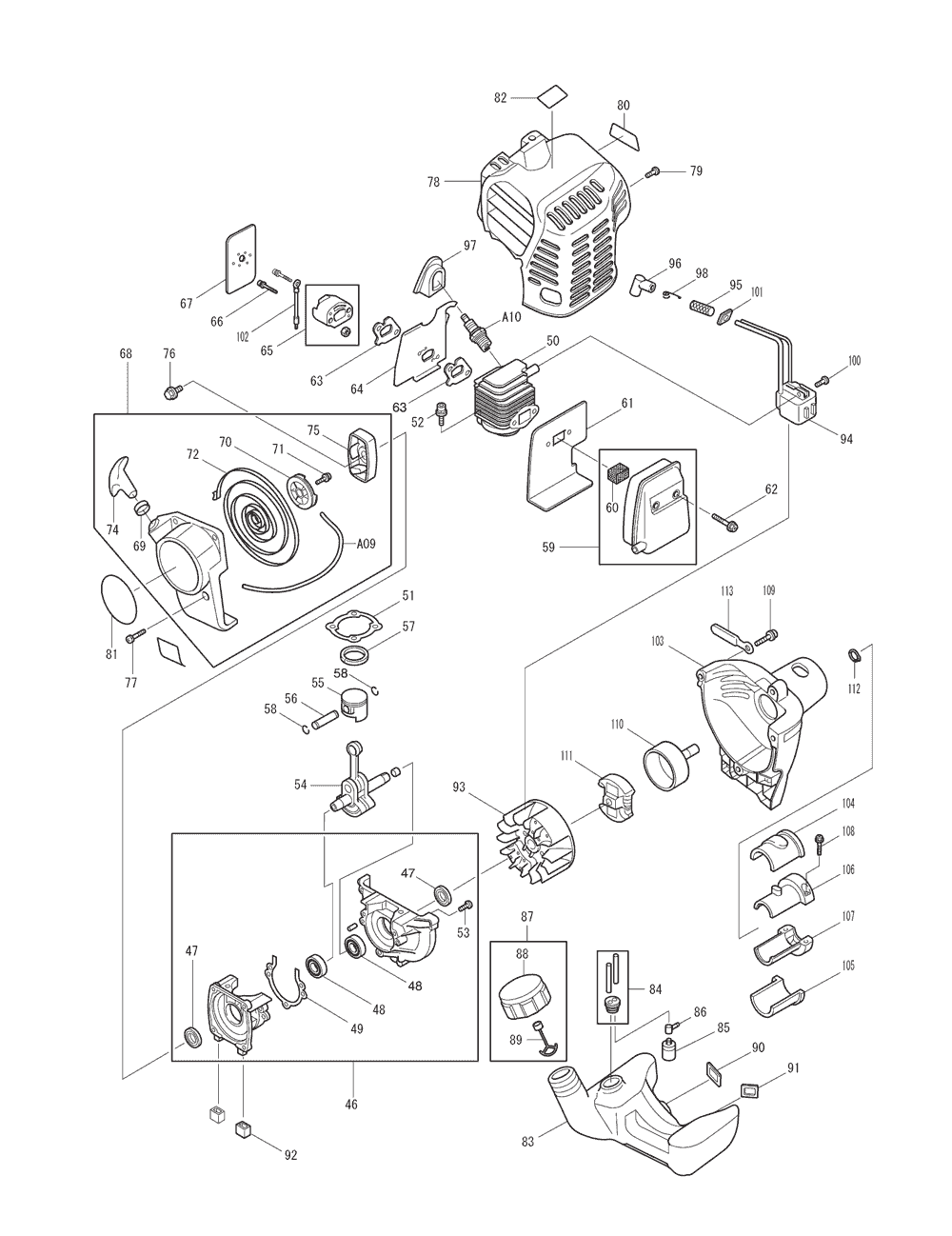

Fig-2

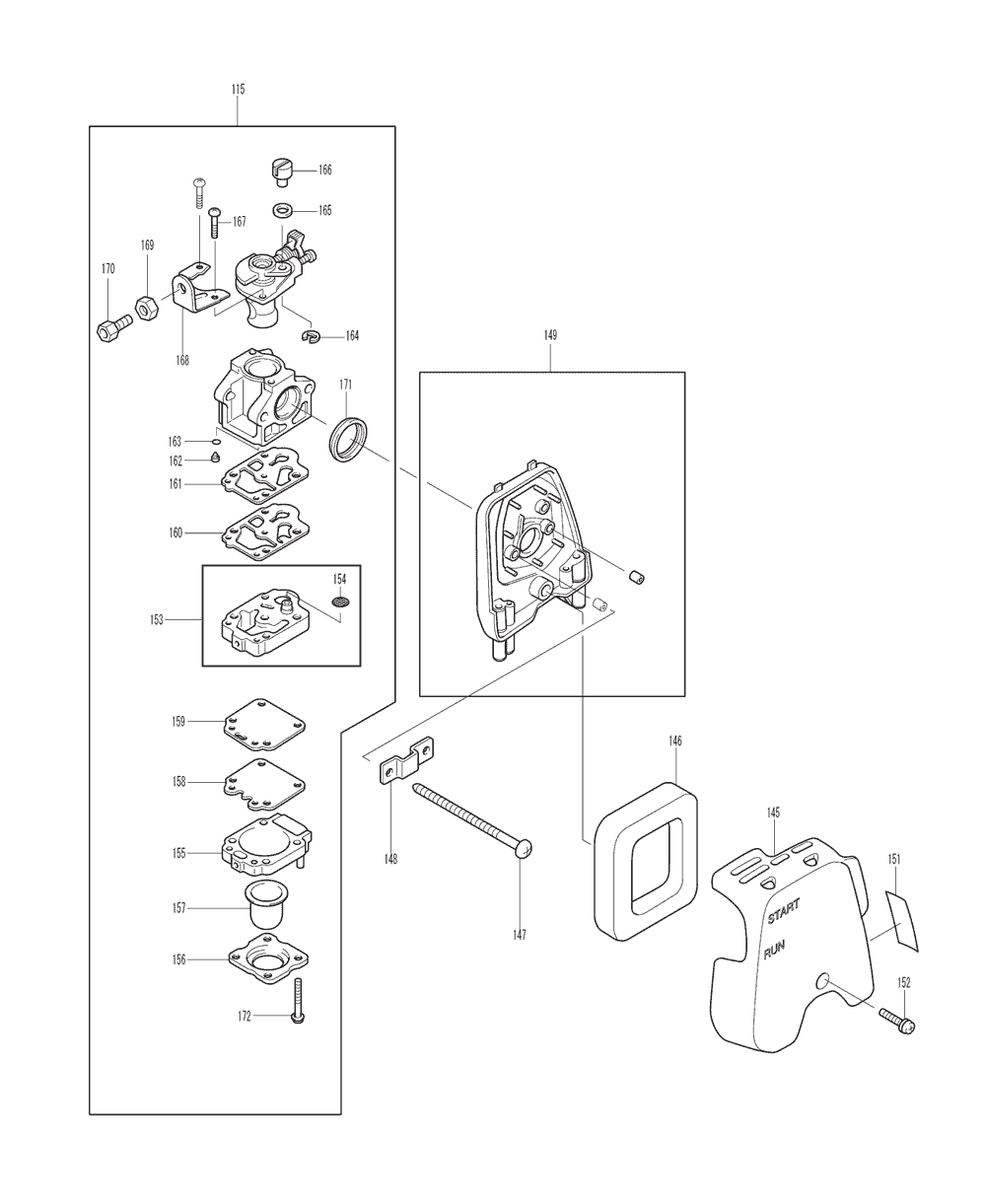

Fig-3

Reference Filter: Filter parts list by name or model number:

Makita RBC2510 Type-3 Replacement Parts List

4

Caution Label, EM2650LH Part # 808723-2 Currently not available

N/A
5

Gear Case Assembly Item No. 6-19 Part # 126262-3 Currently not available

N/A
6

Cutter Shaft Set Part # 196424-7 Currently not available

N/A
7

Ball Bearing 6000DDU, BO5010 Part # 210020-8

$14.64
Add to Cart
7

Ball Bearing 6000LLU, HM1100C Part # 210054-1 Currently not available

N/A
9

Ball Bearing 626, VR250DW Part # 210018-5

$11.16
Add to Cart
9

Ball Bearing 626, 9901 Part # 211019-6 Currently not available

N/A
13

Hex.bolt M6X8 Part # 266863-6 Currently not available

N/A
15

P.h. Screw M5X12, LS1040 Part # 911213-7

$2.52
Add to Cart
16

Receive Washer, EM4251 Part # 332042-9 Currently not available

N/A
17

Clamp Washer Cpl., EM4251 Part # 168797-8 Currently not available

N/A
20

Socket Head Bolt M5X14 (w,sw), BBX7600 Part # 011-90594-90 Currently not available

N/A
20

H.s.h. Bolt M5X14 with Wr, EM2650LH Part # 922218-2

$2.52
Add to Cart
26

Hanger Assy, EM4251 Part # 625-40190-00 Currently not available

N/A
31

Screw Ass'y, RBC2510 Part # 014-00593-80 Currently not available

N/A
34

Bolt, Crossrecess M6X23, RBC2510 Part # 010-00697-70 Currently not available

N/A
46

Crank Case Ass'y, RBC256 Part # 523-10110-01 Currently not available

N/A
54

Crankshaft Complete Part # 140990-6 Currently not available

N/A
80

"trade Mark Label ""makita"", RBC2510" Part # 627-95057-00 Currently not available

N/A
81

Model Label, RBC2510 Part # 621-95388-00 Currently not available

N/A
100

Screw Ass'y M4X20, BHX2500 Part # 004-37042-00 Currently not available

N/A
100

Socket Head Bolt, BBX7600 Part # 011-90499-70 Currently not available

N/A
110

Clutch Drum Cpl., RBC2510 Part # 168675-2 Currently not available

N/A
112

Outer Snap Ring, RBC260 Part # 003-15120-00 Currently not available

N/A

Makita RBC2510 Type-3 Replacement Parts
