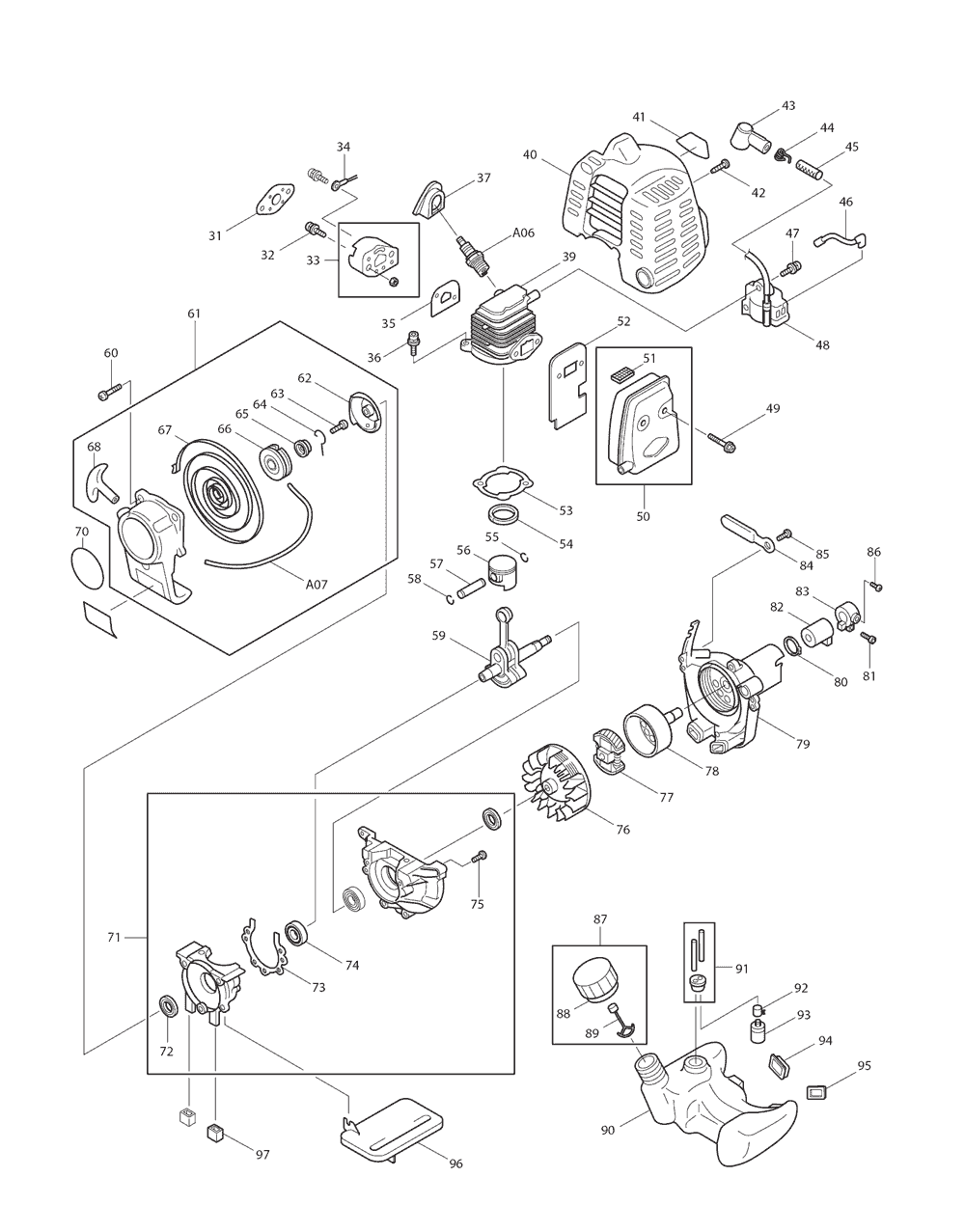

Fig-1

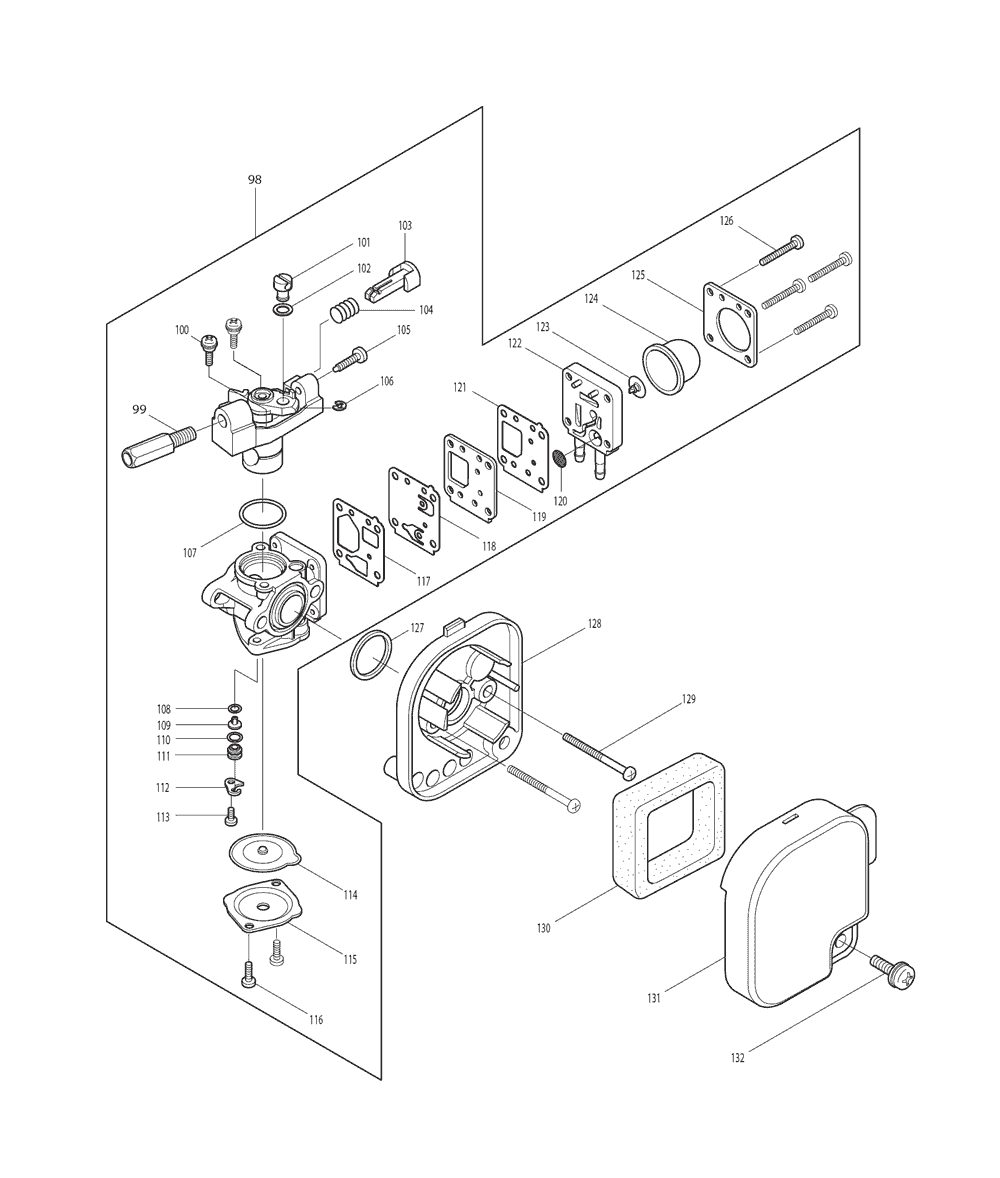

Fig-2

Reference Filter: Filter parts list by name or model number:

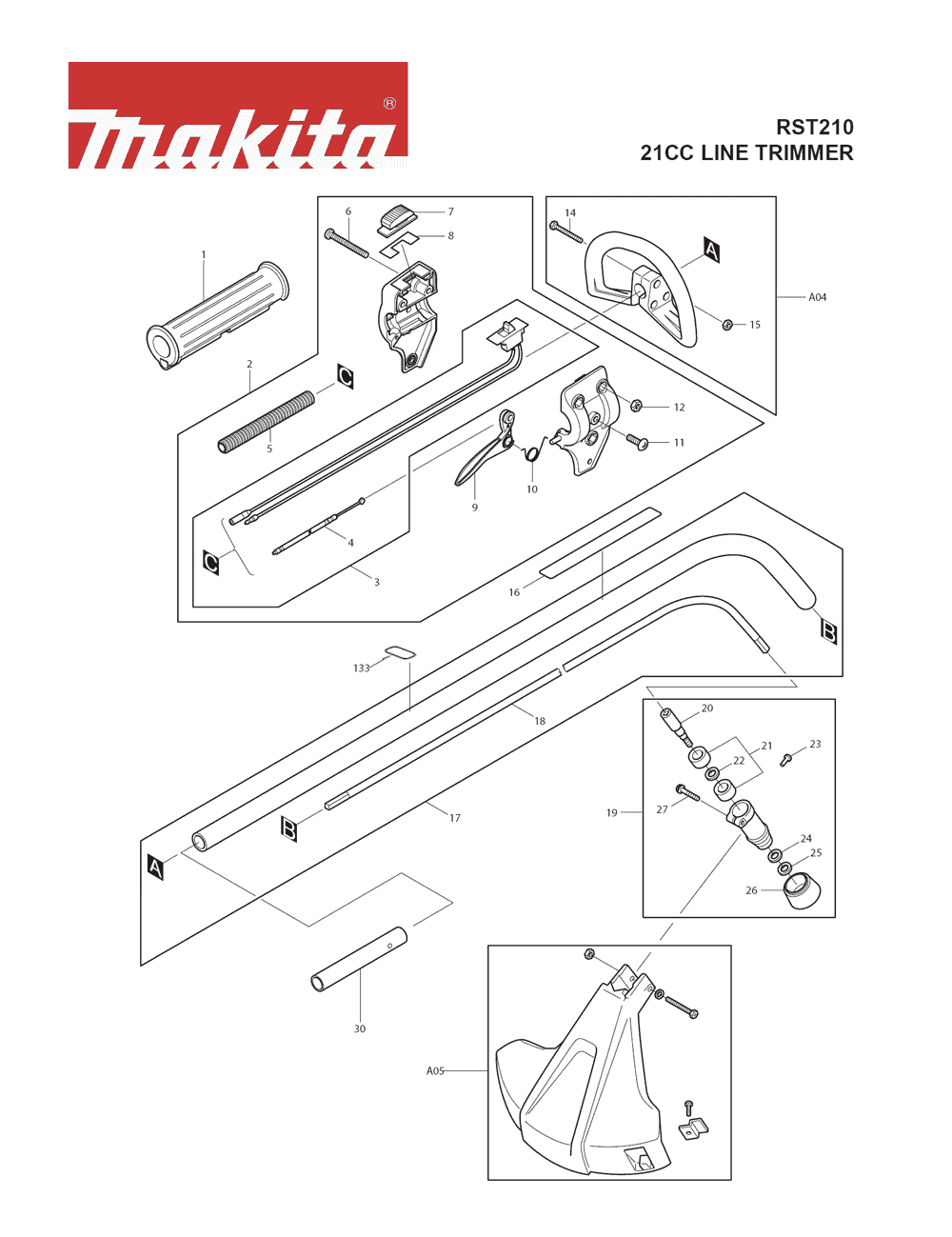

Makita RST210 Type-2 Replacement Parts List

1

Grip Part # 273673-4 Currently not available

N/A
2

Control Lever Assy Item No. 3, 512 Part # 126043-5 Currently not available

N/A
3

Wire Assembly Item No. 4 Part # 126051-6 Currently not available

N/A
4

Control Cable Part # 168688-3 Currently not available

N/A
5

Tube Part # 412104-0 Currently not available

N/A
6

Pan Head Screw M5X30 W/ Sw Part # 266708-8 Currently not available

N/A
7

Switch Lever Part # 452993-1 Currently not available

N/A
8

Switch Plate Part # 346512-2 Currently not available

N/A
9

Lever, Dolmar, RST200 Part # 452994-9 Currently not available

N/A
10

Spring Part # 233592-6 Currently not available

N/A
11

Tapping Screw M5X12 Part # 266722-4 Currently not available

N/A
12

Hex. Nut M5 Part # 264035-7 Currently not available

N/A
14

Pan Head Screw M5X30 W/ Sw Part # 266708-8 Currently not available

N/A
15

Nut M5 Part # 0021805003 Currently not available

N/A
16

Caution Label Part # 6169512800 Currently not available

N/A
17

Flexible Pipe Unit Part # 6161027000 Currently not available

N/A
17

Pipe Assembly Item No. 18 Part # 6161026000 Currently not available

N/A
18

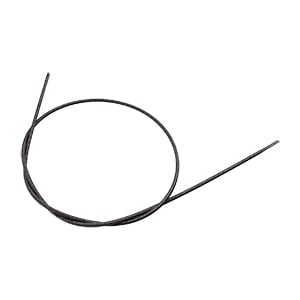

Flexible Shaft Part # 6161027020 Currently not available

N/A
19

Gear Case Assy Item No. 2027 Part # 6163005000 Currently not available

N/A
20

Cutter Shaft, RST250 Part # 616-30030-20 Currently not available

N/A
21

Ball Bearing 608LLU, RST250 Part # 616-30020-31 Currently not available

N/A
22

Spacer, RST250 Part # 616-30030-41 Currently not available

N/A
23

Cross Recess H.bolt 5X10,RST250 Part # 001-70051-00 Currently not available

N/A
24

Washer, RST250 . Part # 616-30020-51 Currently not available

N/A
