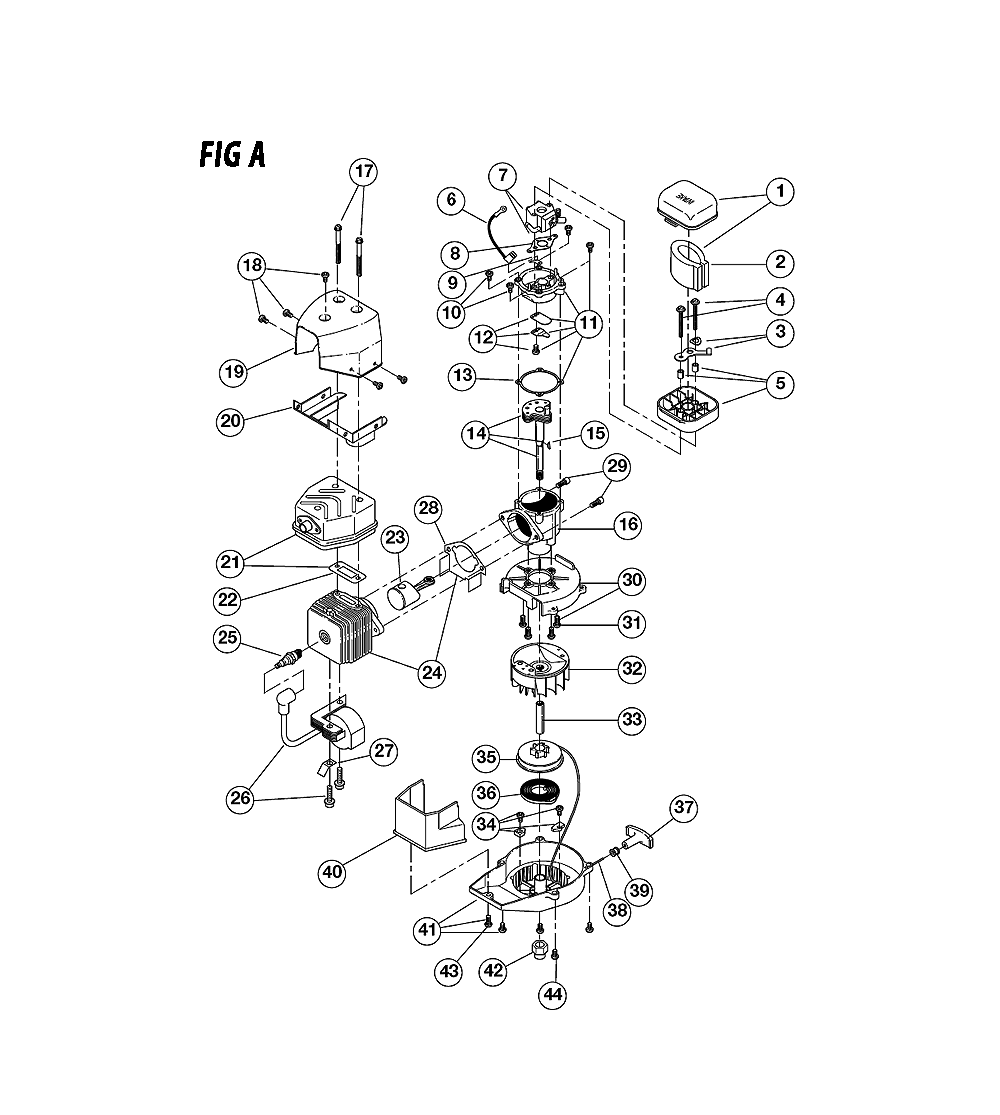

Ryobi 310BVR (611000001) Replacement Parts List

A-1

Carburetor/air Filter Cover Part # 683378 Currently not available

N/A
A-2

Air Cleaner Filter Part # 612111 Currently not available

N/A
A-3

Choke Lever Assembly Part # 683380 Currently not available

N/A
A-4

Carburetor Mounting Screw Assembly Part # 180351 Currently not available

N/A
A-5

Air Cleaner Base Part # 181512 Currently not available

N/A
A-6

Wire Lead Part # 180360 Currently not available

N/A
A-7

Carburetor Assembly W/limiter Caps Part # 181621 Currently not available

N/A
A-8

Carburetor Gasket (10 Pack) Part # 610675 Currently not available

N/A
A-9

Ground Tab Part # 611063 Currently not available

N/A
A-10

Reed Plate Mounting Screw Part # 180221 Currently not available

N/A
A-11

Complete Reed Plate Assembly Part # 684757 Currently not available

N/A
A-12

Reed Assembly Part # 684451 Currently not available

N/A
A-13

Rear Cover Gasket (10 Pack) Part # 612115 Currently not available

N/A
A-14

Power Shaft Assembly Part # 181510 Currently not available

N/A
A-15

Flywheel Key (10 Pack) Part # 610676 Currently not available

N/A
A-16

Crankcase Service Assembly (includes Items 14) Part # 181511 Currently not available

N/A
A-17

Muffler Mounting Bolt Assembly Part # 147575 Currently not available

N/A
A-18

Mounting Screw Assembly Part # 181517 Currently not available

N/A
A-19

Upper Heat Shield Part # 181522 Currently not available

N/A
A-20

Lower Heat Shield Part # 181518 Currently not available

N/A
A-21

Muffler Assembly (includes Item 17) Part # 181521 Currently not available

N/A
A-22

Exhaust Gasket Part # 180980 Currently not available

N/A
A-23

Piston and Rod Assembly Part # 684449 Currently not available

N/A
A-24

Cylinder Assembly (includes 52) Part # 181622 Currently not available

N/A
