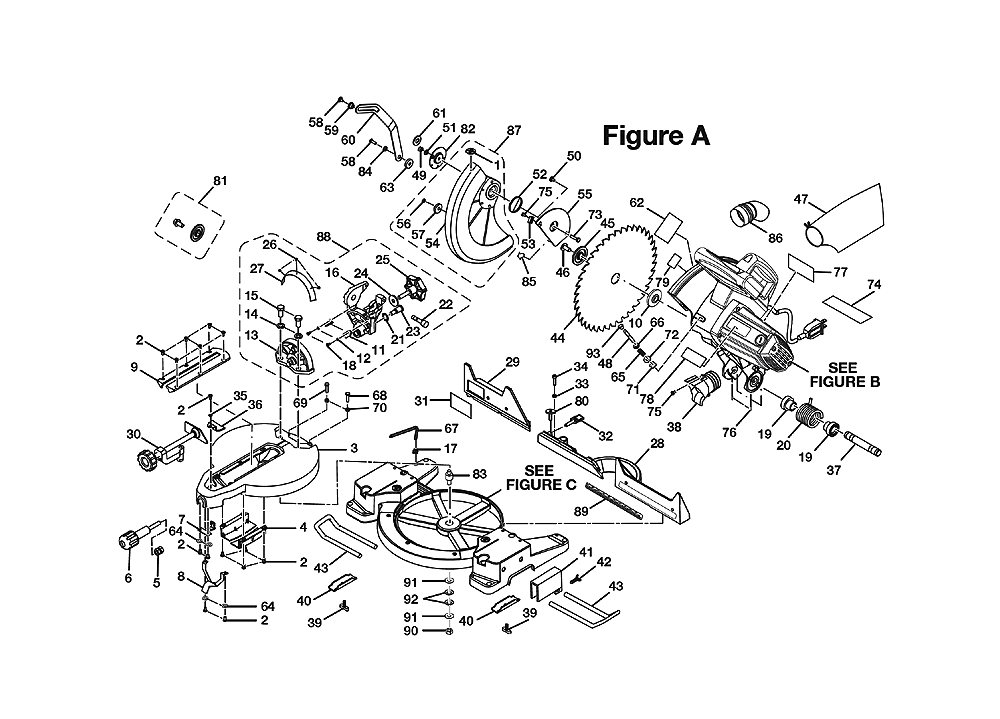

Fig-0

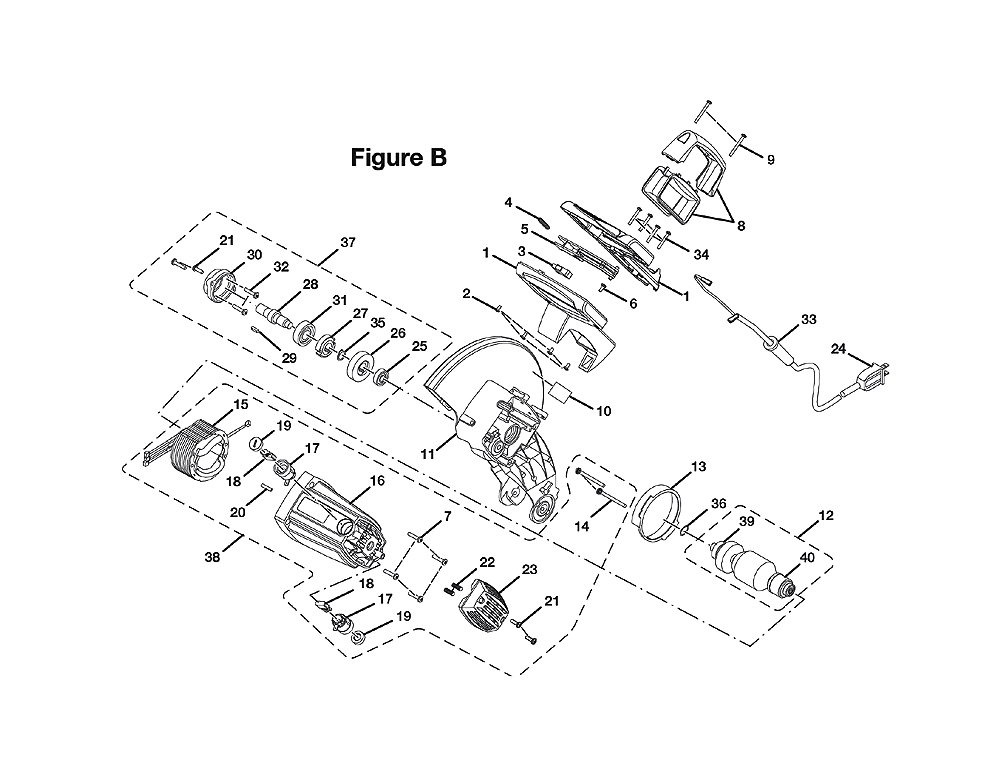

Fig-1

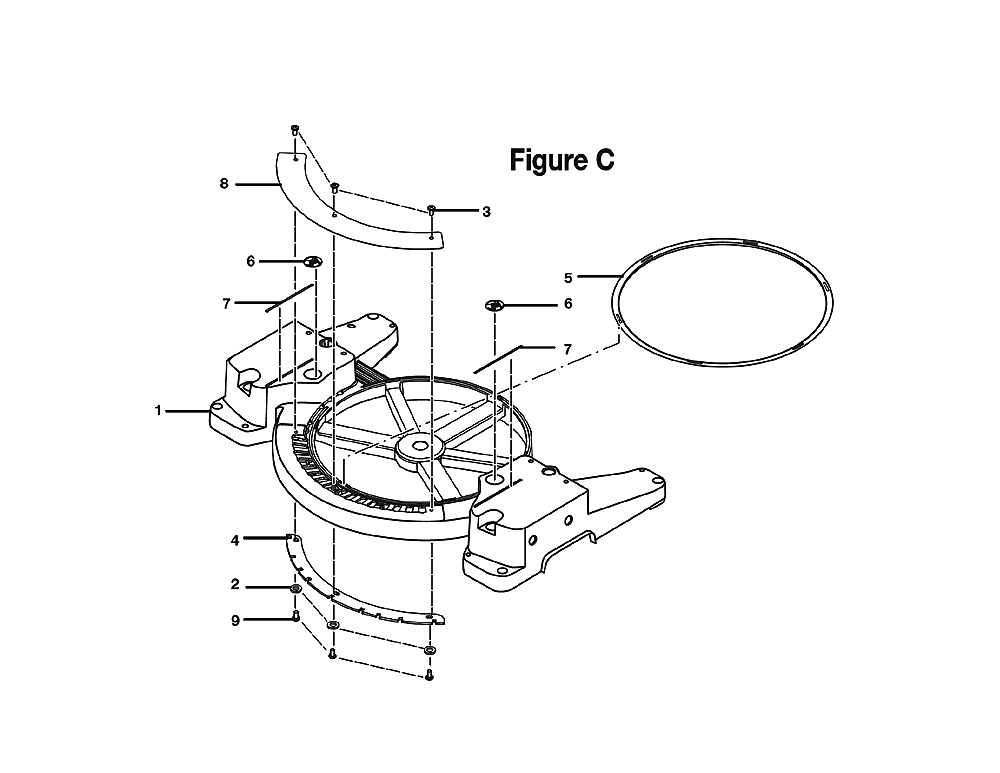

Fig-2

Fig-3

Fig-4

Reference Filter: Filter parts list by name or model number:

Ryobi TS1553DXL Replacement Parts List

A-1

Warning Label (no Hands) Part # 089100302007 Currently not available

N/A
A-2

Screw,phillips Head M5 X10mm Part # A10003050105 Currently not available

N/A
A-3

Table Part # 089100302013 Currently not available

N/A
A-4

Table Hold Down Part # 089100302014 Currently not available

N/A
A-5

Clamp Nut Part # 558111109 Currently not available

N/A
A-6

Lock Handle Part # 089100302016 Currently not available

N/A
A-7

Fixed Plate Part # 565110000 Currently not available

N/A
A-8

Detent Plate Part # 089100302018 Currently not available

N/A
A-9

Replaces 089100302140 - Throat Plate Part # 089100302019 Currently not available

N/A
A-10

Flange,inner (right) Part # 558411200 Currently not available

N/A
A-11

Bevel Pointer Part # 089100302031 Currently not available

N/A
A-12

Flat Washer (M4) Part # A35030410018 Currently not available

N/A
A-13

Pivot Support Part # 089100302033 Currently not available

N/A
A-14

Spring Washer (M12) Part # A36031221309 Currently not available

N/A
A-15

Bolt (M12 X 35 Mm Socket Cap) Part # 555331000 Currently not available

N/A
A-16

Support Bracket Part # 089100302036 Currently not available

N/A
A-17

Grommet Part # 580120000 Currently not available

N/A
A-18

Screw (M4 X 8 Mm Pan Hd) Part # A10003040085 Currently not available

N/A
A-19

Spring Spacer Part # 538327000 Currently not available

N/A
A-20

Tension Spring Part # 089100302040 Currently not available

N/A
A-21

Washer Part # 589011308 Currently not available

N/A
A-22

Arm Lock Assembly Part # 089100302709 Currently not available

N/A
A-23

Pivot Shaft Part # 589010200 Currently not available

N/A
A-24

Flat Washer (M10) Part # A35031030300 Currently not available

N/A
