Tanaka ECS-655 Replacement Parts

Model: ECS-655

Brand: Tanaka

Download Schematics

Buy Tanaka ECS-655 Saws Parts

Other tools in Tanaka Saws Parts category

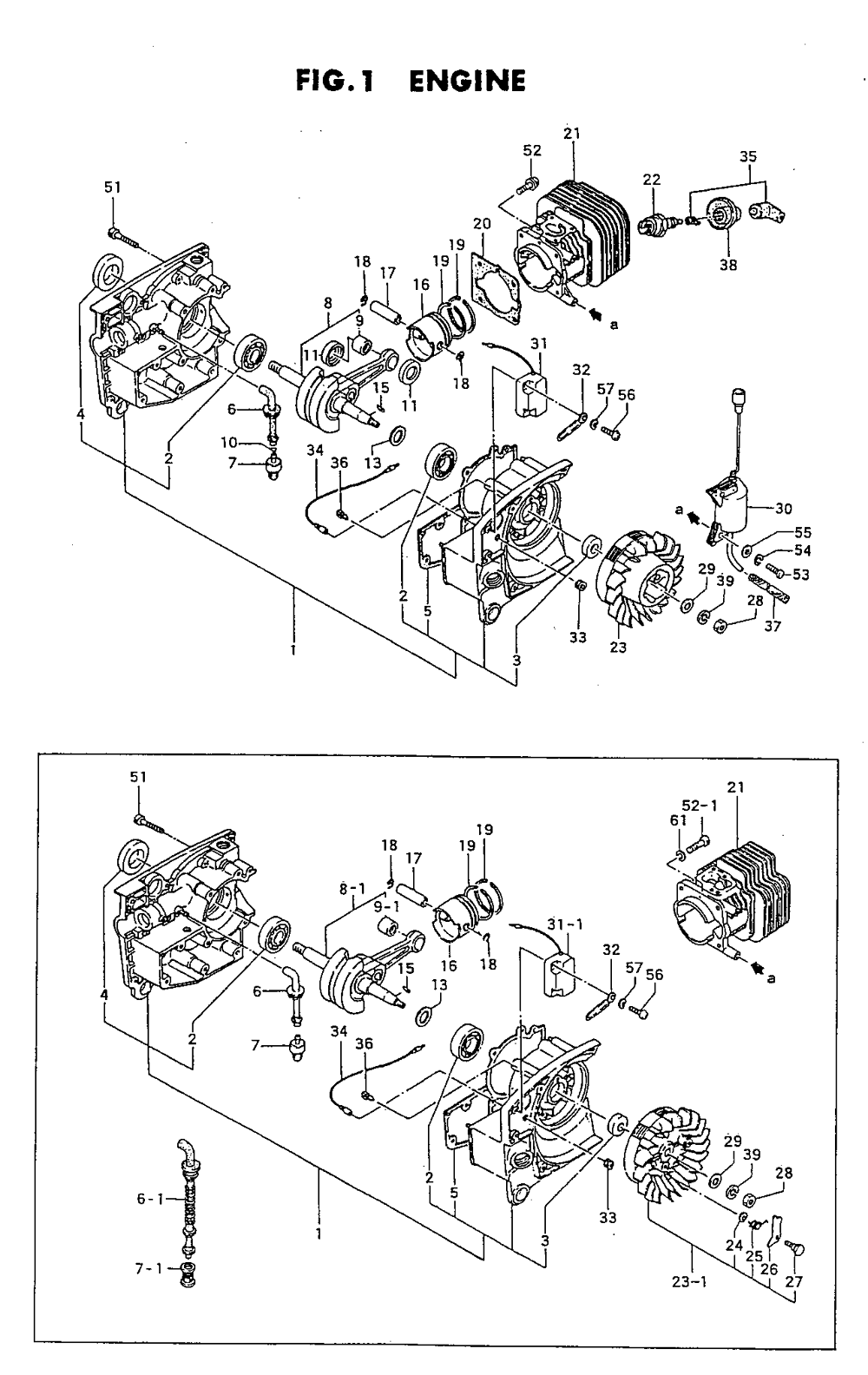

Fig-0

Fig-0

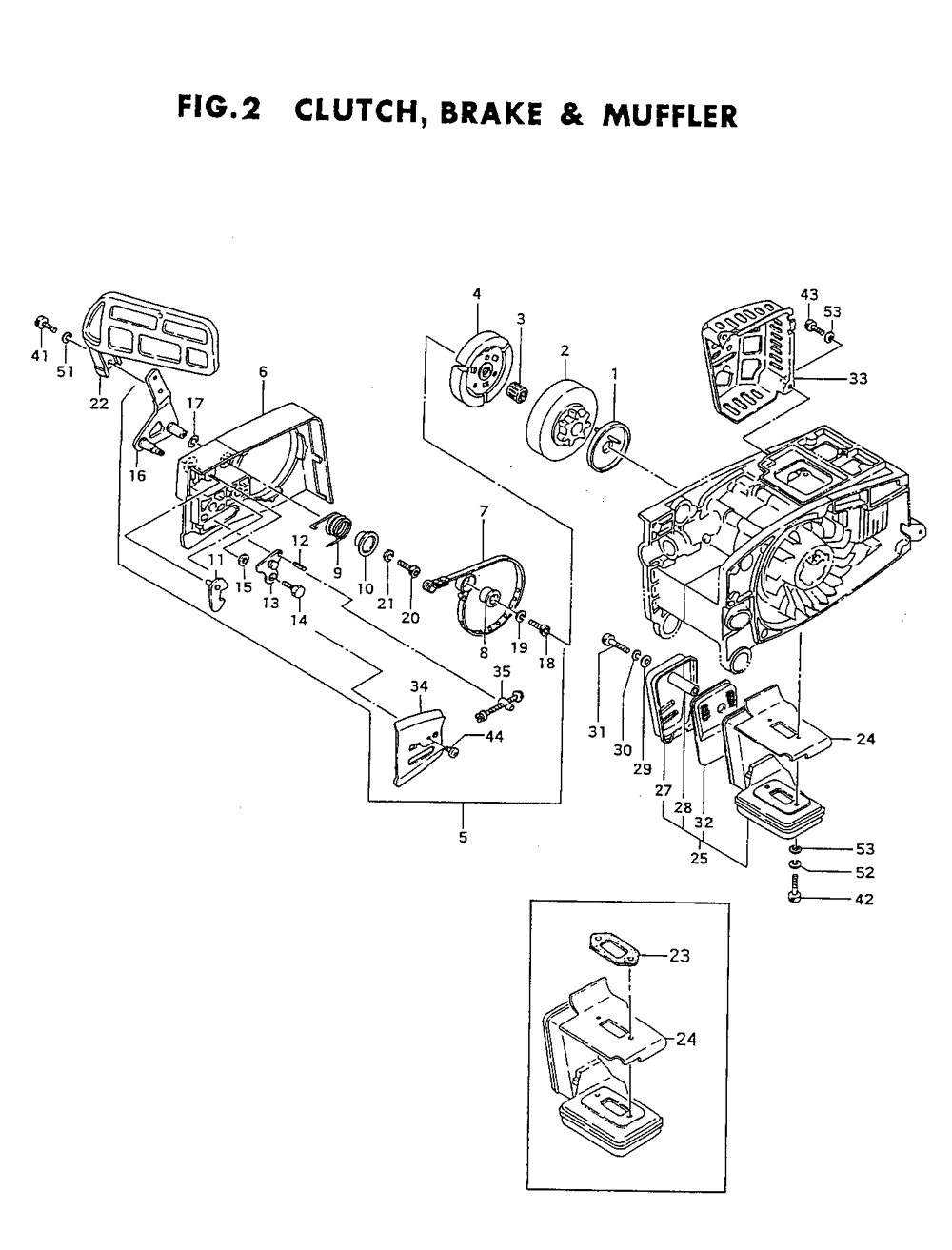

Fig-1

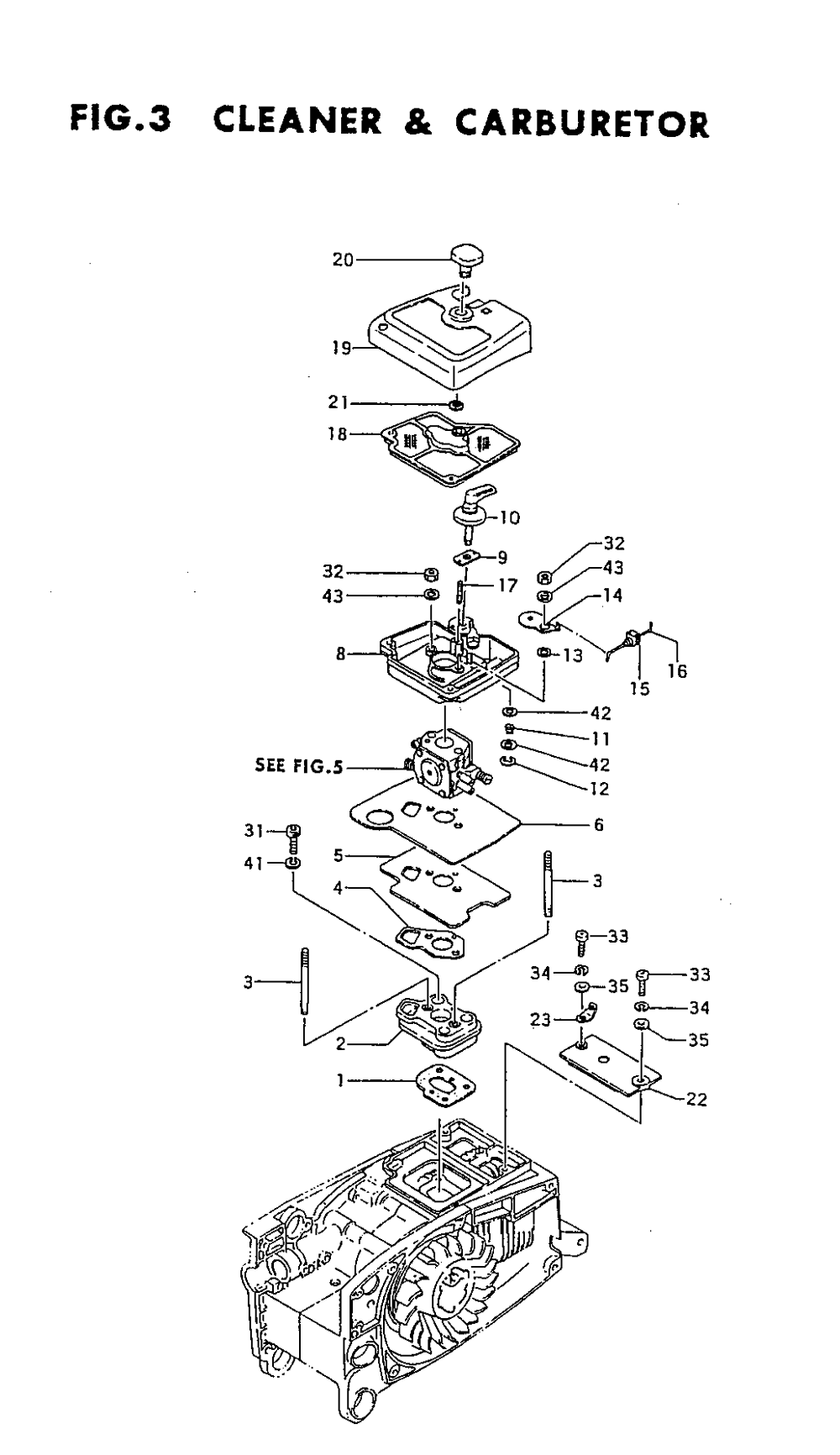

Fig-2

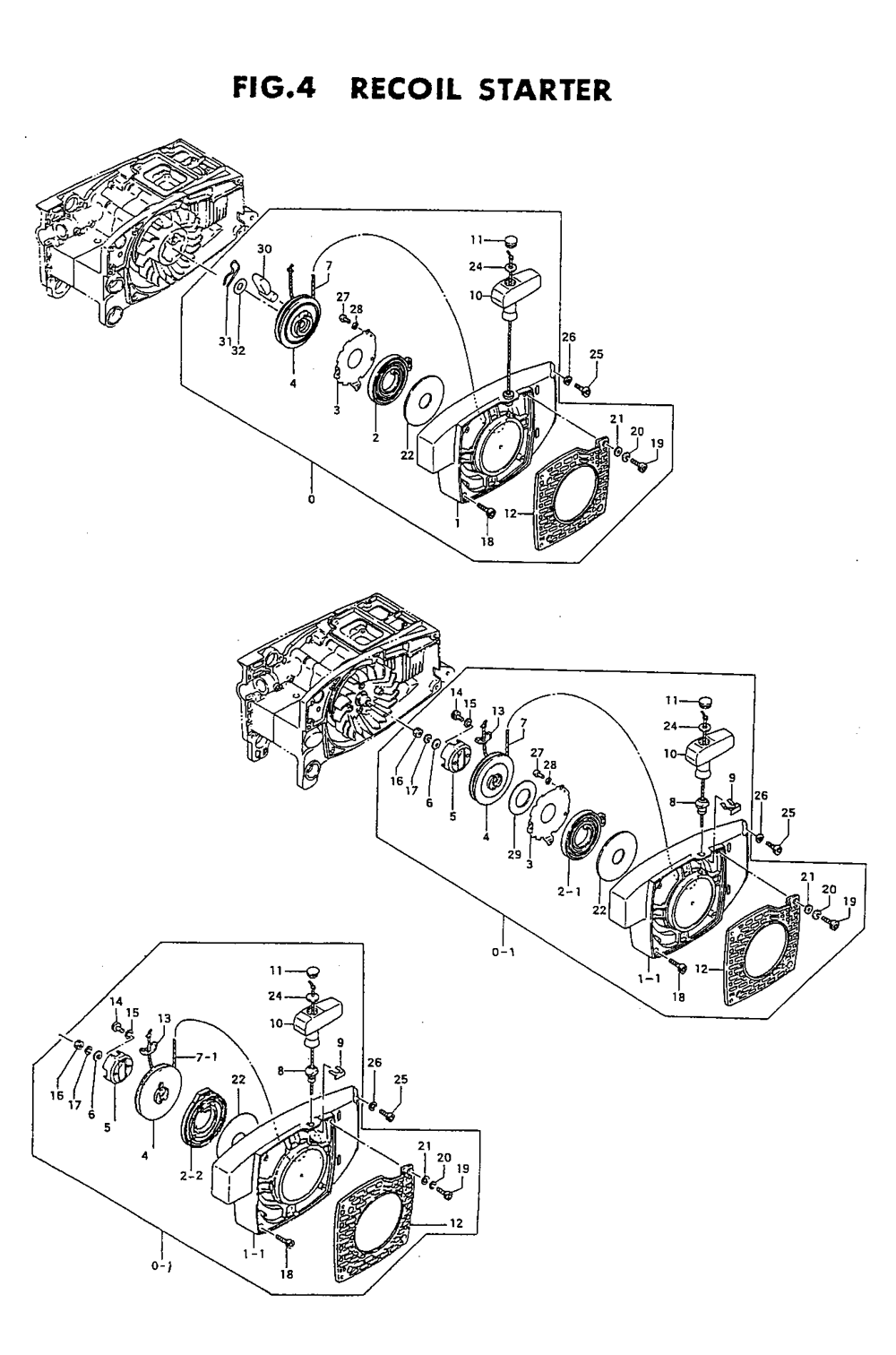

Fig-3

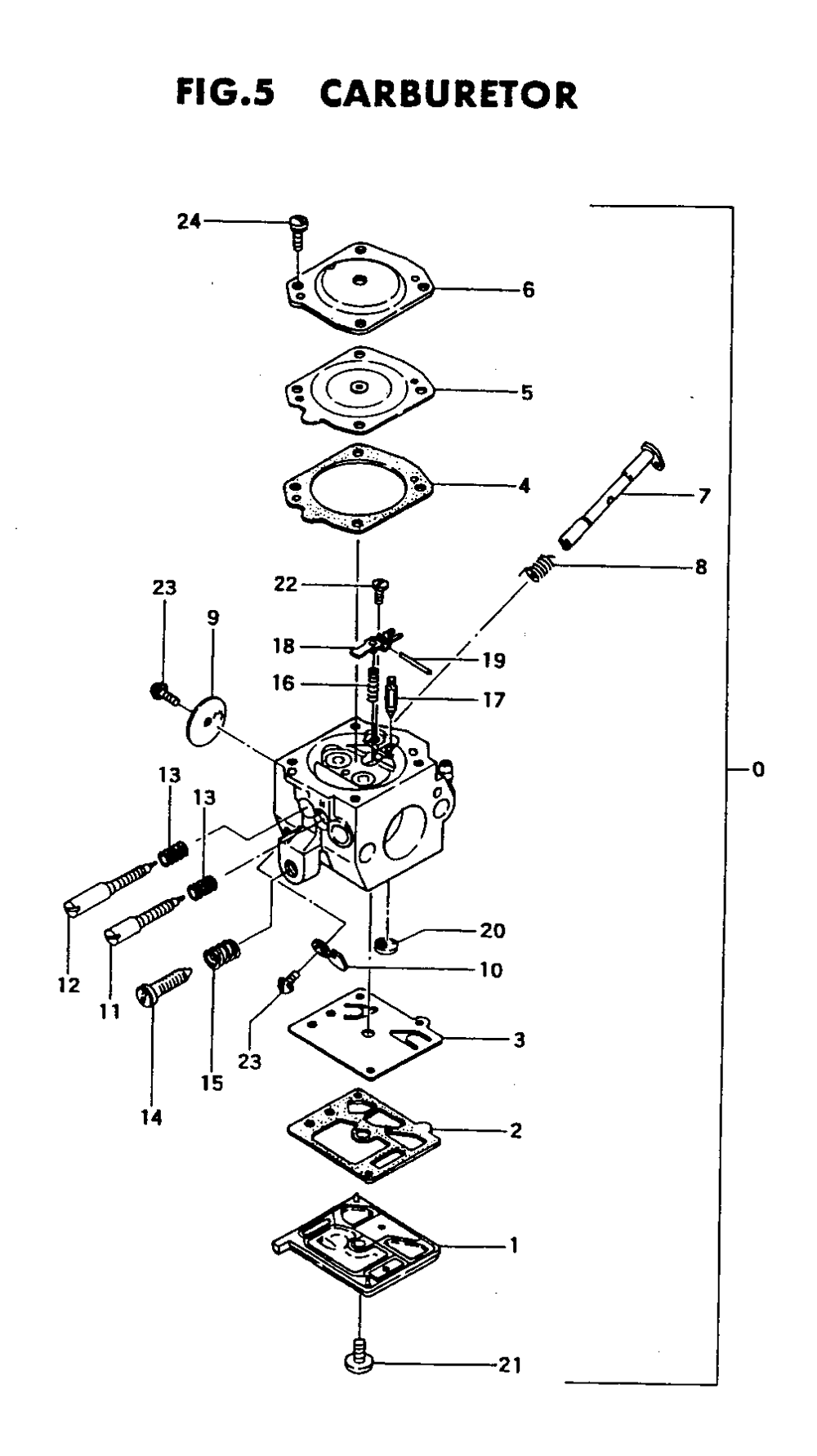

Fig-4

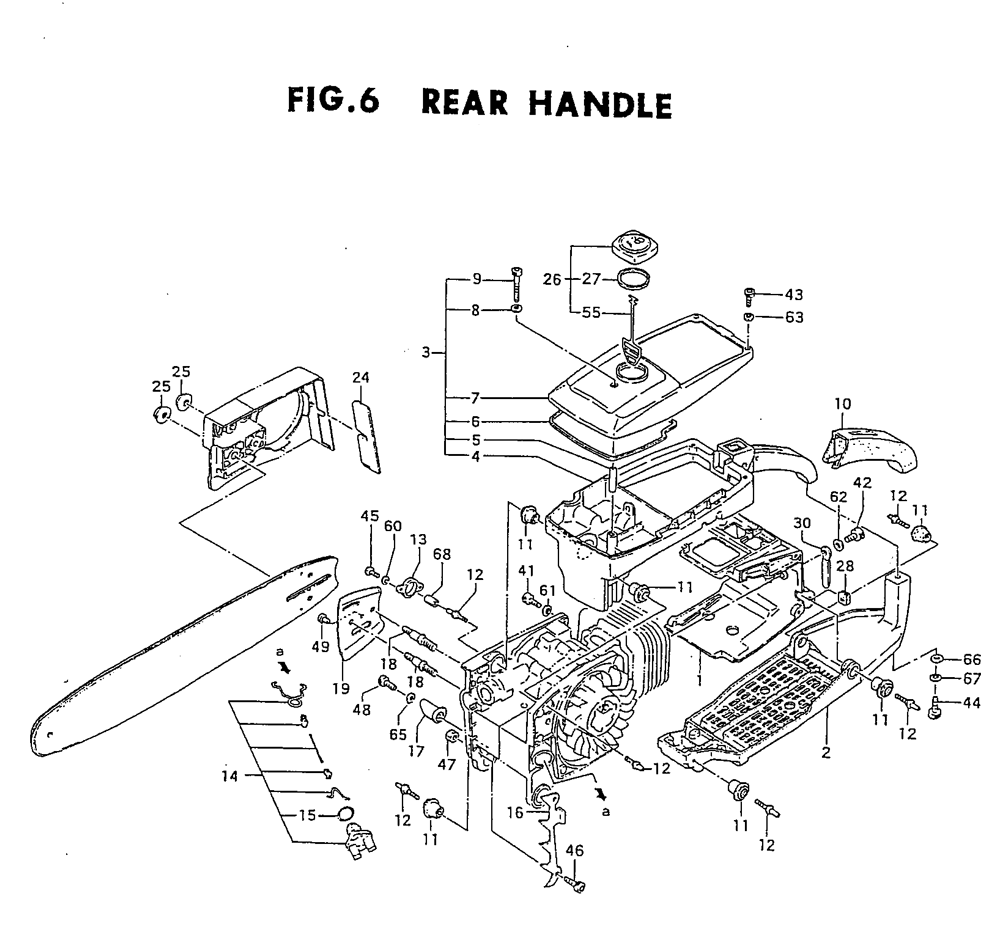

Fig-5

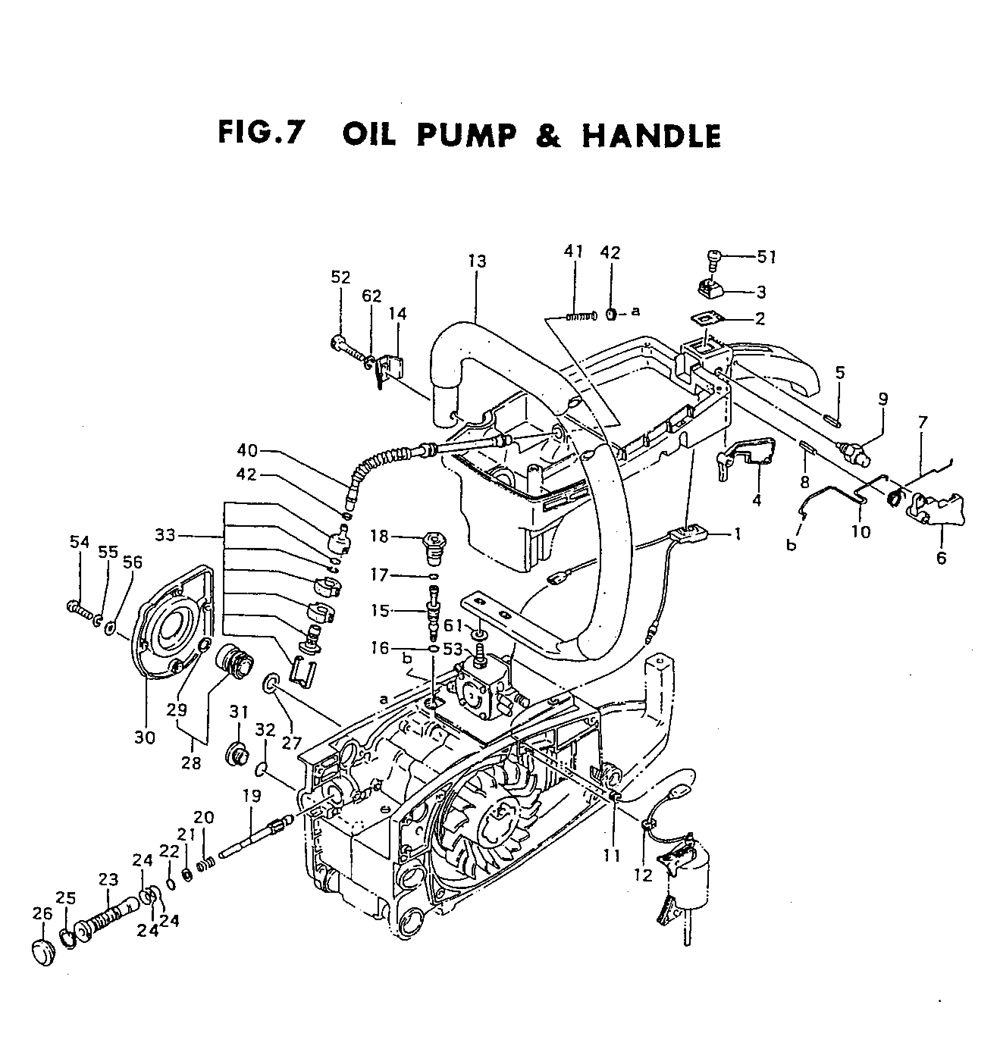

Fig-6

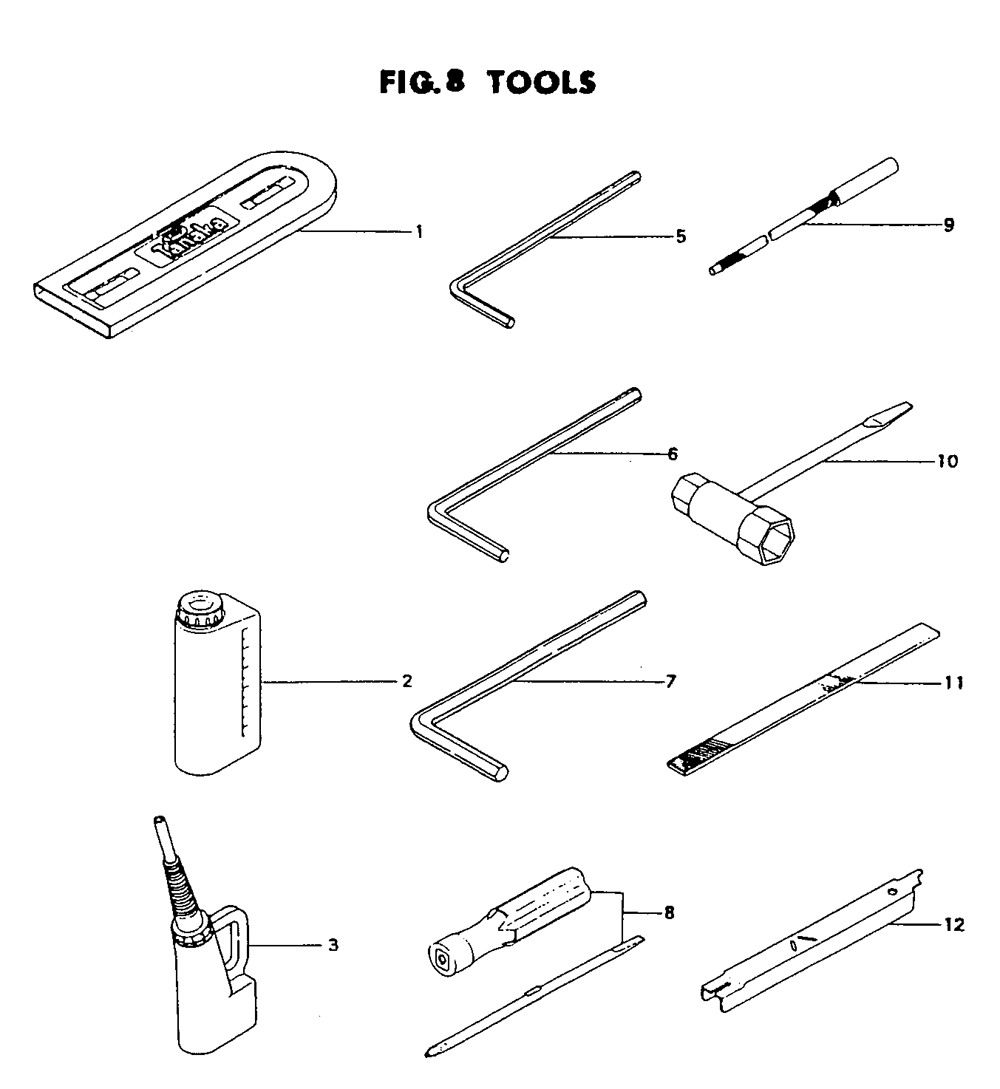

Fig-7

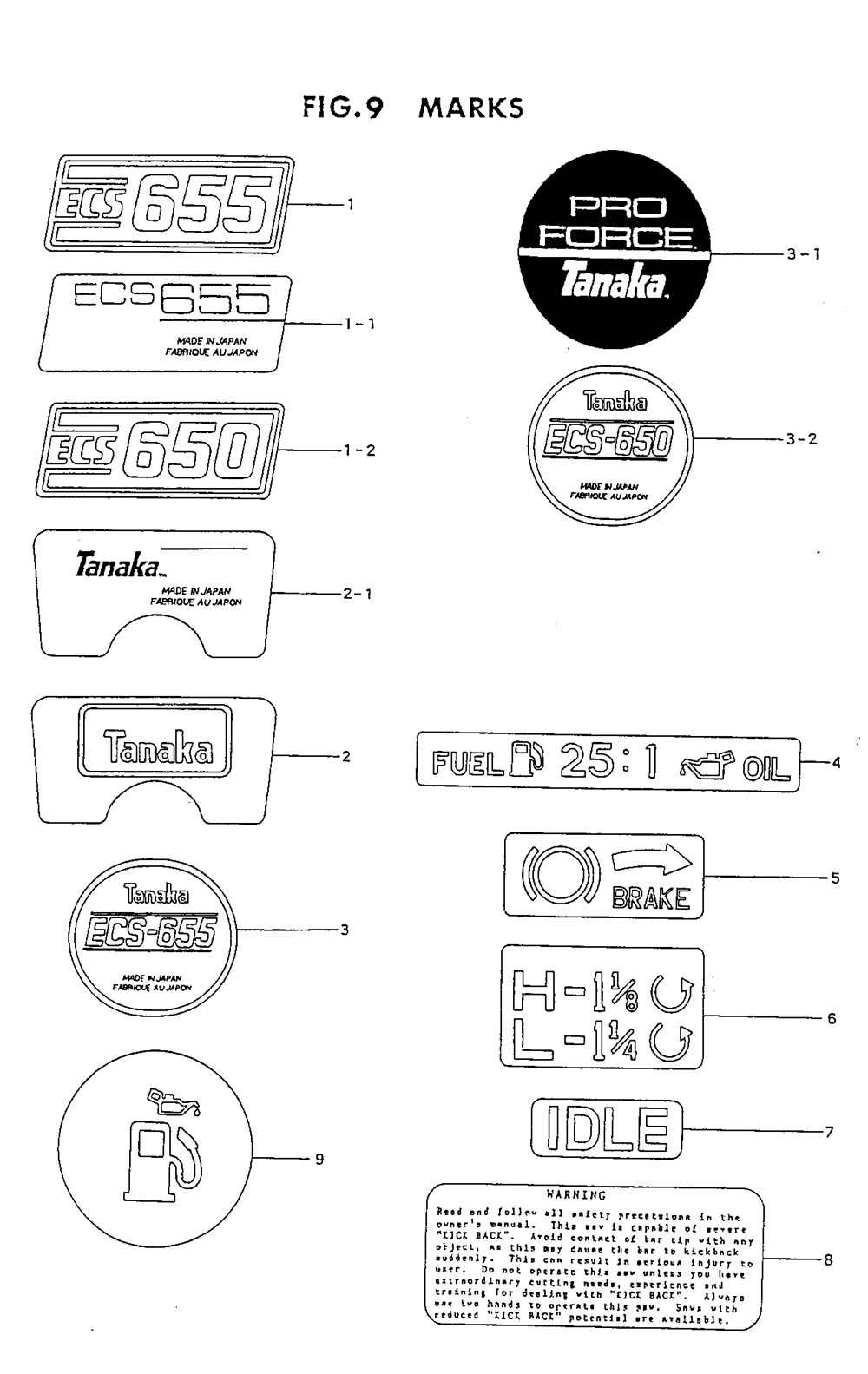

Fig-8

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Tanaka ECS-655 Replacement Parts List

1-1

Crankcase,ass'y Part # 6686604 Currently not available

N/A
1-10

CLIP,7 Part # 6692312 Currently not available

N/A
1-11

Collar,piston Pin Part # 6685995 Currently not available

N/A
1-13

SHIM,16X21X.20 Part # 6686481 Currently not available

N/A
1-13

SHIM,16X21X.30 Part # 6686482 Currently not available

N/A
1-15

KEY,WOODRUFF,3X13X4.5 Part # 6684899 Currently not available

N/A
1-16

Piston Part # 6695860 Currently not available

N/A
1-17

PIN,PISTON,12x38.3 Part # 6686020 Currently not available

N/A
1-18

Circlip,piston Pin Part # 6686035 Currently not available

N/A
1-19

Ring,piston Part # 6686134

$9.57
Add to Cart
1-2

BEARING,BALL,#6202 35mm/OD Part # 6695557

$7.50
Add to Cart
1-2

BEARING,BALL,#6202 35mm/OD Part # 6695561 Currently not available

N/A
1-20

Gasket,cylinder Part # 6685755 Currently not available

N/A
1-21

Cylinder Part # 6685573 Currently not available

N/A
1-22

Spark Plug Ngk BPM7A THB-2510 Part # 6685780 Currently not available

N/A
1-23

Rotor,magneto Part # 6687415 Currently not available

N/A
1-23.1

Rotor,magneto ASS'Y(~N073450) Part # 15520752902 Currently not available

N/A
1-24

Washer,starter Part # 6693254 Currently not available

N/A
1-24

Washer,recoil Starter Part # 6693248

$2.52
Add to Cart
1-25

Spring,starter Pawl Part # 790-11600-200 Currently not available

N/A
1-26

Pawl,starter Part # 6693324 Currently not available

N/A
1-27

Bolt,step Part # 6693366

$2.52
Add to Cart
1-28

Nut,flywheel Part # 6686441 Currently not available

N/A
1-29

Washer,flywheel Part # 6686437 Currently not available

N/A
