Tanaka QCP-121 Replacement Parts

Model: QCP-121

Brand: Tanaka

Download Schematics

Buy Tanaka QCP-121 Pump Parts

Other tools in Tanaka Pump Parts category

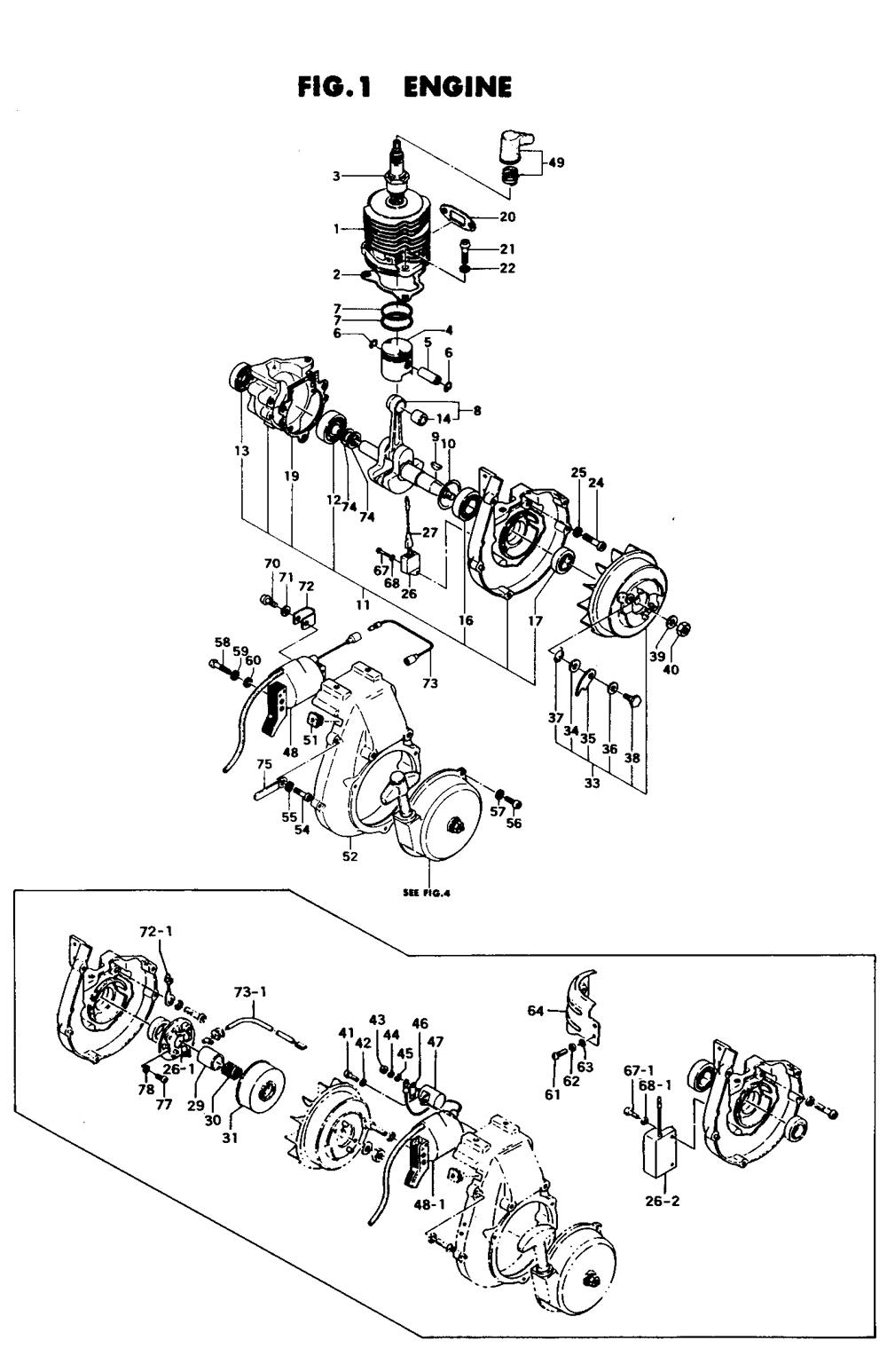

Fig-0

Fig-0

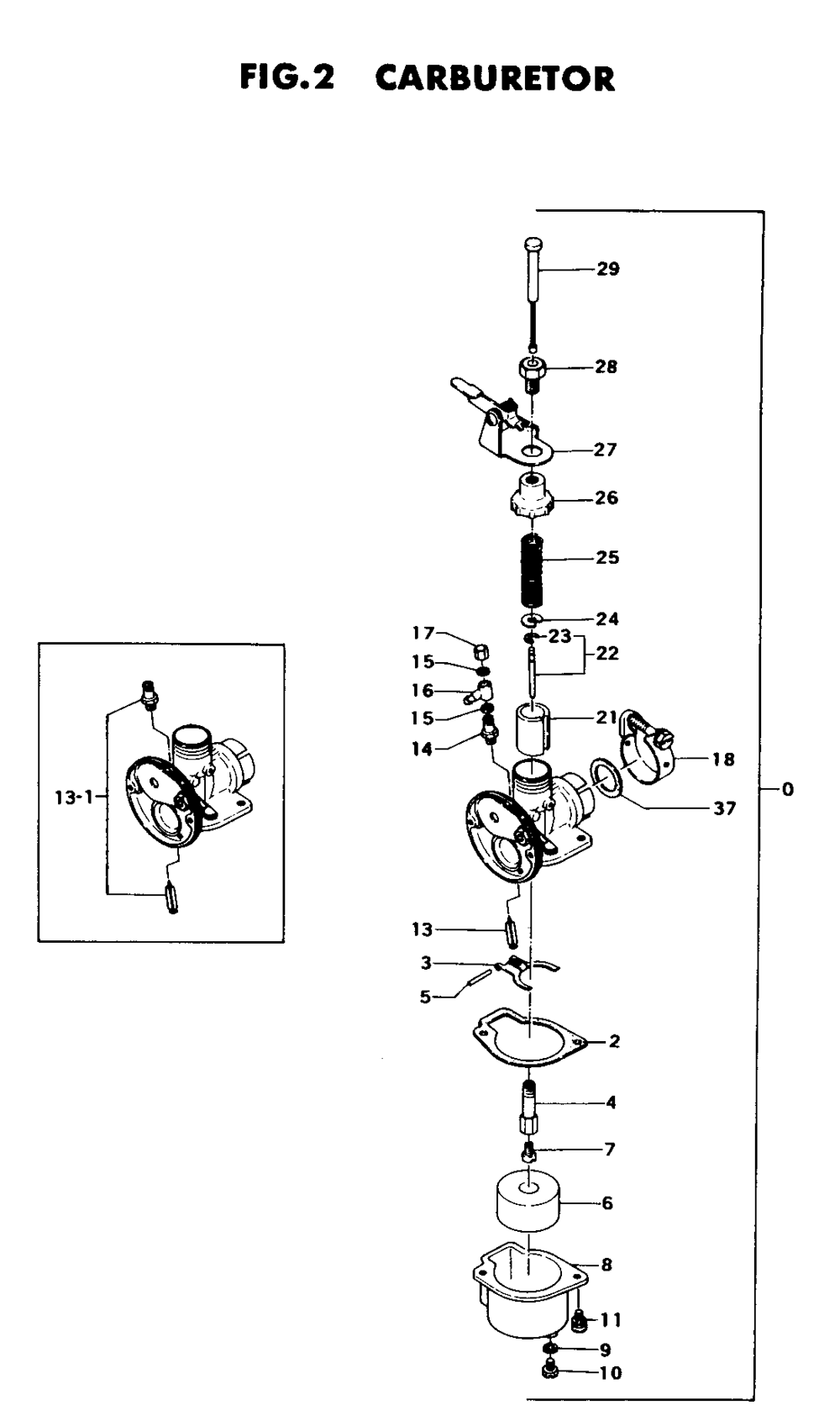

Fig-1

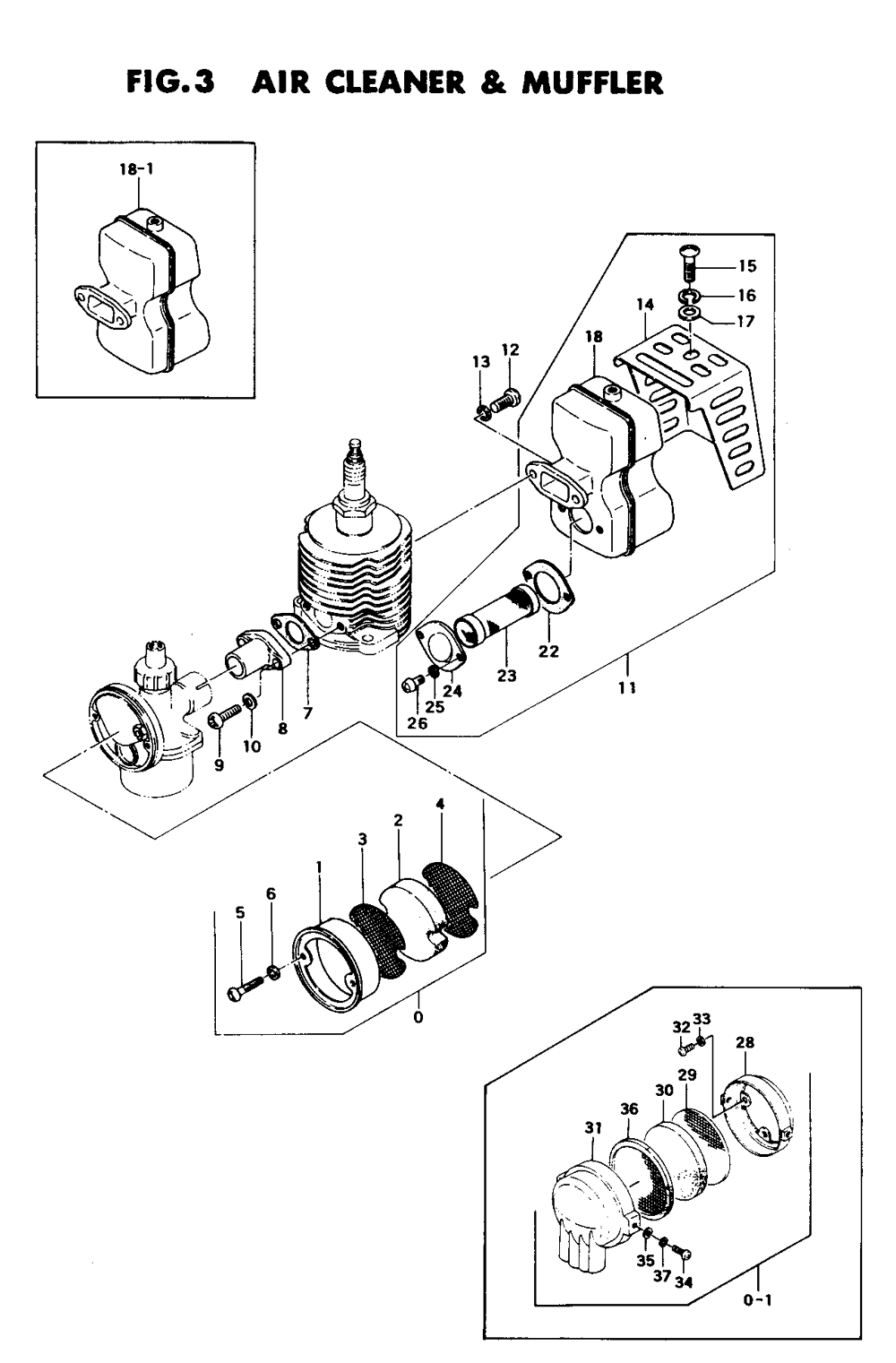

Fig-2

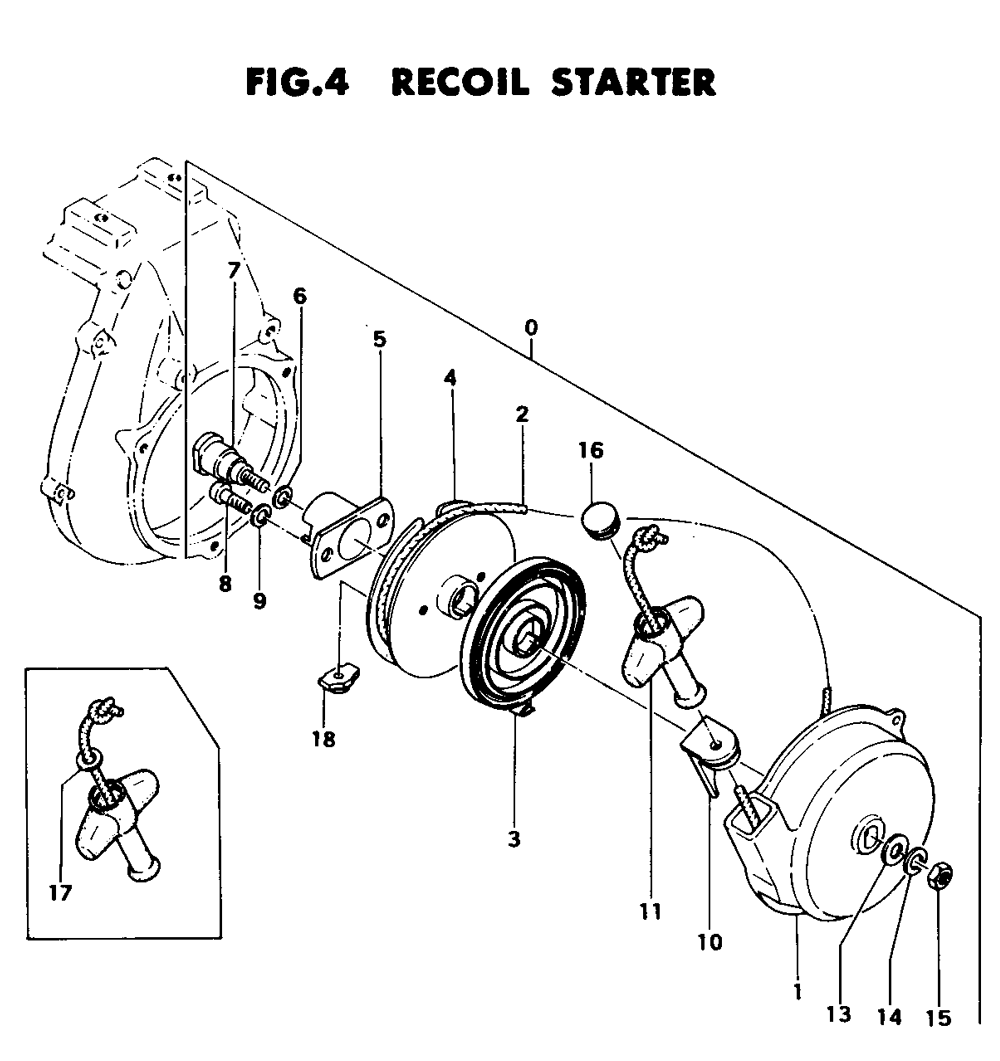

Fig-3

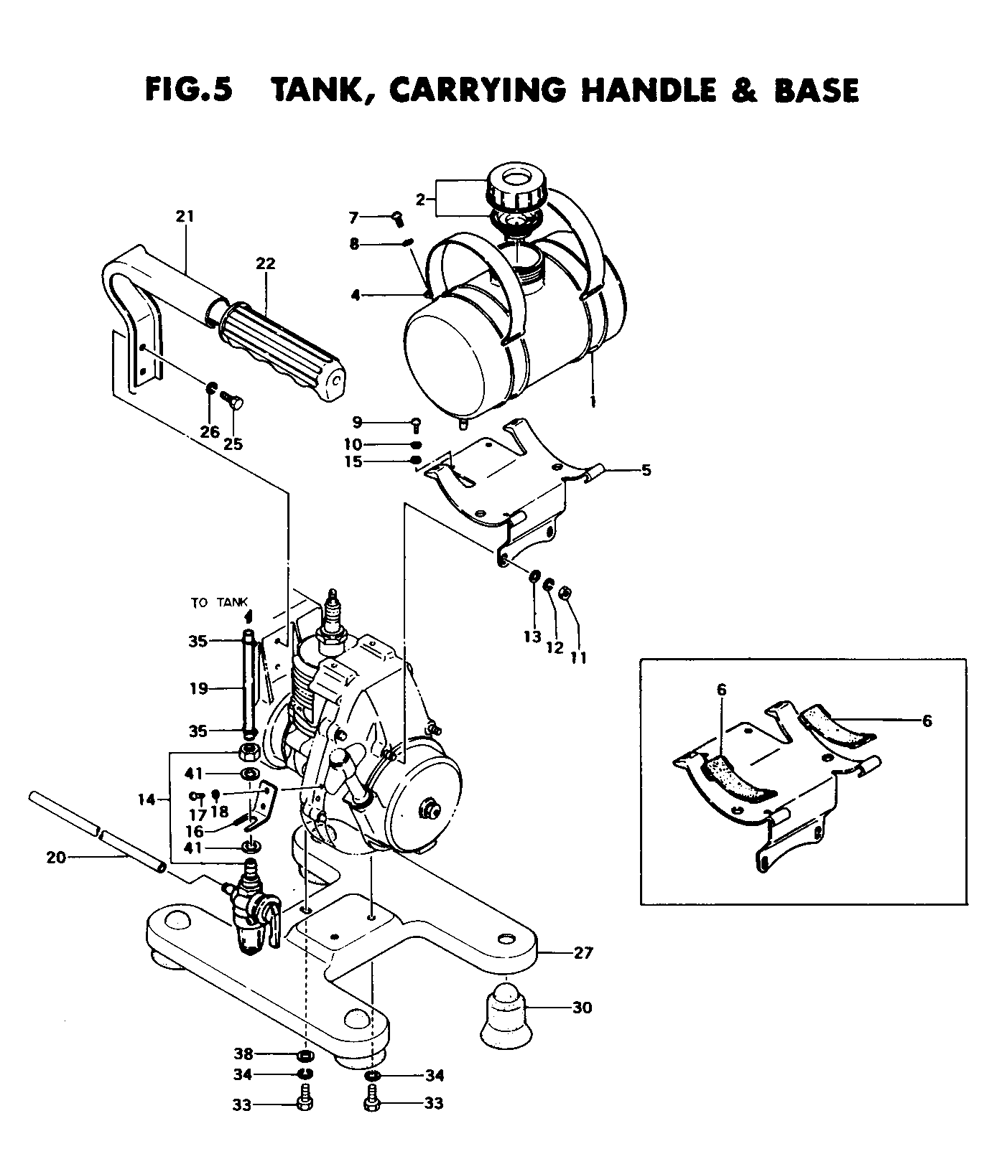

Fig-4

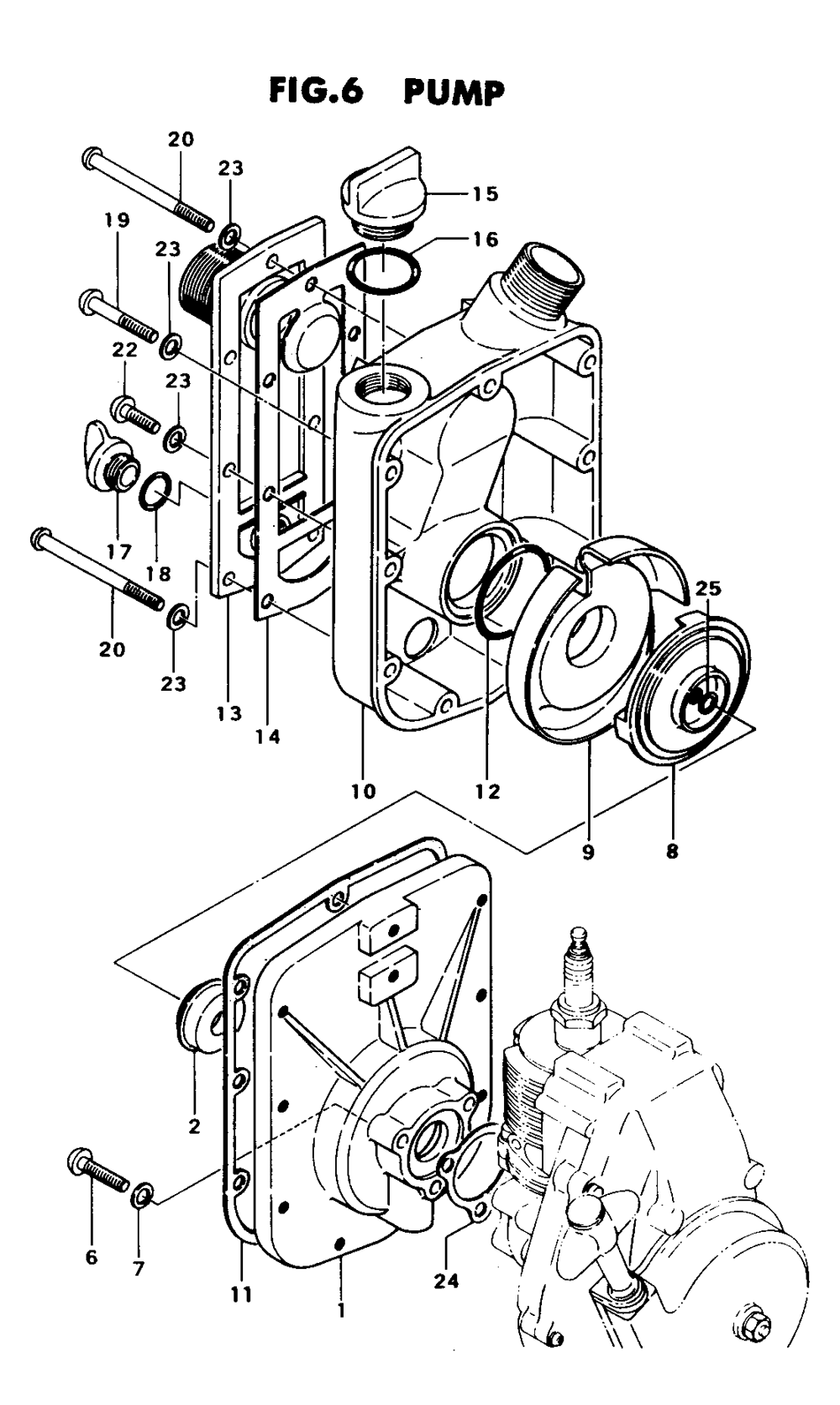

Fig-5

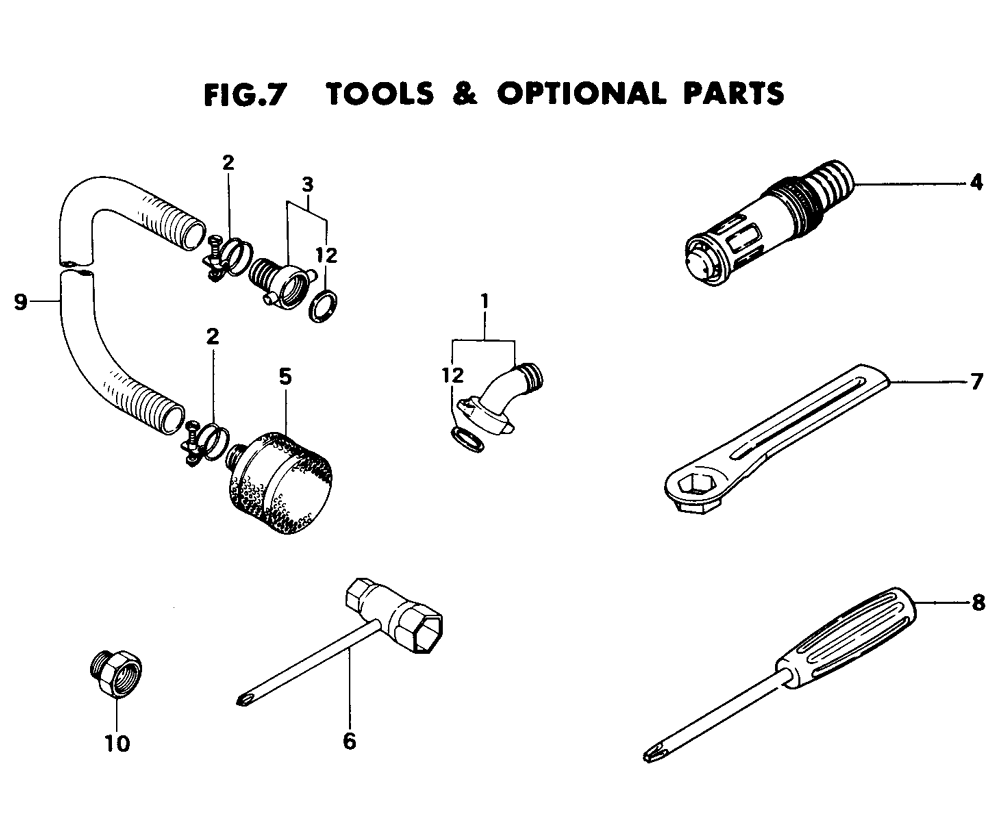

Fig-6

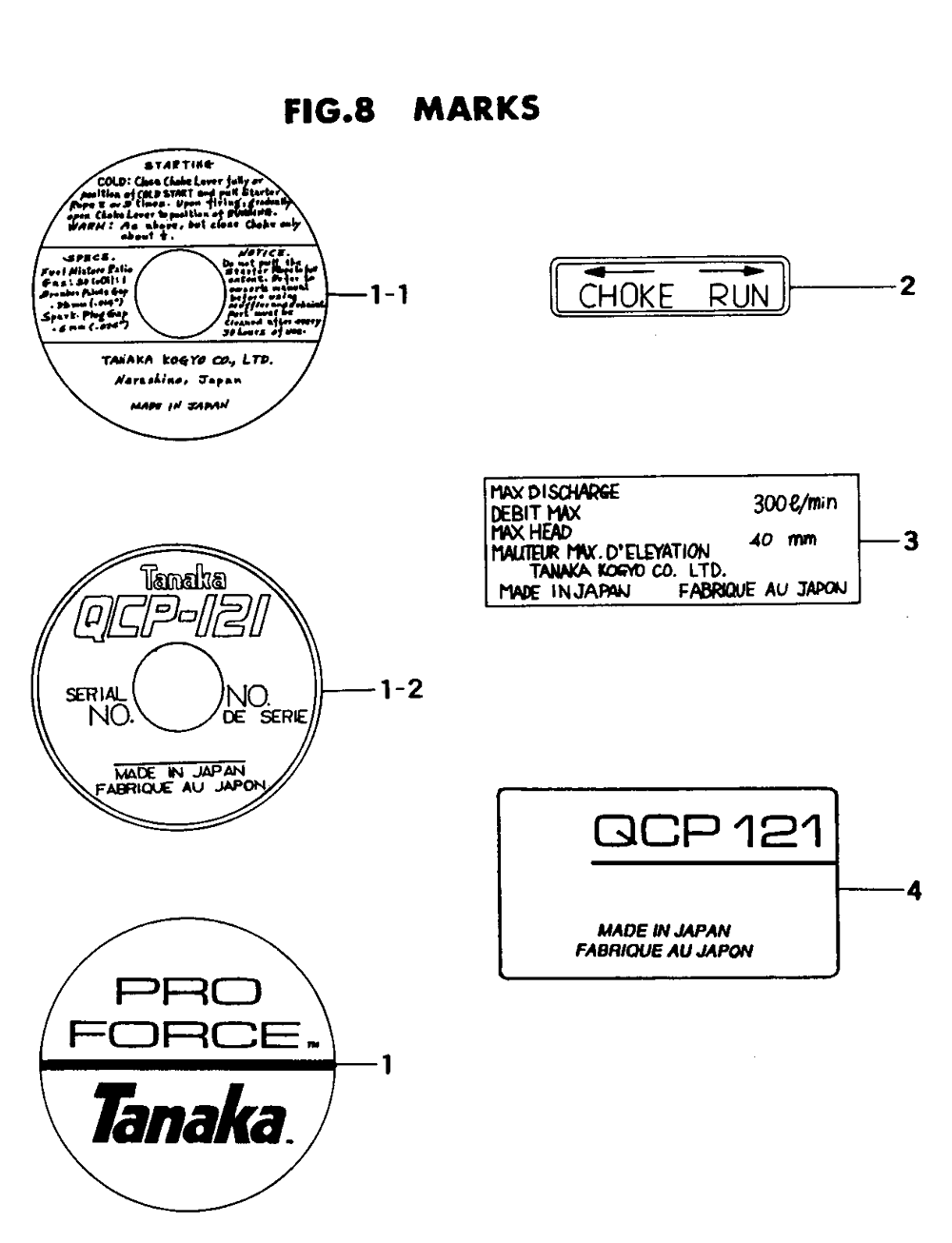

Fig-7

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Tanaka QCP-121 Replacement Parts List

1-1

Cylinder Part # 6685506 Currently not available

N/A
1-2

Gasket,cylinder Part # 6685707 Currently not available

N/A
1-3

Spark Plug CJ8 Ngk BM6A Part # 6685771 Currently not available

N/A
1-4

Piston Part # 6685917

$23.20
Add to Cart
1-5

Pin,piston 9x24 Part # 6686005 Currently not available

N/A
1-6

Circlip,piston Pin Part # 6685078

$2.52
Add to Cart
1-7

Ring,piston Part # 6686116 Currently not available

N/A
1-8

Crank Shaft Comp. | ~DO18779 Part # 04600532802 Currently not available

N/A
1-8

Crank Shaft Comp. | D018780~ Part # 04600573800 Currently not available

N/A
1-9

KEY,WOODRUFF,3x13x5 Part # 6686457 Currently not available

N/A
1-10

Washer,crankshaft 15X22 Part # 6686463

$2.52
Add to Cart
1-11

Crankcase,ass'y | ~D018779 Part # 07200557900 Currently not available

N/A
1-12

BEARING,BALL,#6201 32mm/OD Part # 6695552 Currently not available

N/A
1-13

Seal,oil Part # 6696302 Currently not available

N/A
1-14

Bushing,piston Pin Part # 6686025 Currently not available

N/A
1-16

BEARING,BALL,#6002 32mm/OD Part # 6695536 Currently not available

N/A
1-17

SEAL,OIL,UD15257 Part # 6695637

$5.33
Add to Cart
1-19

Gasket,crankcase Part # 6686686 Currently not available

N/A
1-20

Gasket,muffler Part # 6692724 Currently not available

N/A
1-21

SCREW,6X20 Part # 6694934 Currently not available

N/A
1-21

SCREW,6X18 Part # 6694932

$2.52
Add to Cart
1-22

WASHER,S,6 Part # 6695219

$2.52
Add to Cart
1-24

SCREW,6X22 Part # 6694937 Currently not available

N/A
1-25

WASHER,S,6 Part # 6695219

$2.52
Add to Cart
