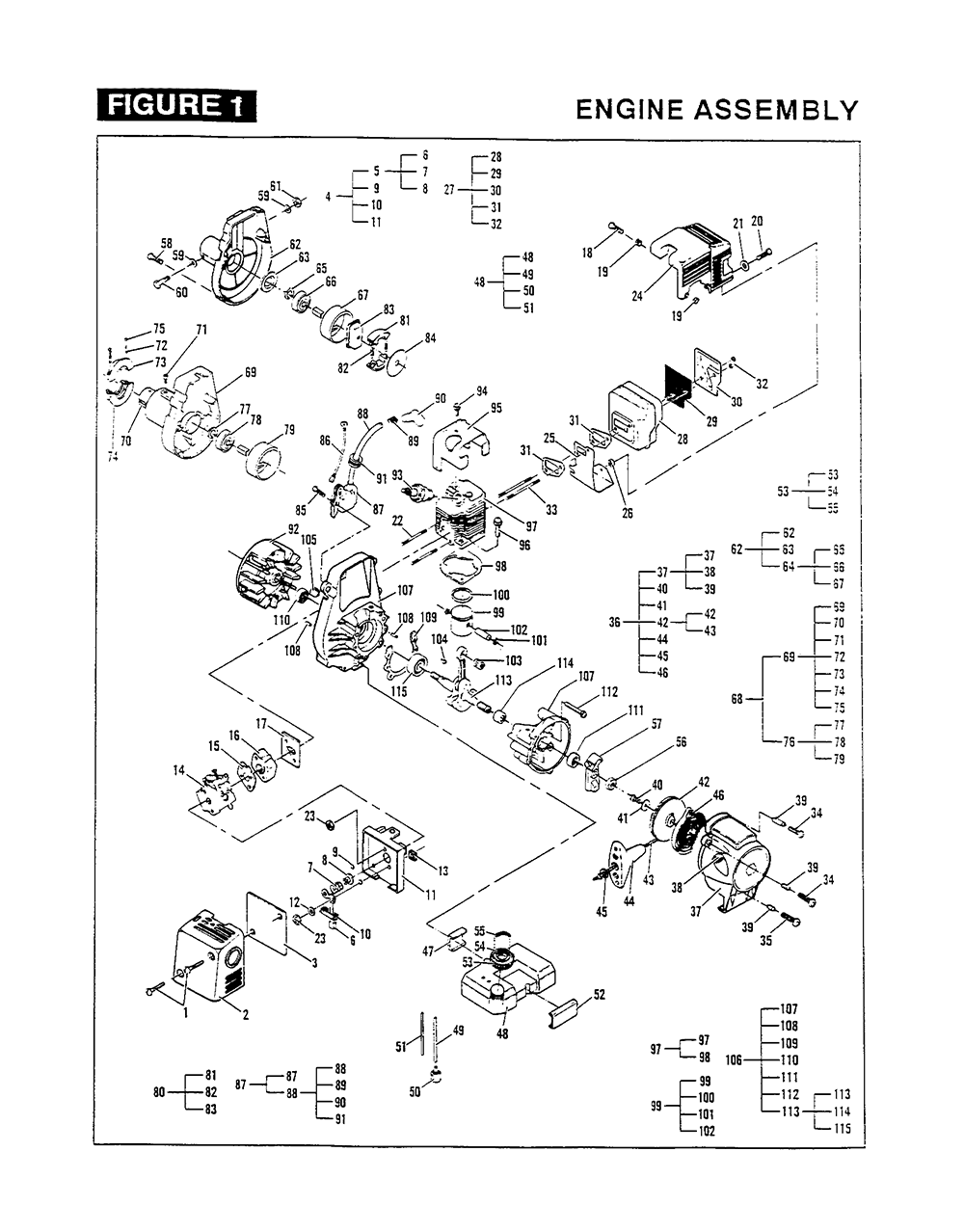

Fig-0

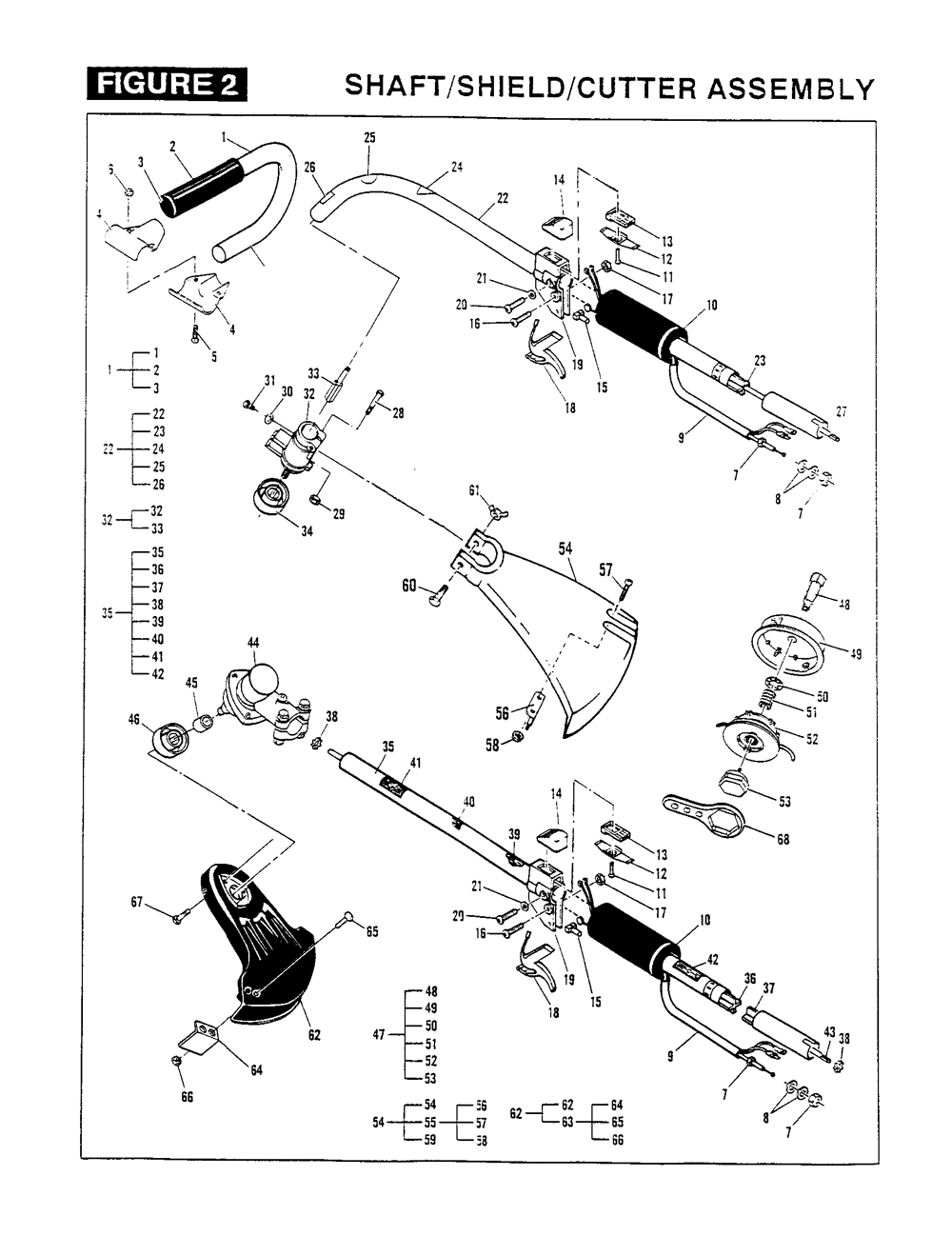

Fig-1

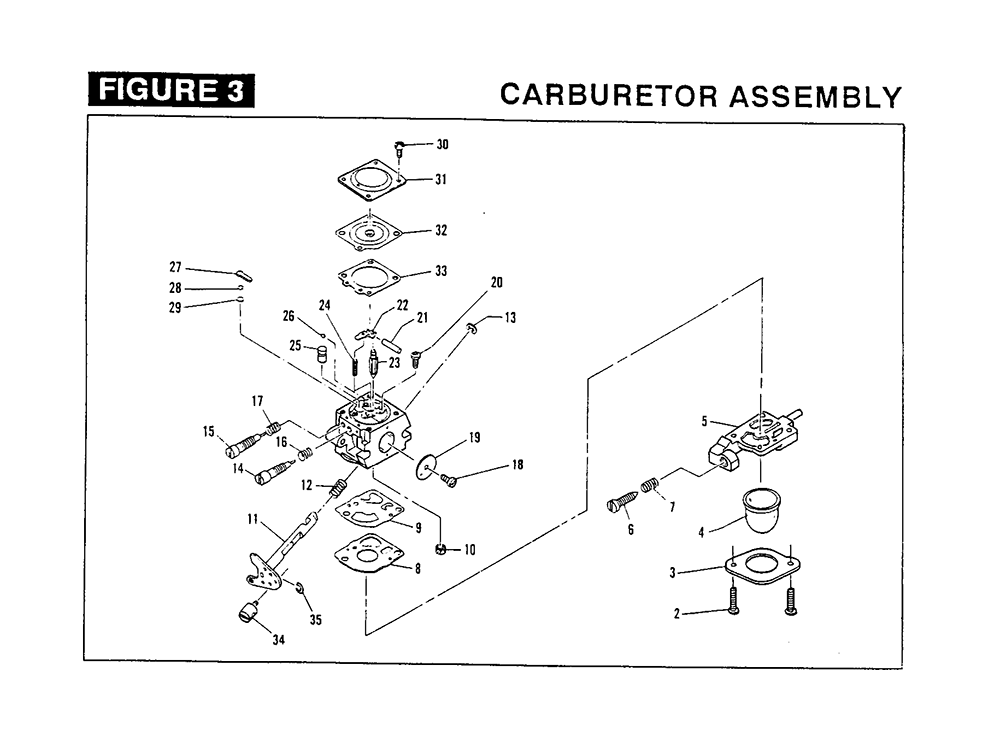

Fig-2

Reference Filter: Filter parts list by name or model number:

Tanaka TBC-2100 Replacement Parts List

1-1

SCREW,M5X28.5 Part # 216027 Currently not available

N/A
1-2

Cover, Air Cleaner Part # 227694 Currently not available

N/A
1-3

Filter,air Part # 227023 Currently not available

N/A
1-4

Case Assy Part # 300069 Currently not available

N/A
1-5

Kit,choke,ass'y Part # 223730 Currently not available

N/A
1-7

Spring, Shutter Part # 219016 Currently not available

N/A
1-9

Bushing Part # 227022 Currently not available

N/A
1-10

Grommet Part # 215992 Currently not available

N/A
1-12

Washer Part # 216591 Currently not available

N/A
1-13

Nut Part # 229524 Currently not available

N/A
1-14

Carburetor,ass'y Part # 224142-03 Currently not available

N/A
1-15

Gasket,carburetor Part # 224148 Currently not available

N/A
1-16

Insulator, Carb. Part # 223984 Currently not available

N/A
1-17

Gasket,shield Insulator Part # 224315 Currently not available

N/A
1-18

Screw,muffler Shield Part # 219508 Currently not available

N/A
1-19

Bushing Part # 229121 Currently not available

N/A
1-20

Screw, M4X9.5mm Part # 215874 Currently not available

N/A
1-21

Washer Part # 68497 Currently not available

N/A
1-22

Pushing Nut P12RA Part # 300139 Currently not available

N/A
1-23

Nut,lock Part # 216585 Currently not available

N/A
1-24

Shield, Muffler Part # 227695 Currently not available

N/A
1-25

Shield, Muffler, Heat Part # 224266 Currently not available

N/A
1-26

Nut Part # 224350 Currently not available

N/A
1-27

Muffler, Comp. Part # 300632 Currently not available

N/A
