Tanaka TED-232 Replacement Parts

Model: TED-232

Brand: Tanaka

Download Schematics

Buy Tanaka TED-232 Drills Parts

Other tools in Tanaka Drills Parts category

Fig-0

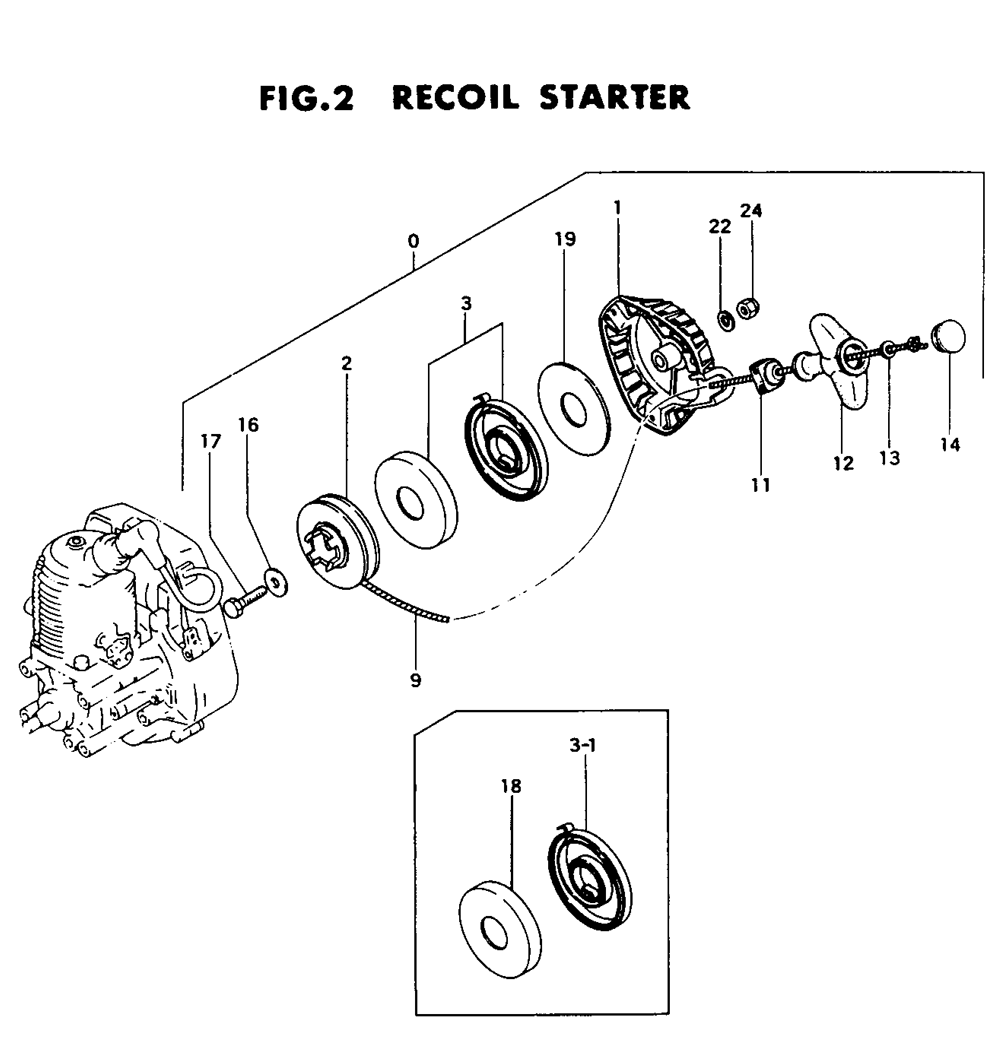

Fig-0

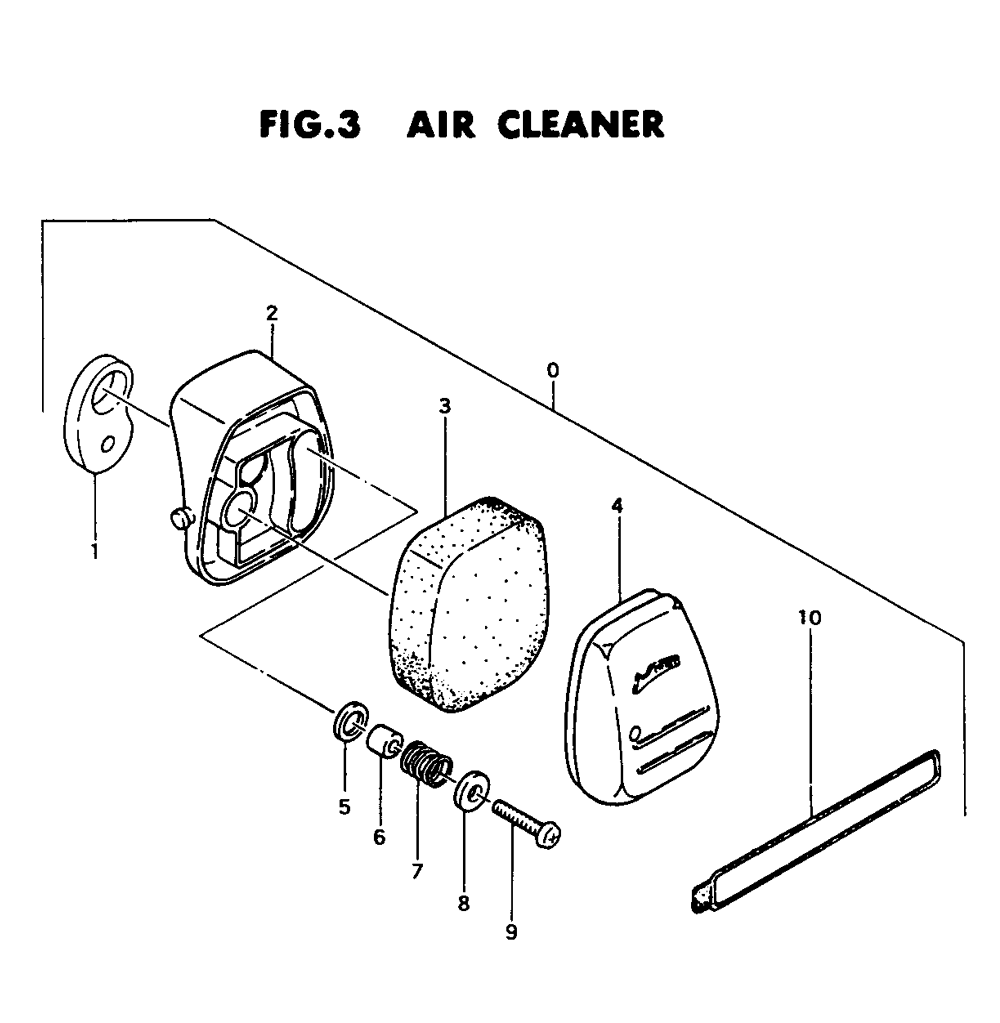

Fig-1

Fig-2

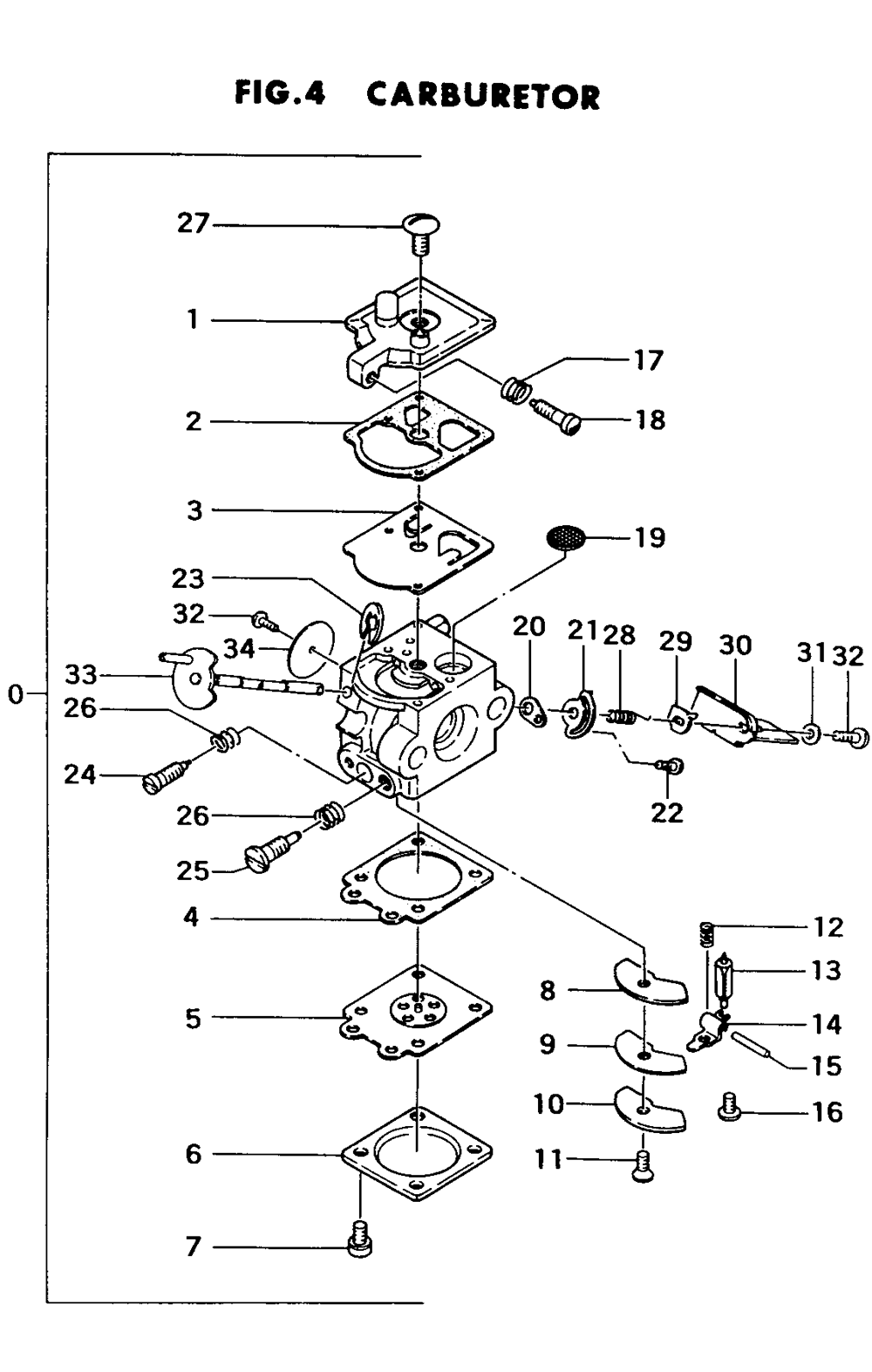

Fig-3

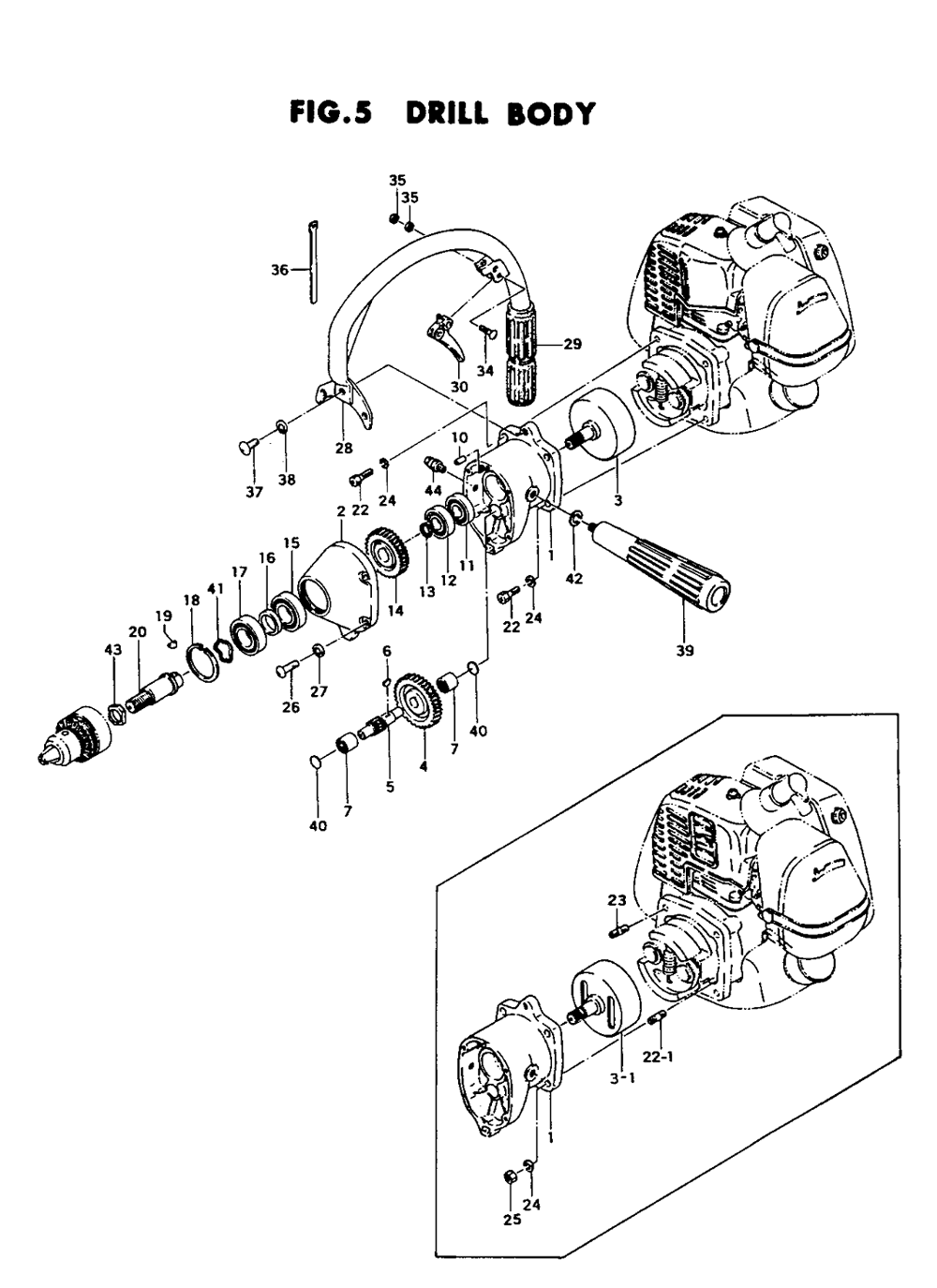

Fig-4

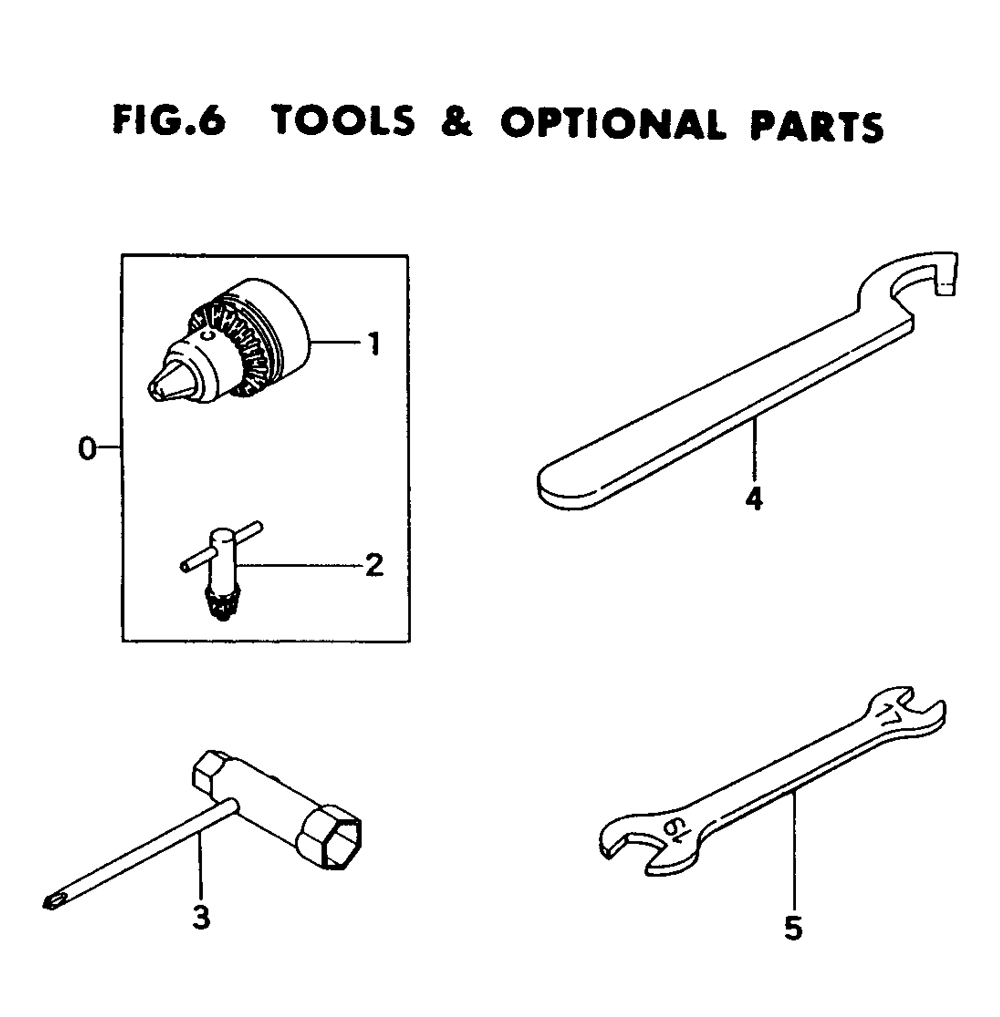

Fig-5

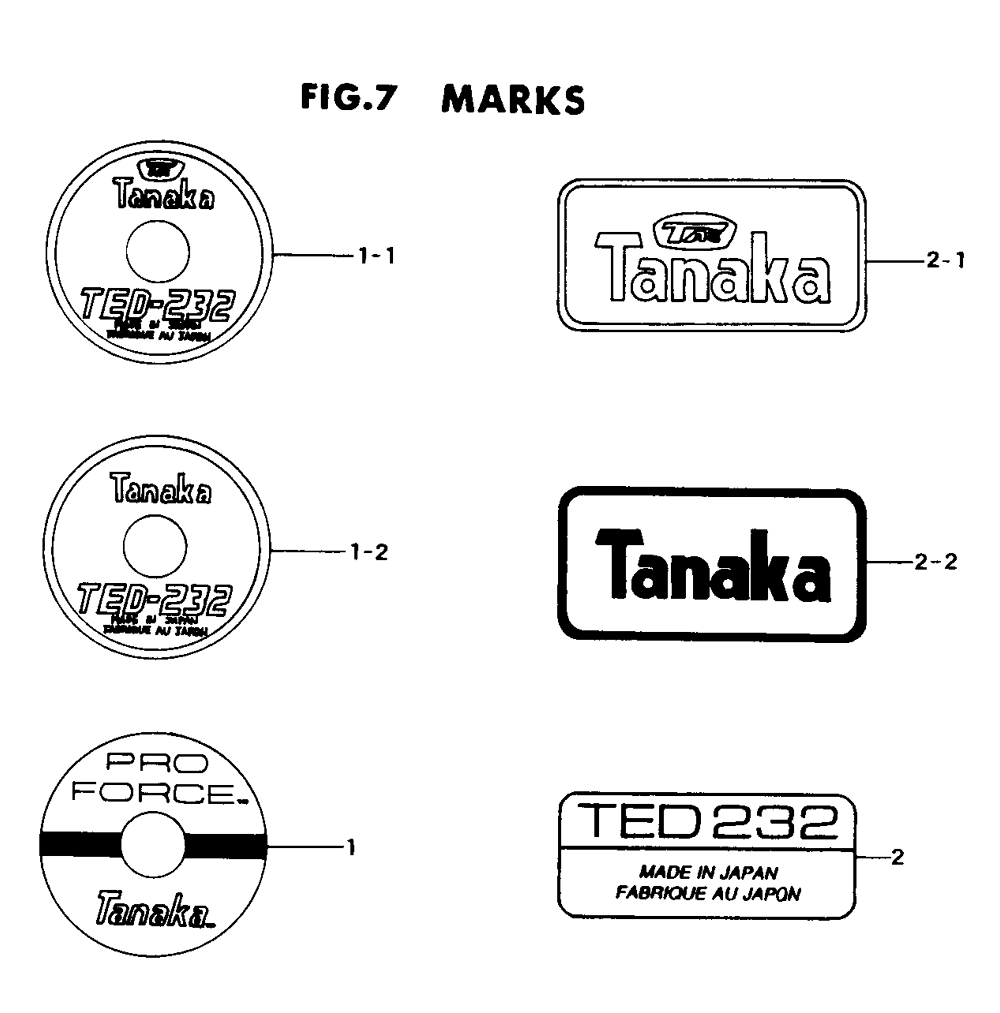

Fig-6

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

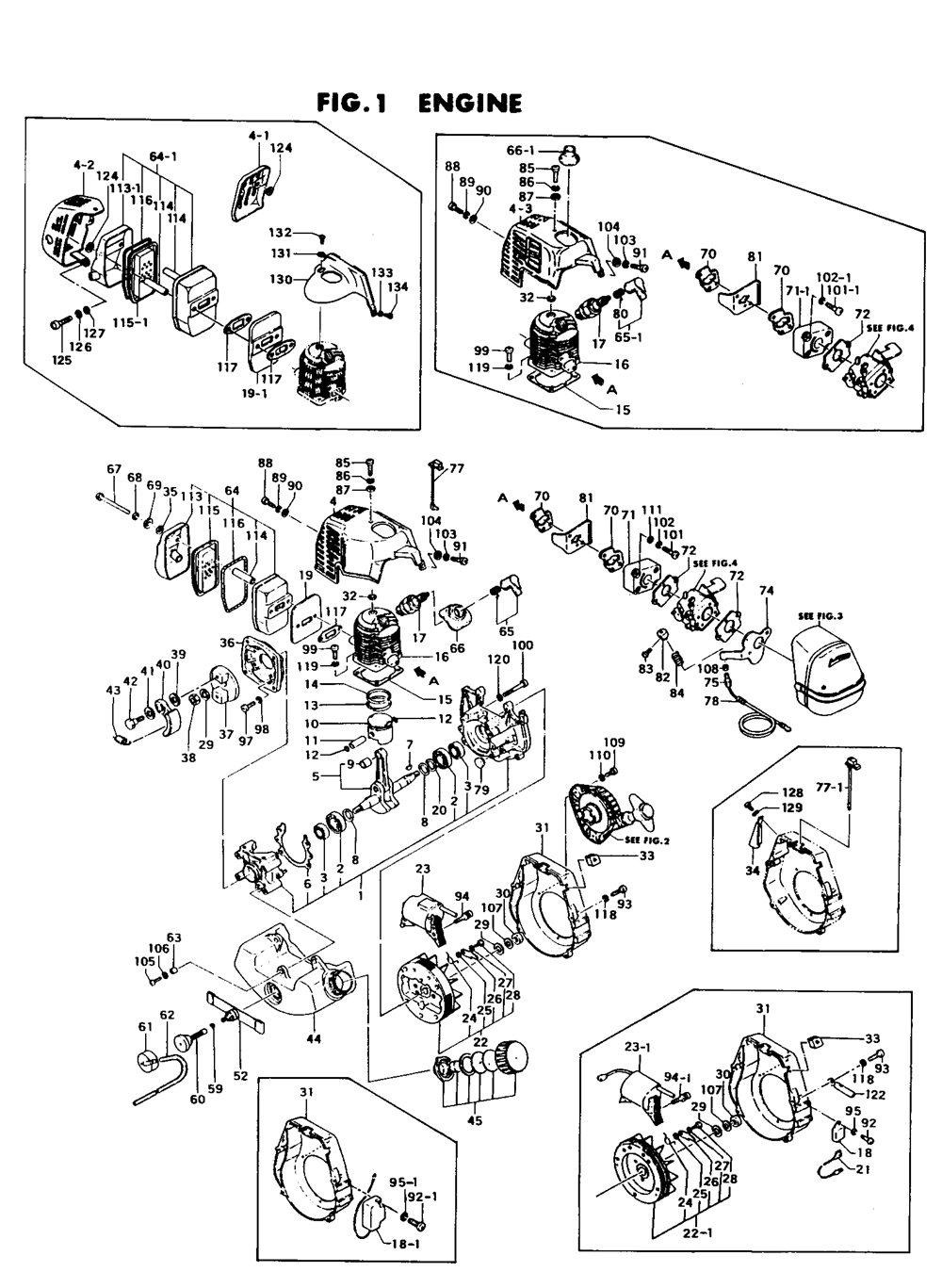

Tanaka TED-232 Replacement Parts List

1-1

Crank Case Ass'y Part # 07200730900 Currently not available

N/A
1-2

Replaced by 600-1VV - BEARING,BALL,#6001C3 THB-260PF Part # 6695535 Currently not available

N/A
1-3

SEAL,OIL,#TC12227 CG22EAB/D/S Part # 6684607 Currently not available

N/A
1-4-1

Protector,muffler Part # 7380062W201 Currently not available

N/A
1-4-2

Muffler Protector Part # 73800763200 Currently not available

N/A
1-4-3

Muffler Protector Part # 7380072V200 Currently not available

N/A
1-4-3

Muffler Protector Part # 738O072V200 Currently not available

N/A
1-4

Muffler Protector Part # 7380072V210 Currently not available

N/A
1-4

Muffler Protector Part # 7380072V211 Currently not available

N/A
1-5

Crankshaft Part # 6697169 Currently not available

N/A
1-6

Gasket,crankcase Part # 6686687

$2.52
Add to Cart
1-7

KEY,WOODRUFF,3X13X4.5 Part # 6684899 Currently not available

N/A
1-8

Washer,crankshaft 12X18 Part # 6686462 Currently not available

N/A
1-9

Bearing Needle Part # 6695589

$7.75
Add to Cart
1-10

Piston TBC/TED-232 Part # 6685919 Currently not available

N/A
1-11

Pin,piston Part # 6686006 Currently not available

N/A
1-12

Circlip,piston Pin THB-260PF Part # 6686028

$2.52
Add to Cart
1-13

Ring,piston Part # 6686118 Currently not available

N/A
1-14

Ring,piston,top Part # 6695866 Currently not available

N/A
1-15

Gasket,cylinder Part # 6695844 Currently not available

N/A
1-16

Cylinder Comp. Part # 6697002 Currently not available

N/A
1-17

Spark Plug CJ8 Ngk BM6A Part # 6685771 Currently not available

N/A
1-18-1

Ignitor Set TTI-1E Part # 6695932 Currently not available

N/A
1-18

Ignitor Set TTI-1E Part # 6695932 Currently not available

N/A
