Tanaka TOB-120 Replacement Parts

Model: TOB-120

Brand: Tanaka

Download Schematics

Buy Tanaka TOB-120 Outboard Motors Parts

Other tools in Tanaka Outboard Motors Parts category

Fig-0

Fig-0

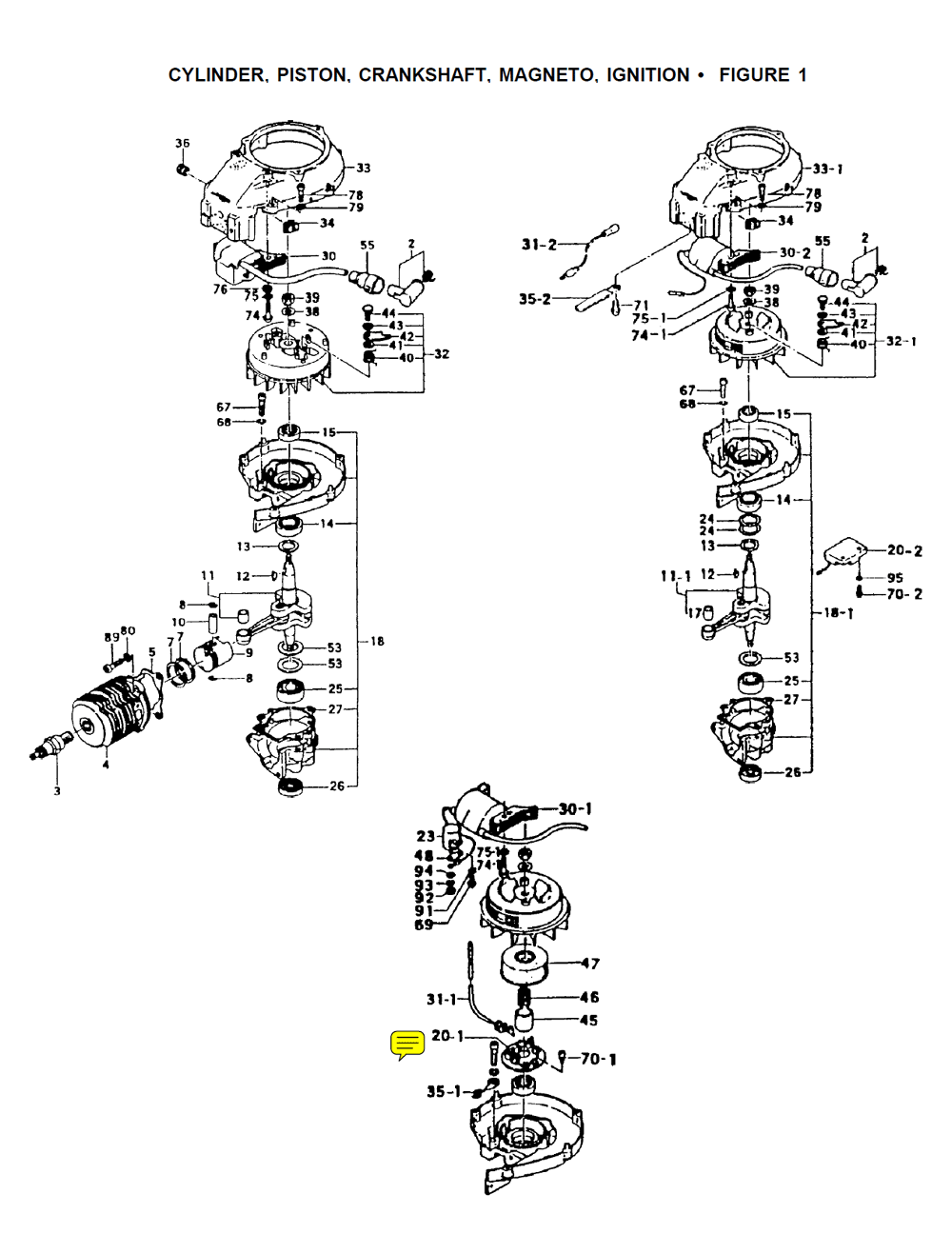

Fig-1

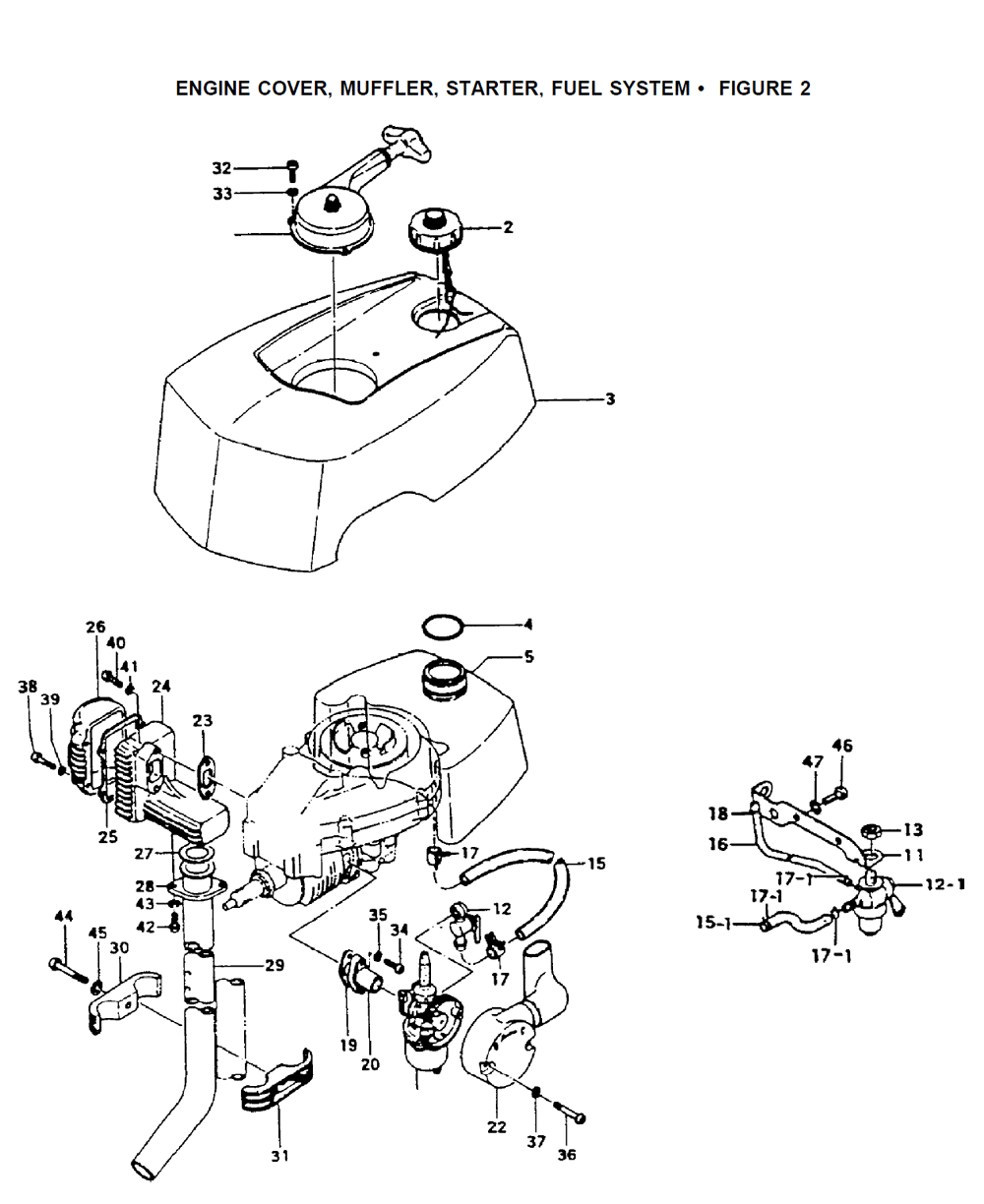

Fig-2

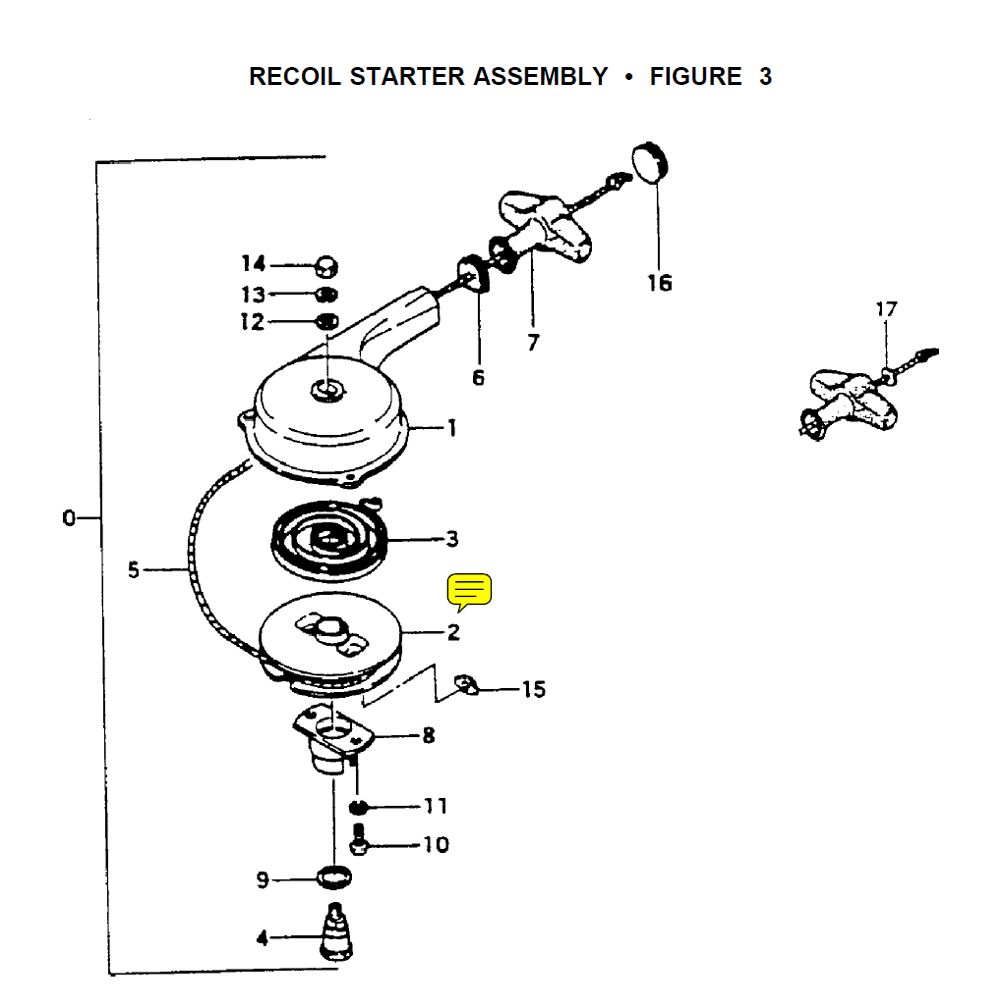

Fig-3

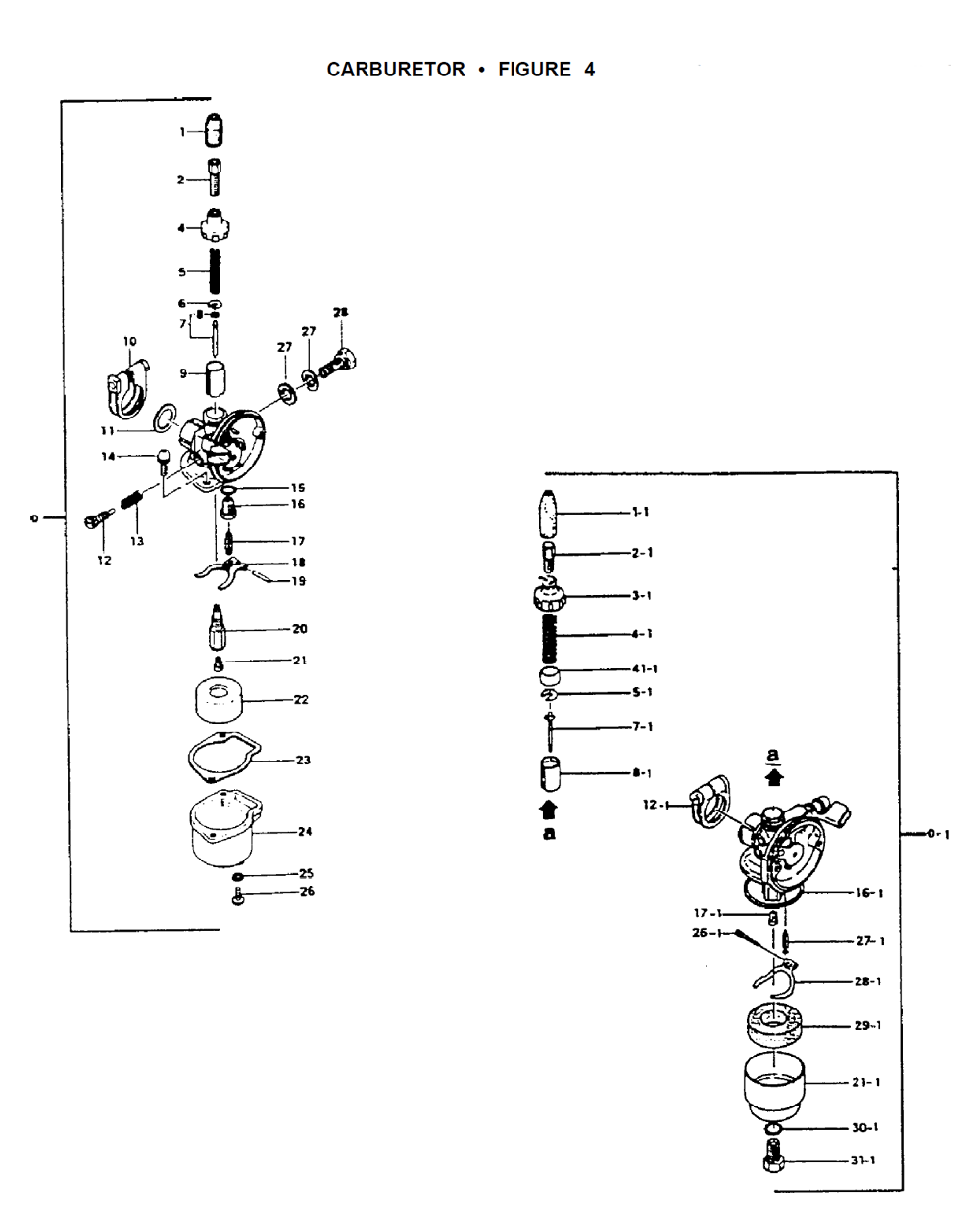

Fig-4

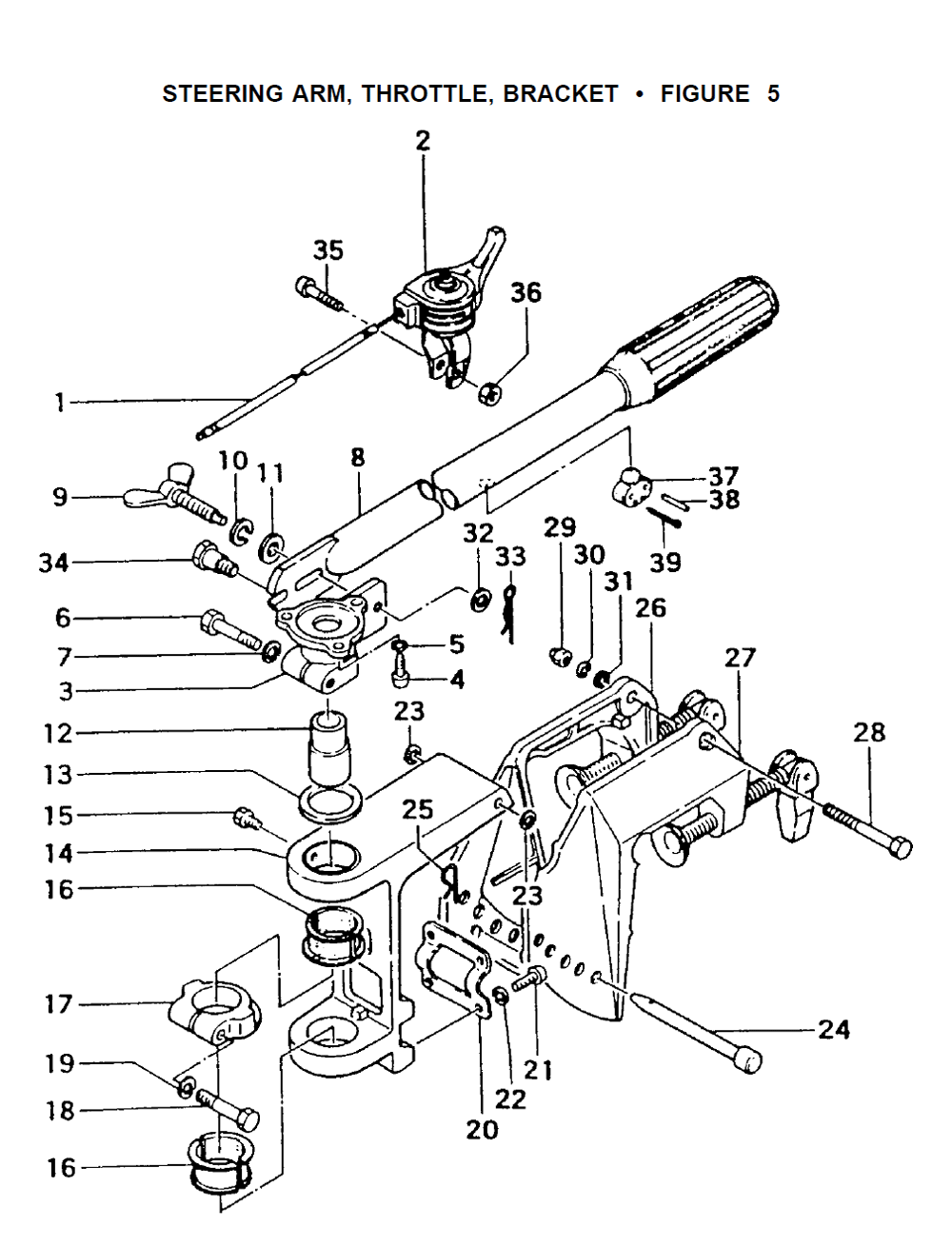

Fig-5

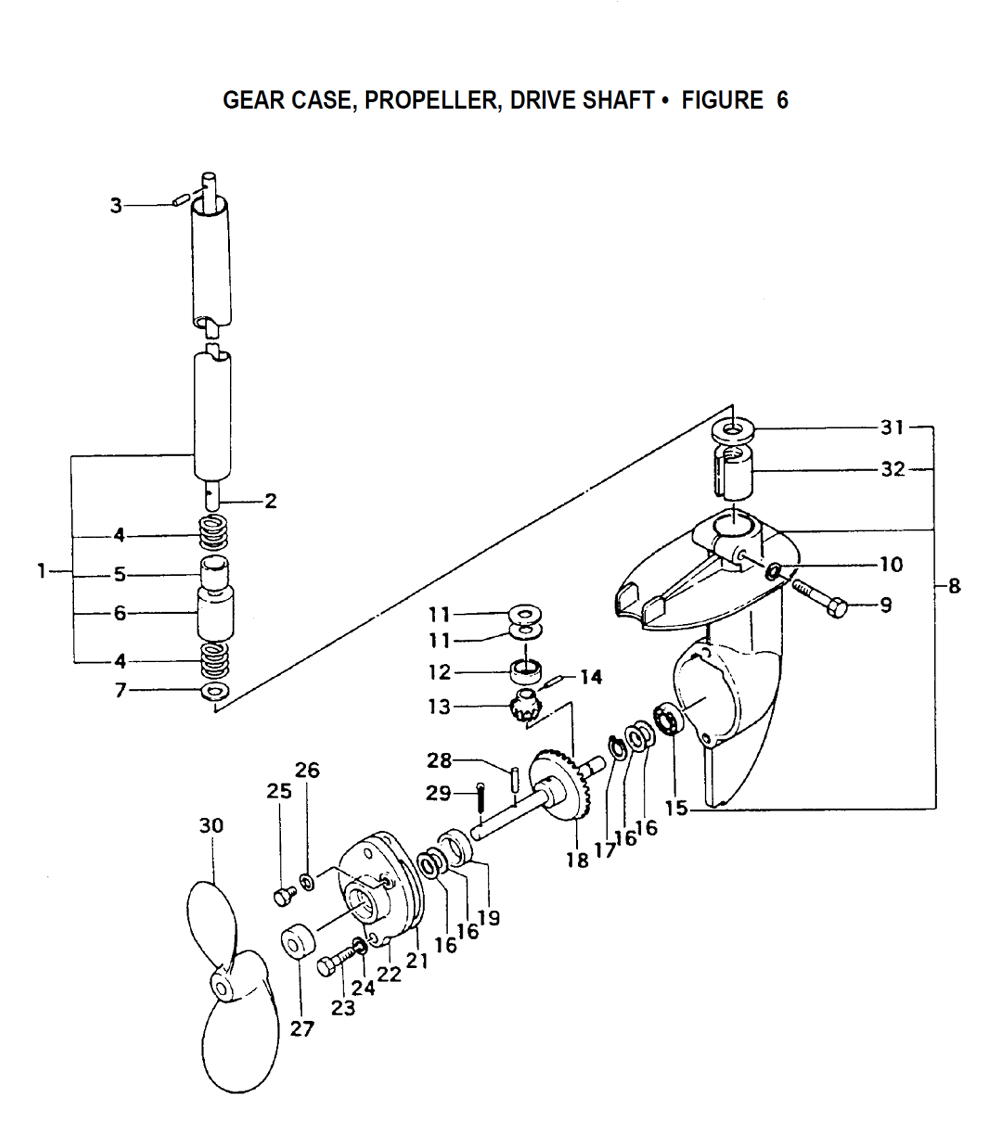

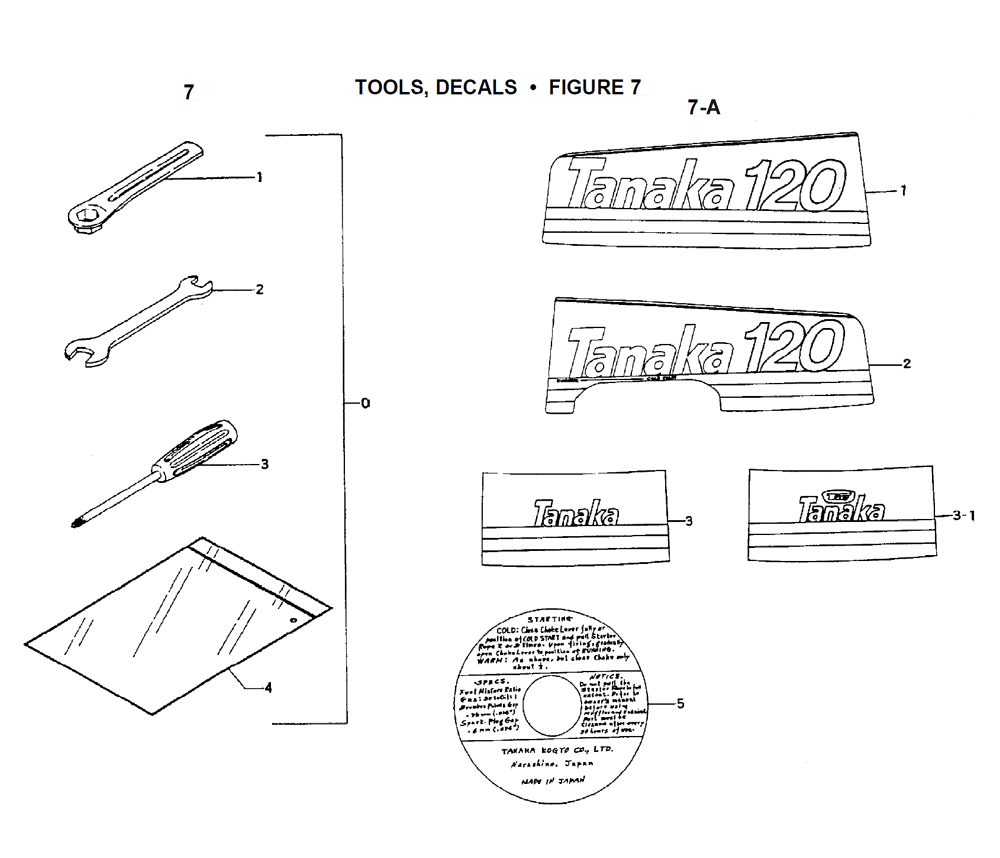

Fig-6

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Tanaka TOB-120 Replacement Parts List

1-2

Cap,spark Plug,assy TBC-225 Part # 6687468

$3.58
Add to Cart
1-2

Cap,spark Plug,assembly Part # 157-01570-900 Currently not available

N/A
1-3

Plug,spark Part # 01801805200 Currently not available

N/A
1-3

Spark Plug CJ8 Ngk BM6A Part # 6685771 Currently not available

N/A
1-4

Cylinder Part # 002-00501-20 Currently not available

N/A
1-4

Cylinder Part # 6685506 Currently not available

N/A
1-5

Gasket,cylinder Part # 017-00501-202 Currently not available

N/A
1-5

Gasket,cylinder Part # 6685707 Currently not available

N/A
1-7

Ring,piston Part # 6686116 Currently not available

N/A
1-7

Ring, Piston Part # 041-00000-212 Currently not available

N/A
1-8

Circlip,piston Pin Part # 6685078

$2.52
Add to Cart
1-8

Circlip,piston Pin Part # 039-00000-201 Currently not available

N/A
1-9

Piston Part # 6685917

$23.20
Add to Cart
1-9

Piston Part # 031-00500-200 Currently not available

N/A
1-10

Pin,piston Part # 037-00000-200 Currently not available

N/A
1-10

Pin,piston 9x24 Part # 6686005 Currently not available

N/A
1-11-1

Crank Shaft Comp. Part # 04600501803 Currently not available

N/A
1-11

Crankshaft Part # 046-00557-801 Currently not available

N/A
1-12

KEY,WOODRUFF,3x13x5 Part # 6686457 Currently not available

N/A
1-12

**KEY,WOODRUFF,3X13X5 Part # 06802000200 Currently not available

N/A
1-13

Washer,crankshaft 15X22 Part # 070-02401-201 Currently not available

N/A
1-13

Washer,crankshaft 15X22 Part # 6686463

$2.52
Add to Cart
1-14

BEARING,BALL,#6002 Part # 99961600200 Currently not available

N/A
1-14

BEARING,BALL,#6002 32mm/OD Part # 6695536 Currently not available

N/A
