Tanaka TOB-175 Replacement Parts

Model: TOB-175

Brand: Tanaka

Download Schematics

Buy Tanaka TOB-175 Outboard Motors Parts

Other tools in Tanaka Outboard Motors Parts category

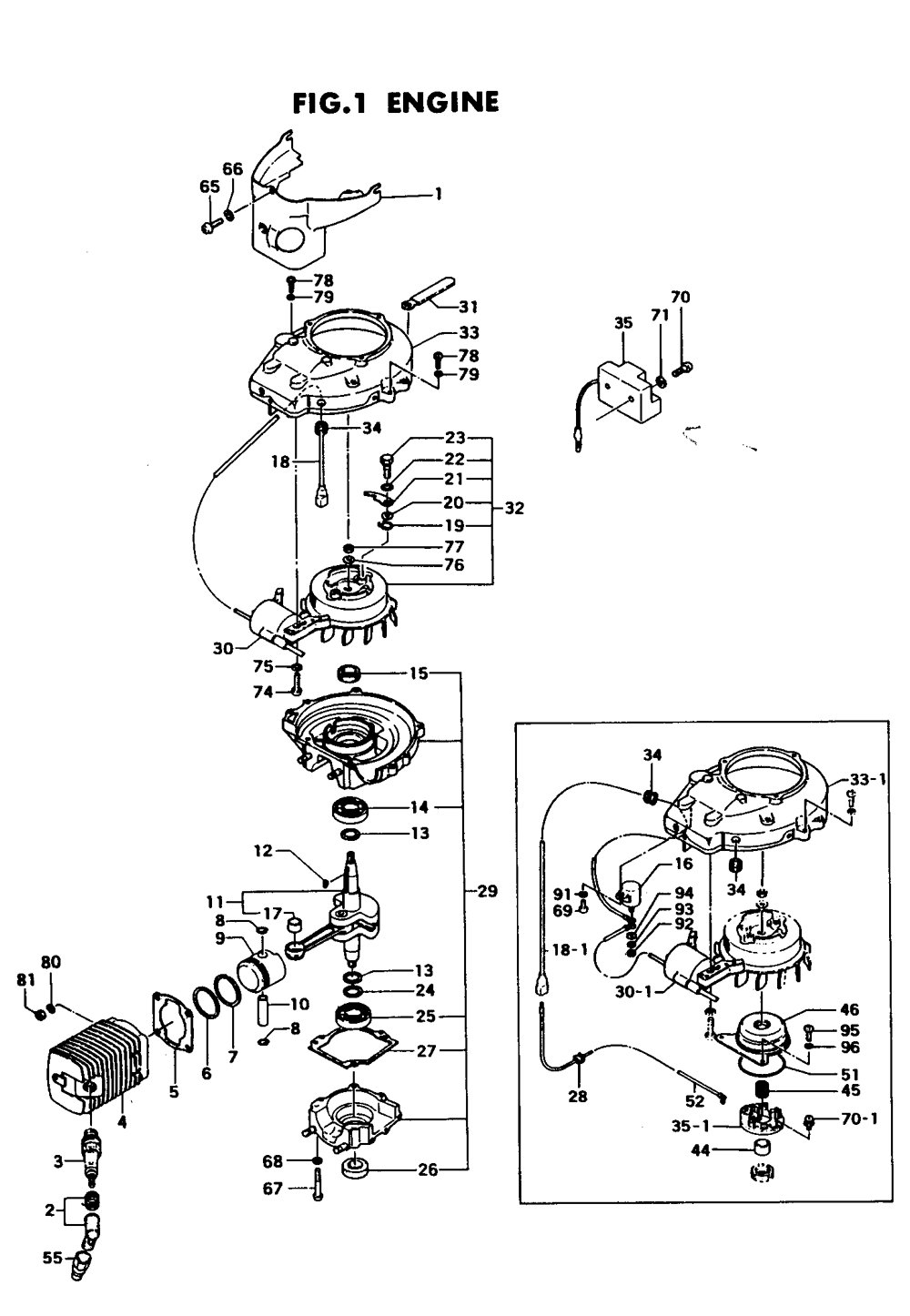

Fig-0

Fig-0

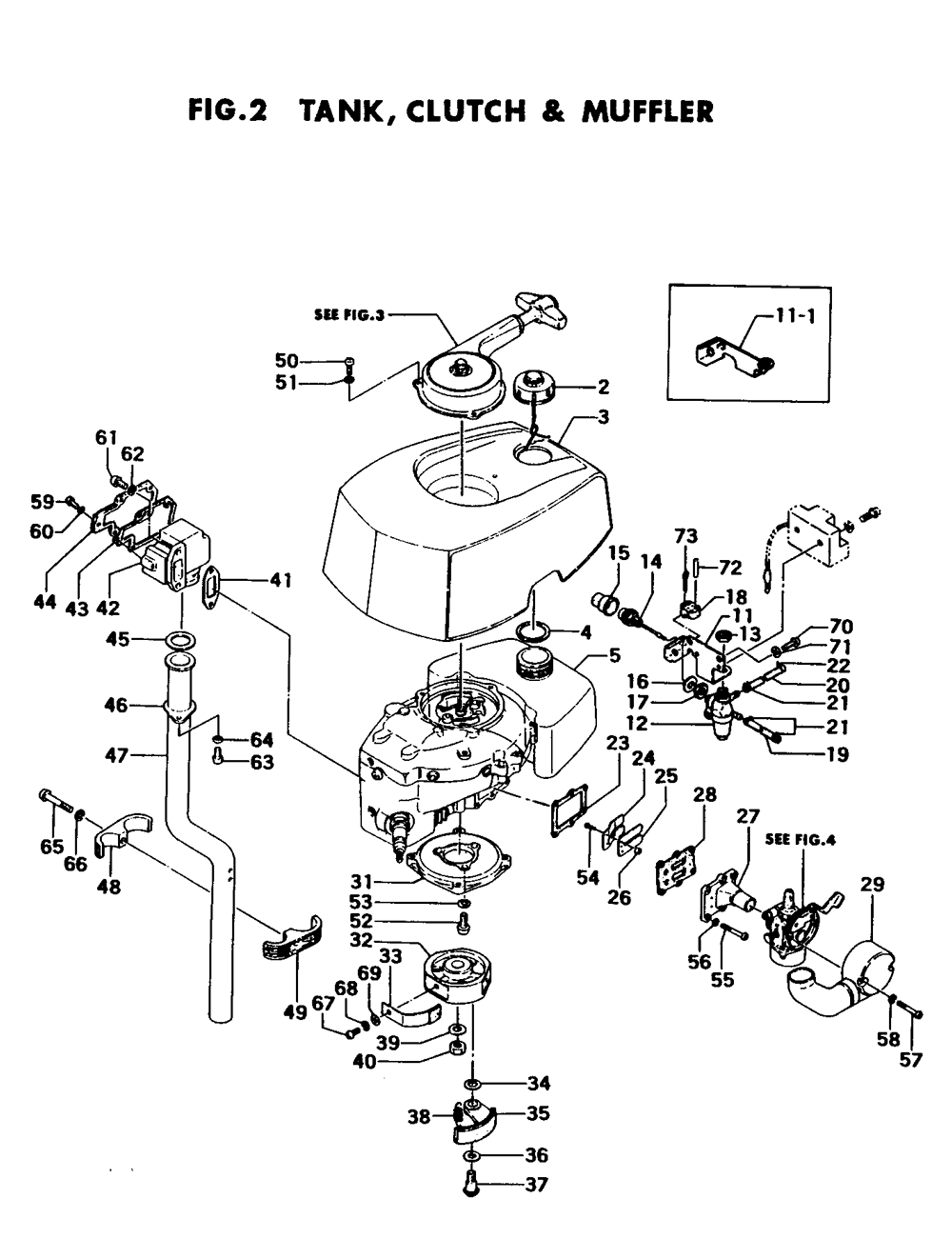

Fig-1

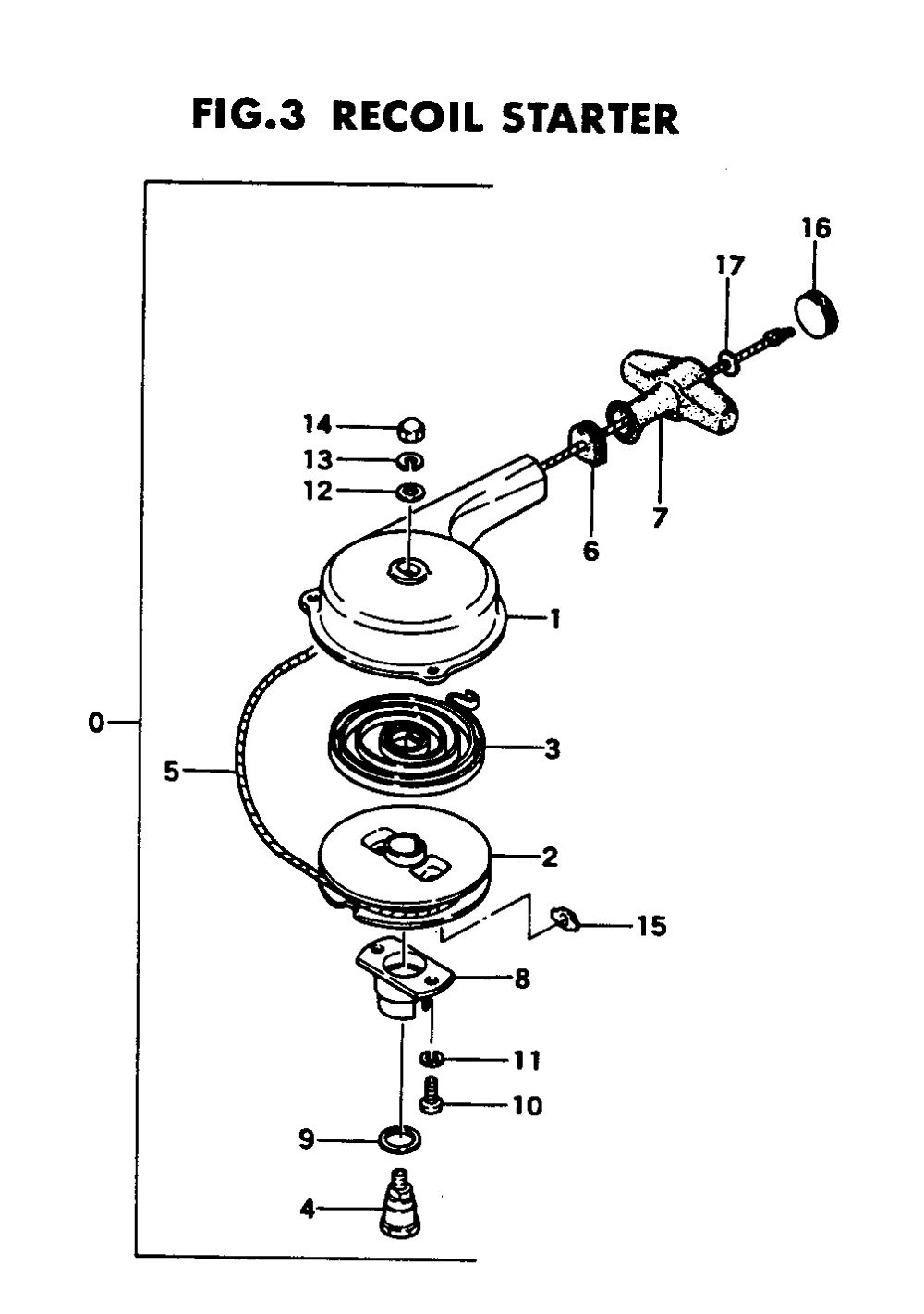

Fig-2

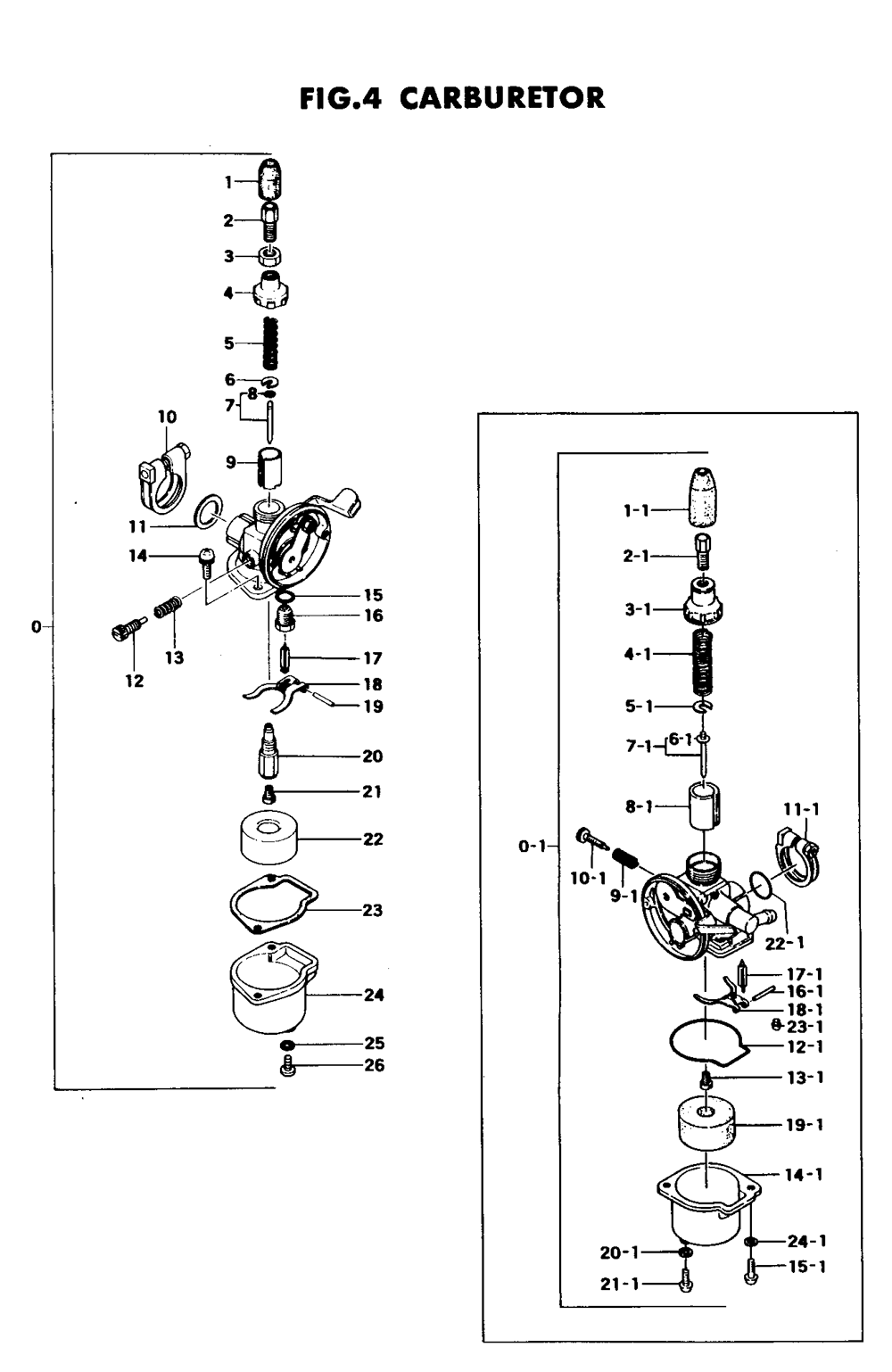

Fig-3

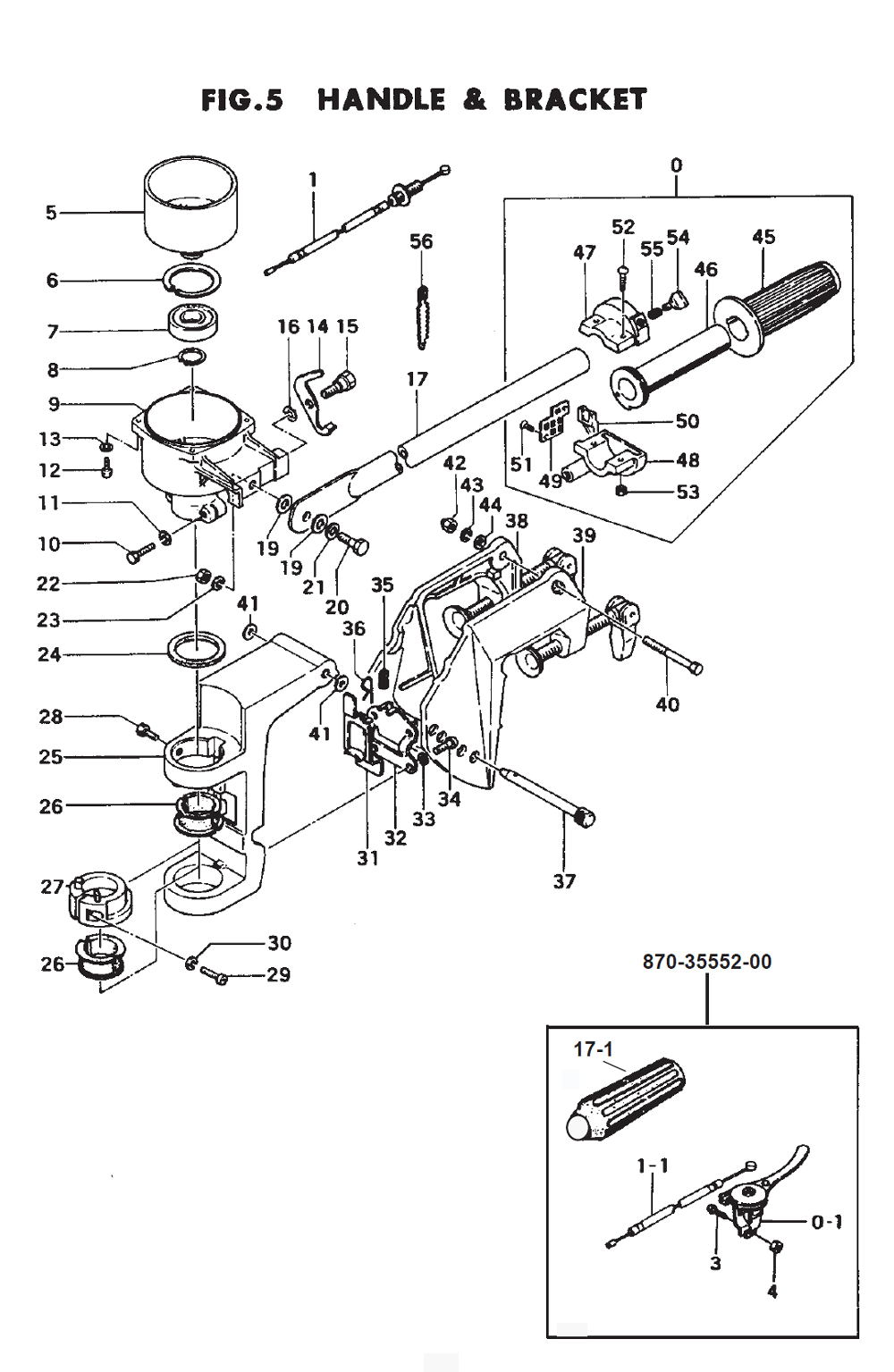

Fig-4

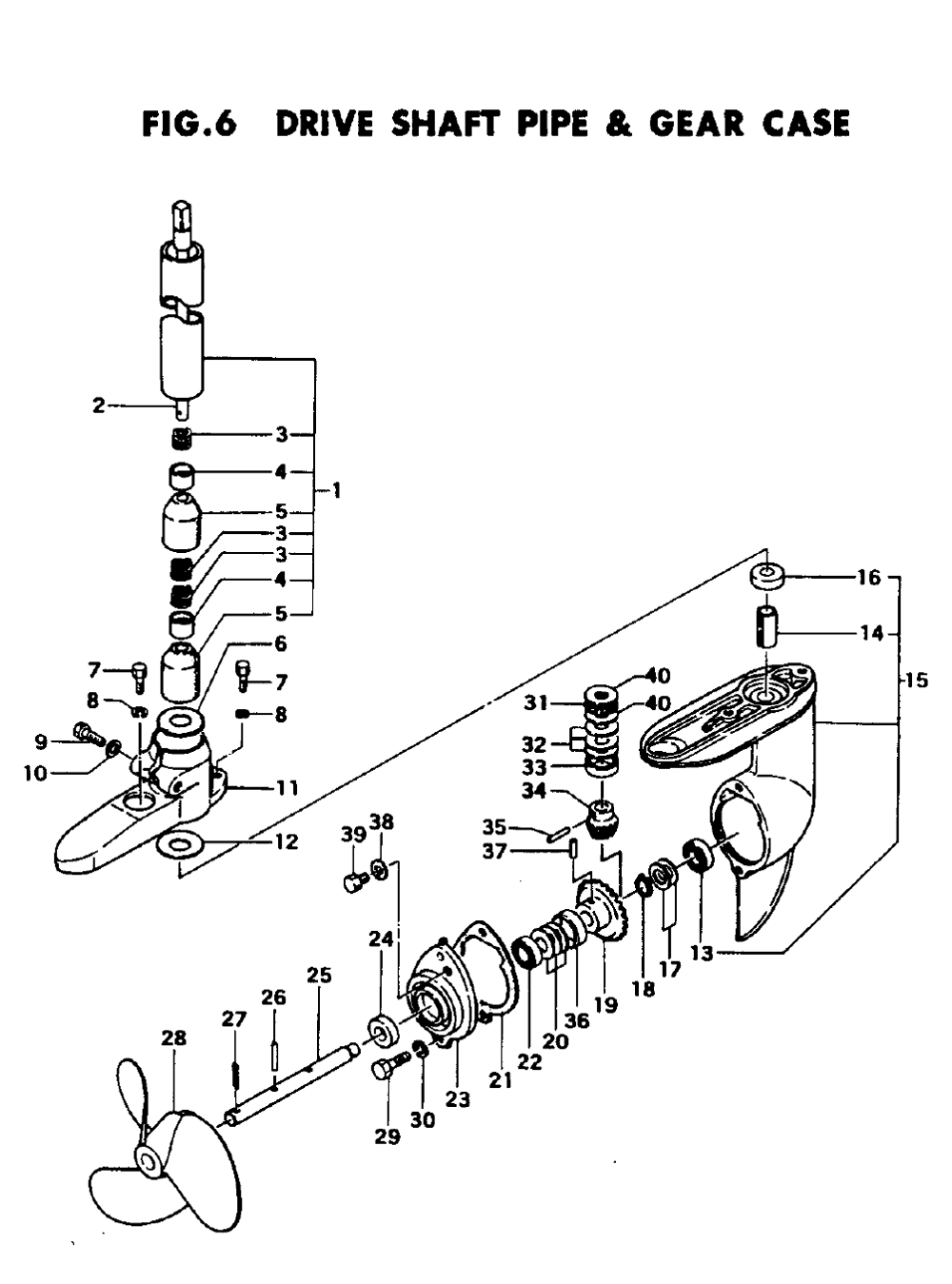

Fig-5

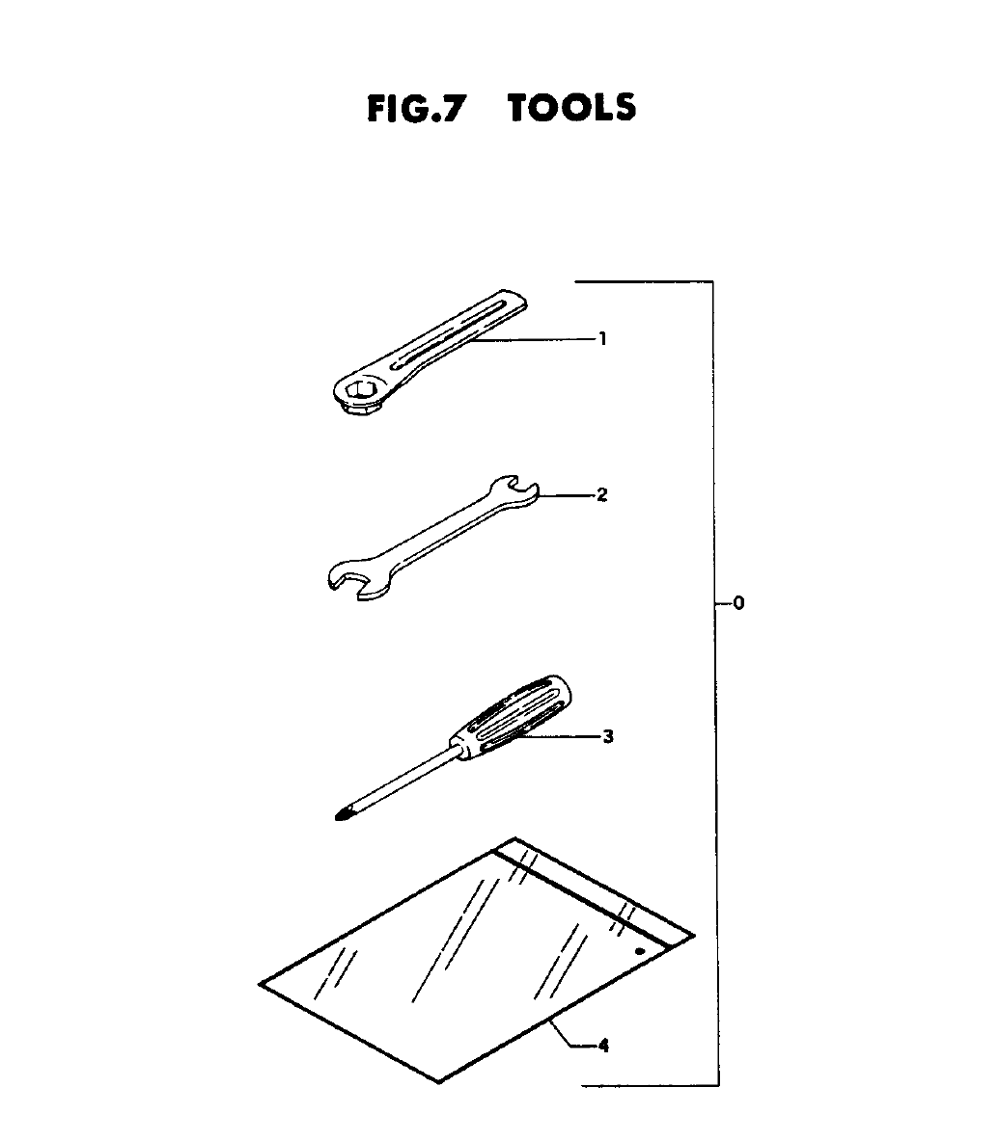

Fig-6

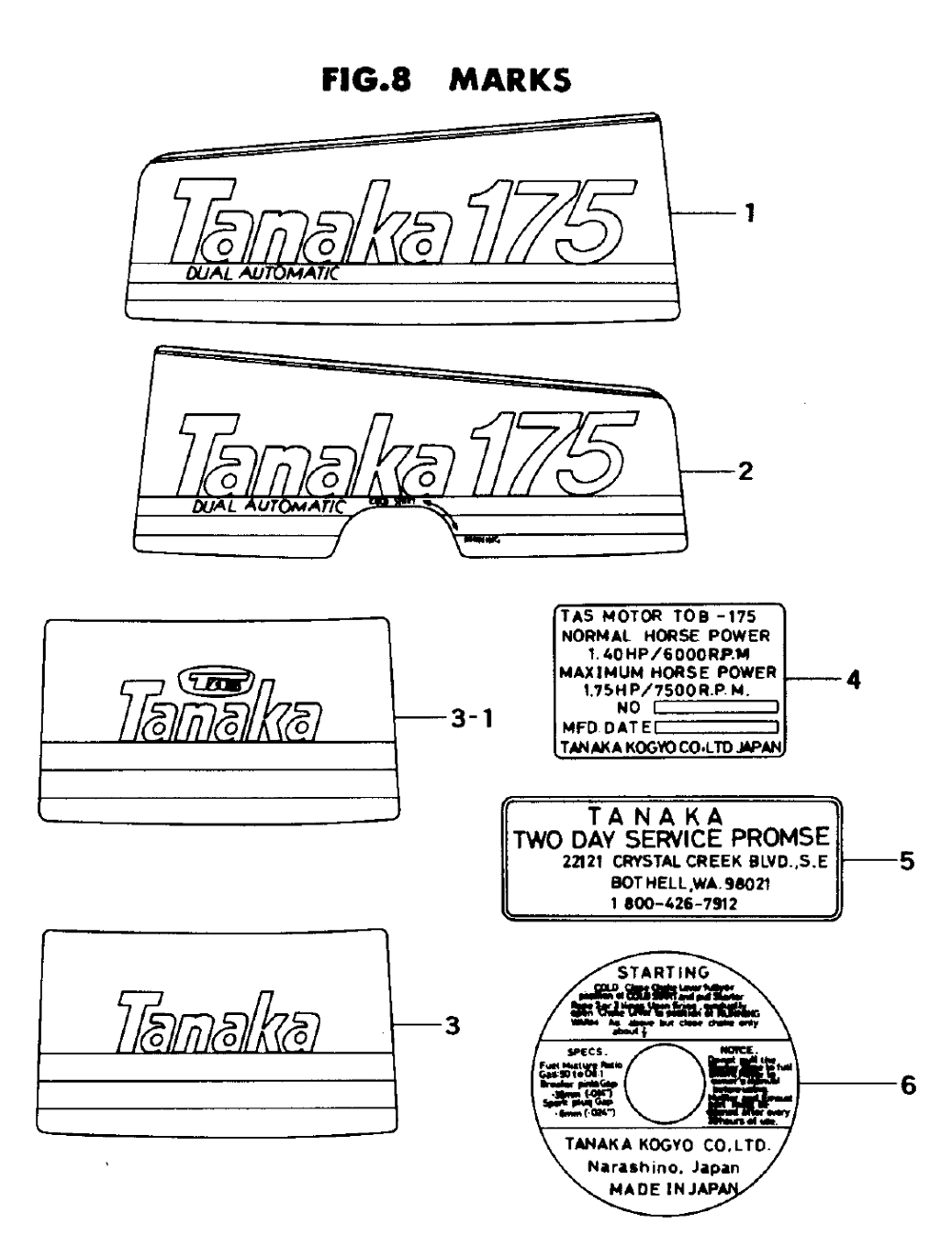

Fig-7

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Tanaka TOB-175 Replacement Parts List

1-1

Cylinder Shroud Part # 01601046200 Currently not available

N/A
1-2

Cap,spark Plug,assy TBC-225 Part # 6687468

$3.58
Add to Cart
1-3

Spark Plug CJ8 Ngk BM6A Part # 6685771 Currently not available

N/A
1-4

Cylinder Comp. Part # 00201046800 Currently not available

N/A
1-5

Gasket,cylinder Part # 6685710 Currently not available

N/A
1-6

Ring,piston Part # 6686050 Currently not available

N/A
1-7

Ring,piston,lower Part # 6686119 Currently not available

N/A
1-8

Circlip,piston Pin Part # 6686026

$2.52
Add to Cart
1-9

Piston Part # 03101000200 Currently not available

N/A
1-10

Pin,piston TBL-4610 Part # 6686007

$3.58
Add to Cart
1-11

Crank Shaft Comp. | ~C190852 Part # 04601003804 Currently not available

N/A
1-11

Crank Shaft Comp. | C190853~ Part # 04601058800 Currently not available

N/A
1-12

KEY,WOODRUFF,3x13x5 Part # 6686457 Currently not available

N/A
1-13

Washer,crankshaft 15X22 Part # 6686463

$2.52
Add to Cart
1-14

BEARING,BALL,#6202 35mm/OD Part # 6695557

$7.50
Add to Cart
1-15

SEAL,OIL,UD15257 Part # 6695637

$5.33
Add to Cart
1-16

Condenser Comp. Part # 17720701801 Currently not available

N/A
1-17

Bearing,needle F1010B TBL-4610 Part # 6695596

$9.21
Add to Cart
1-18.1

Cord,primary Part # 6687782 Currently not available

N/A
1-18

Cord,primary B250M Part # 17301058800 Currently not available

N/A
1-19

Spring,starter Pawl Part # 6693343 Currently not available

N/A
1-20

WASHER,5 Part # 6684661

$2.52
Add to Cart
1-21

Pawl,starter Part # 6693297

$2.52
Add to Cart
1-22

SHIM,7X11.8X.60 Part # 6693562

$2.52
Add to Cart
