Tanaka TOB-25 Replacement Parts

Model: TOB-25

Brand: Tanaka

Download Schematics

Buy Tanaka TOB-25 Outboard Motors Parts

Other tools in Tanaka Outboard Motors Parts category

Fig-0

Fig-0

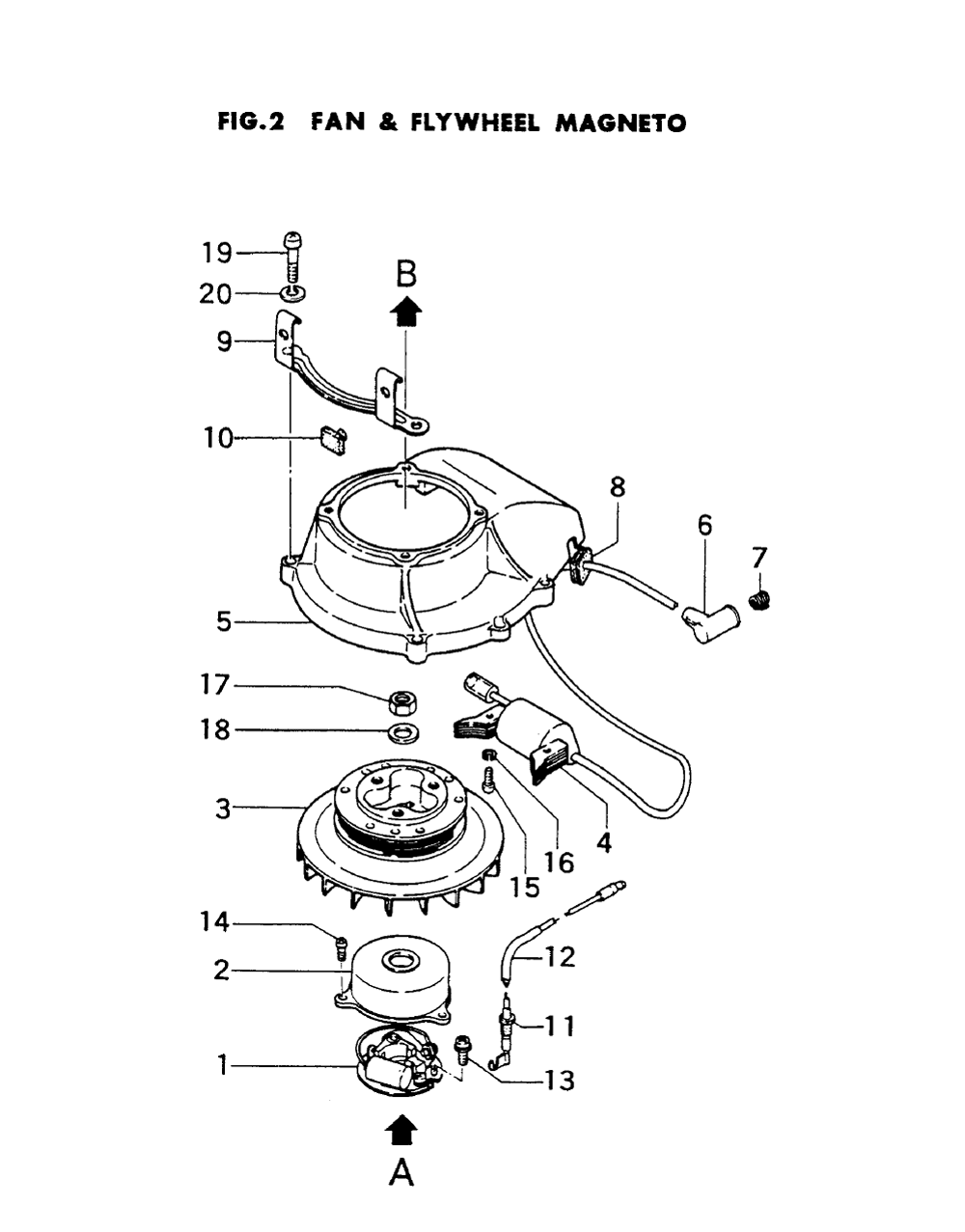

Fig-1

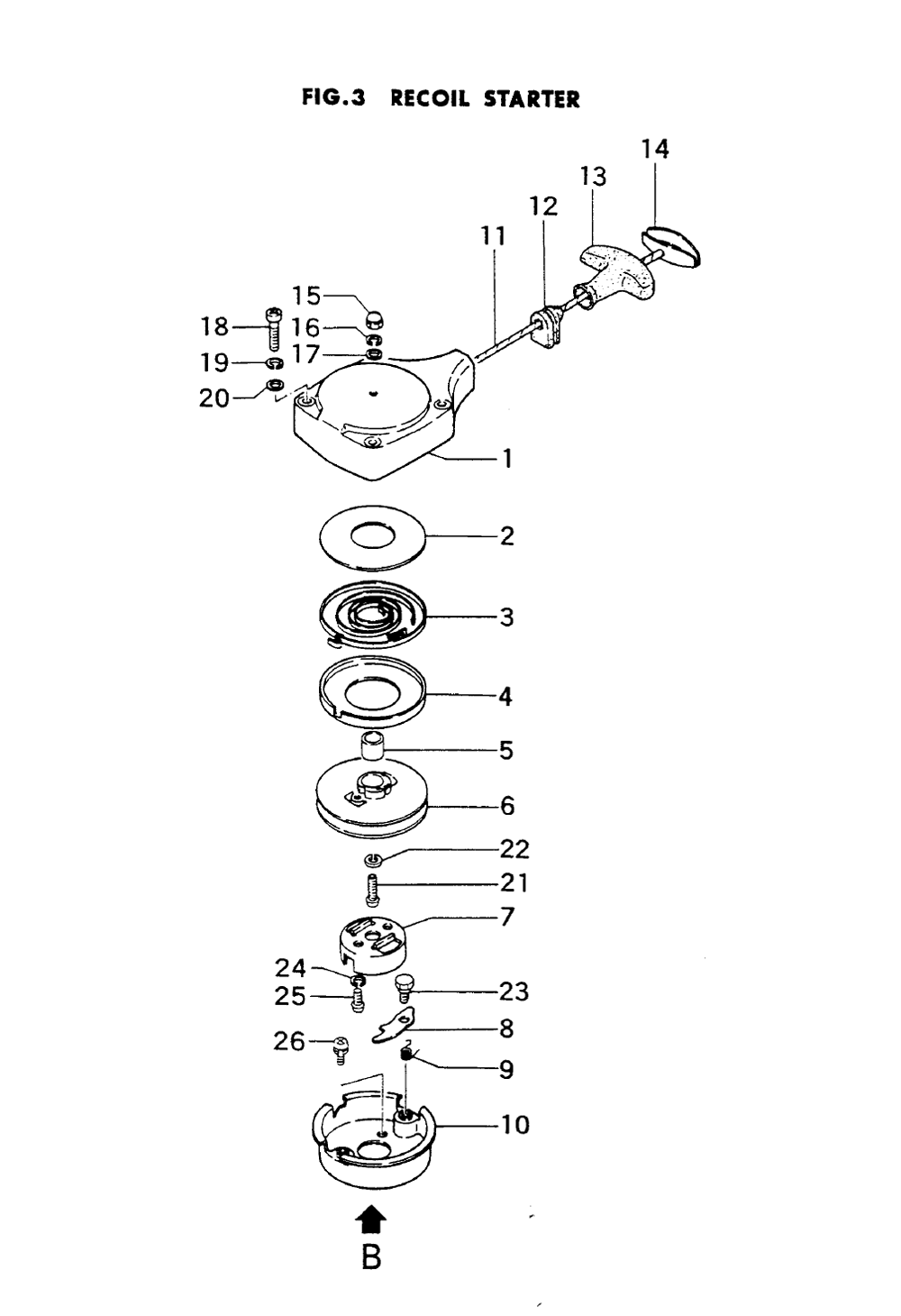

Fig-2

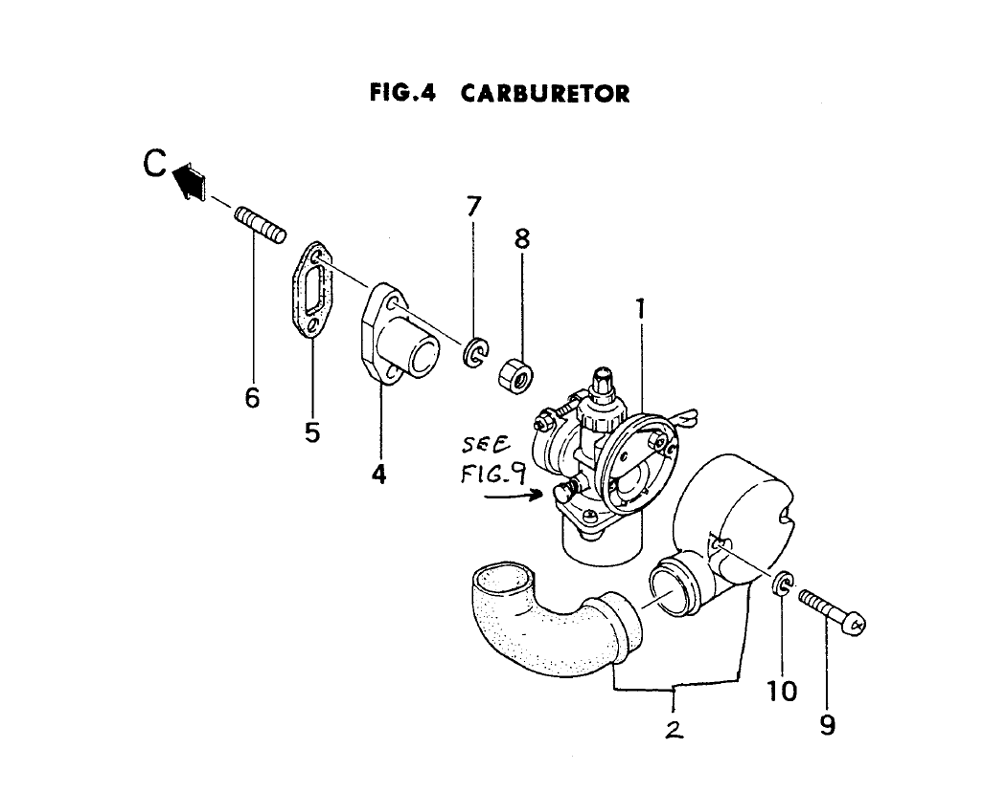

Fig-3

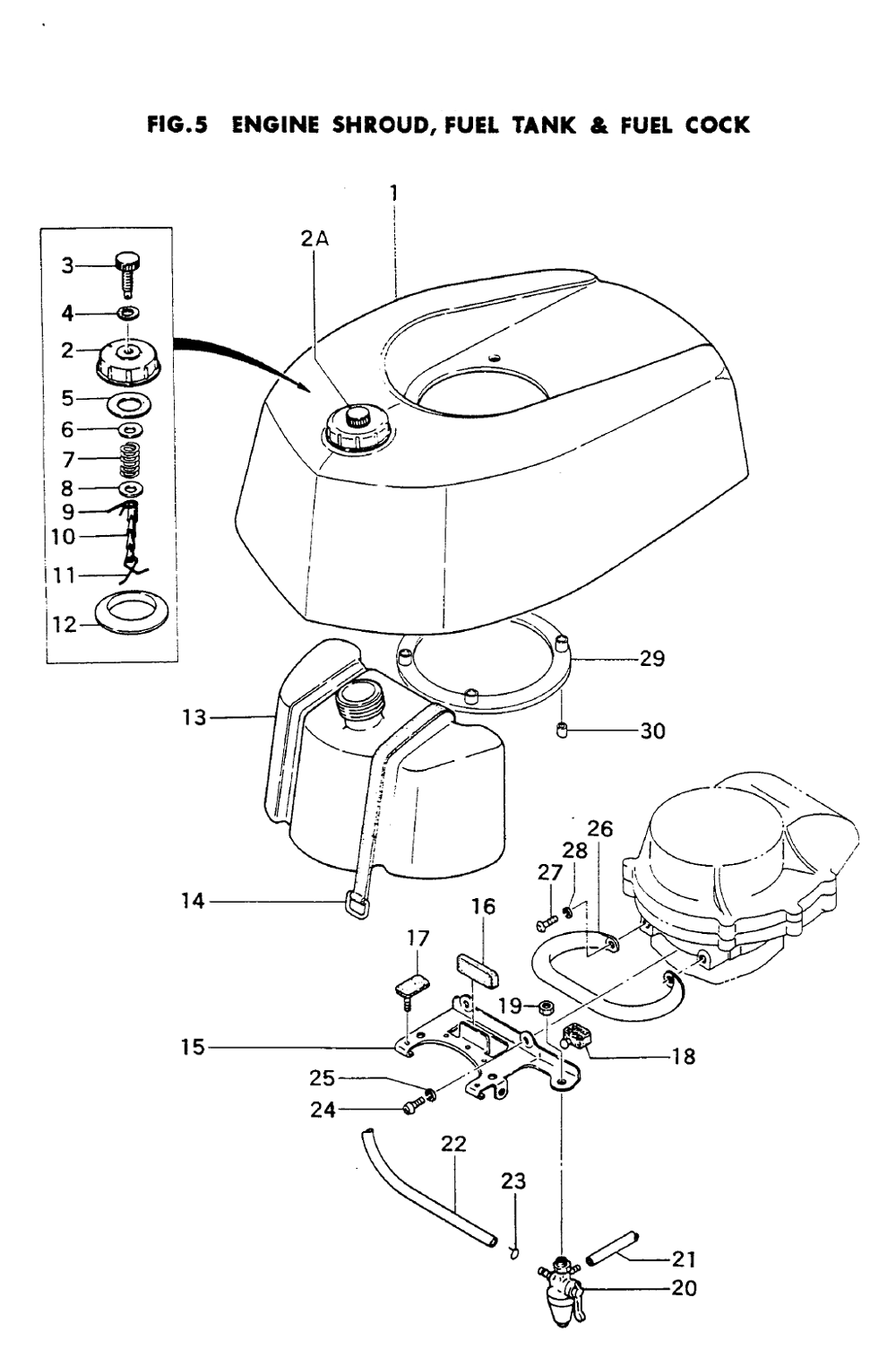

Fig-4

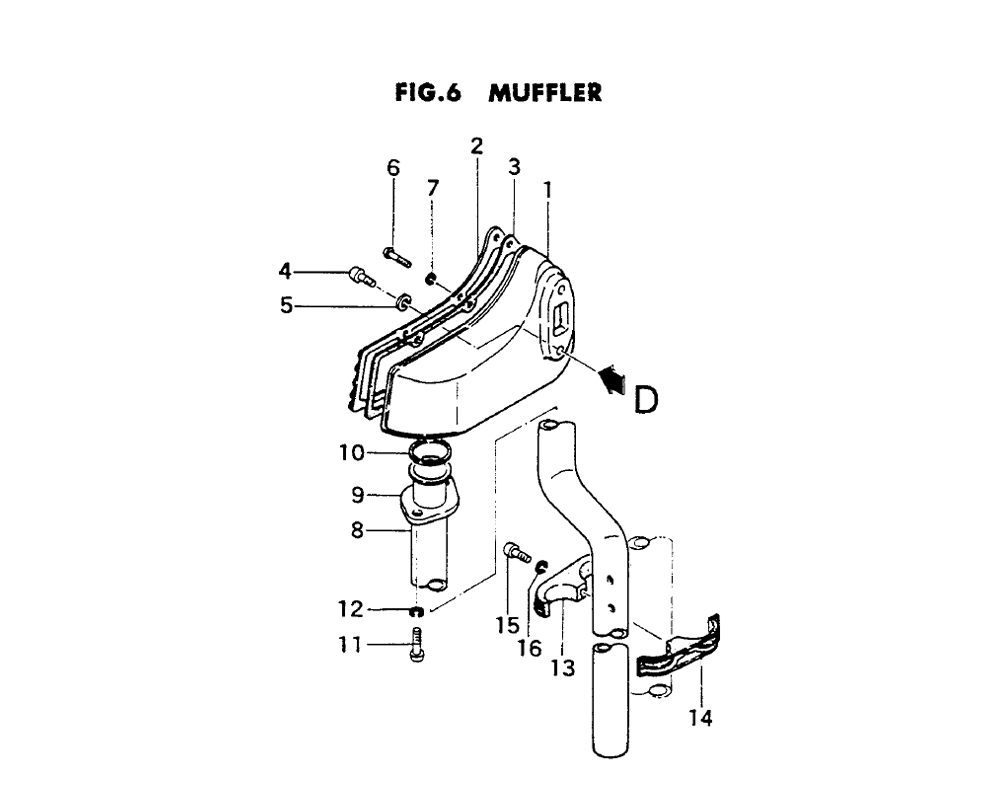

Fig-5

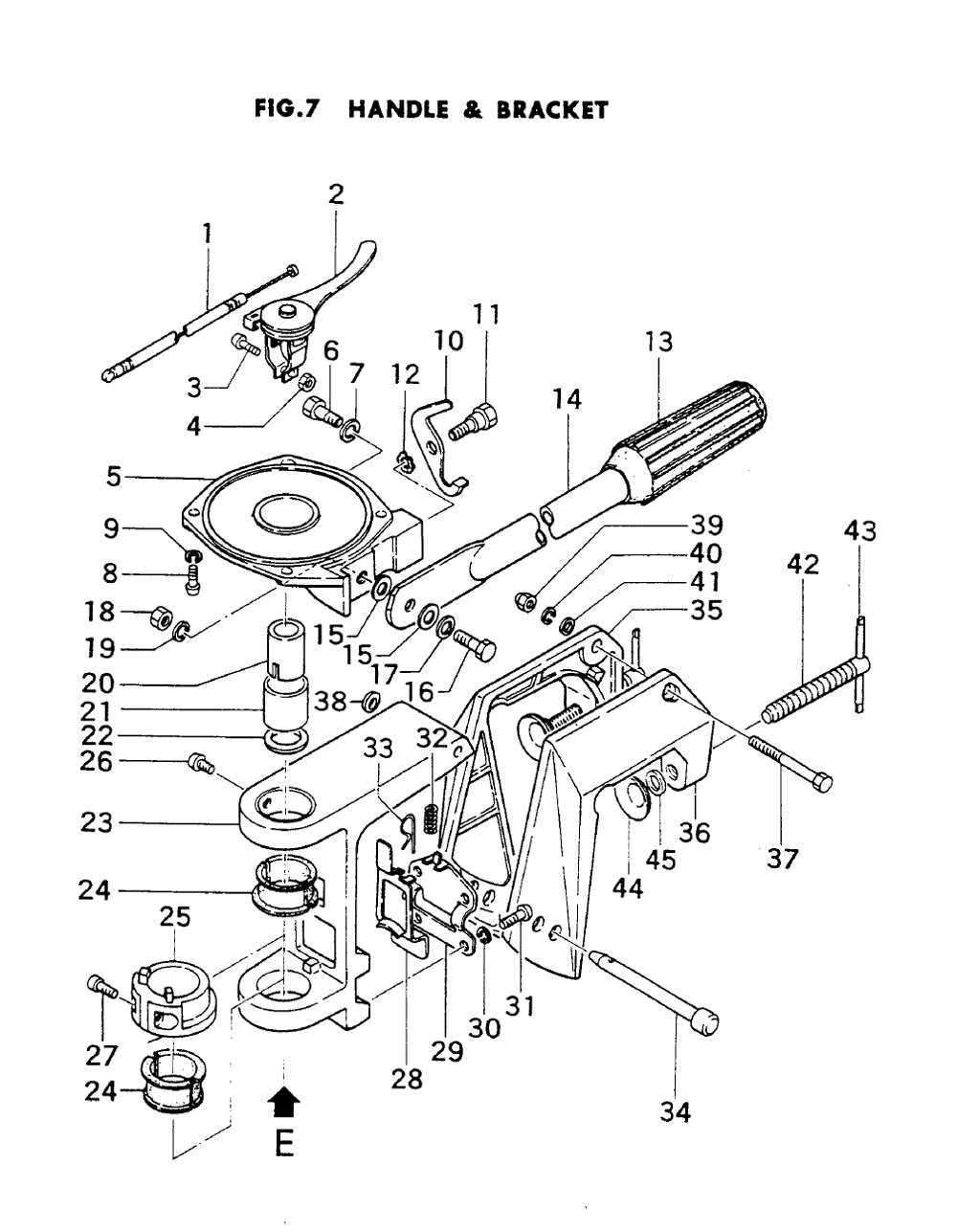

Fig-6

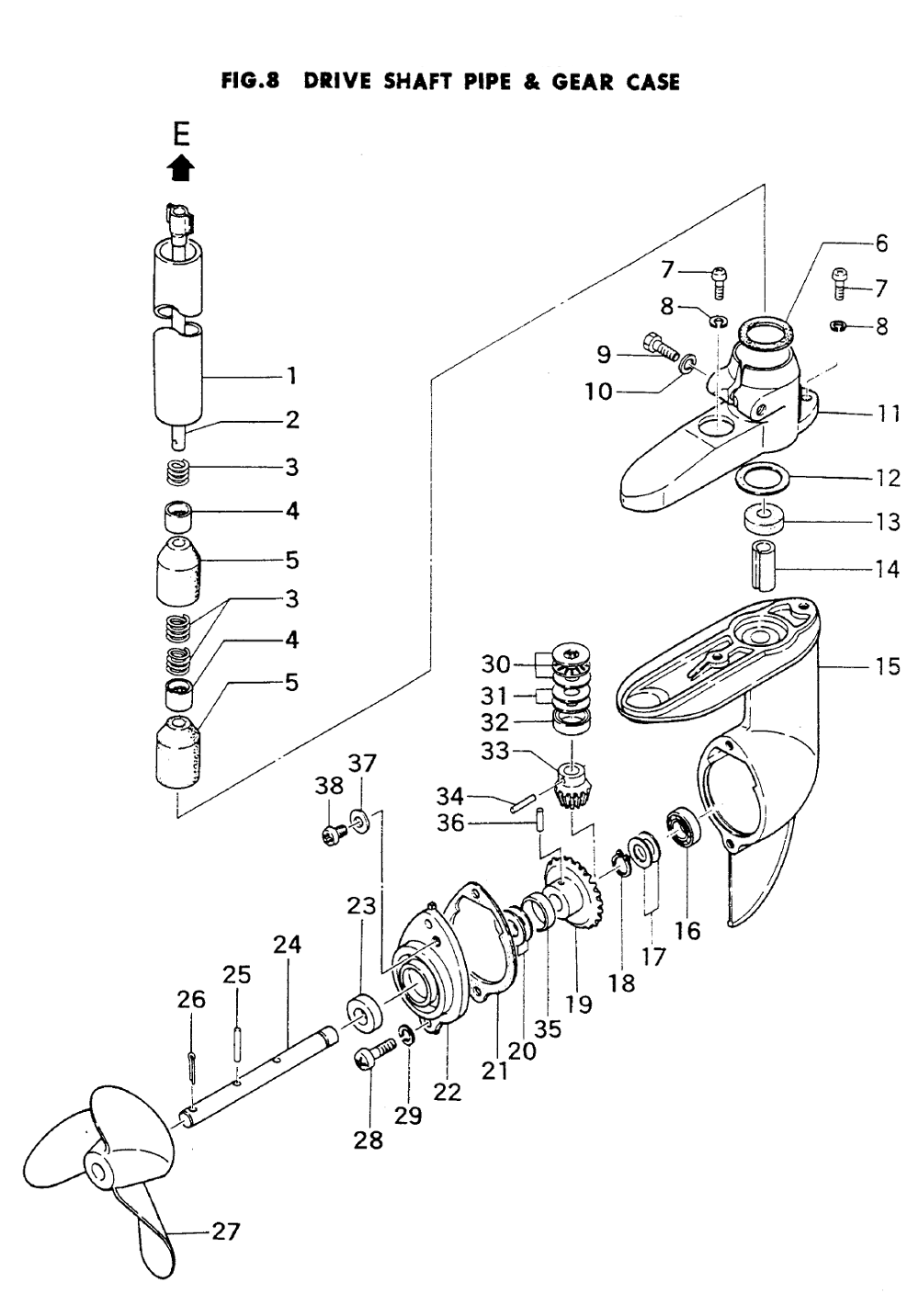

Fig-7

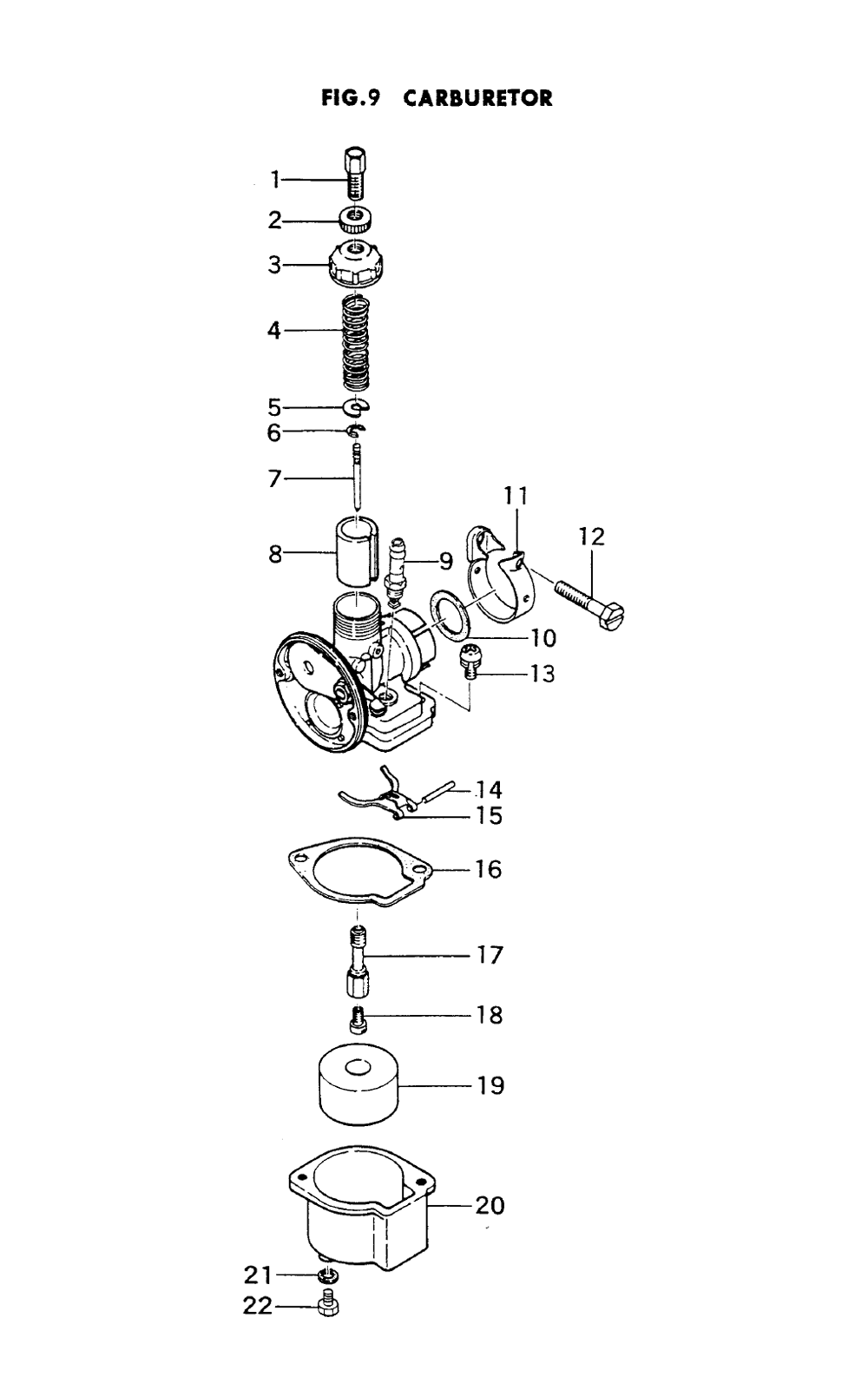

Fig-8

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

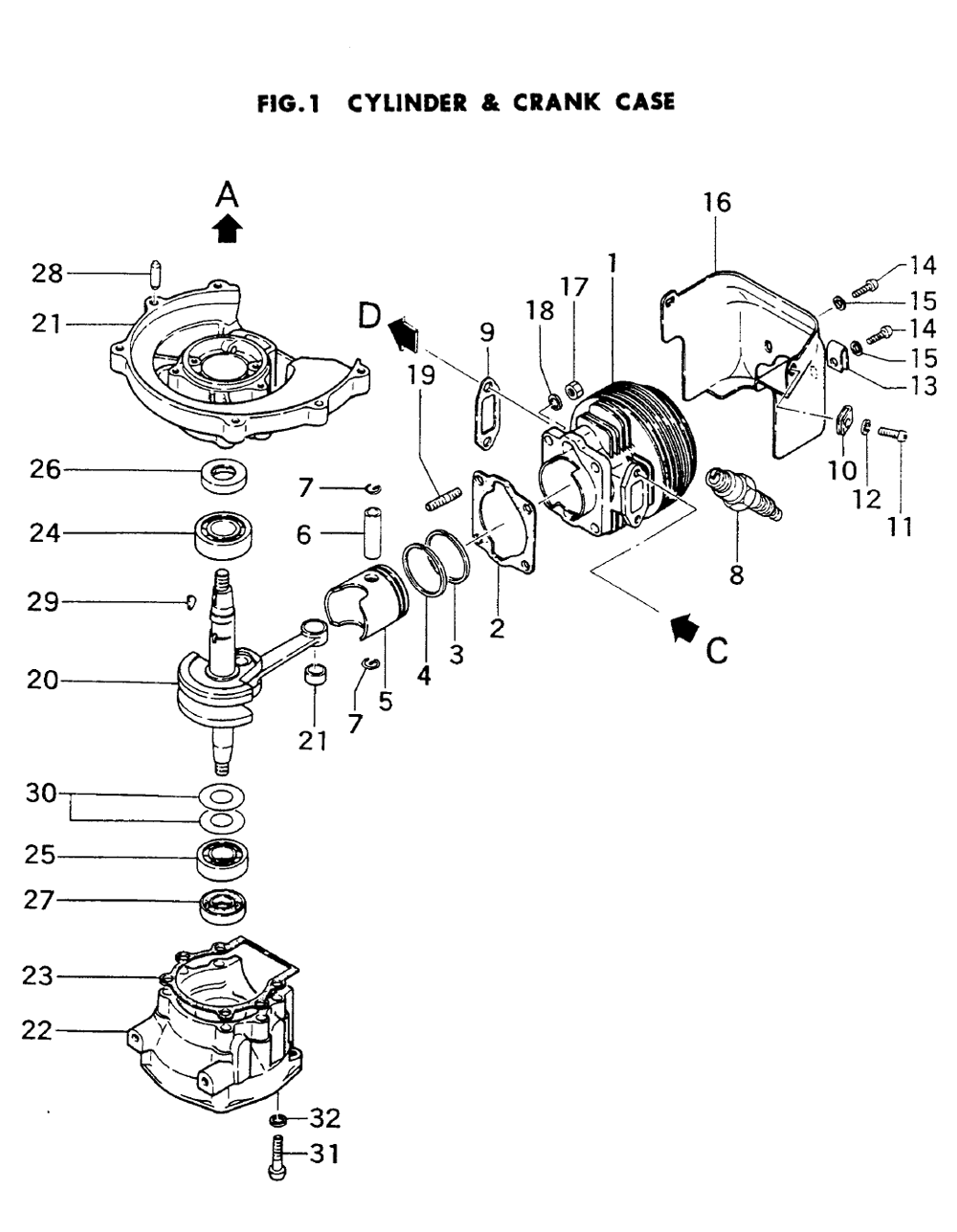

Tanaka TOB-25 Replacement Parts List

1-1

Cylinder Comp. Part # 00210200803 Currently not available

N/A
1-2

Gasket,cylinder Part # 6685752 Currently not available

N/A
1-3

Ring,piston,top Part # 6686051 Currently not available

N/A
1-4

Ring,piston Part # 6686133 Currently not available

N/A
1-5

Piston Part # 6695859 Currently not available

N/A
1-6

PIN,PISTON,10x35 Part # 6686019

$3.58
Add to Cart
1-7

Circlip,piston Pin Part # 6686029

$2.52
Add to Cart
1-8

Replaced by 669-9322 - Plug,spark CJ6 CG22EAB/D/S Part # 6685052 Currently not available

N/A
1-8

Spark Plug Ass'y CJ6 Part # 6699322 Currently not available

N/A
1-9

Gasket,muffler Part # 6692746

$2.52
Add to Cart
1-10

Clamp,cord Part # 6687997 Currently not available

N/A
1-11

SCREW,4X18 Part # 6694871 Currently not available

N/A
1-12

WASHER,S.4 Part # 6695213 Currently not available

N/A
1-13

Clamp,cord Part # 6688009 Currently not available

N/A
1-14

SCREW,5X10 Part # 6694884 Currently not available

N/A
1-15

WASHER,5 Part # 6695191 Currently not available

N/A
1-16

Cover,cylinder Part # 01610205210 Currently not available

N/A
1-17

NUT,6 Part # 6695125 Currently not available

N/A
1-18

WASHER,S,6 Part # 6695221 Currently not available

N/A
1-19

STUD,6X26 Part # 6686778 Currently not available

N/A
1-20

Crank Shaft Comp. Part # 04610201800 Currently not available

N/A
1-21

6 Nut | Part Is Obsolete. Part # 000000 Currently not available

N/A
1-22

6 Nut | Part Is Obsolete. Part # 000000 Currently not available

N/A
1-23

Gasket,crankcase Part # 6686727

$2.52
Add to Cart
