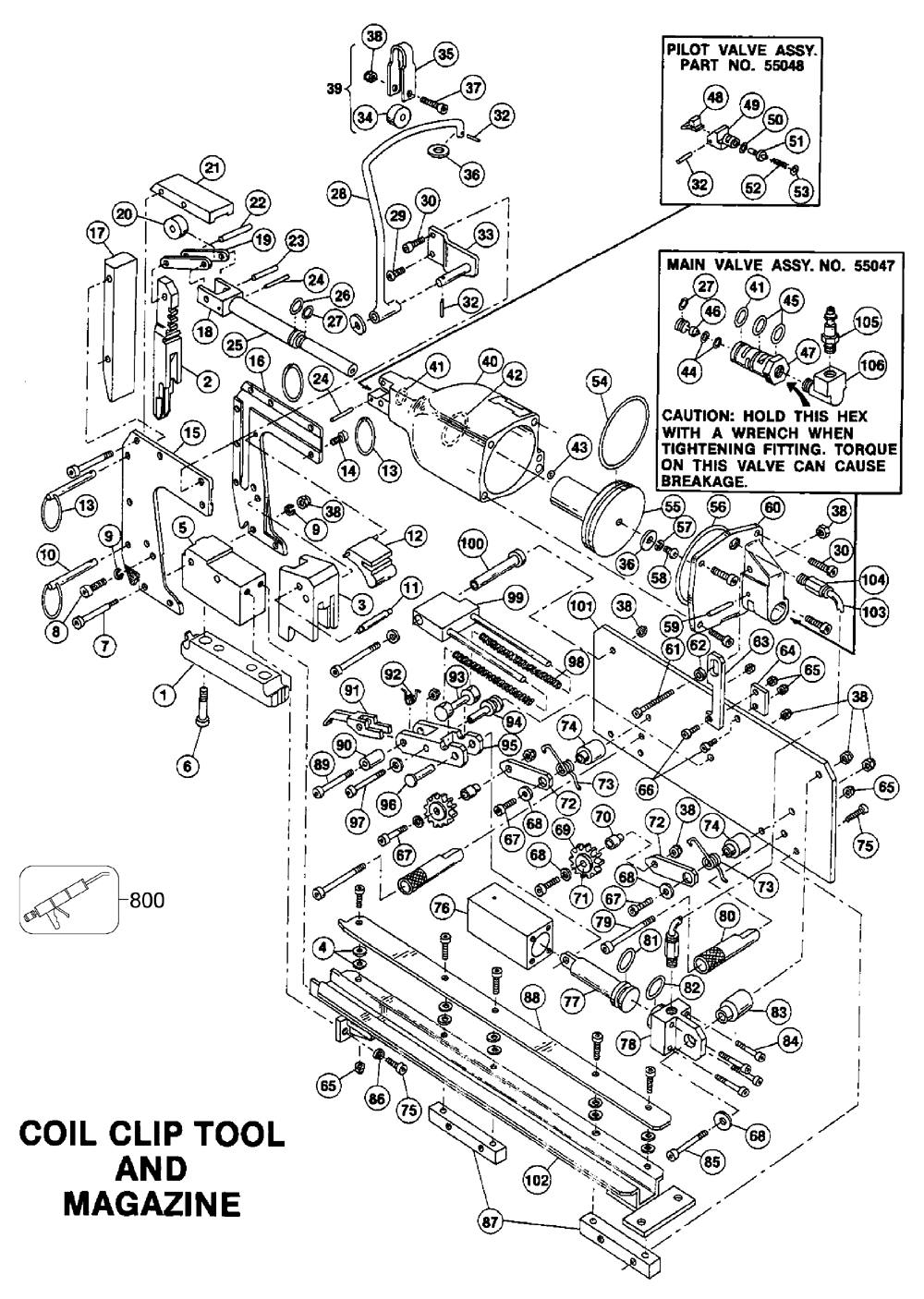

Bostitch HR-49 Replacement Parts List

1

Anvil Part # HR-55997 Currently not available

N/A
2

Blade Part # HR-55239 Currently not available

N/A
3

Blade Guide (CL-14 & Part # HR-55232 Currently not available

N/A
4

Washer- Lock #10 Part # HR-15033 Currently not available

N/A
5

Anvil Holder Part # HR-56271 Currently not available

N/A
6

Bhcs 5/16-24 X 1 Part # HR-15327 Currently not available

N/A
7

Stud-shoulder Bolt Part # HR-55056 Currently not available

N/A
8

Shcs 1/4-20 X 5/8 Part # HR-15028 Currently not available

N/A
9

Washer- Lock 1/4 Id Part # HR-15031 Currently not available

N/A
10

Pin-front Plate Part # HR-55970 Currently not available

N/A
11

Pin - Side Plate Part # HR-55002 Currently not available

N/A
12

Trigger Complete Part # HR-55012 Currently not available

N/A
13

Ring Part # HR-15328 Currently not available

N/A
14

Bhcs 1/4-20 X 1/2 Part # HR-15061 Currently not available

N/A
15

Side Plate- L.h. Part # HR-55004 Currently not available

N/A
16

Side Plate- R.h. Part # HR-55003 Currently not available

N/A
18

Yoke - Piston Rod Part # HR-55017 Currently not available

N/A
19

Link Part # HR-55008 Currently not available

N/A
20

Roller Part # HR-55103 Currently not available

N/A
22

Pin- Dowel 5/16 X 1 Part # HR-55009 Currently not available

N/A
23

Piston Pin - Roller Part # HR-55018 Currently not available

N/A
24

Pin- Dowel 1/8 X 7/8 Part # HR-15004 Currently not available

N/A
25

Piston Rod W/ O-ring Part # HR-55019 Currently not available

N/A
26

O-ring Part # HR-15054 Currently not available

N/A
