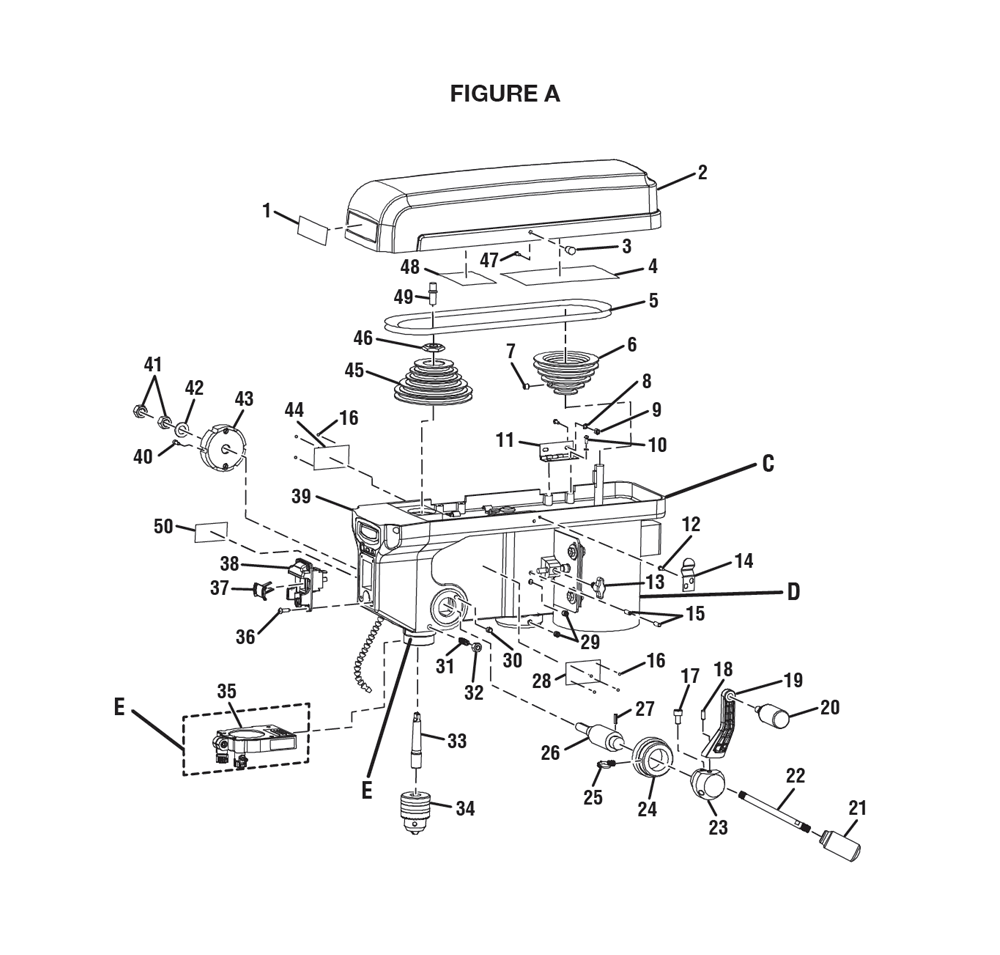

Fig-0

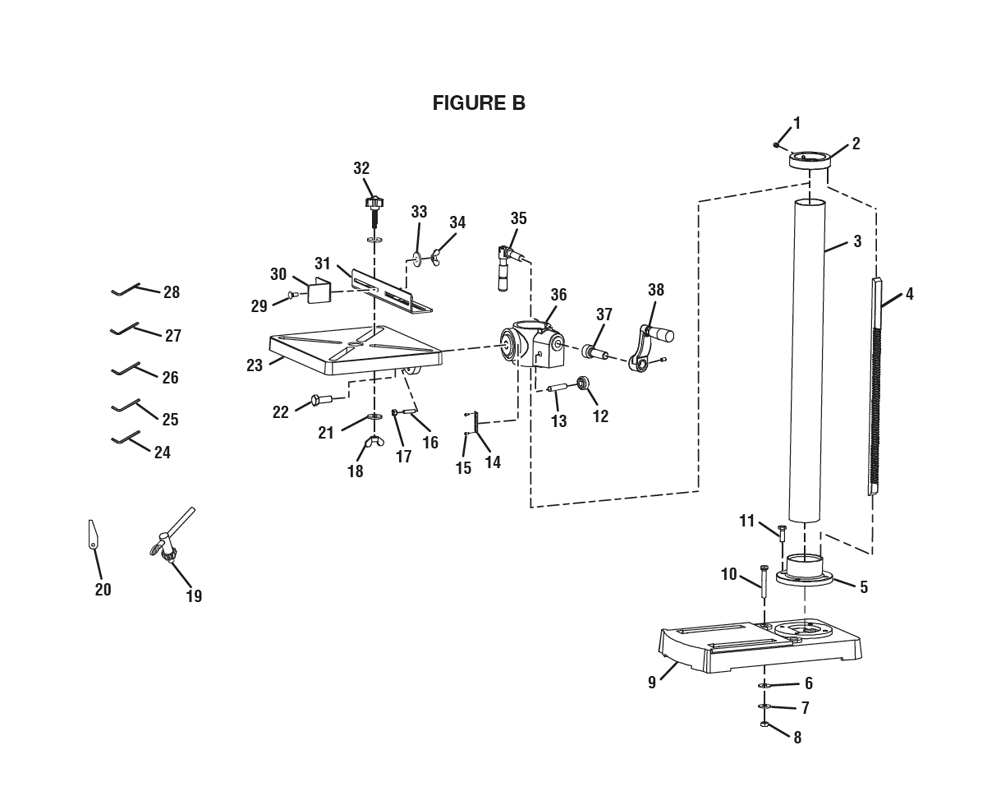

Fig-1

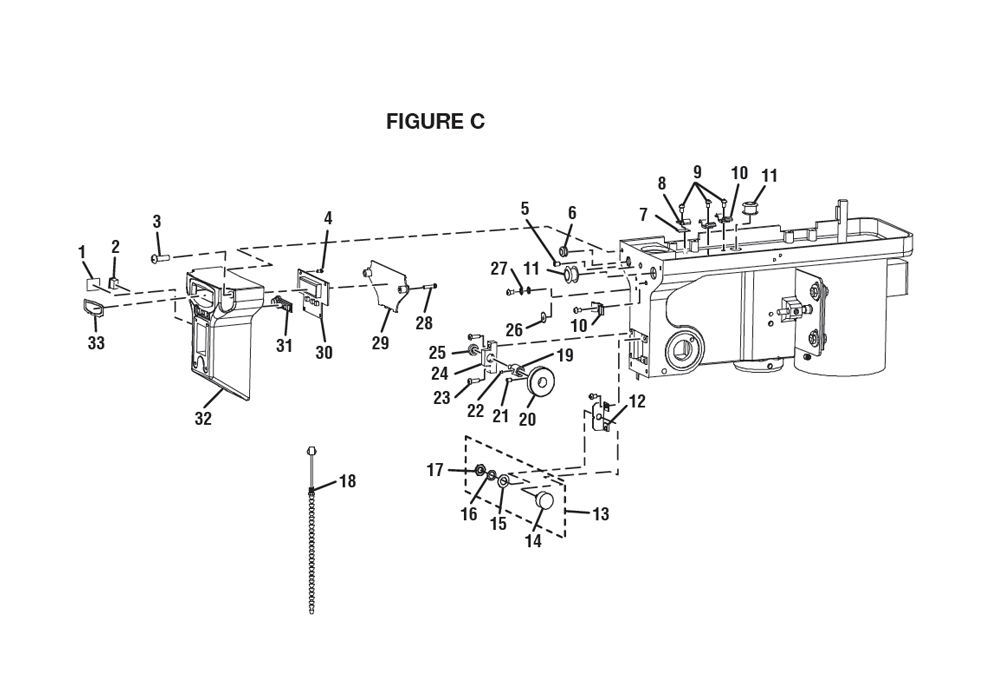

Fig-2

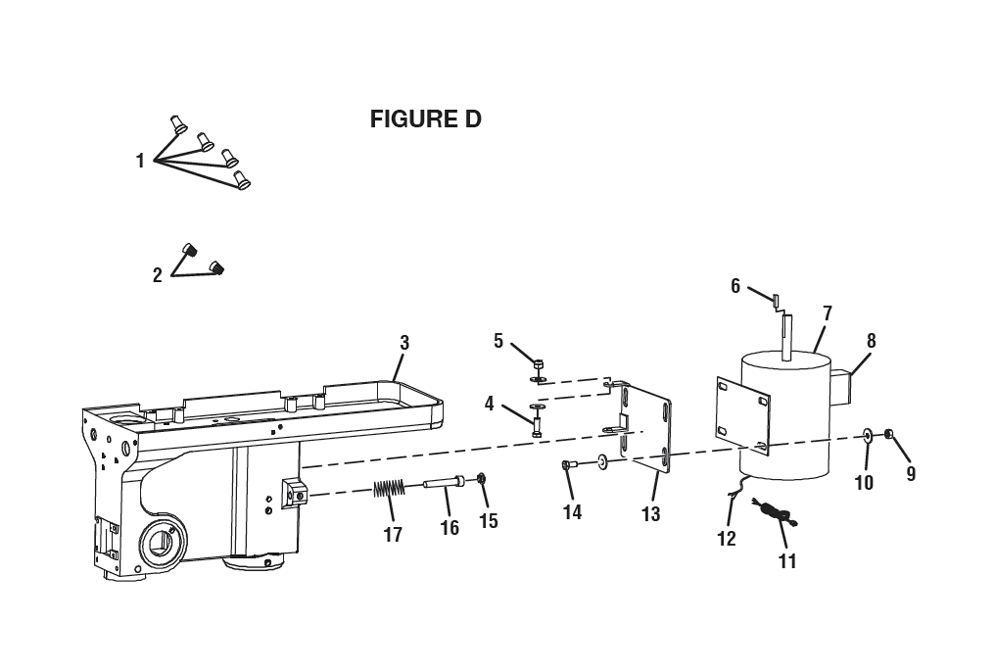

Fig-3

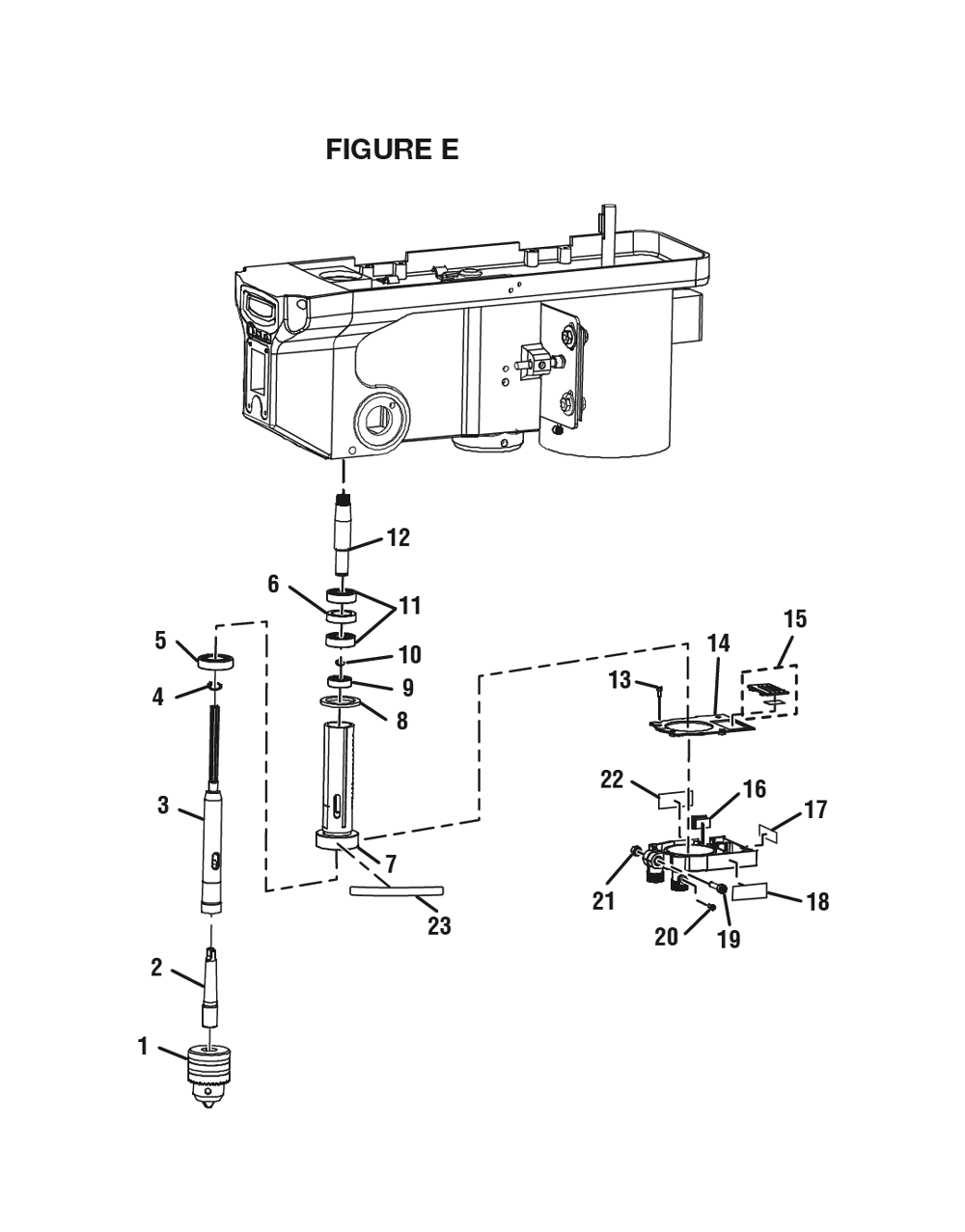

Fig-4

Reference Filter: Filter parts list by name or model number:

Ridgid 31521914 Replacement Parts List

A-1

Logo Label Part # 089140301146 Currently not available

N/A
A-2

Cover Part # 089140301001 Currently not available

N/A
A-3

Cover Button Part # 089140301002 Currently not available

N/A
A-4

Speed Label Part # 089140301145 Currently not available

N/A
A-5

Drive Belt Part # 089140301004 Currently not available

N/A
A-6

Motor Pulley Part # 089140301005 Currently not available

N/A
A-7

Set Screw (M6 X 10 Mm) Part # 089140301012 Currently not available

N/A
A-8

External Lock Washer Part # 089140301010 Currently not available

N/A
A-9

Hex Nut (M4) Part # 089140301009 Currently not available

N/A
A-10

Screw (M4 X 10 Mm, Pan Hd) Part # 089140301008 Currently not available

N/A
A-11

Cover Hinge Part # 089140301011 Currently not available

N/A
A-12

Screw (M4 X 6 Mm, Pan Hd) Part # 089140301106 Currently not available

N/A
A-13

Tension Knob Part # 089140301102 Currently not available

N/A
A-14

Cover Latch Part # 089140301107 Currently not available

N/A
A-15

Roll Pin (D6 X 16 Mm) Part # 089140301101 Currently not available

N/A
A-16

Rivets Part # 089140301168 Currently not available

N/A
A-17

Screw (M8 X 15 Mm, Hex Socket Cap Hd) Part # 089140301098 Currently not available

N/A
A-18

Pin (D6 X 12 Mm) Part # 089140301097 Currently not available

N/A
A-19

Feed Crank Part # 089140301096 Currently not available

N/A
A-20

Knob Assembly Part # 089140301095 Currently not available

N/A
A-21

Knob Part # 089140301089 Currently not available

N/A
A-22

Feed Handle Part # 089140301088 Currently not available

N/A
A-23

Hub Part # 089140301094 Currently not available

N/A
A-24

Depth Gauge Part # 089140301087 Currently not available

N/A

Ridgid 31521914 Replacement Parts
