Tanaka TBC-4501 Replacement Parts

Model: TBC-4501

Brand: Tanaka

Download Schematics

Buy Tanaka TBC-4501 Trimmers & Brush Cutters Parts

Other tools in Tanaka Trimmers & Brush Cutters Parts category

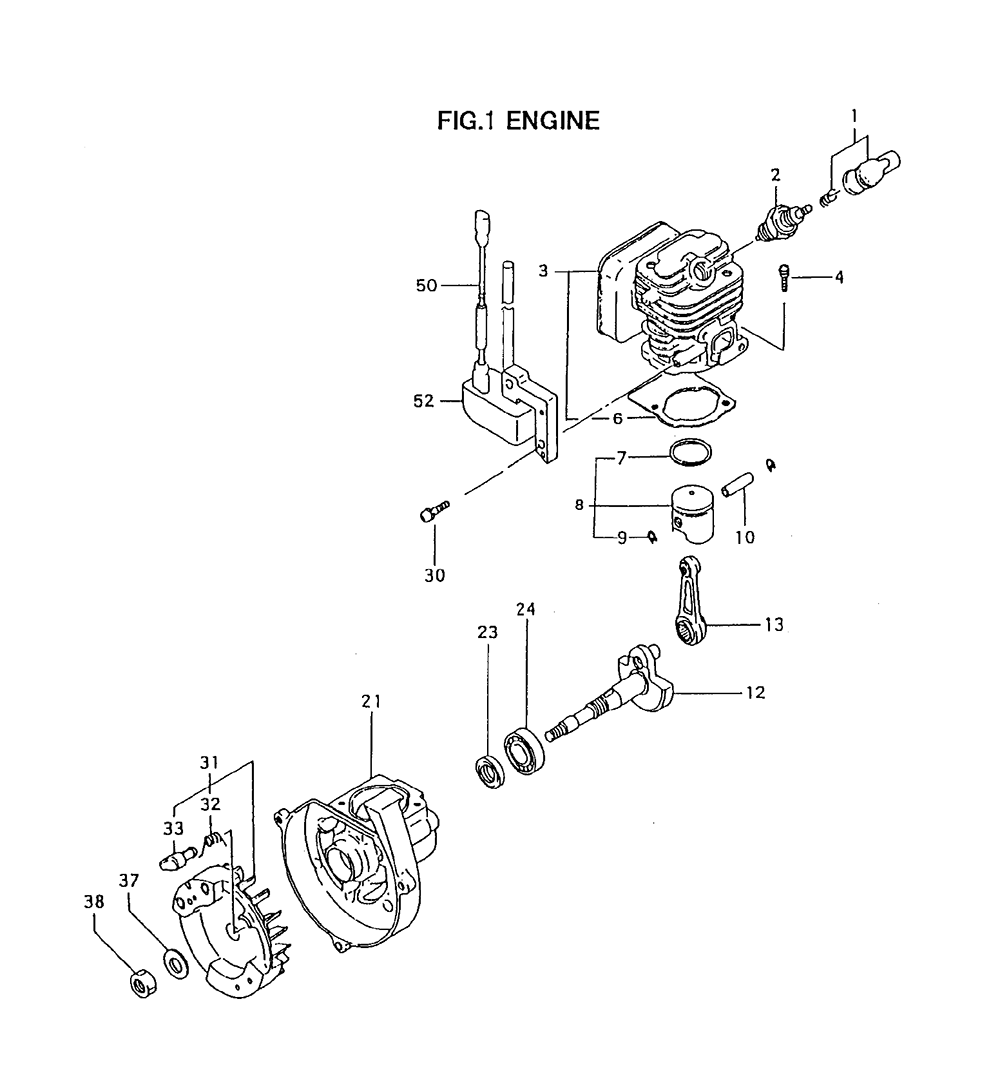

Fig-0

Fig-0

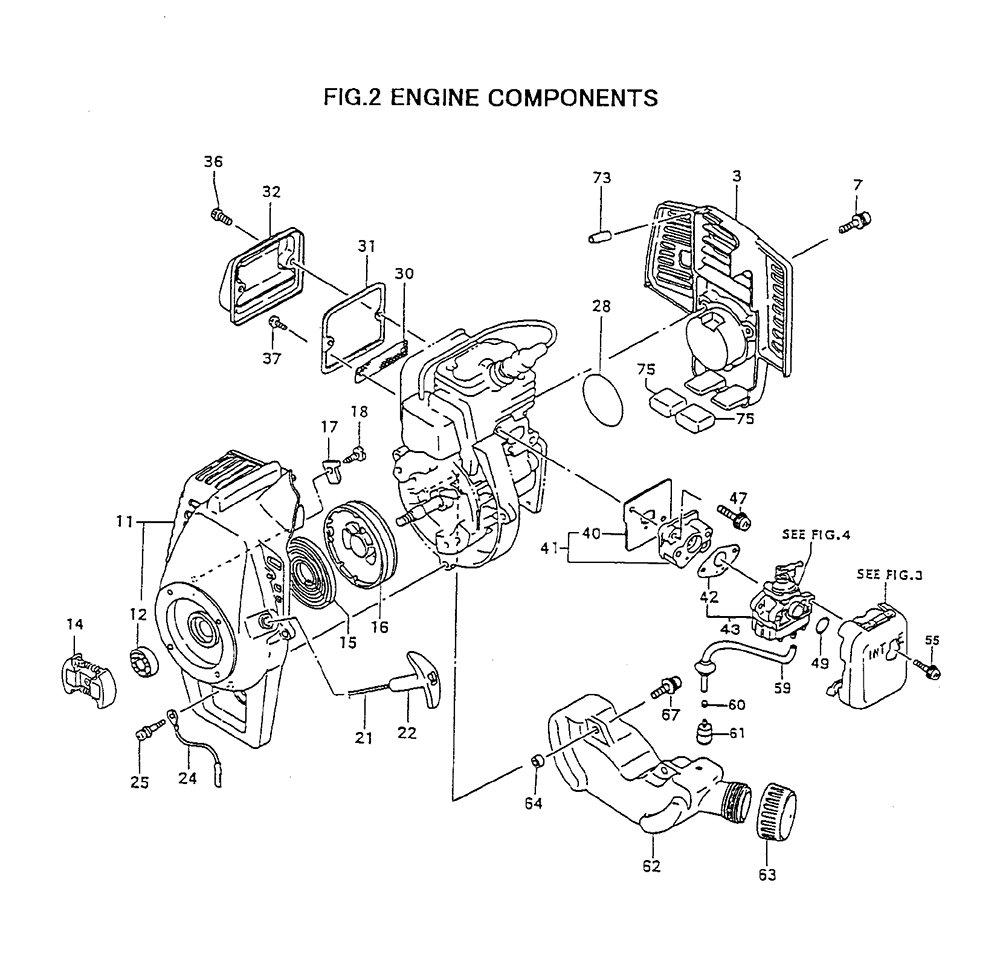

Fig-1

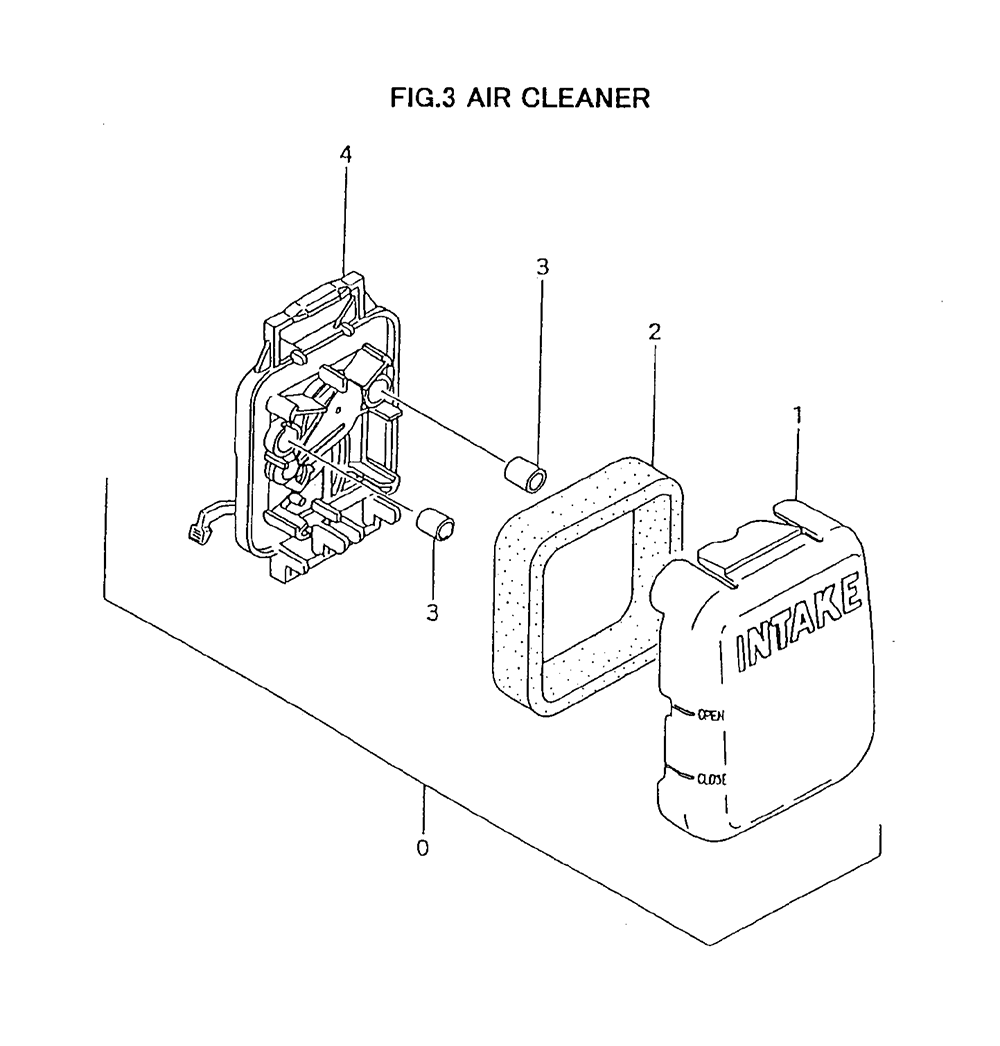

Fig-2

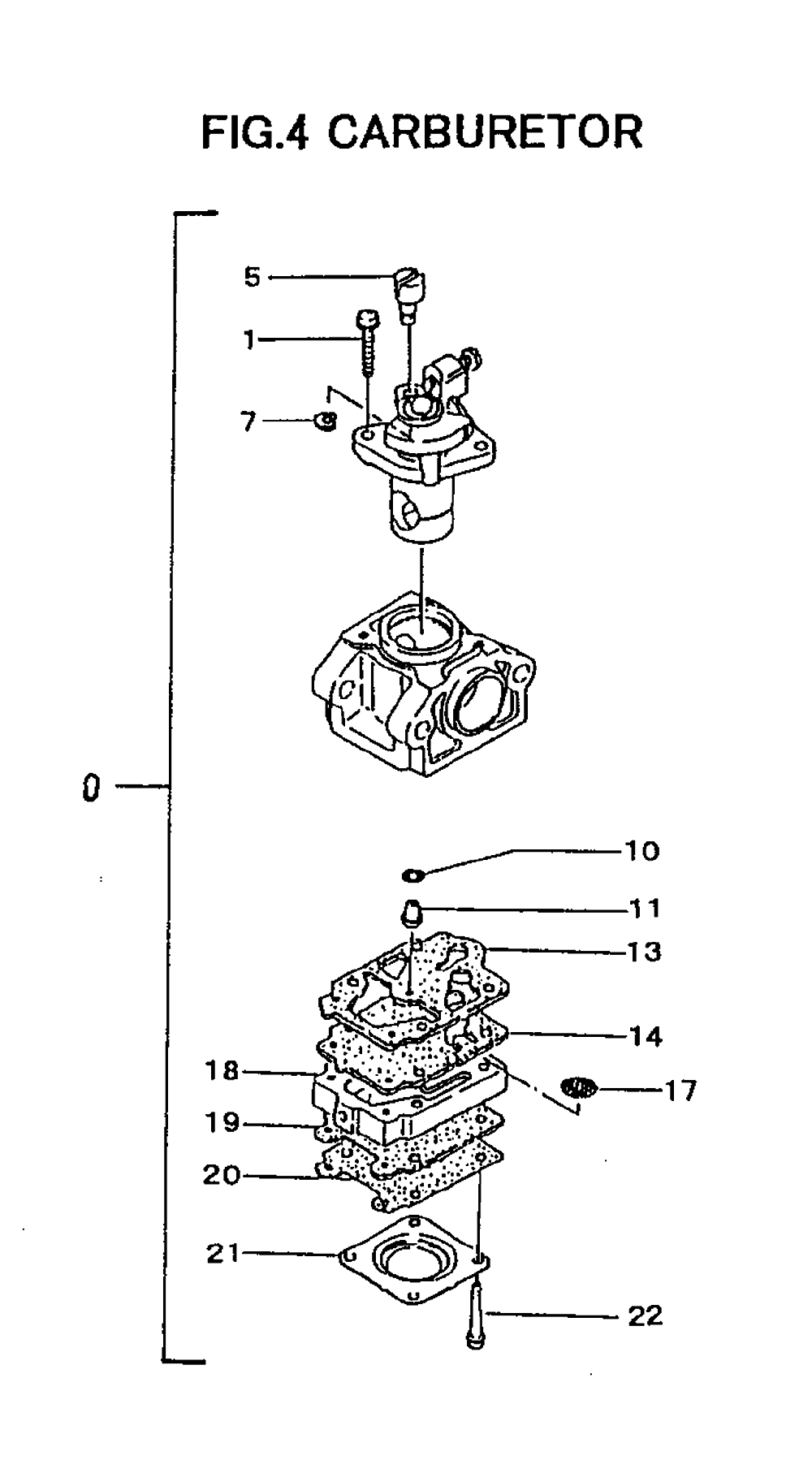

Fig-3

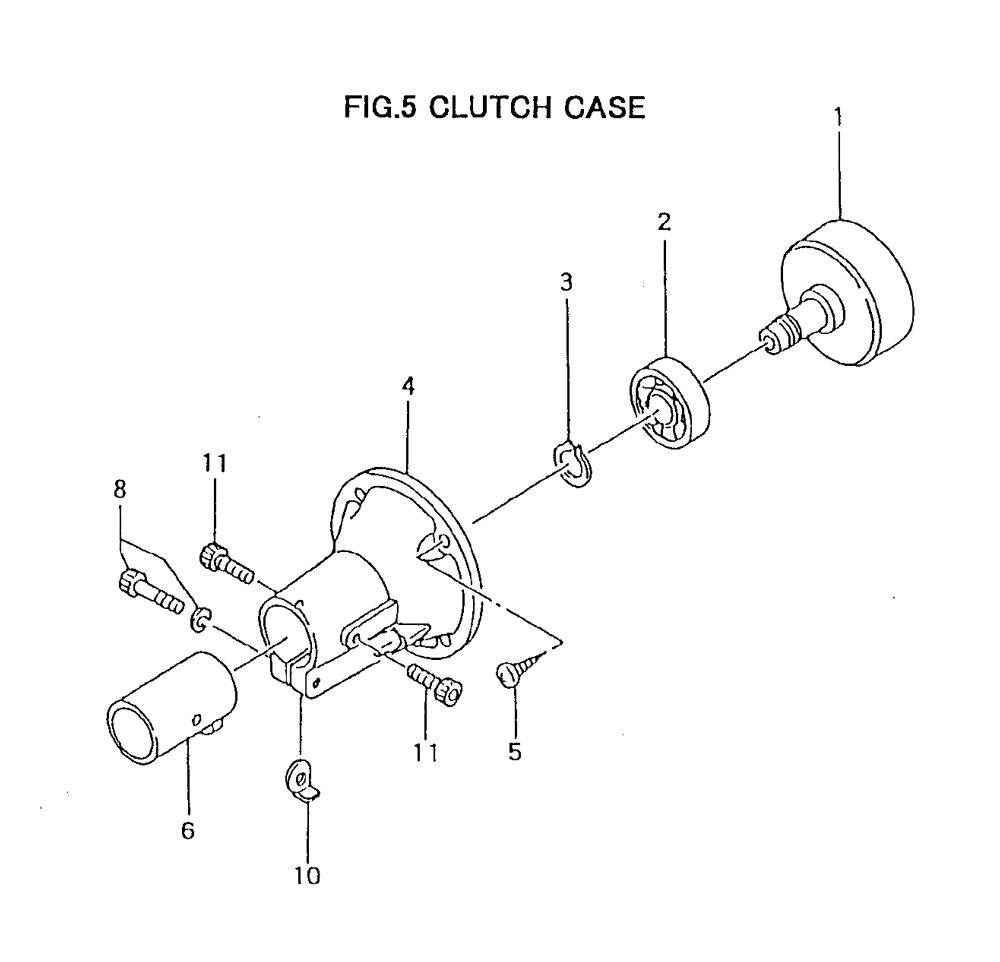

Fig-4

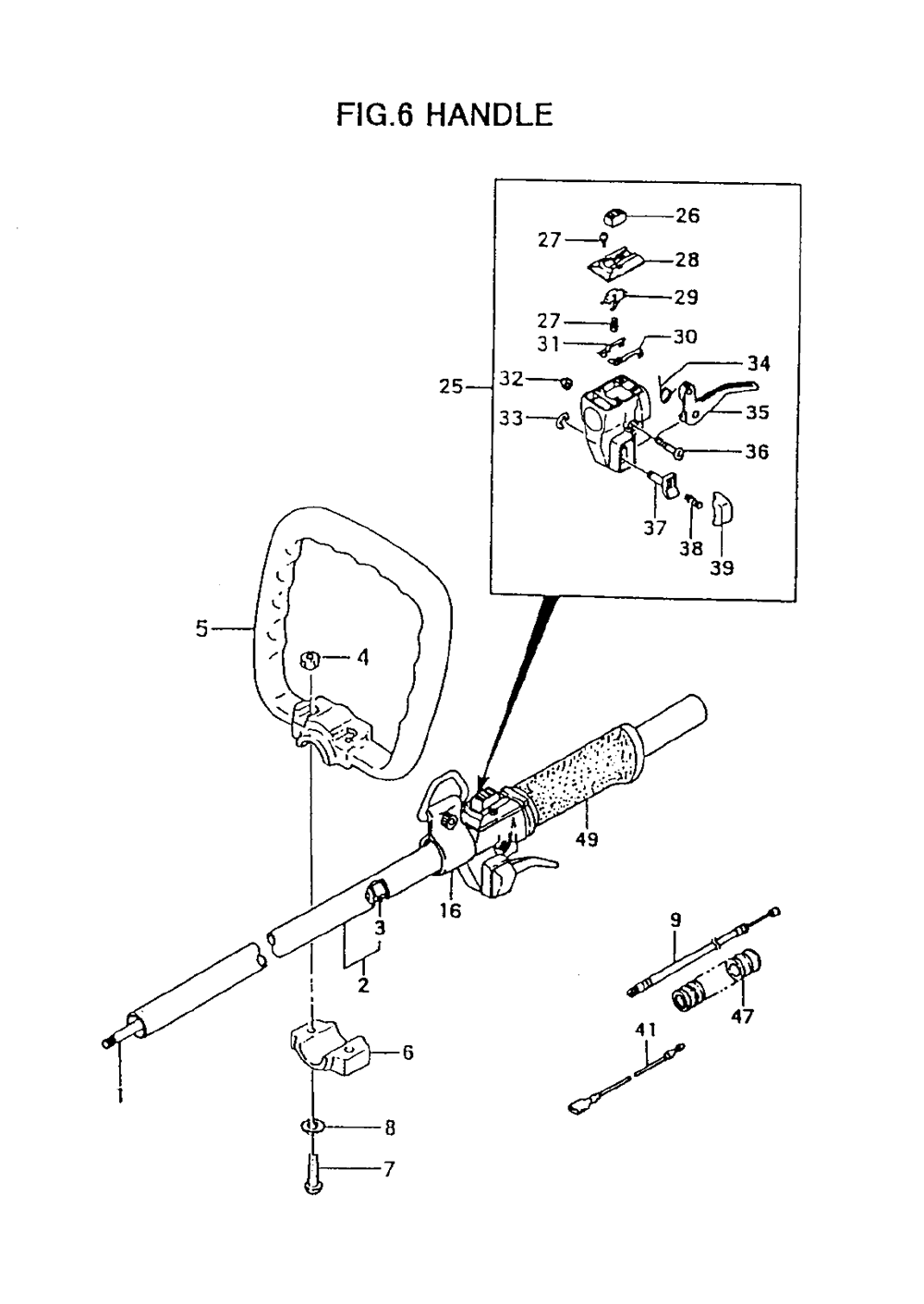

Fig-5

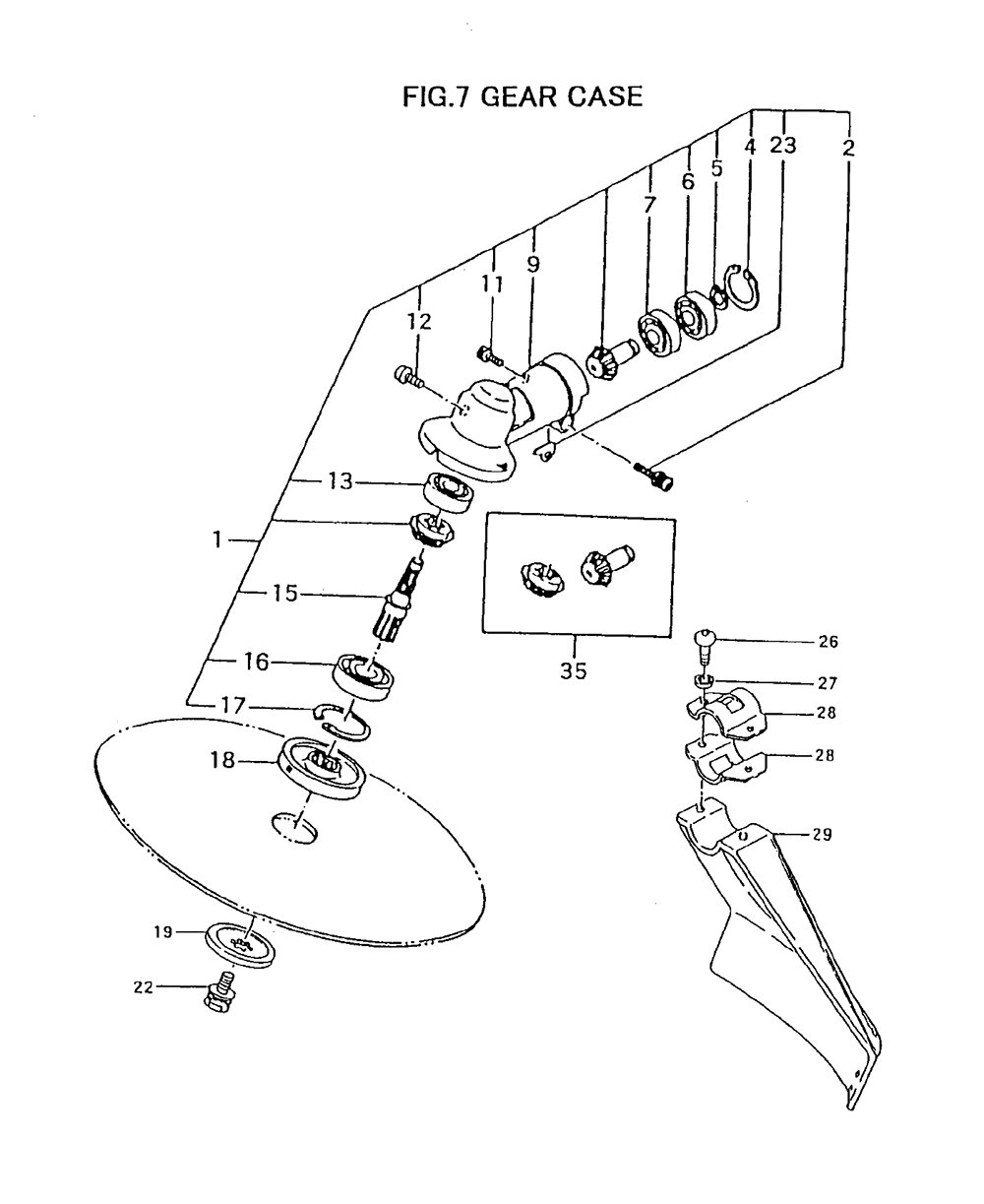

Fig-6

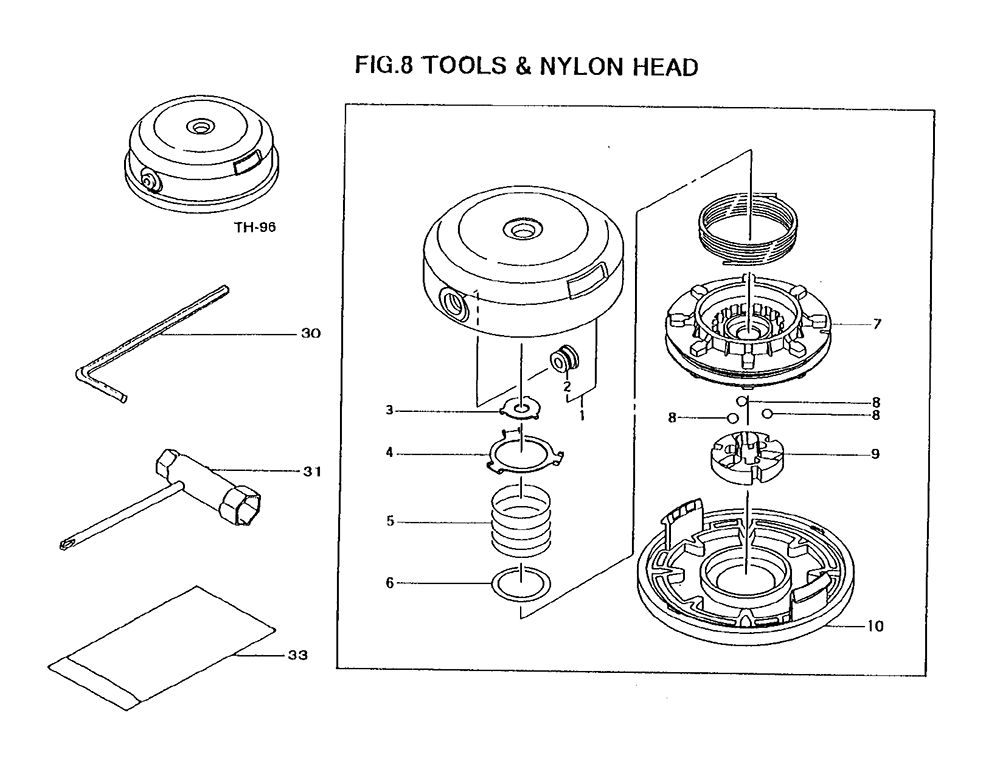

Fig-7

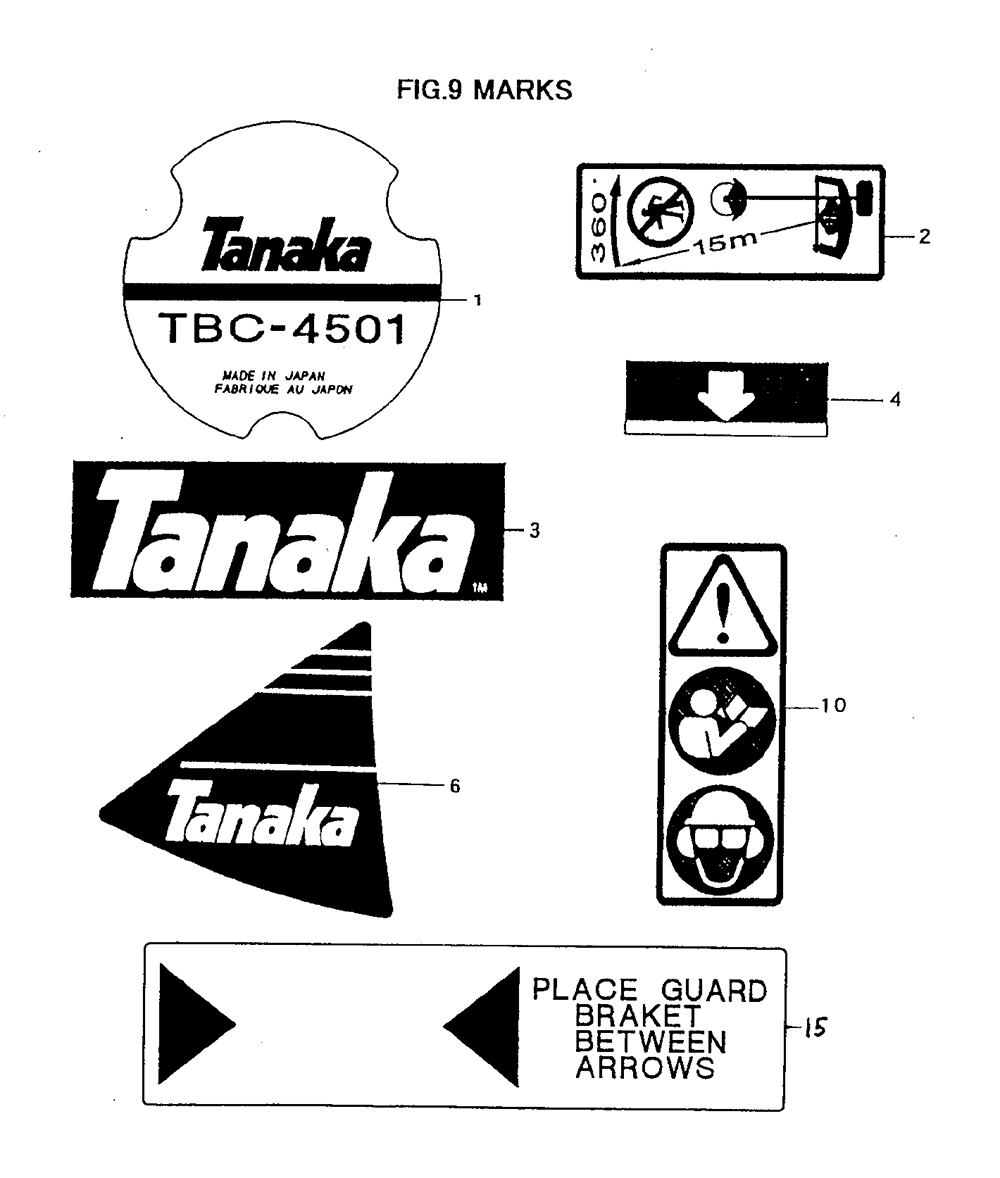

Fig-8

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Tanaka TBC-4501 Replacement Parts List

1-1

Cap,spark Plug,assy TBC-225 Part # 6687468

$3.58
Add to Cart
1-2

Plug,spark Ngk BPM6A Part # 6685085 Currently not available

N/A
1-3

Set,cylinder Part # 6685442 Currently not available

N/A
1-4

SCREW,5X22/WS Part # 6695422

$2.52
Add to Cart
1-6

Gasket,cylinder Part # 6685706 Currently not available

N/A
1-7

Ring,piston Part # 6686116 Currently not available

N/A
1-8

Piston Set Part # 6685868 Currently not available

N/A
1-9

Circlip,piston Pin Part # 6686033 Currently not available

N/A
1-10

Pin,piston Part # 6686014

$3.02
Add to Cart
1-12

Crankshaft Part # 6686143 Currently not available

N/A
1-13

Rod,connecting Part # 6695882 Currently not available

N/A
1-21

Crankcase Part # 6686622 Currently not available

N/A
1-23

SEAL,OIL,UD15257 Part # 6695637

$5.33
Add to Cart
1-24

BEARING,BALL,#6002 32mm/OD Part # 6695536 Currently not available

N/A
1-30

SCREW,4x20 Ws Part # 6695408 Currently not available

N/A
1-31

Rotor,magneto Part # 6687388 Currently not available

N/A
1-32

Spring,pawl Part # 6693341 Currently not available

N/A
1-33

Pawl,starter Part # 6693295 Currently not available

N/A
1-37

WASHER,12 Part # 6685072 Currently not available

N/A
1-38

NUT,12 Part # 6695140

$2.52
Add to Cart
1-50

CORD,STOP,380mm Part # 6687818 Currently not available

N/A
1-52

Coil,ignition Assy Part # 6687351 Currently not available

N/A
2-3

Muffler Protector Part # 6692893 Currently not available

N/A
2-7

SCREW,5x16/PS Part # 6684967 Currently not available

N/A
